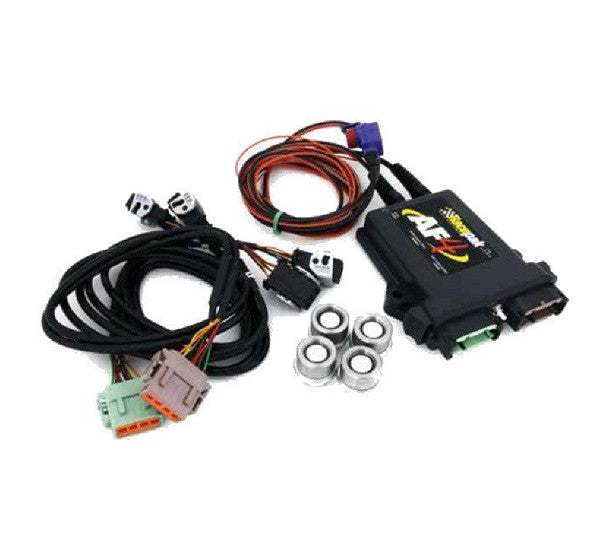

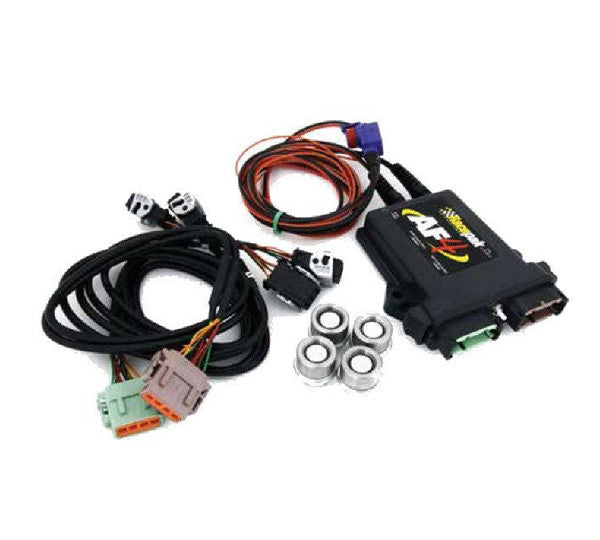

Racepak 4 CHANNEL WIDEBAND CONTROLLER - 220-VM-AF4-5678

4 channel Air/Fuel module and harness for 5-6-7-8 cylinder layout

Part Number: 220-VM-AF4-5678

Racepak has an excellent selection of A/F controllers and sensors created specifically for tuning race engines. Each of these 2 and 4 channel controllers are designed to be connected to the V-Net cable of Racepak V-series recorders. All sensors have a 13" pigtail cable, and the controller has a 37" cable for attachment to the sensor. These lengths cannot be altered. Controllers are ordered by cylinder bank layout._x000D_ _x000D_ Racepak A/F sensors are compatible with either gasoline or methanol fueled engines. Gasoline application will display A/F ratios between 9.55:1 and 20:1, while methanol is shown from 4.22:1 to 8.7:1. Please specify the type of fuel you will be using when ordering. Each sensor includes one weldment and plug. Air/Fuel sensors can be used with all V-Net products and can run on 12-18 volt battery systems._x000D_ _x000D_ Sensors must be ordered separately - PN# 810-SN-AFAMP Racepak A/F sensors are compatible with either gasoline or methanol fueled engines. Gasoline application will display A/F ratios between 9.55:1 and 20:1, while methanol is shown from 4.22:1 to 8.7:1. Please specify the type of fuel you will be using when ordering. Each sensor includes one weldment and plug. Air/Fuel sensors can be used with all V-Net products and can run on 12-18 volt battery systems. Sensors must be ordered separately - PN# 810-SN-AFAMP

Features and Benefits

• Not a Stand-Alone Module, requires a Racepak data logger.
• Controllers are ordered by cylinder bank layout: This unit is a 4 channel Air/Fuel module and harness for 5-6-7-8 cylinder layout
• Four-channel oxygen sensor is suitable for use with gasoline or methanol fueled engines.
• Gasoline application will display A/F ratios between 9.55:1 and 20:1, while methanol is shown from 4.22:1 to 8.7:1.
• Specify the type of fuel you will be using when ordering.
• Pig-Tail lengths cannot be altered.
• The power supply requirement of 12 to 18 volts
• Utilizes V-Net Tee Connectors to form a stacked, linkable sensor chain, simplifying routing while maintaining a clean, professional wiring layout.
• Sensors sold separately.
