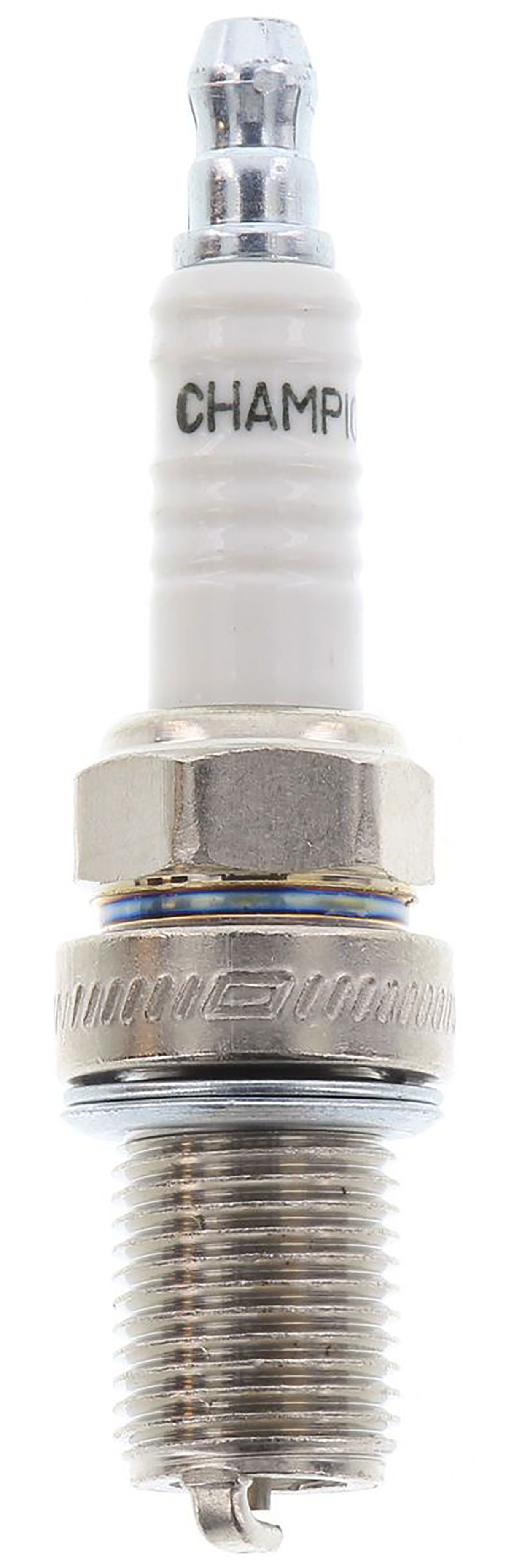

Champion Race Spark Plug 14mm (CHV55C)

CHV55C - CHAMPION - RACE SPARK PLUG

.460" Reach Tapper Seat, J-Gap Non Projected

Part Number: CHV55C

Spark Plug Specifications
Plug Type: V55C
Seat Type: Tapered
Hex Size (Inch): 0.625
Hex Size (MM): 15.880
Thread Size (Inch): 0.551
Thread Size (MM): 14.000
Thread Reach (Inch): 0.441
Taper Diameter (Inch): 0.25
Installed Height (Inch): 2.2
Insulator Projection (Inch): N/A
Gap Style: J Gap
Gap (Inch): 0.023-0.028
Gap (MM): 0.84-0.97
Center Electrdoe Diameter (Inch): 0.1
Center Electrode Material: Nickel Copper Alloy
Ground Electrode Material: Nickel Copper Alloy
Ground Electrode Quantity: 1
Classification: Champion Racing Plugs
Resistor plug: No
Resistor Type: N/A
Manufature Heat Range: 55
Electrical Terminal Type: Non-Removable Nut
