Quick Time | SKU:
RM-2050

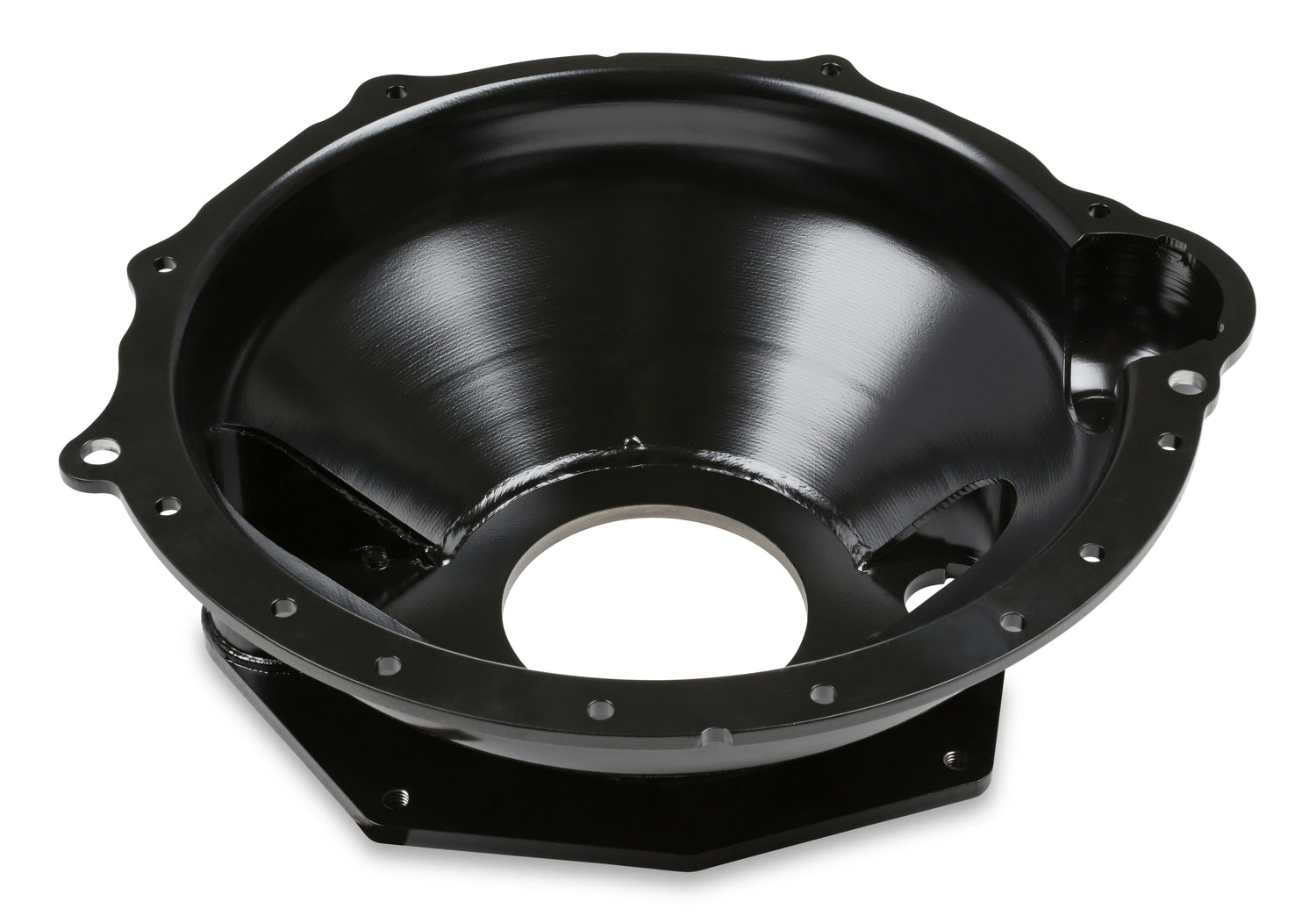

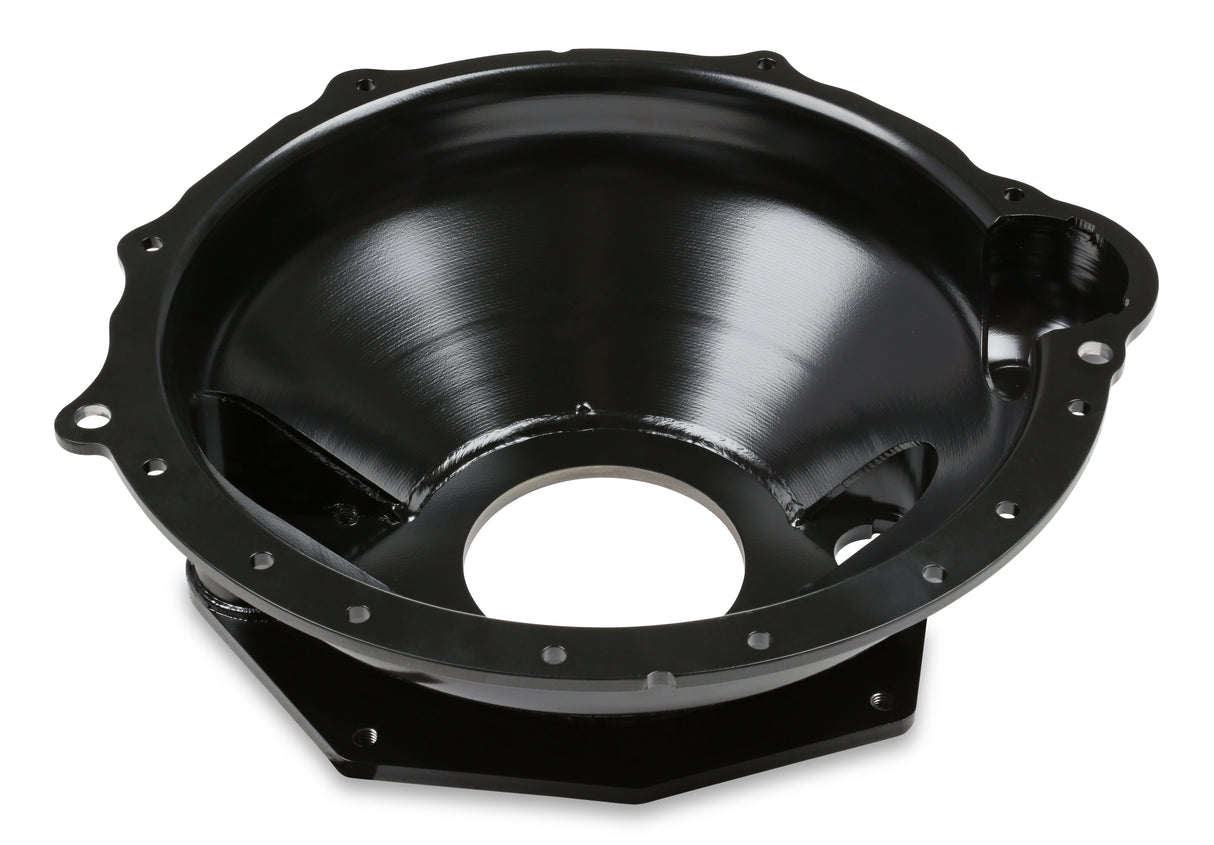

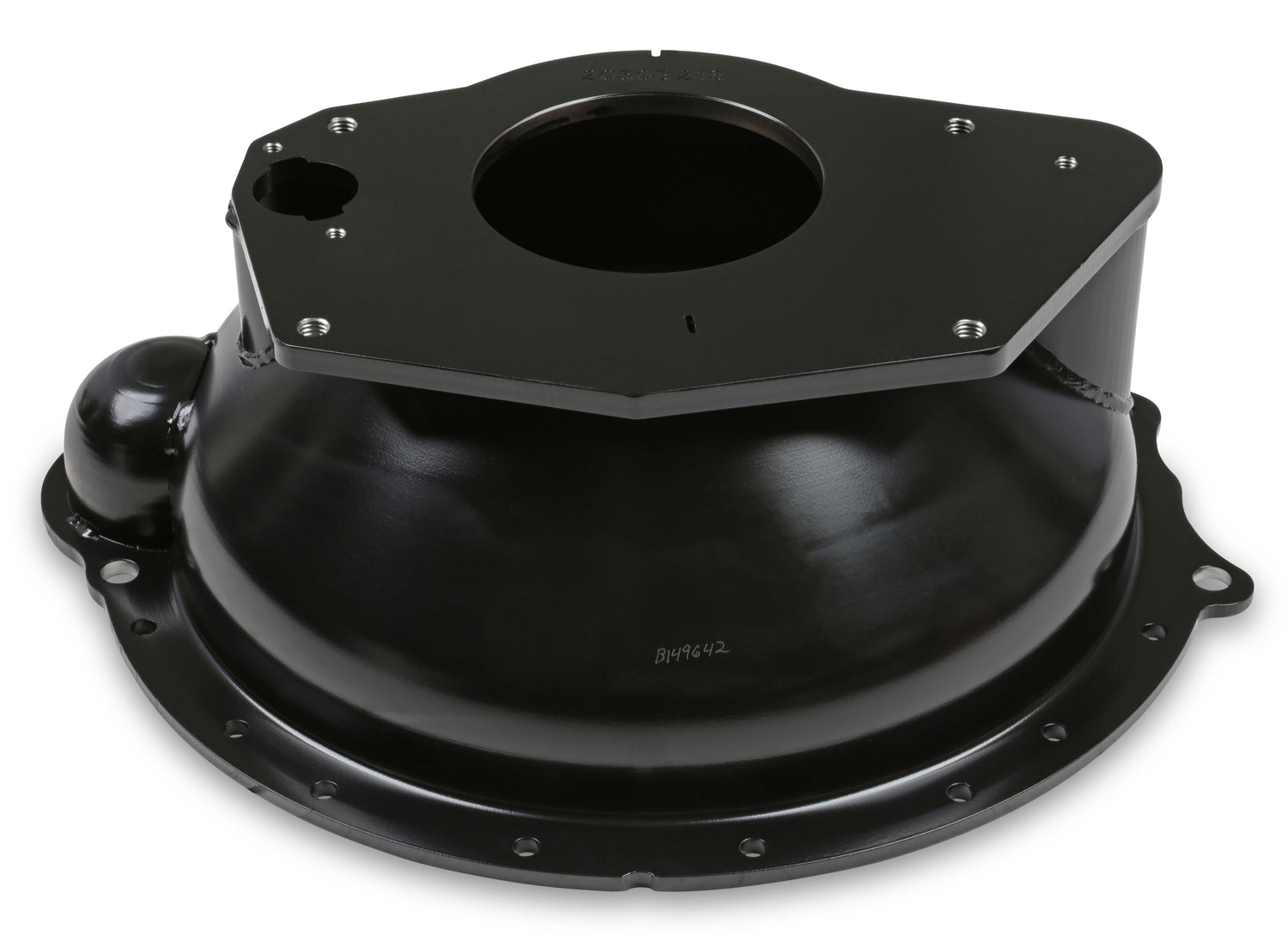

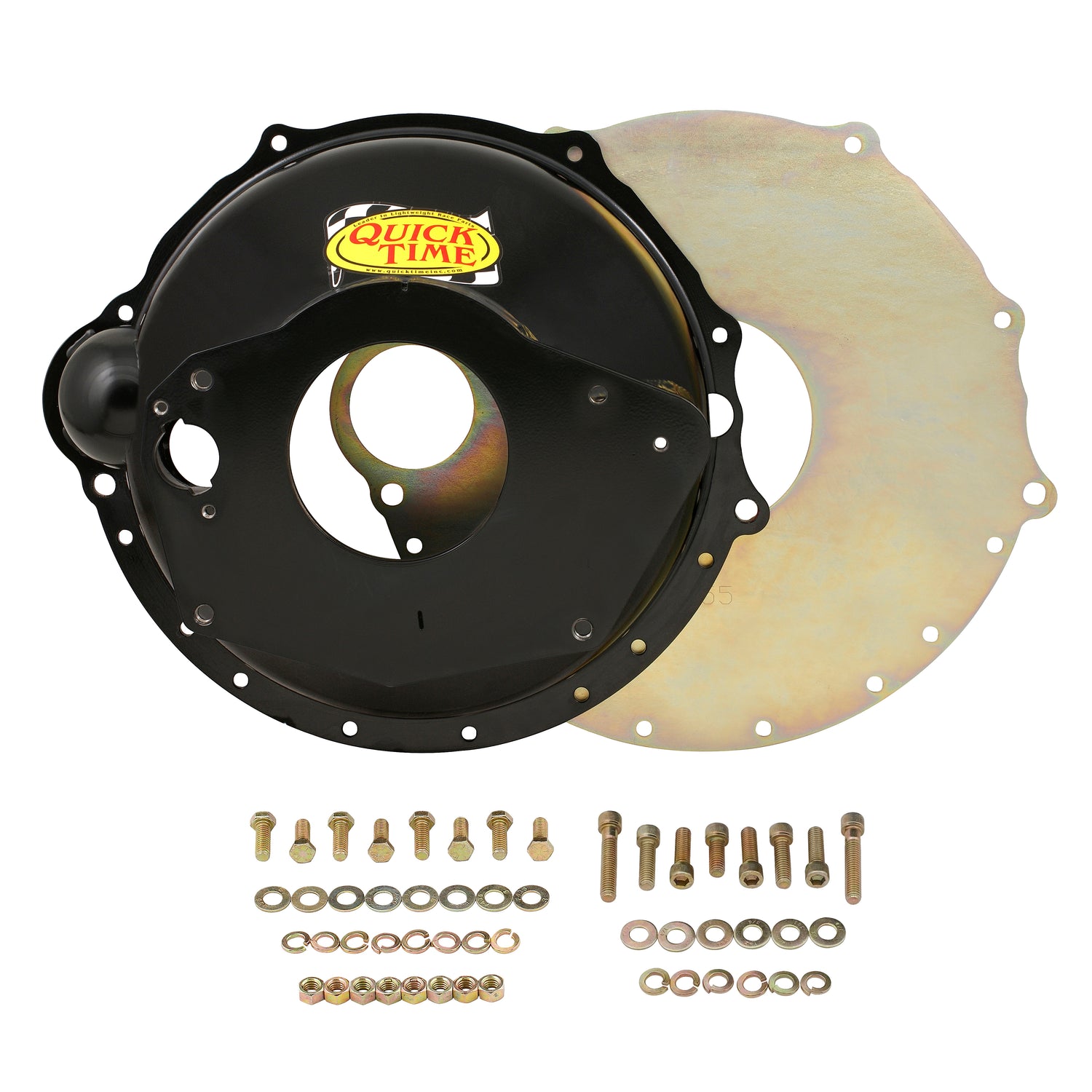

Quick Time Bellhousing - Cummins Diesel - RM-2050
Perfect fit for Cummins Diesel engines with NV4500 transmissions
Regular price
$2,922.20 NZD
+ GST
Unit price
/
Unavailable
Shipping calculated at checkout.
Quick Time Bellhousing - Cummins Diesel - RM-2050 is not in stock at Fast Lane Spares and will ship direct from supplier
⚠ Special Order Item — ships direct from supplier. No returns, exchanges, or cancellations once processed. Please allow 7–20 days shipping.
Stock Status:
Description
Description
Perfect fit for Cummins Diesel engines with NV4500 transmissions
Part Number: RM-2050
Cummins Diesel bellhousing to NV4500 Transmission 12 valve or 24 valve
Features and Benefits
• Quick Time Bellhousings are the most accurate bellhousings available due to our unique manufacturing processes
• QuickTime cones are spun, not rolled or stamped. This allows Quick Time Bellhousings to be the most dimensionally stable Bellhousings available
• Built from high grade steel – Work hardens to over 80,000 PSI strength. Over two times the strength of other steel bellhousings
• 100% built in the USA
• Patent on 16 points of Bellhousing Design & Process
Part Number: RM-2050
Cummins Diesel bellhousing to NV4500 Transmission 12 valve or 24 valve
Features and Benefits
• Quick Time Bellhousings are the most accurate bellhousings available due to our unique manufacturing processes
• QuickTime cones are spun, not rolled or stamped. This allows Quick Time Bellhousings to be the most dimensionally stable Bellhousings available
• Built from high grade steel – Work hardens to over 80,000 PSI strength. Over two times the strength of other steel bellhousings
• 100% built in the USA
• Patent on 16 points of Bellhousing Design & Process
Specifications
Specifications
-
Specifications

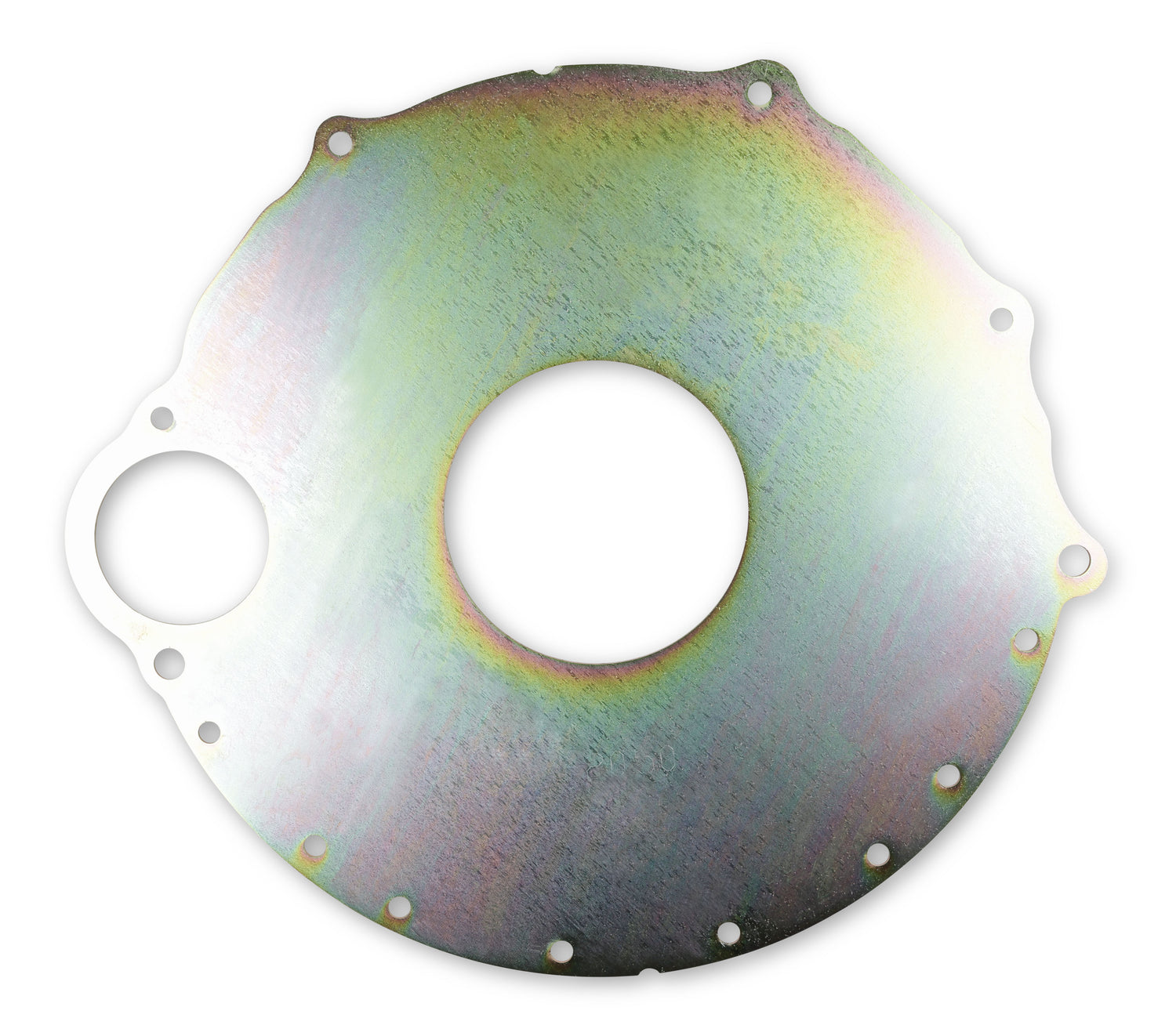

Brand Quick Time Category Transmission Certification 6.1 SFI Clutch 12.25" Clutch Disc Clutch Diameter 12.25 inch Clutch Disc Clutch Operation Hydraulic Color Black Emission Code 5 Engine Cummins Diesel Engine Make Cummins Engine Plate RM-2050-C Finish Semi-gloss Flywheel 152 Tooth Height 6.688 inch Make Cummins Material Steel part type Transmission Bell Housing Patented yes Product Type Bellhousing SFI Approved Yes SFI Certification 6.1 Sub Category Transmission Hard Parts Trans Bore 5.594 Trans. Bore Diameter 5.594 inch Transmission NV4500 Transmission Type Manual Warranty Manufacturer's Limited 90 Day Warranty Weight 26# Weight (lb) 26 -
