Quick Time  |  SKU: RM-6036MWA

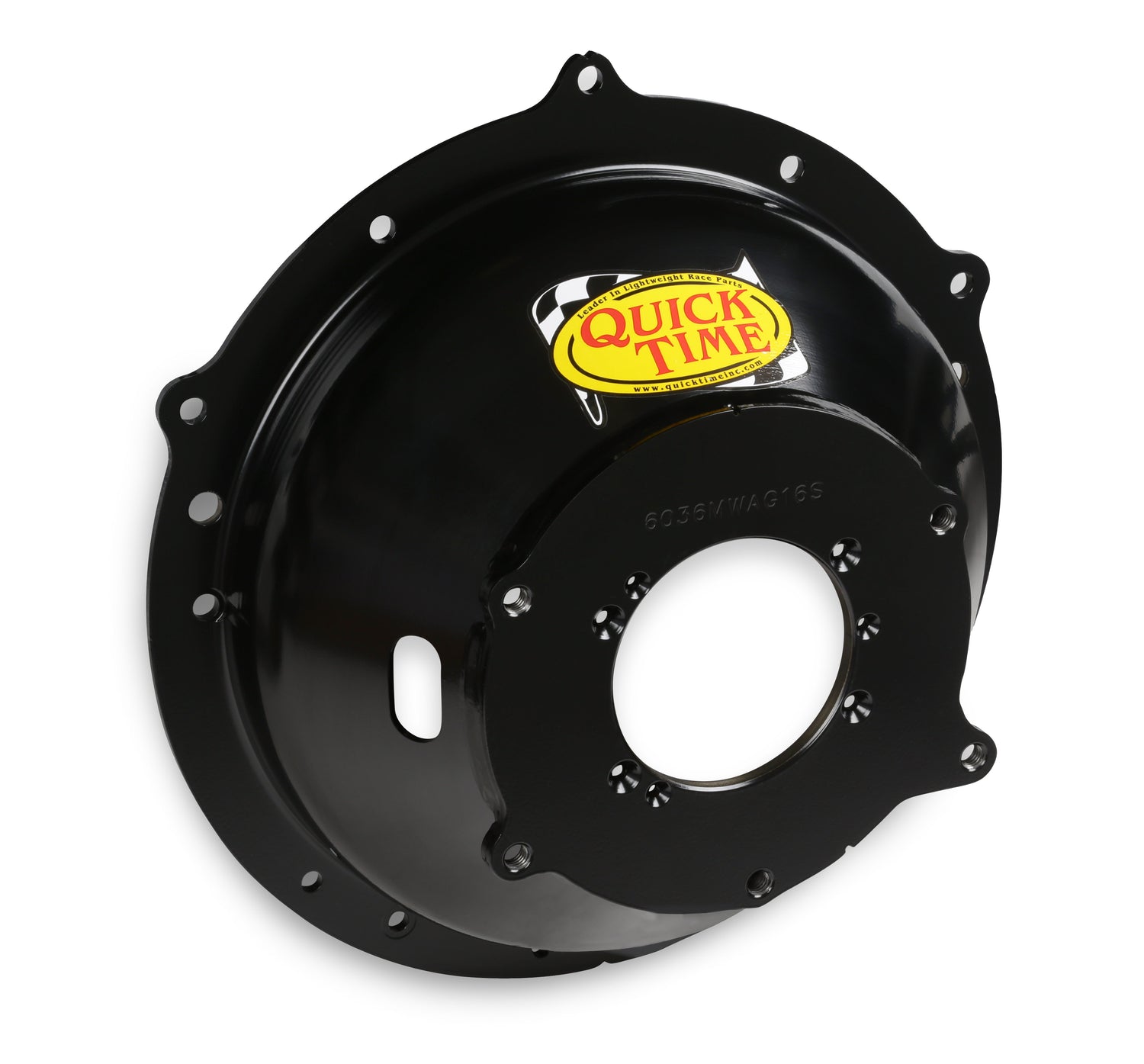

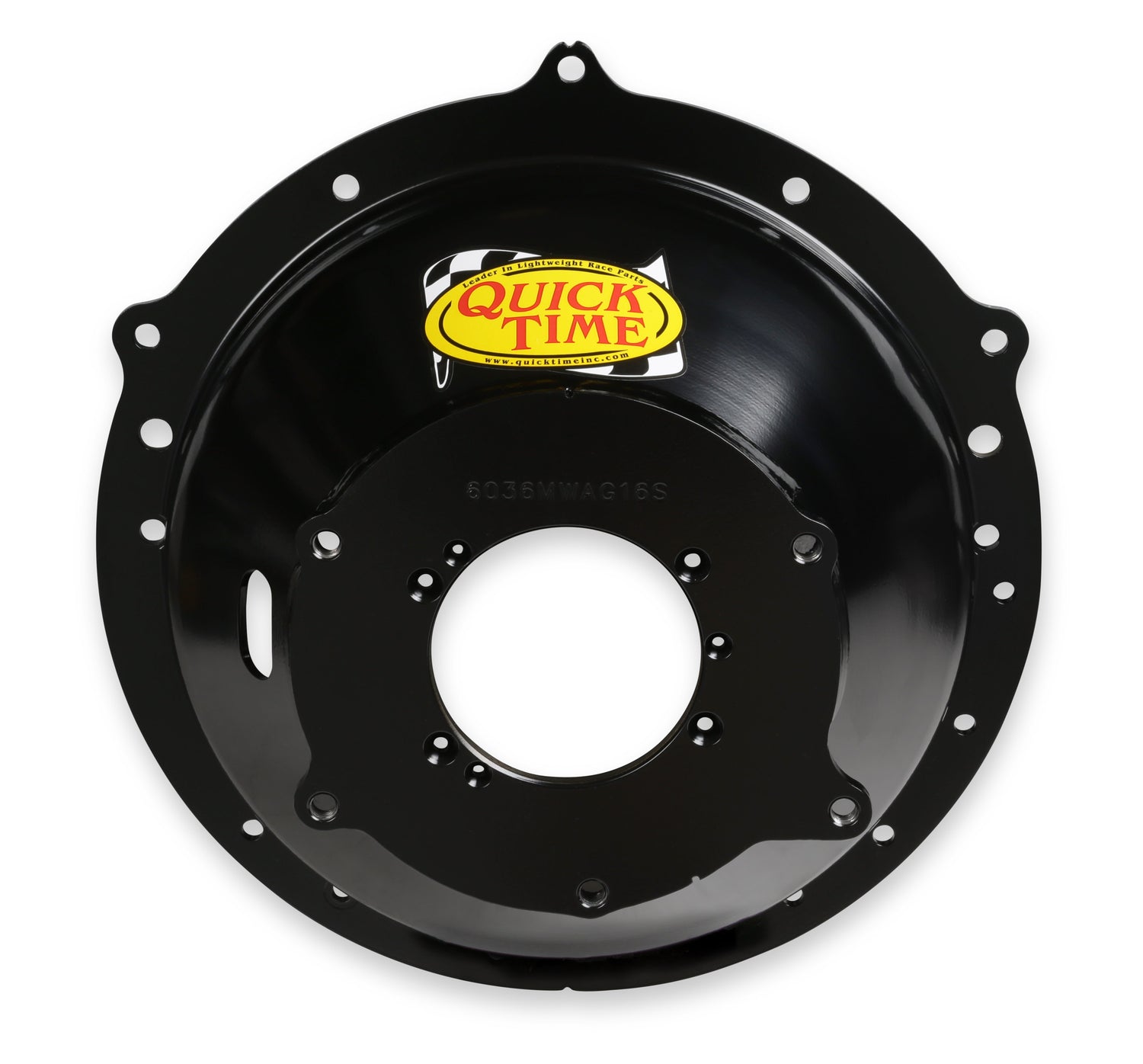

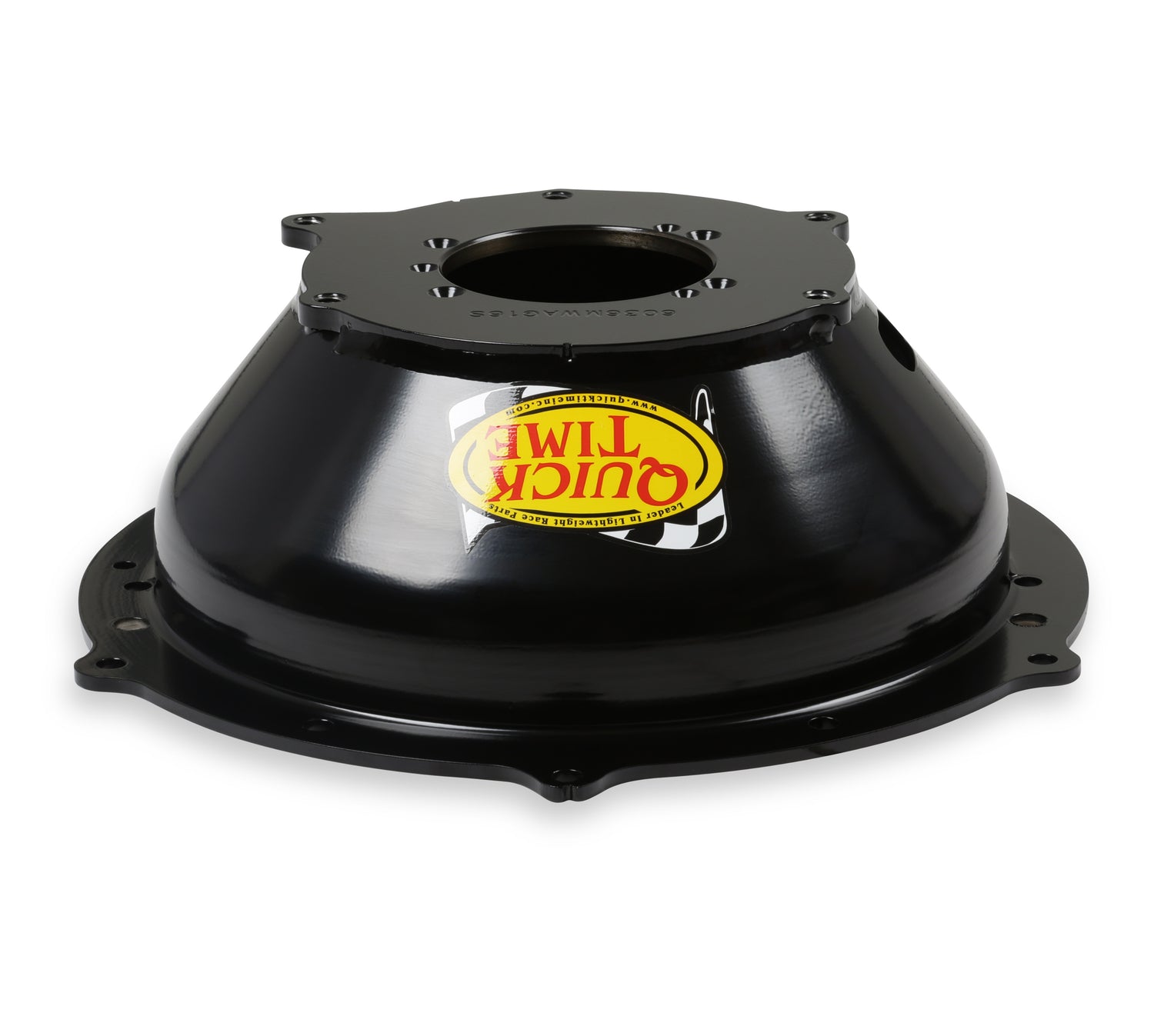

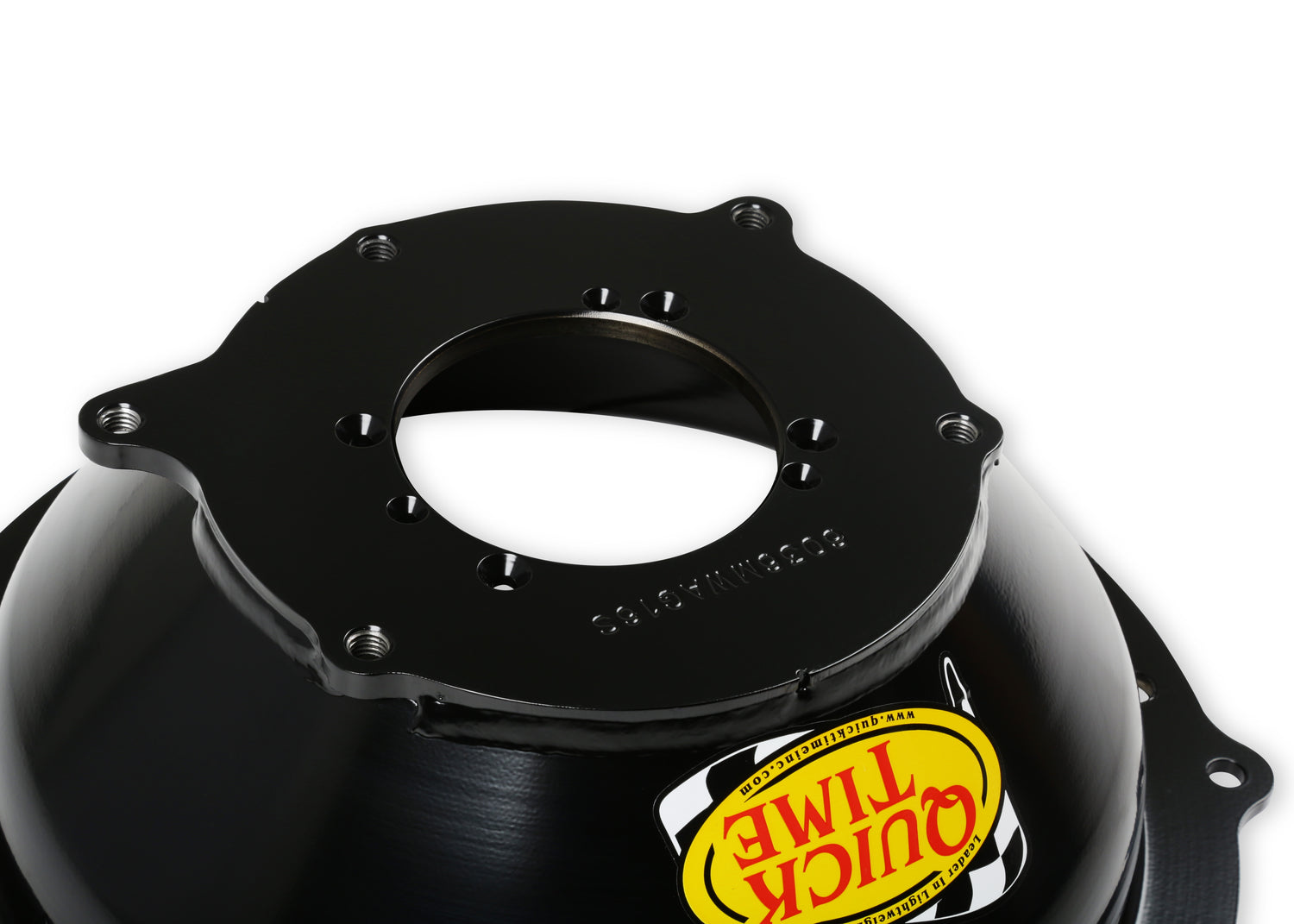

Quick Time BELLHOUSING - CHEVY LS - WITHOUT STARTER POCKET - RM-6036MWA

Fits Chevy LS engines with Muncie, Jerico, and GM style TKX, TKO 500/600, or T5 Transmissions

Regular price $2,303.40 NZD + GST
Shipping calculated at checkout.
⚠ Special Order Item — ships direct from supplier. No returns, exchanges, or cancellations once processed. Please allow 7–20 days shipping.

Description

Fits Chevy LS engines with Muncie, Jerico, and GM style TKX, TKO 500/600, or T5 Transmissions

Part Number: RM-6036MWA

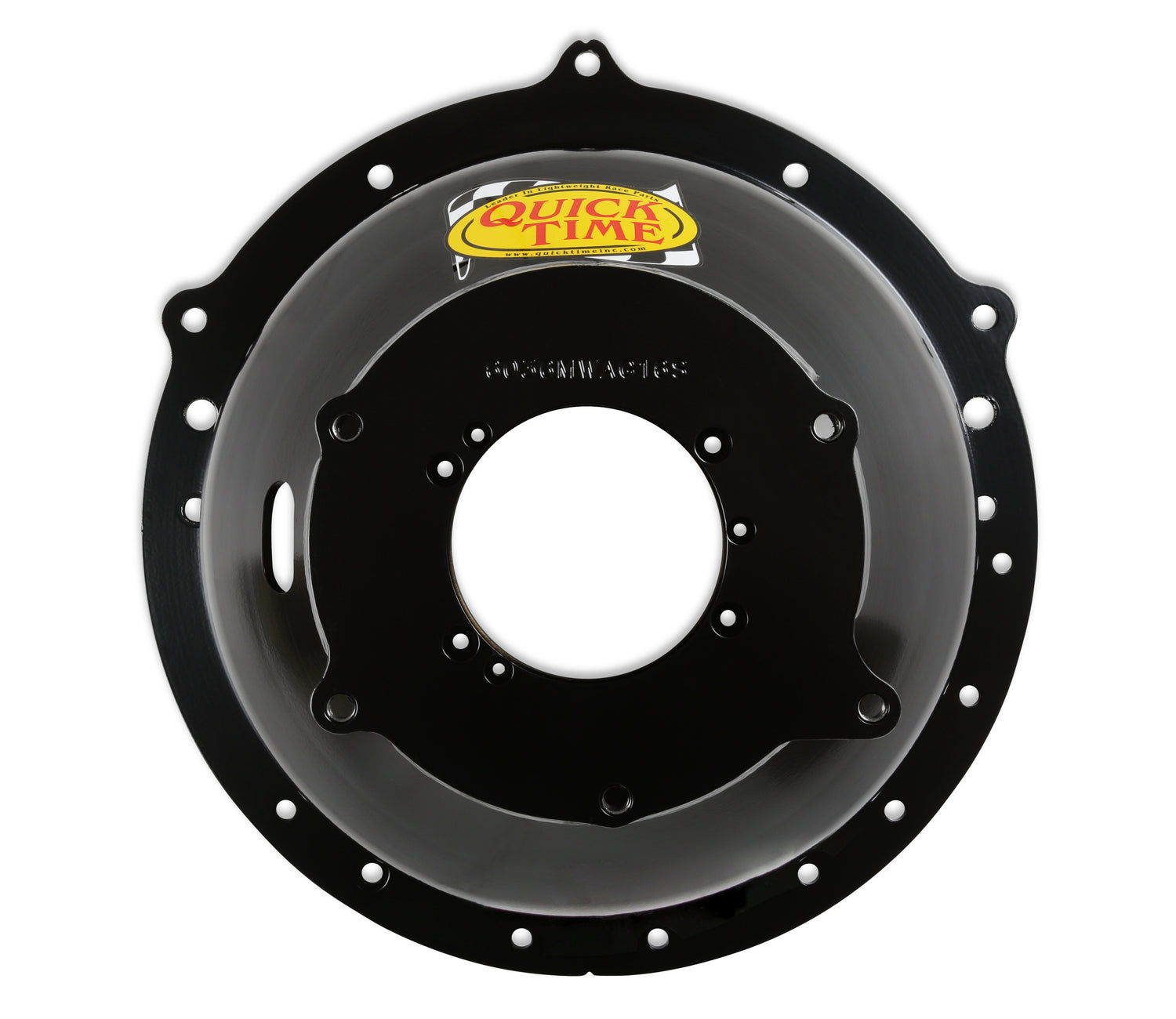

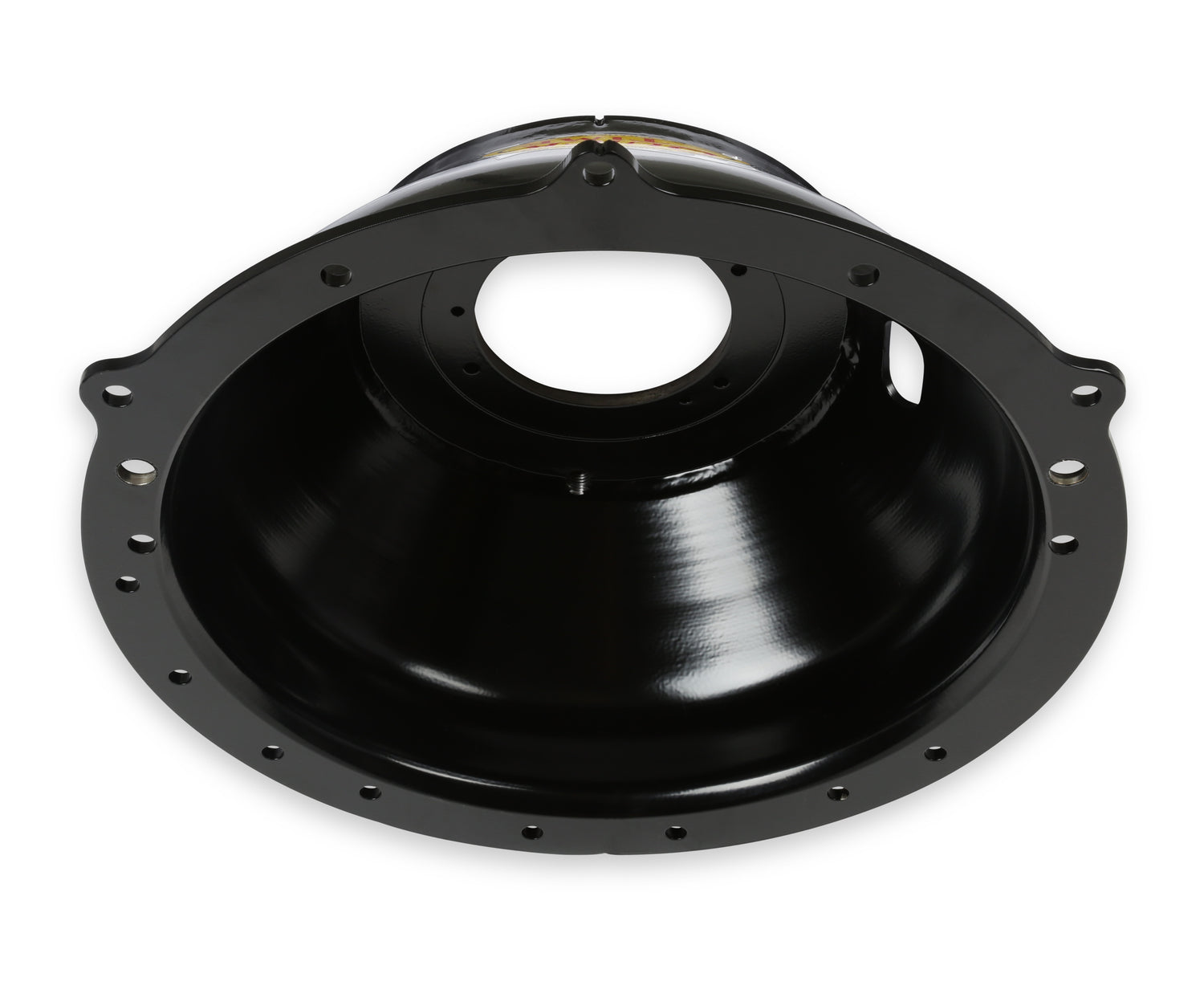

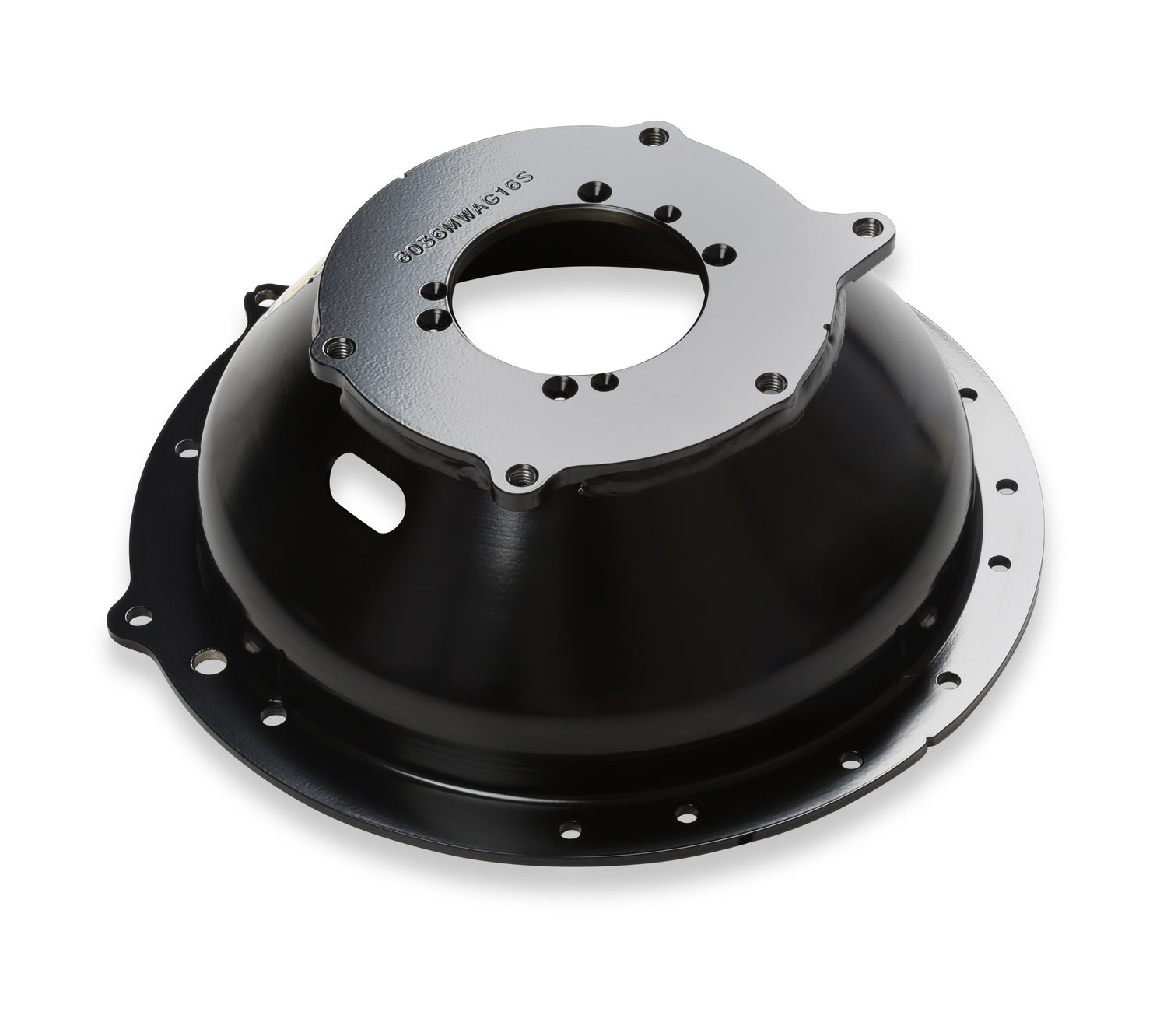

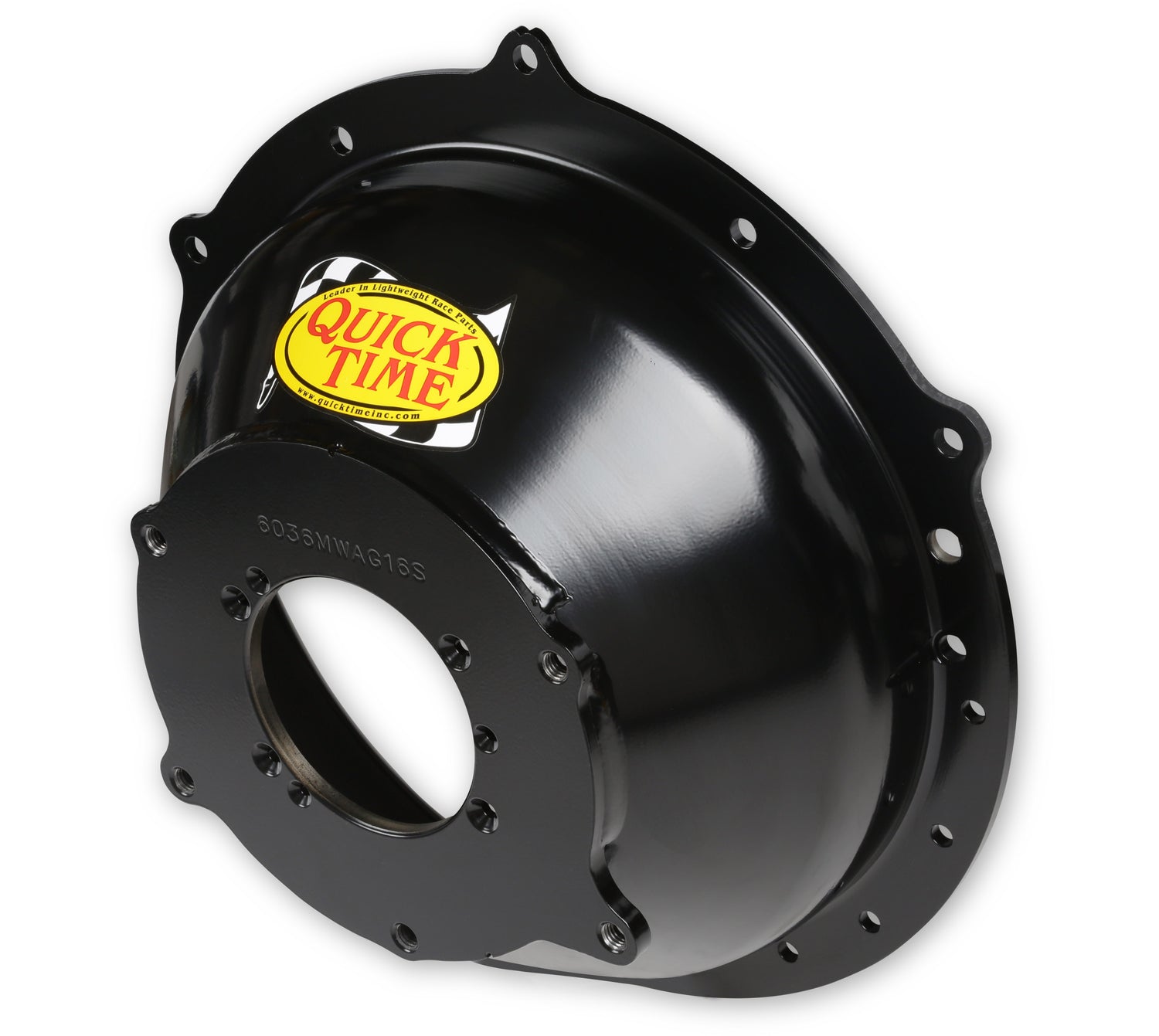

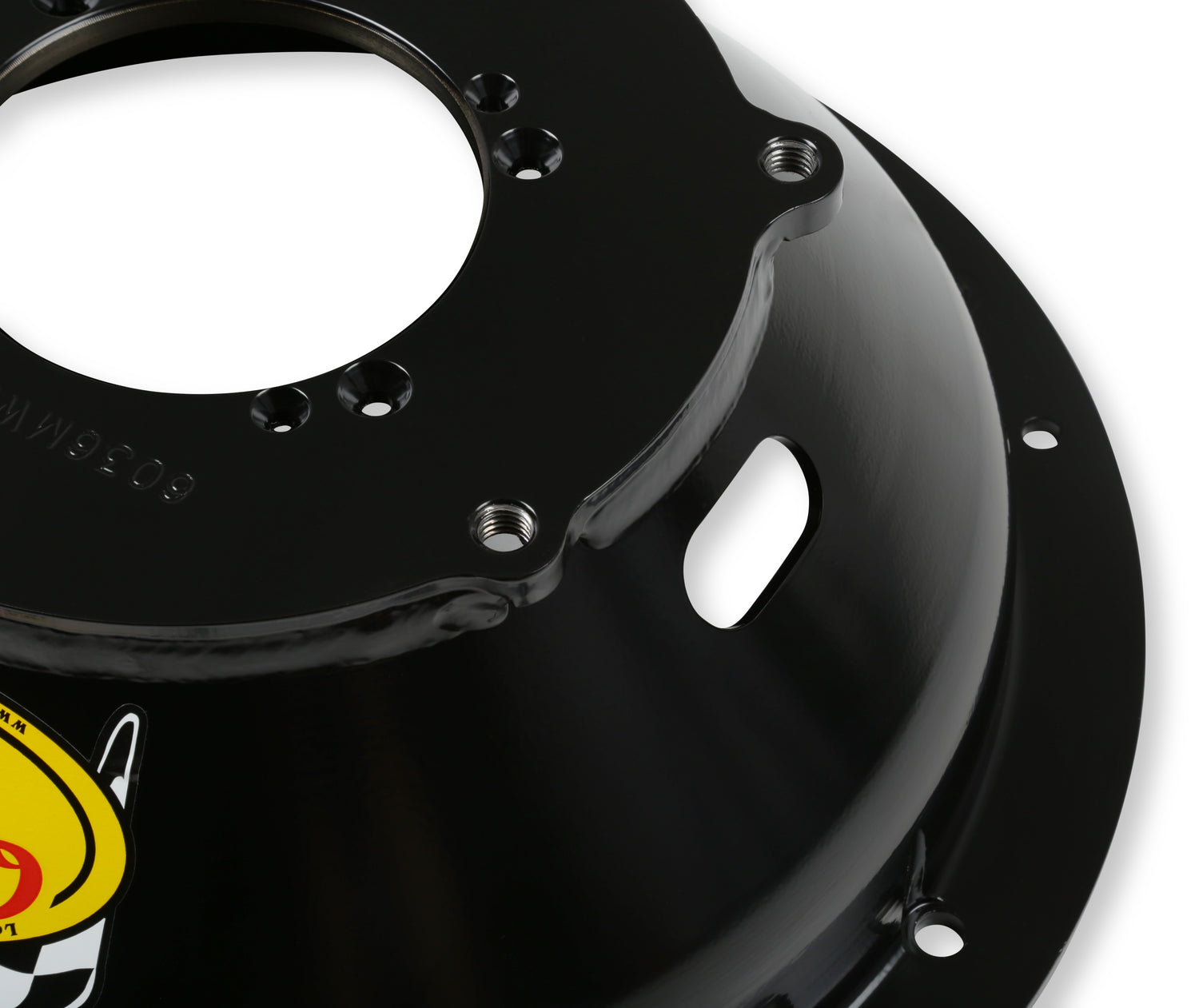

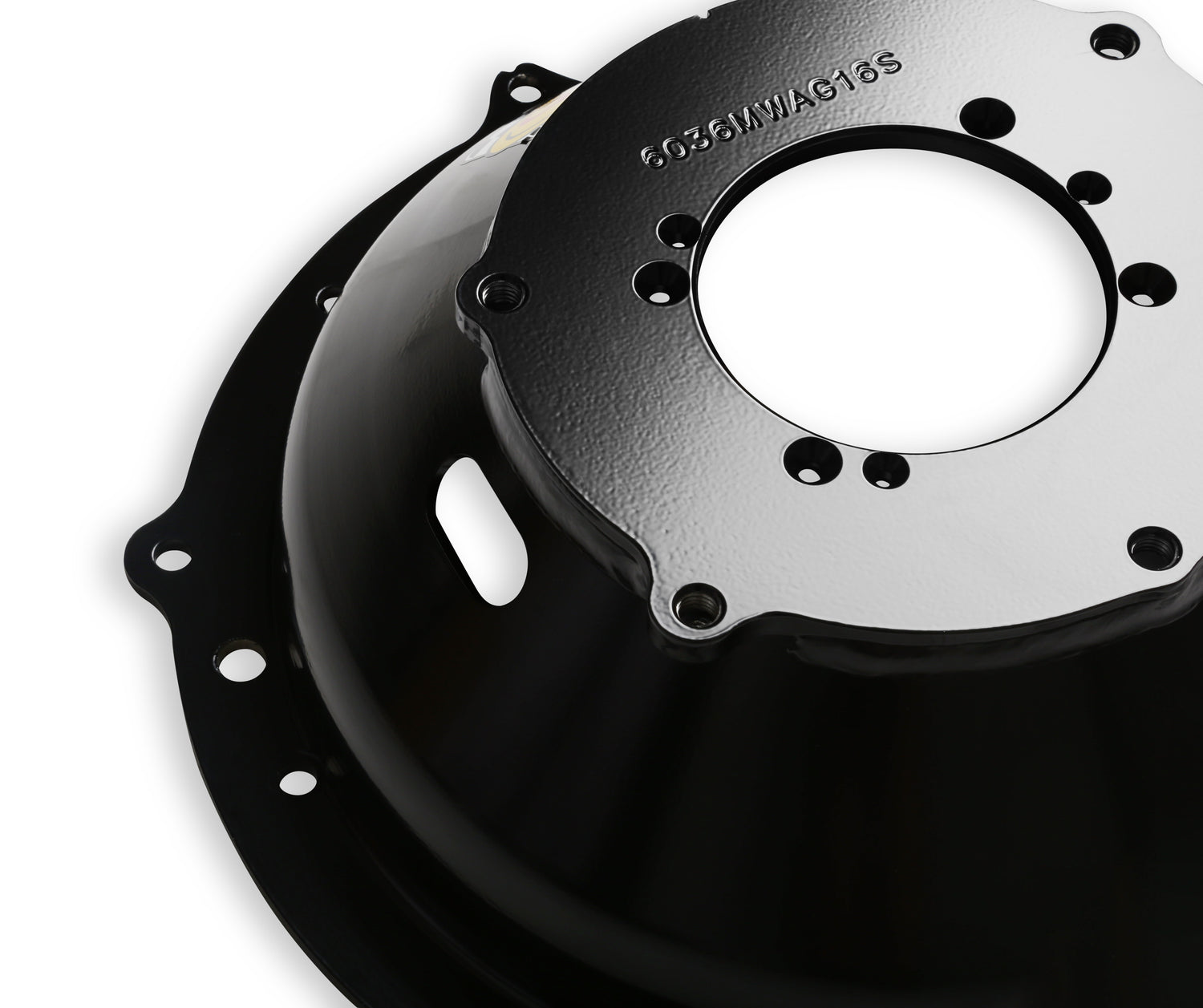

This Quick Time bellhousing connects GM LS Engines to Manual transmissions utilizing the GM standard pattern such as the Muncie, Borg Warner/Tremec GM style T5, or TKO 500/600. This bellhousing does not have a starter pocket making it perfect for applications using an engine plate and a custom starter. It is S.F.I. 6.1 certified which is required by many sanctioning bodies for cars running 11.49 or faster in the quarter mile and is not vehicle specific. The Quick Time bellhousings are produced using a unique spin-forming process which results in a very high-strength material. This high material strength allows the Quick Time bellhousings to be lightweight while maintaining the protection you desire.

Features and Benefits

• Quick Time Bellhousings are the most accurate bellhousings available due to our unique manufacturing processes
• Quick Time cones are spun, not rolled or stamped - This allows Quick Time Bellhousings to be the most dimensionally stable bellhousings available
• Built from high-grade steel - Work hardens to over 80,000 PSI strength, over two times the strength of other steel bellhousings
• 100% built in the USA
• Patent on 16 points of bellhousing design & process
• 6.1 SFI certification

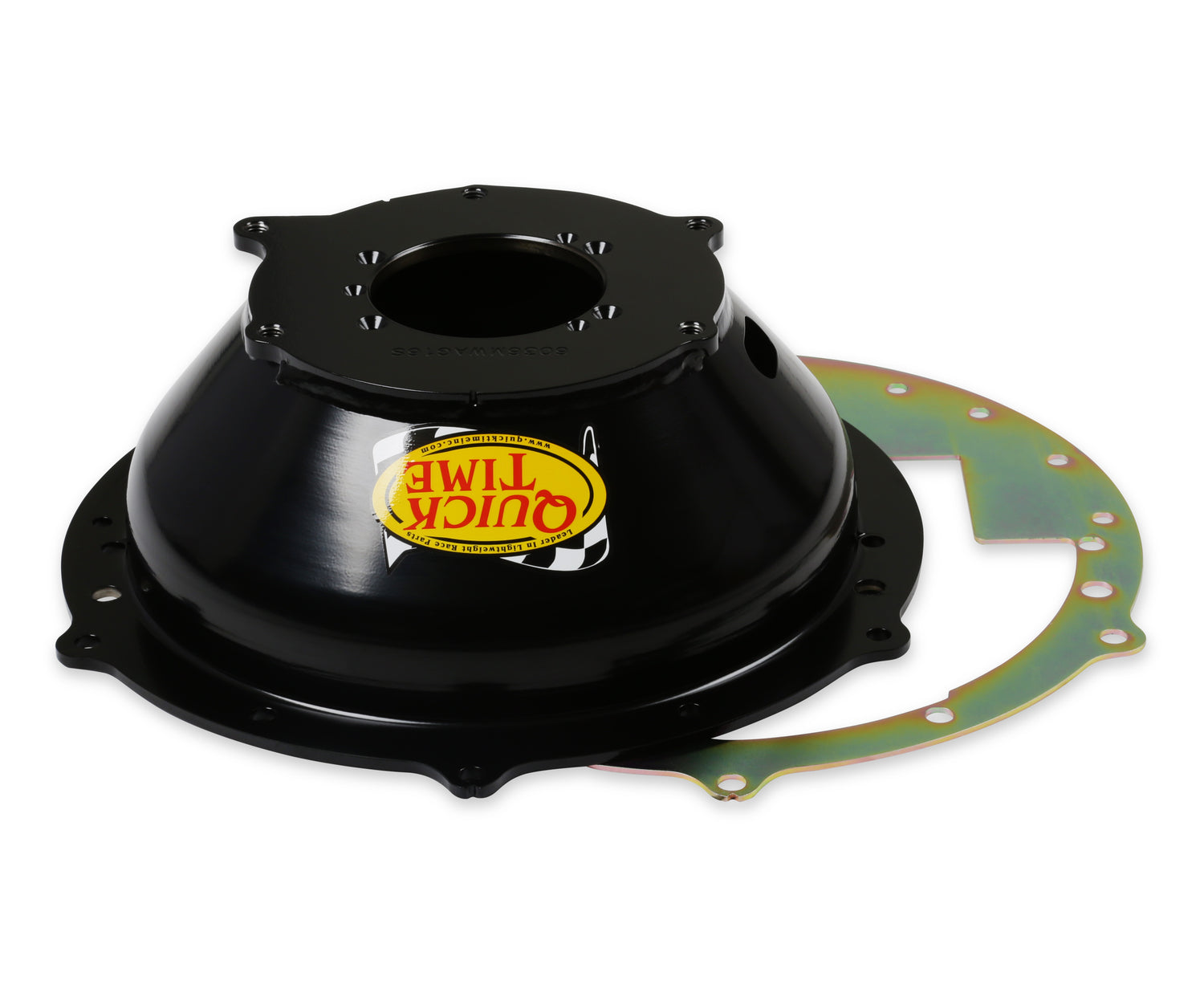

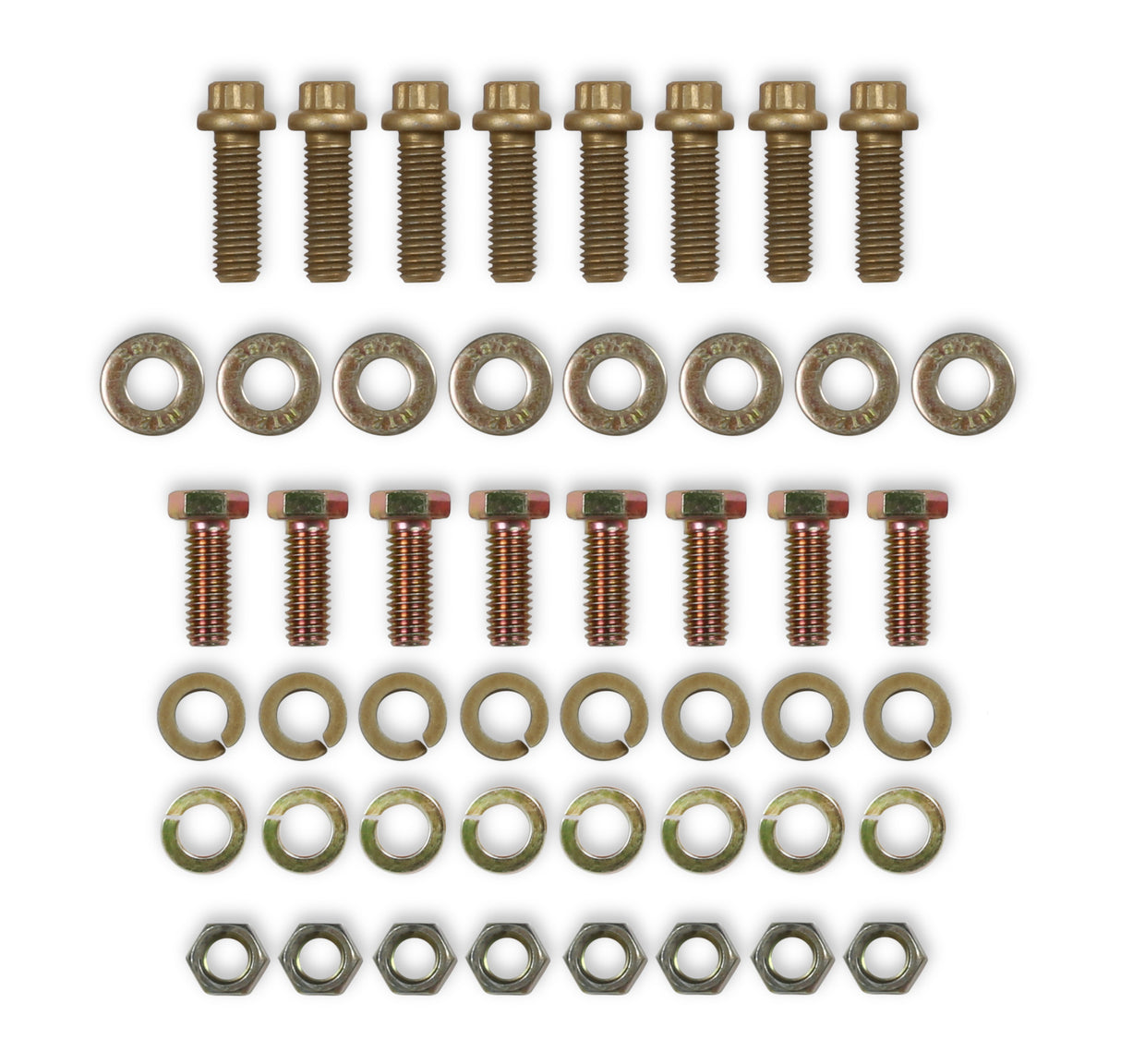

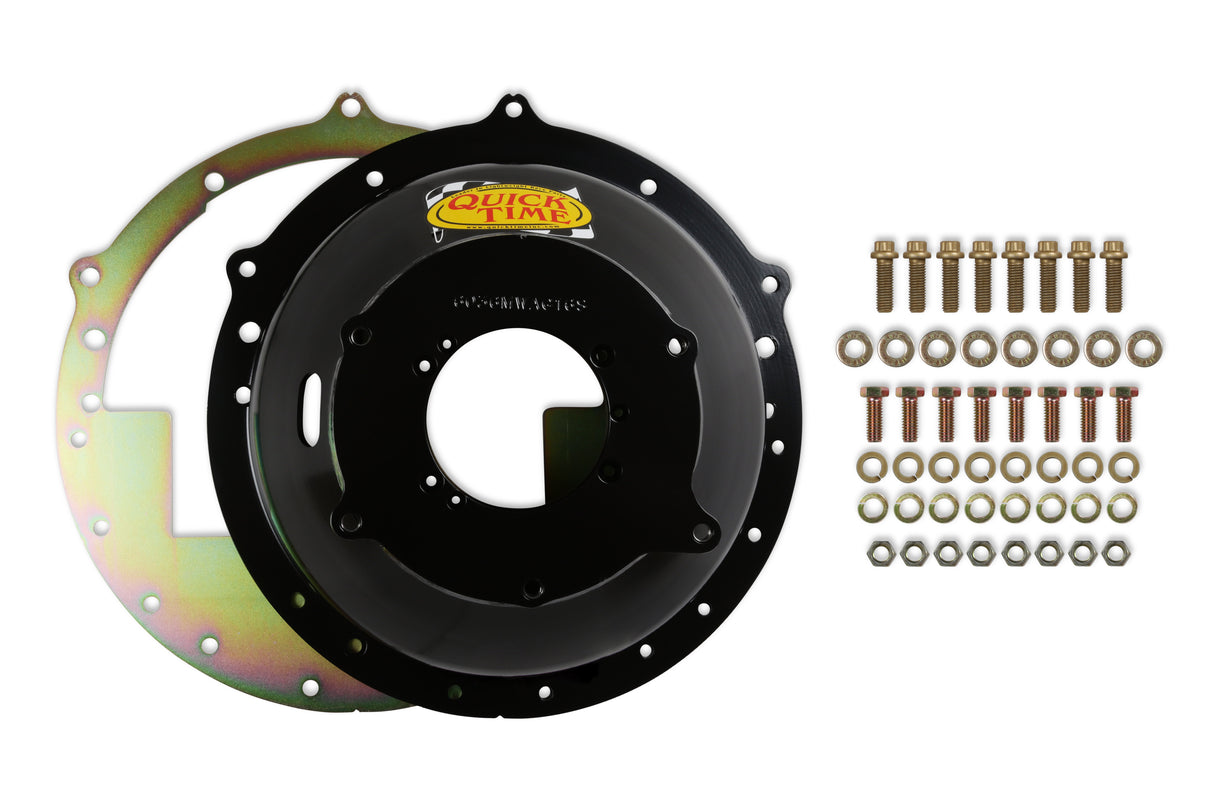

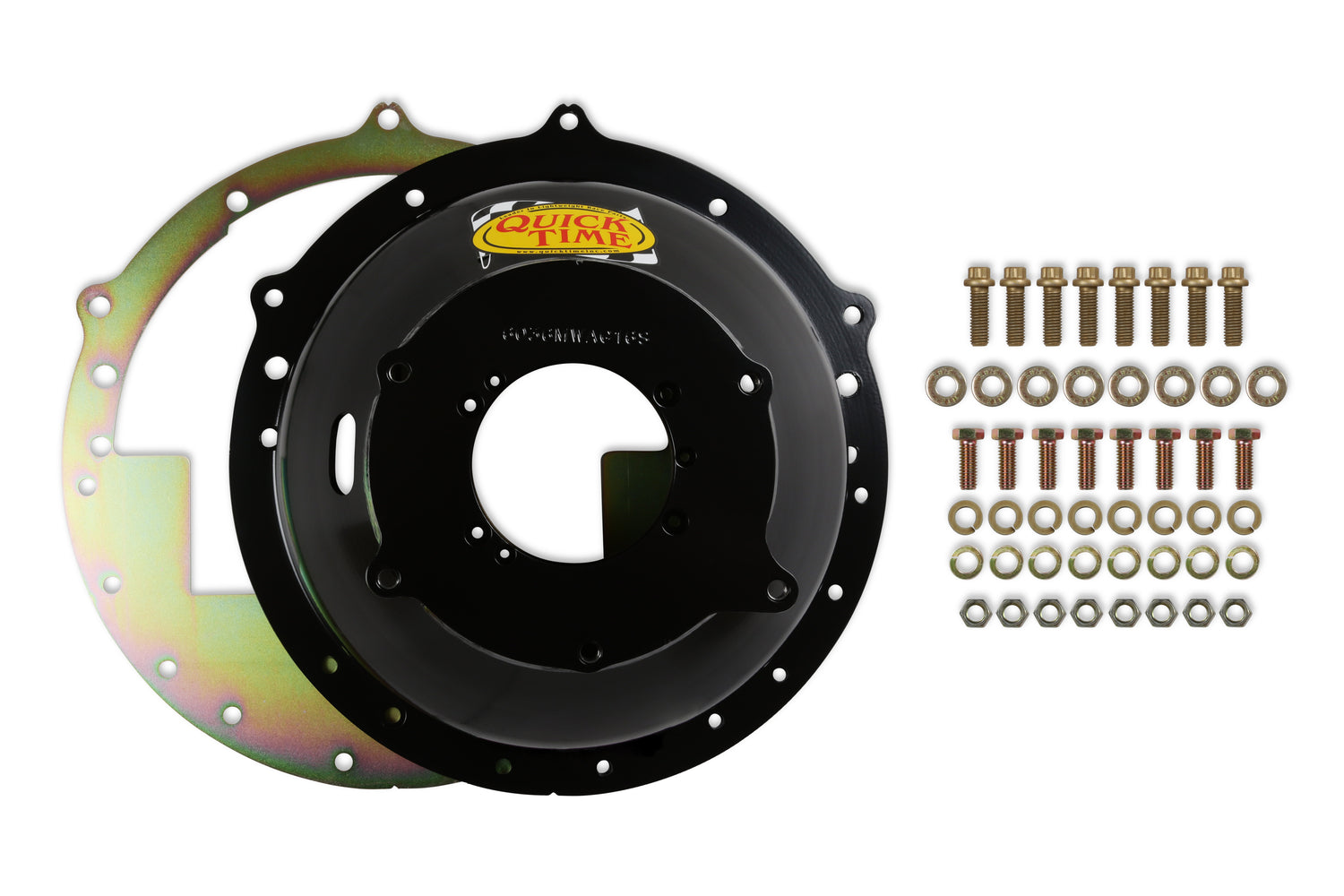

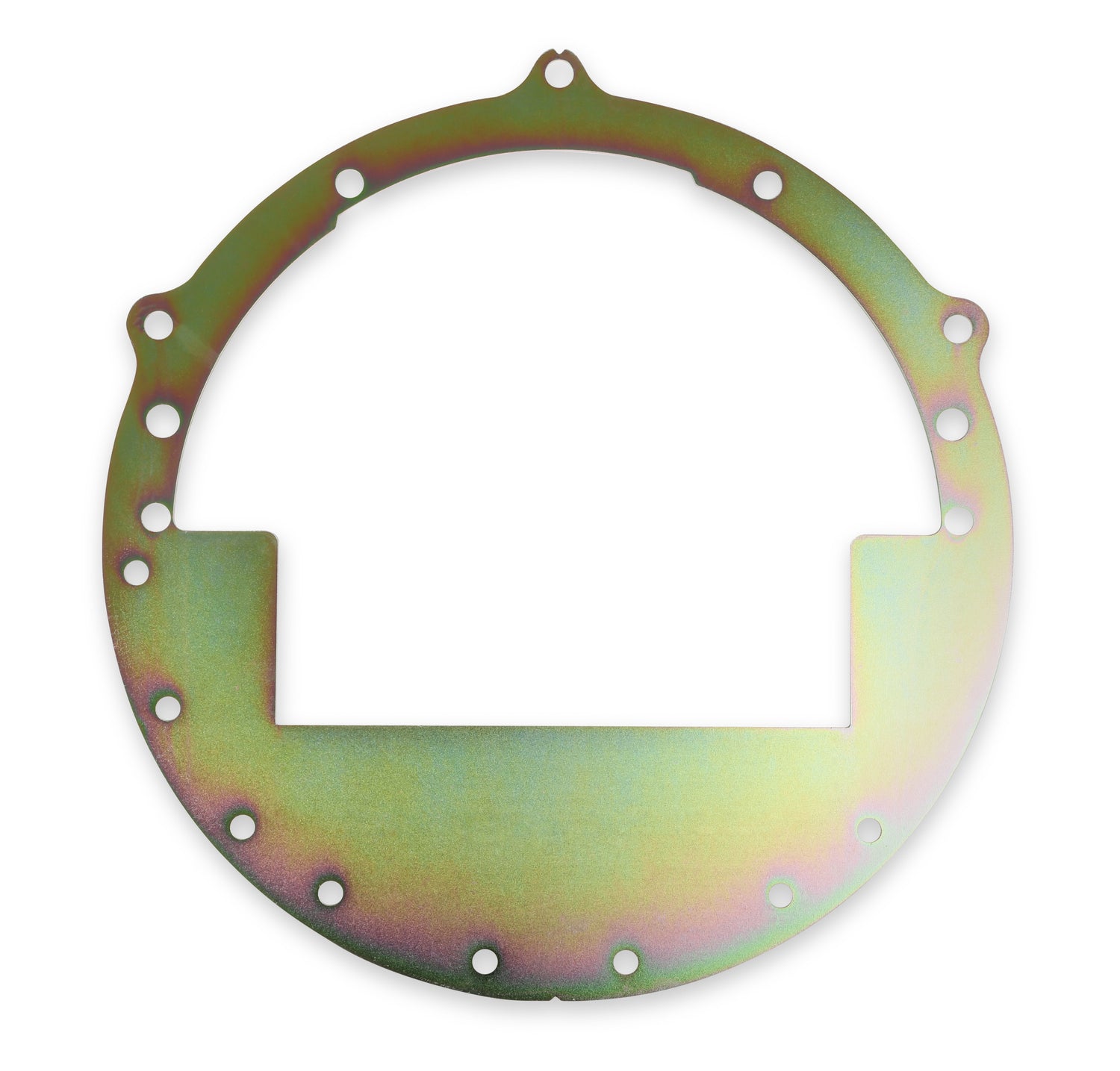

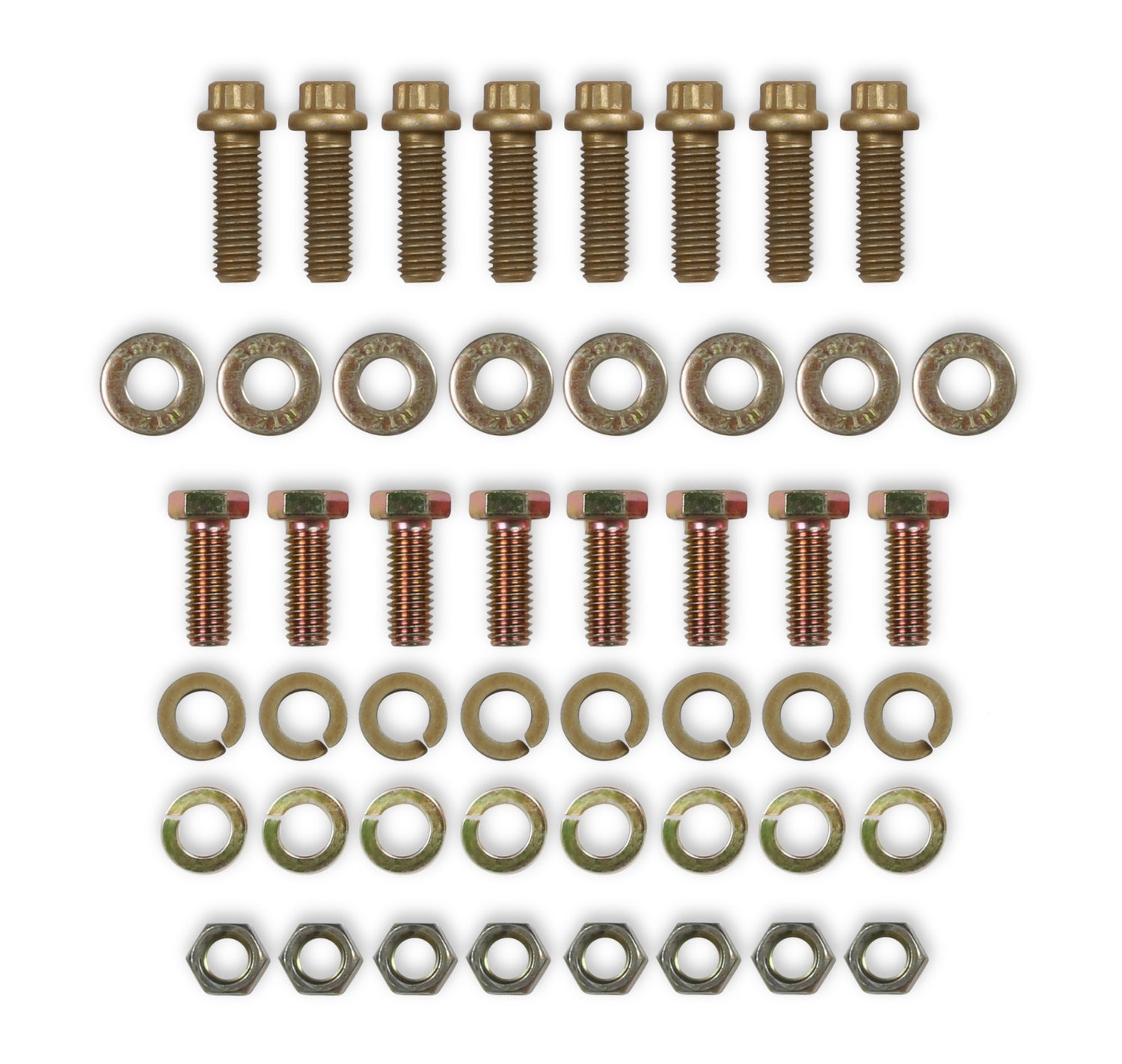

• Includes GM pivot ball, block plate and hardware

Transmission Mounting Bolts Not Included

Specifications

  • Specifications
    BrandQuick Time
    CategoryTransmission
    Certification6.1 SFI
    Clutch Diameter11 inch max.
    Clutch OperationHydraulic or Mechanical
    ColorBlack
    Emission Code5
    EngineGM Gen III/IV (LS)
    Engine MakeChevrolet
    Engine PlateRM-6036-MWA-C
    FinishSemi-gloss
    Flywheel153/168 Tooth
    Height6.000 inch
    MakeChevrolet
    MaterialSteel
    part typeTransmission Bell Housing
    Patentedyes
    Product TypeBellhousing
    SFI ApprovedYes
    Sub CategoryTransmission Hard Parts
    Trans Bore4.685
    Trans. Bore Diameter4.687 inch
    TransmissionTKO 500/600 GM
    TransmissionBert Racing
    TransmissionJerico
    TransmissionMuncie
    TransmissionSaginaw
    TransmissionT5 GM
    TransmissionBrinn Racing
    TransmissionTKX GM
    Transmission TypeManual
    WarningCalifornia Proposition 65
    Weight (lb)21
