Quick Time  |  SKU: RM-6010

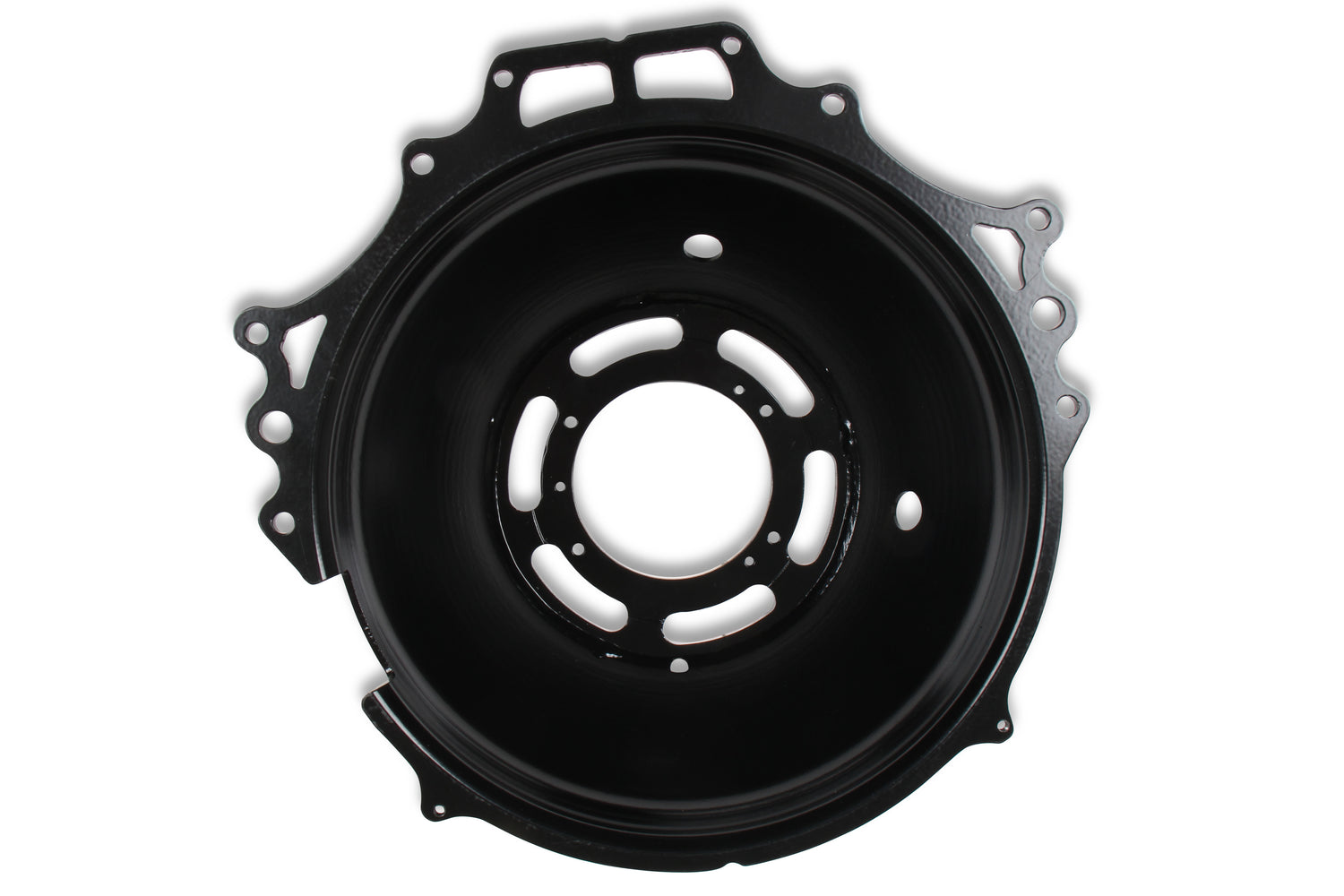

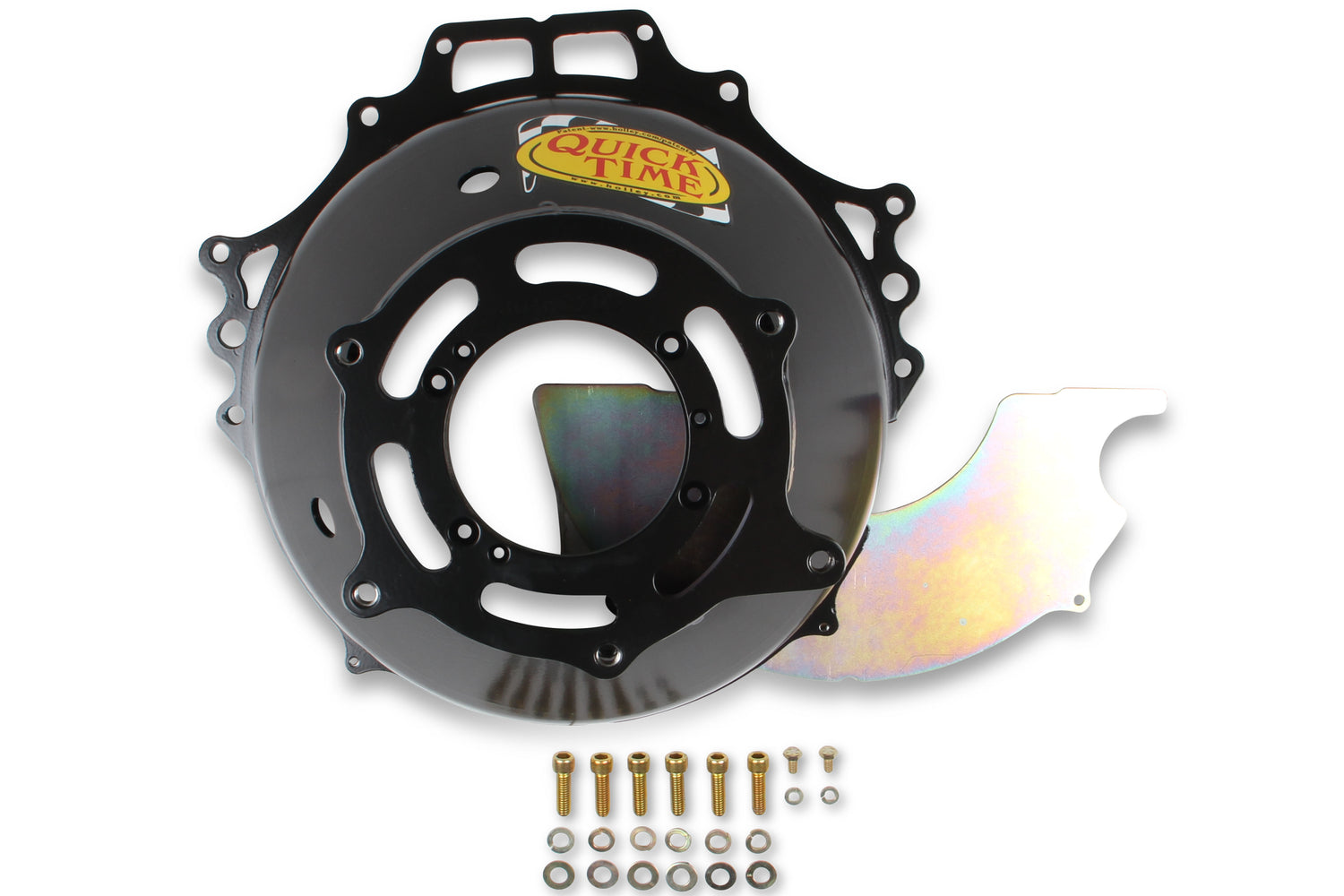

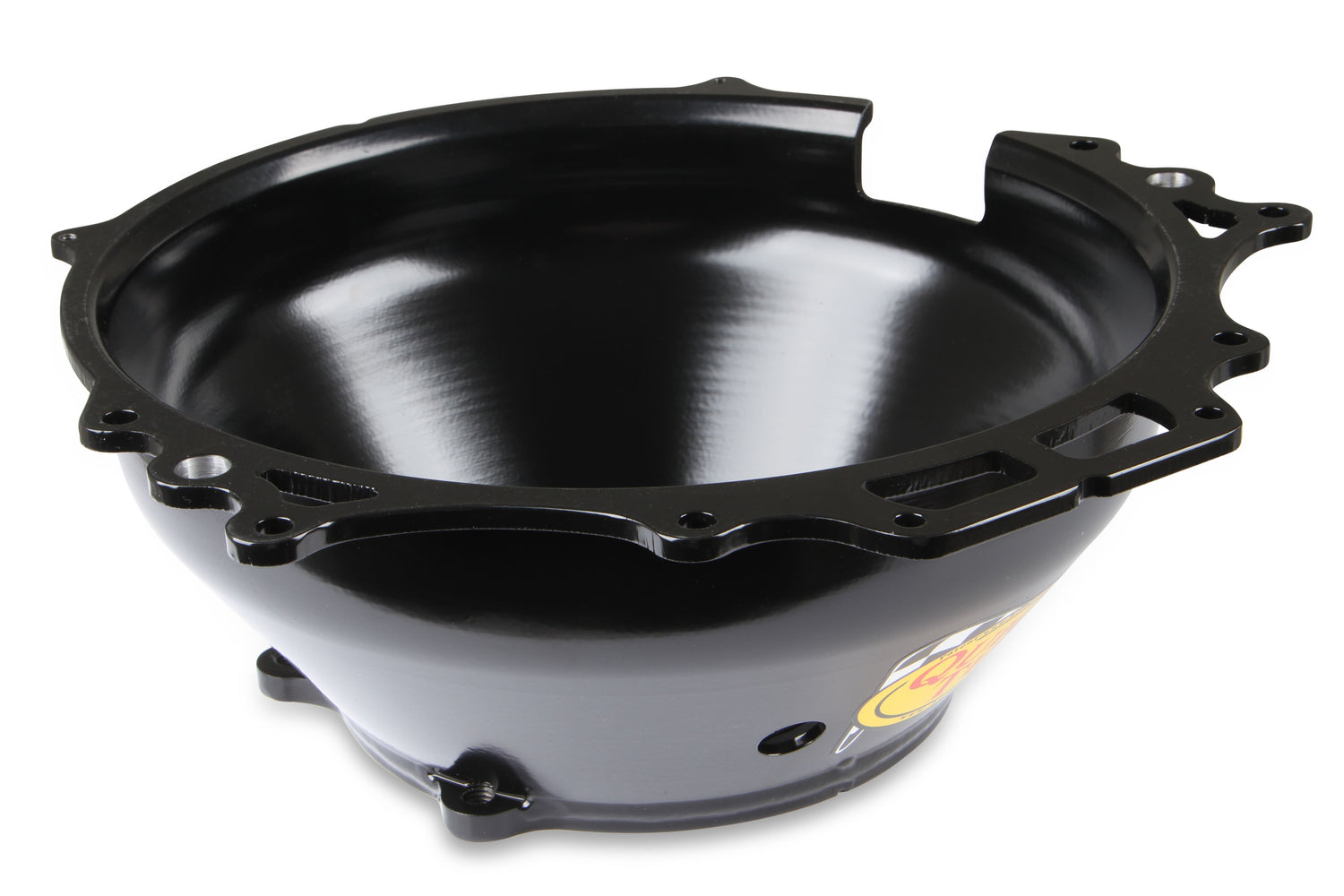

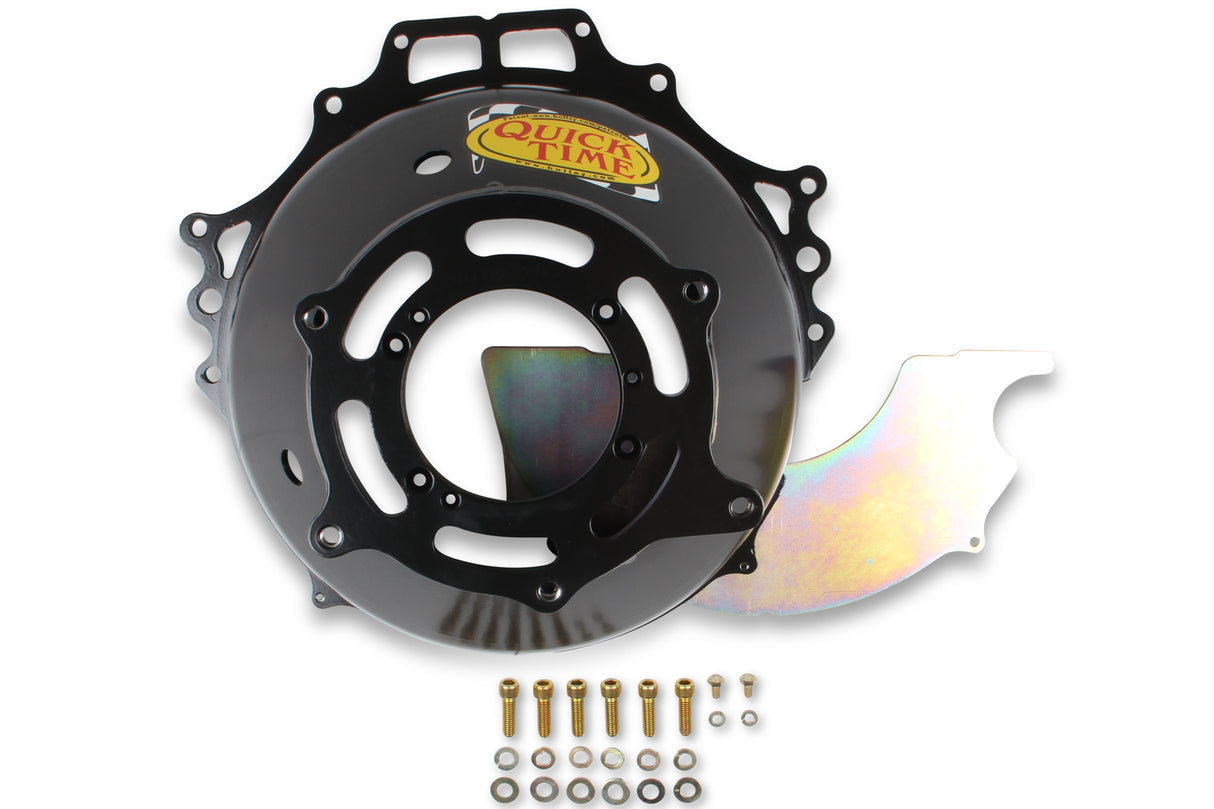

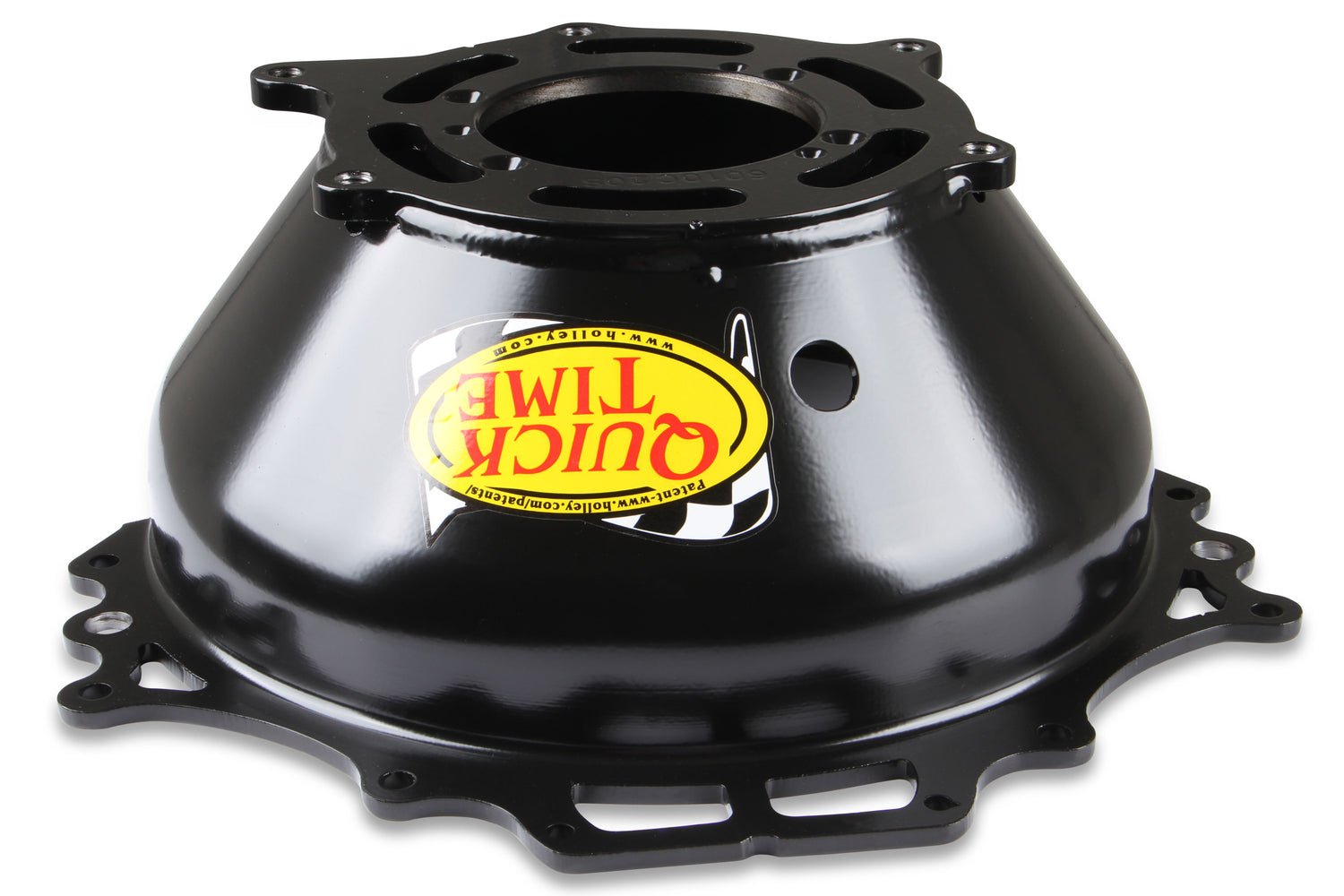

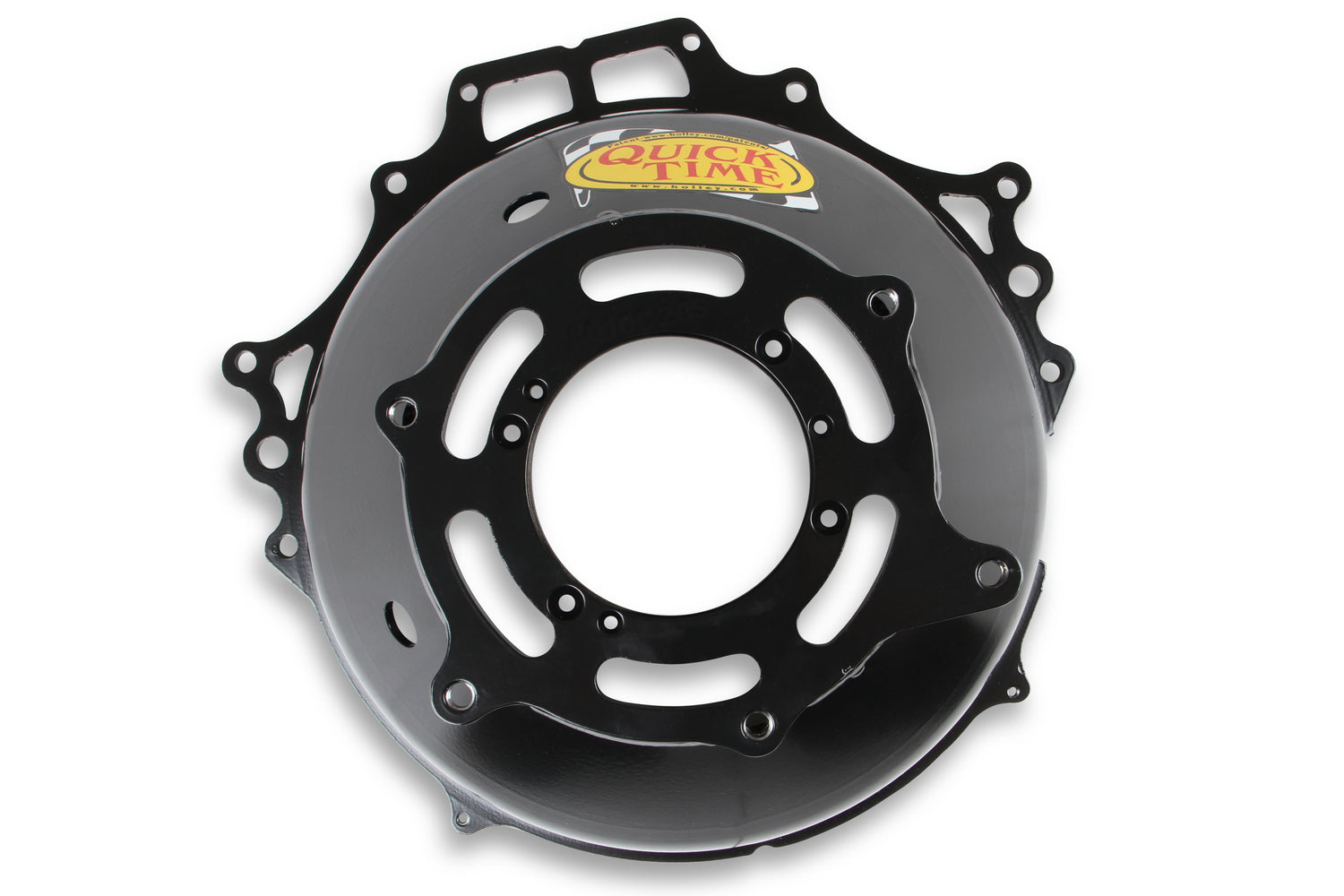

Quick Time Bellhousing - Chevrolet - RM-6010

Perfect fit for Big-Block and Small-Block Chevrolet Engines with Muncie, Jerico, Richmond, Saginaw, BW T10, TKO, or TKX Transmissions - Internal Hydraulic Bearing

Regular price $1,704.70 NZD + GST
Shipping calculated at checkout.

Description

Perfect fit for Big-Block and Small-Block Chevrolet Engines with Muncie, Jerico, Richmond, Saginaw, BW T10, TKO, or TKX Transmissions - Internal Hydraulic Bearing

Part Number: RM-6010

The Quick Time RM-6010 bellhousing connects small-block and big-block Chevy engines to transmissions utilizing the GM standard pattern such as the Muncie, Saginaw, Borg Warner T10, and Tremec TKO or TXK transmissions. This bellhousing is not S.F.I. certified which is required by many sanctioning bodies for cars running 11.49 or faster in the quarter mile. This bellhousing is a universal fit bellhousing and is not vehicle specific. The Quick Time bellhousings are produced using a unique spin-forming process which results in a very high-strength material. This high material strength allows the Quick Time bellhousings to be lightweight while maintaining the protection you desire.

Features and Benefits

• Quick Time Bellhousings are the most accurate bellhousings available due to our unique manufacturing processes
• QuickTime cones are spun, not rolled or stamped. This allows Quick Time Bellhousings to be the most dimensionally stable Bellhousings available
• Built from high grade steel - Work hardens to over 80,000 PSI strength. Over two times the strength of other steel bellhousings
• 100% built in the USA
• Patent on 16 points of Bellhousing Design & Process

Hydraulic Bearing Only

Specifications

  • Specifications
    BrandQuick Time
    CategoryTransmission
    CertificationNone
    ClutchUp to 10 1/2 Clutch Disc
    Clutch Diameter10.5 inch
    Clutch OperationHydraulic
    ColorBlack
    Emission Code5
    EngineGM Big Block
    EngineChevrolet Small Block Gen I
    Engine MakeChevrolet
    Engine PlateRM-6010-C
    FinishSemi-gloss
    Flywheel153 Tooth
    Height6.290 inch
    MakeChevrolet
    MaterialSteel
    part typeTransmission Bell Housing
    Patentedyes
    Product TypeBellhousing
    SFI ApprovedNo
    StarterMini
    Sub CategoryTransmission Hard Parts
    Trans. Bore Diameter4.687 inch
    TransmissionSaginaw
    TransmissionBrinn Racing
    TransmissionMuncie
    TransmissionT5 GM
    TransmissionFalcon
    TransmissionTKO 500/600 GM
    TransmissionBert Racing
    TransmissionJerico
    TransmissionT10
    TransmissionRichmond
    TransmissionTKX GM
    Transmission TypeManual
    WarrantyManufacturer's Limited 90 Day Warranty
    Weight18
    Weight (lb)18
  • Instructions
