Quick Time Bellhousing - Big Block Mopar - RM-6073
Perfect fit for Chrysler 383s, 400s, 426s, and 440s with 3-speed or 4-speed transmissions, SFI 6.1 Certified
Quick Time Bellhousing - Big Block Mopar - RM-6073 is not in stock at Fast Lane Spares and will ship direct from supplier
Description
Description
Part Number: RM-6073

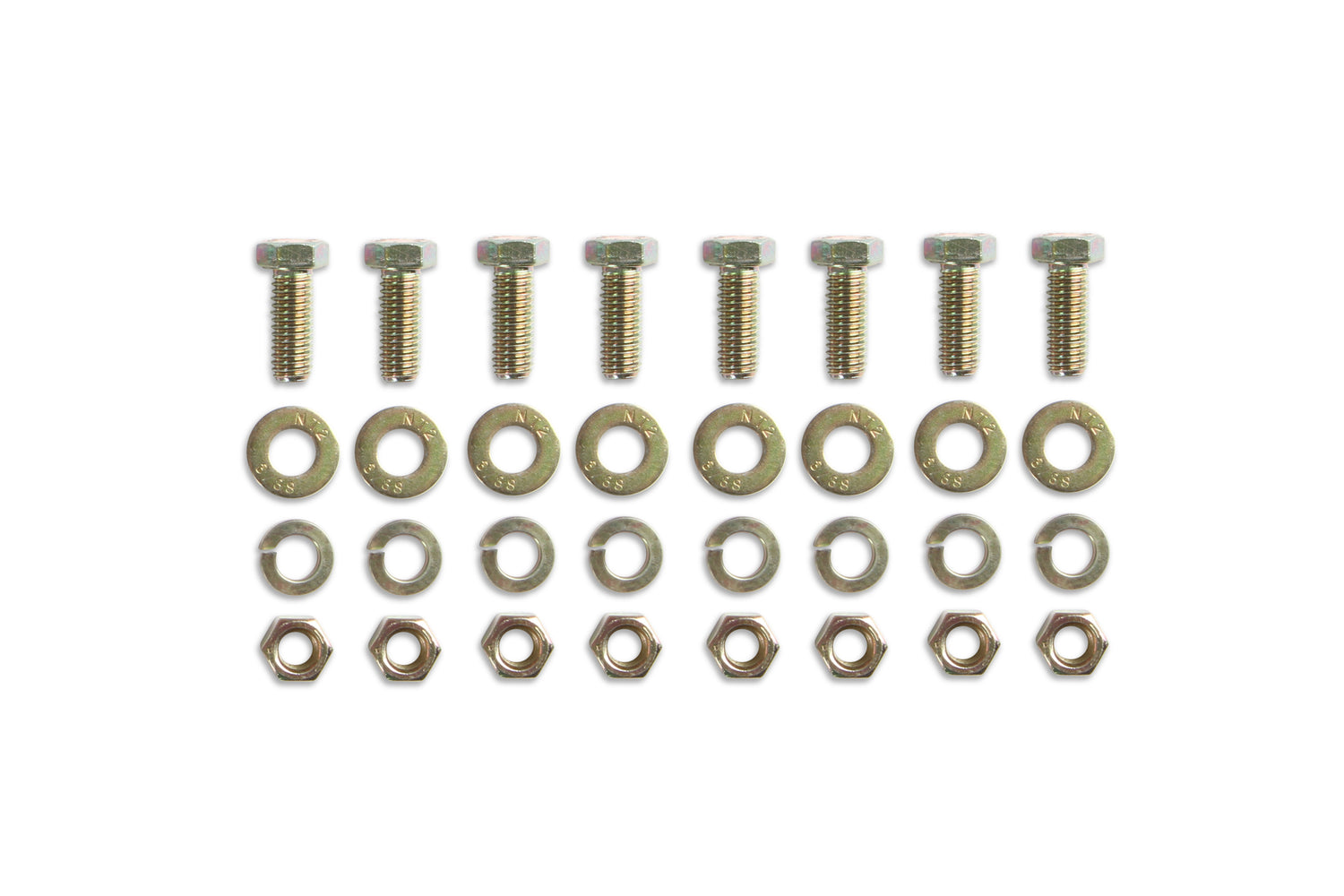

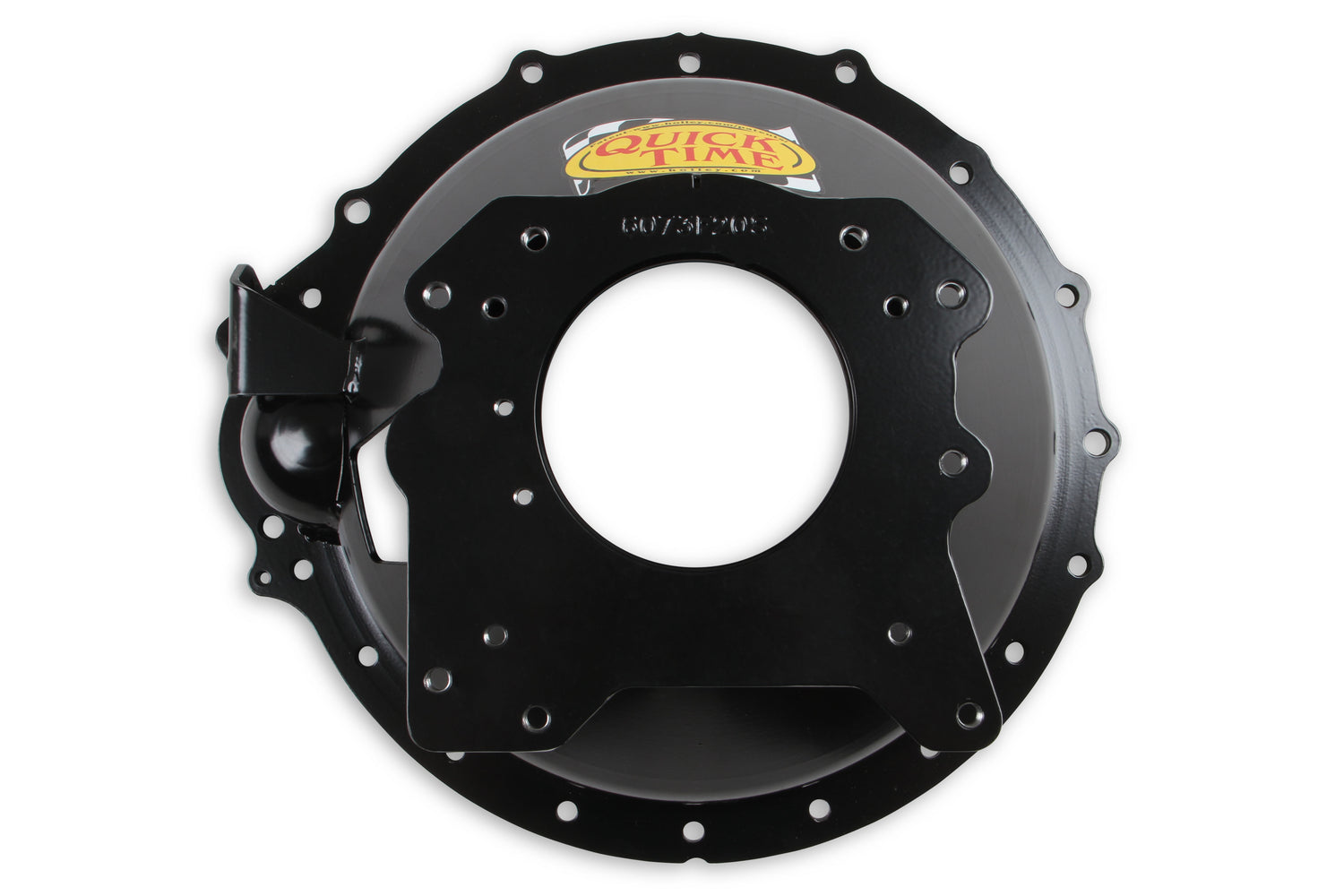

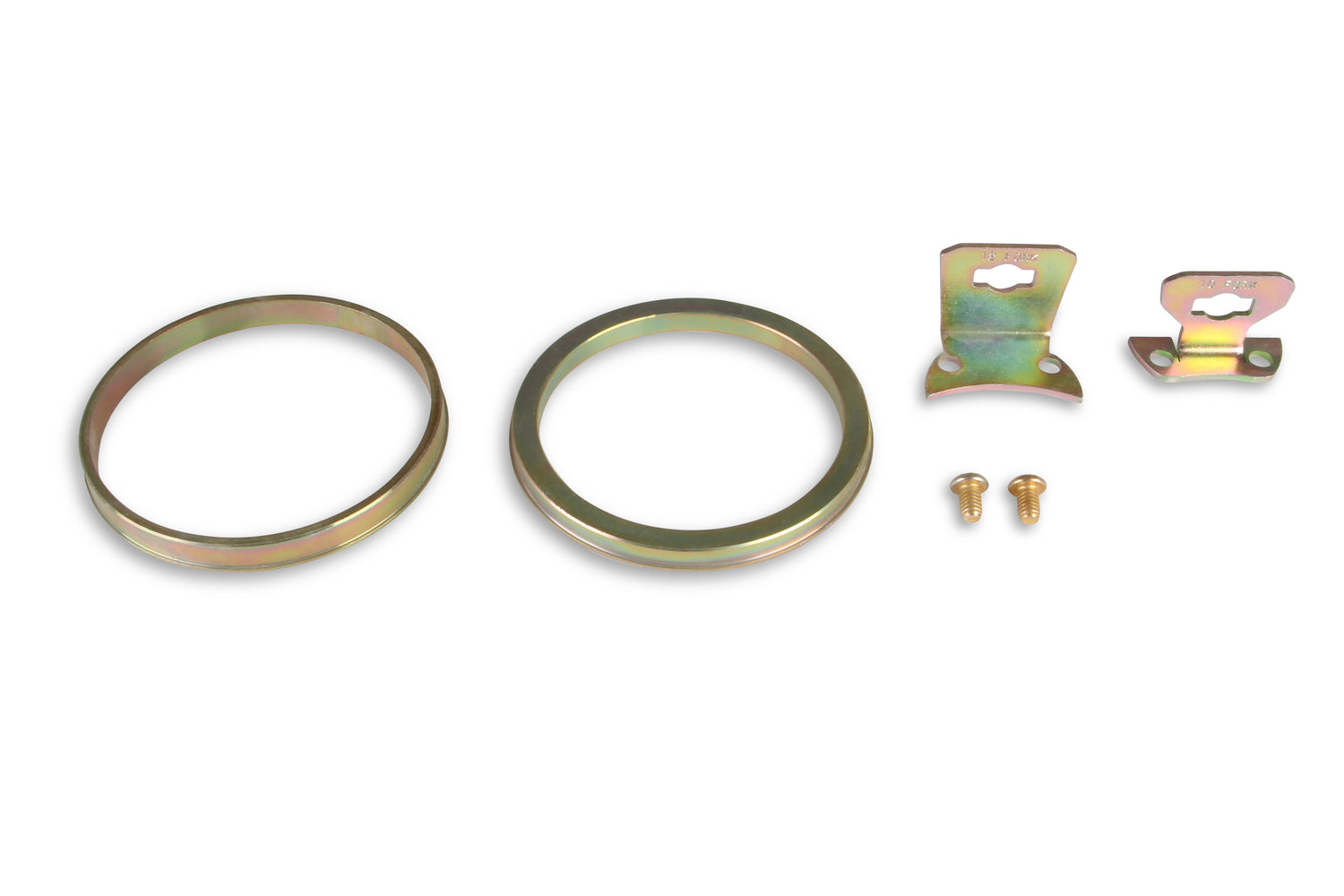

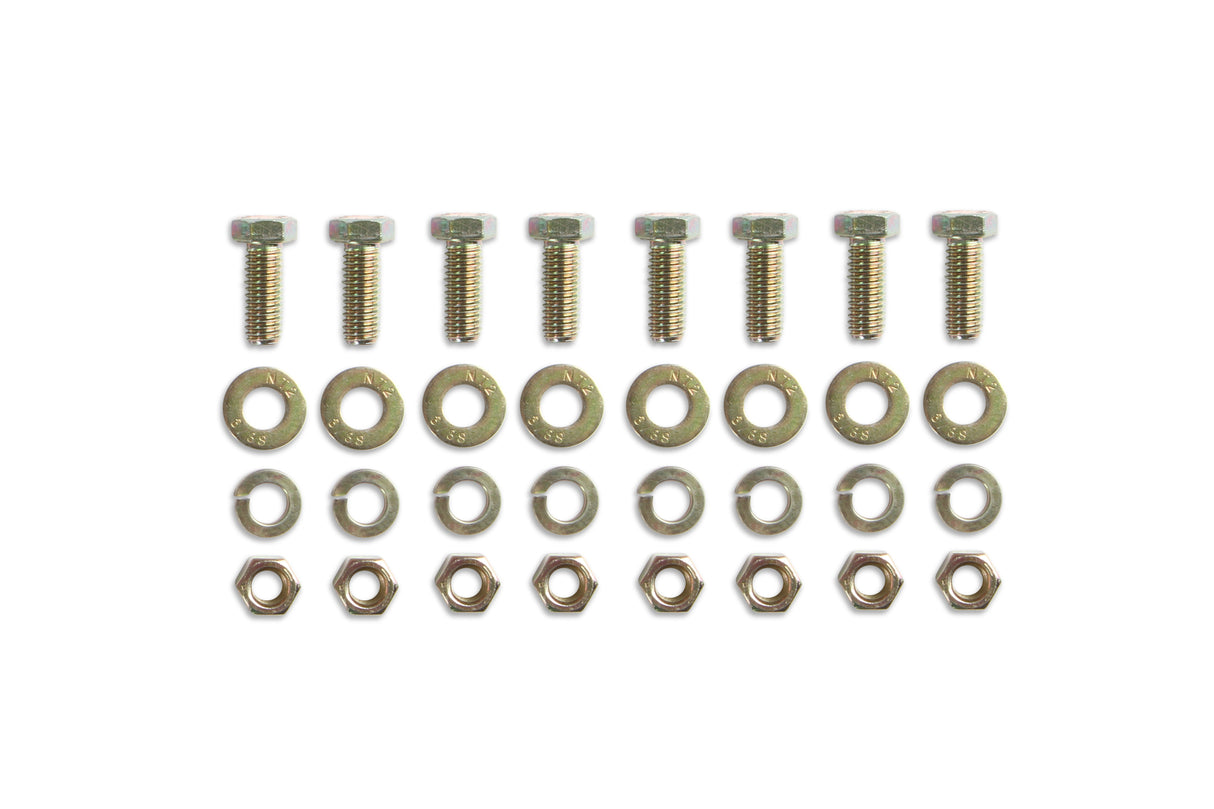

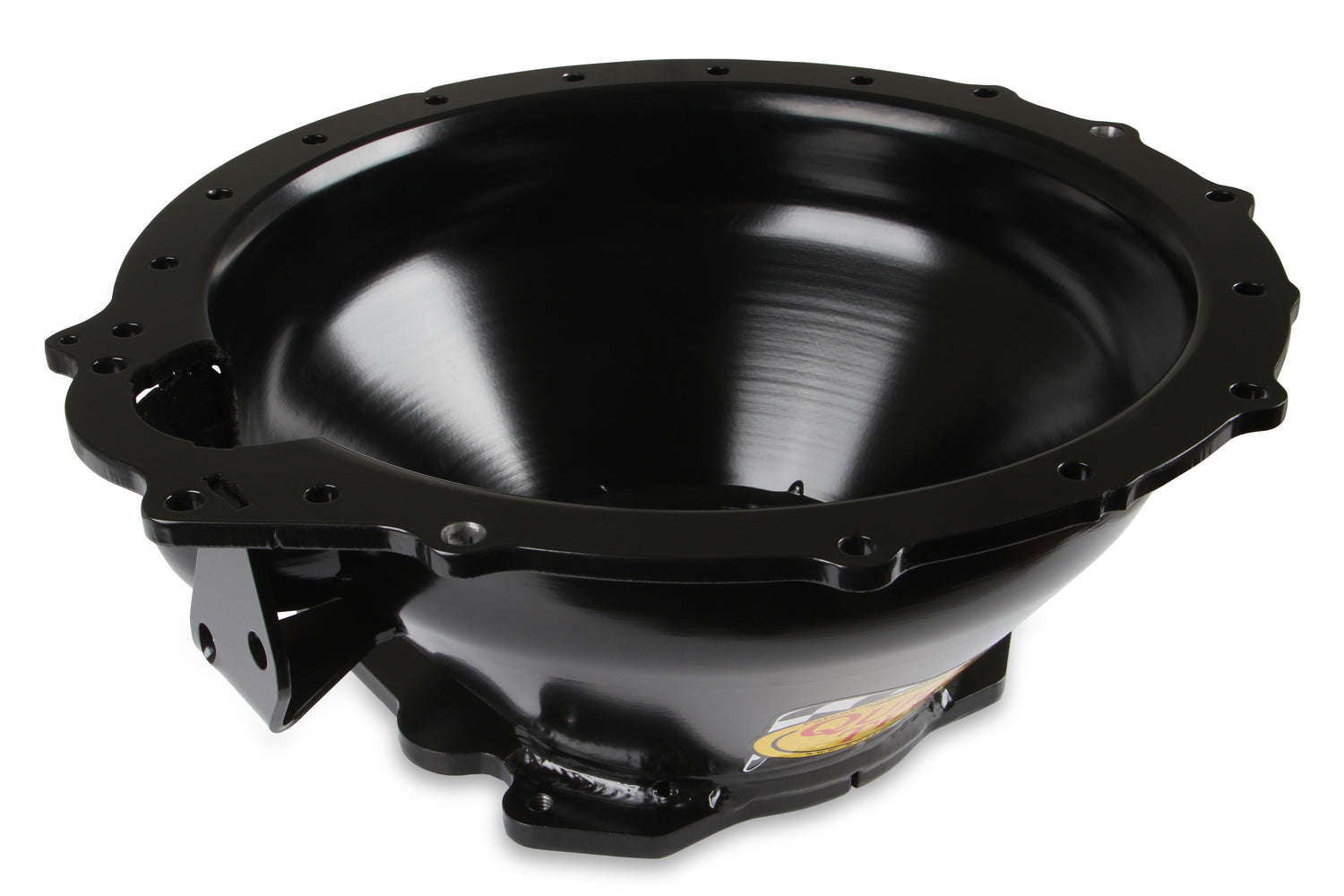

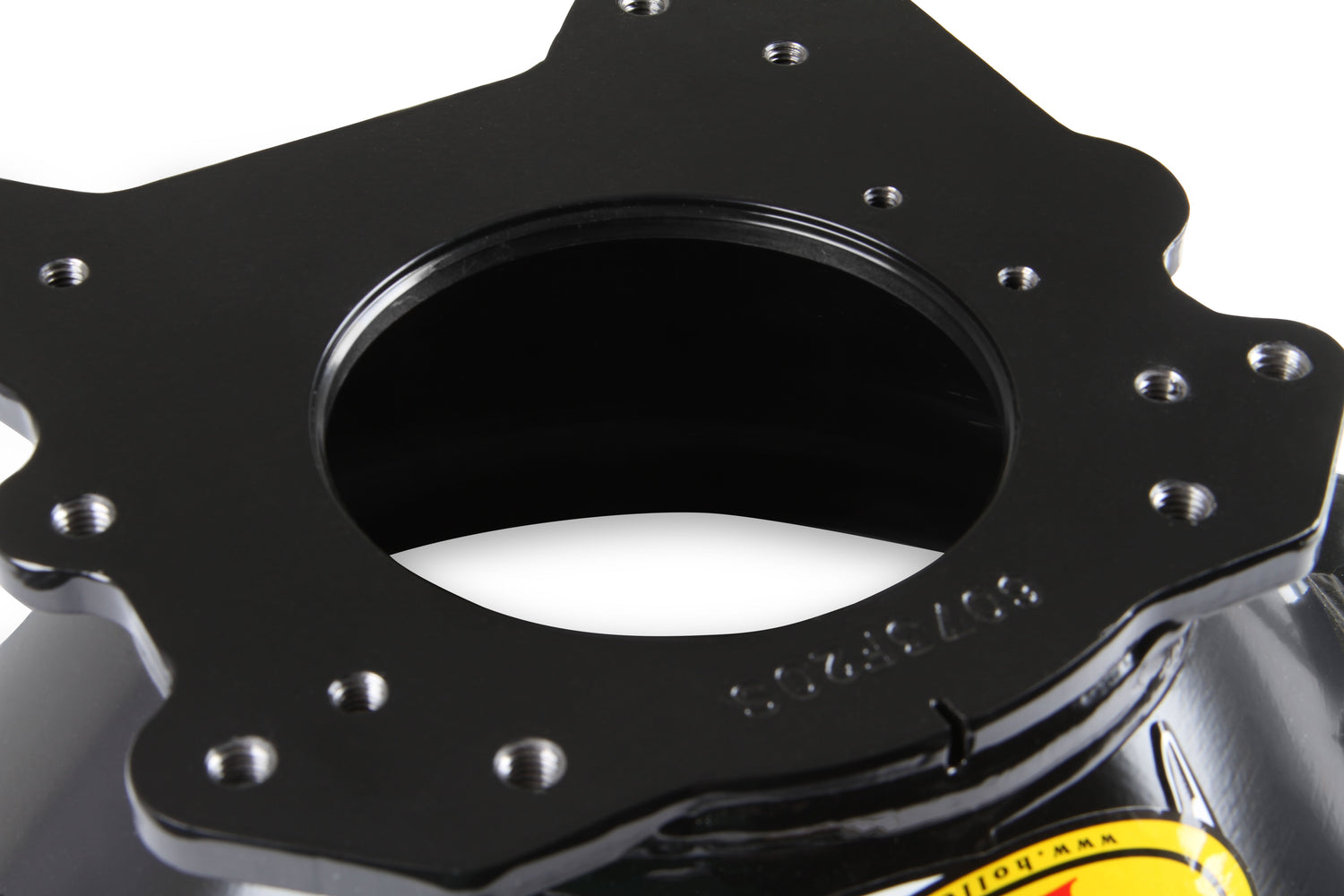

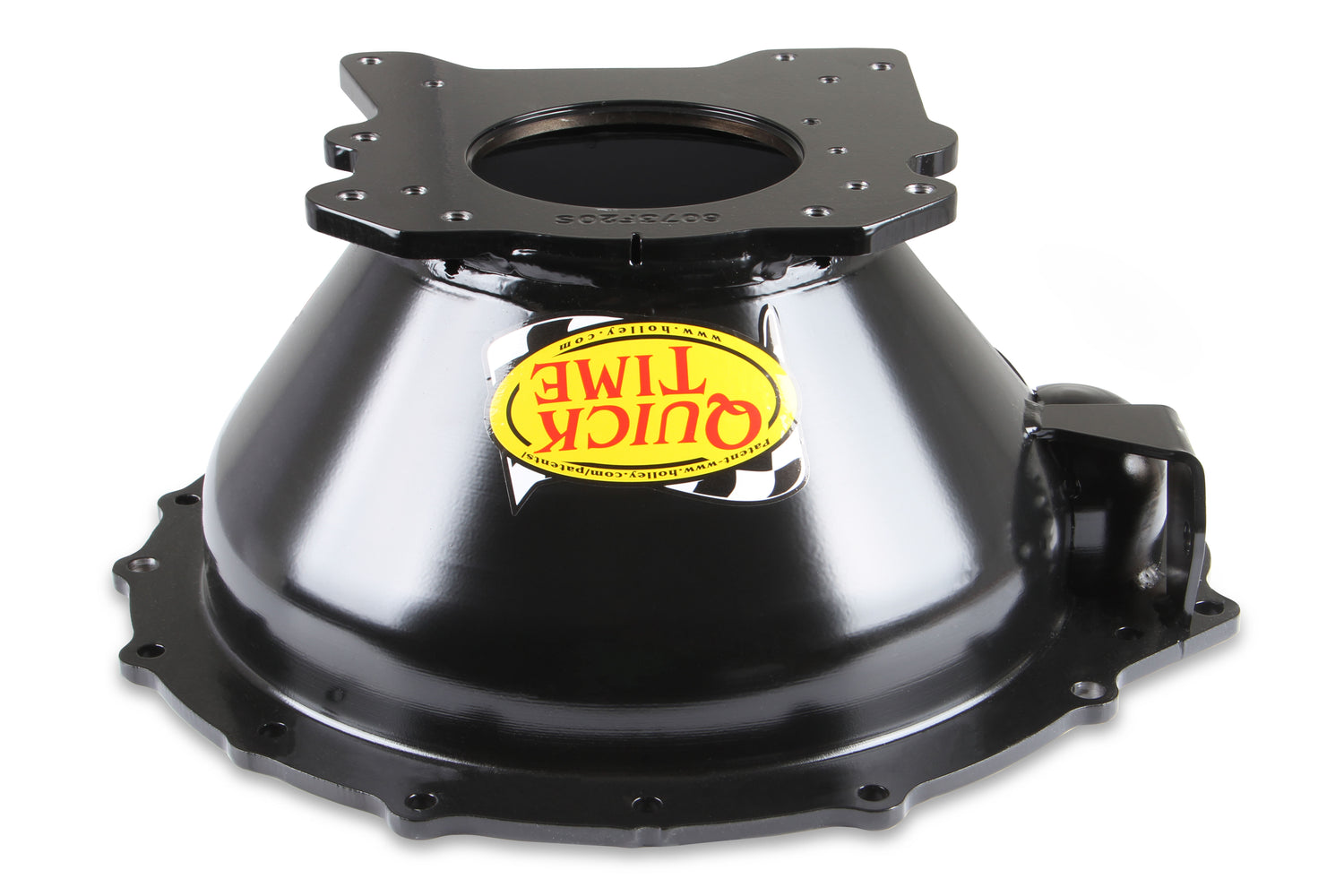

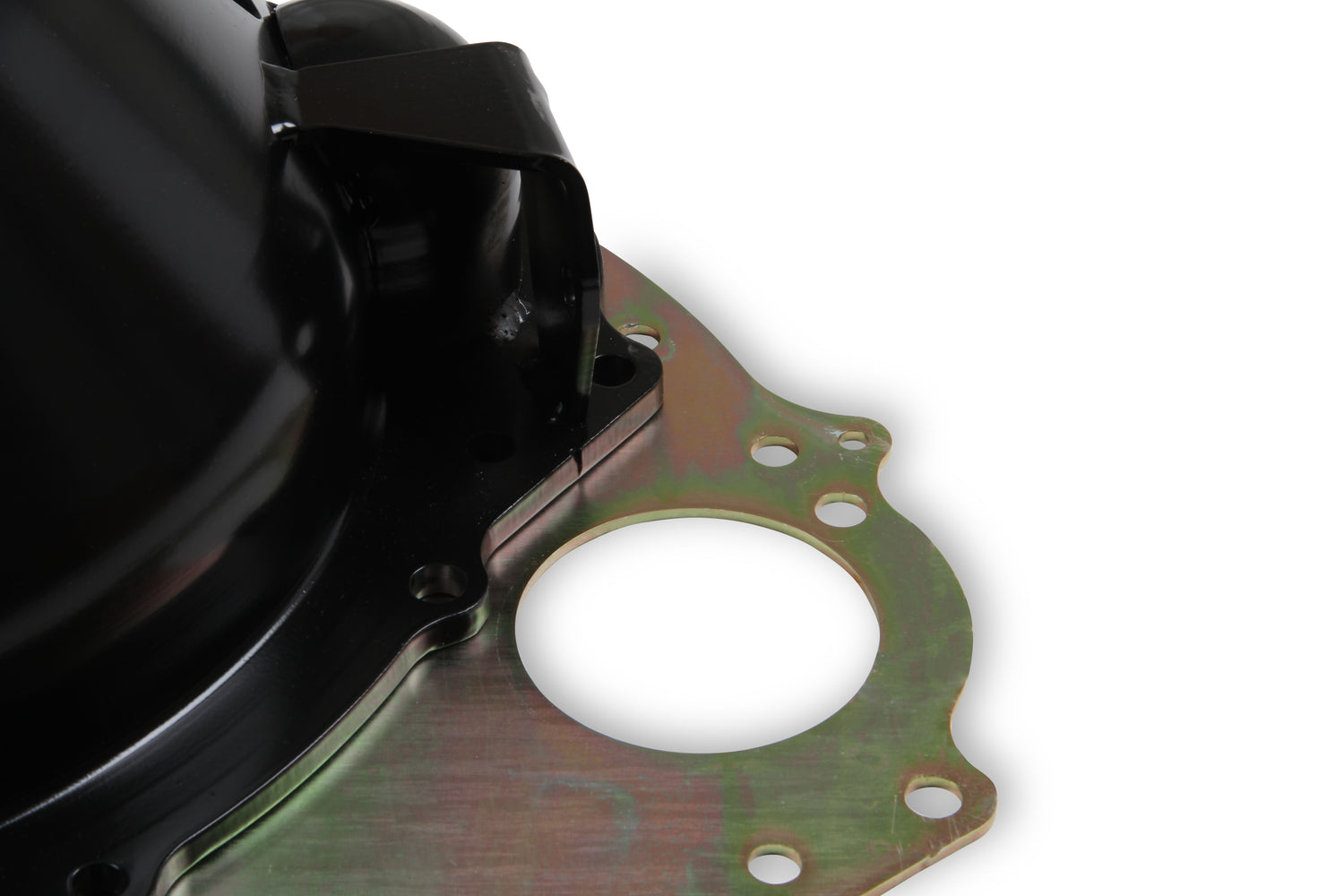

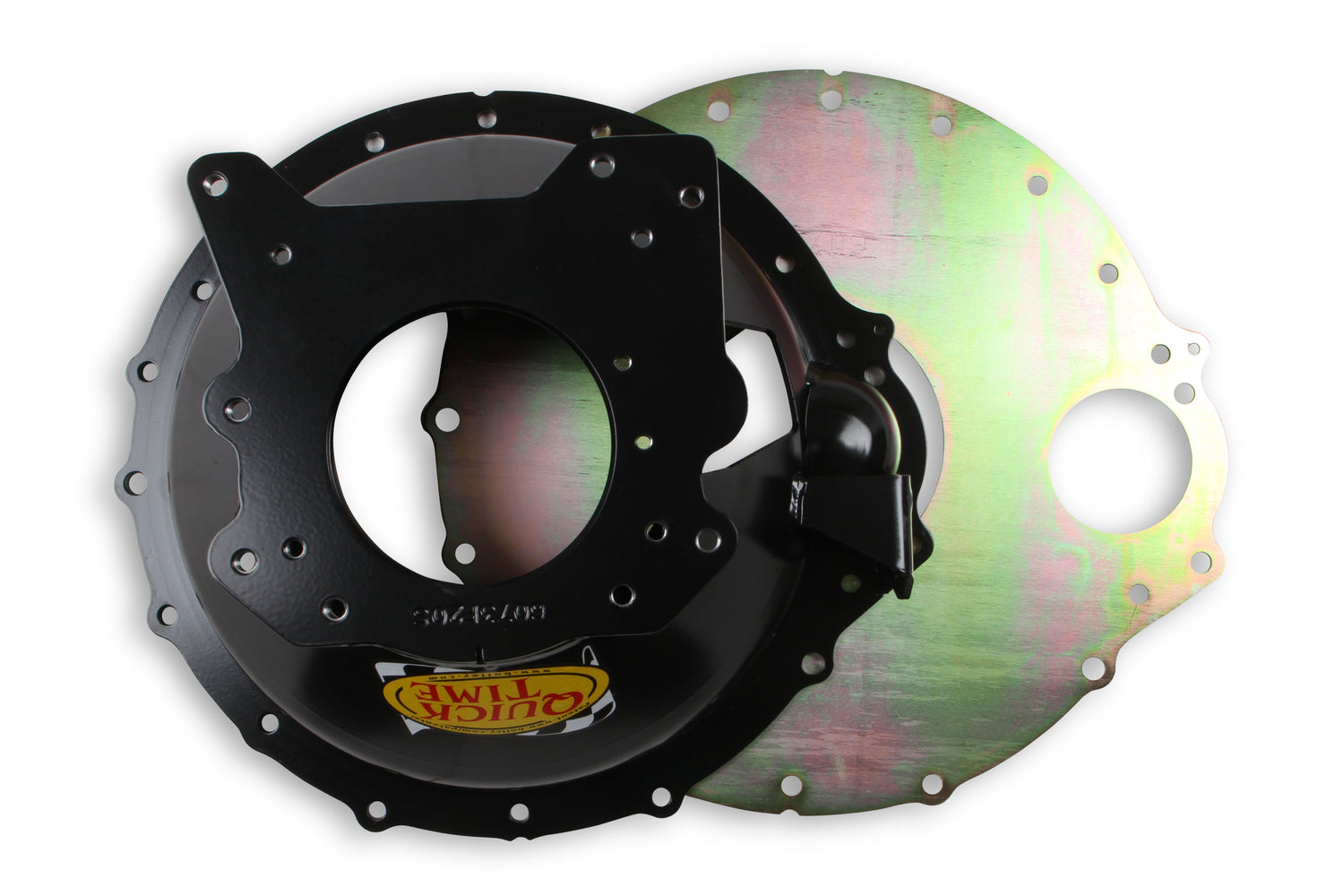

This bellhousing is designed for street, strip and circle track applications. Built from high quality grade steel, the cone is spun not stamped or rolled making this bellhousing dimensionally stable and accurate. This bellhousing will fit Mopar big block 383, 400, 426, 440 engines with 3/4 speed transmissions. 7.4 in deep will clear 130 tooth flywheel with 11 in clutch. Weighs 22 pounds. S.F.I. 6.1 certified. Fork bracket, block plate and Grade 8 hardware included. Made in America. Other applications available.
Features and Benefits
• Quick Time Bellhousings are the most accurate bellhousings available due to our unique manufacturing processes
• QuickTime cones are spun, not rolled or stamped. This allows Quick Time Bellhousings to be the most dimensionally stable Bellhousings available
• Built from high grade steel - Work hardens to over 80,000 PSI strength. Over two times the strength of other steel bellhousings
• 100% built in the USA
• Patent on 16 points of Bellhousing Design & Process
• Built from high grade steel – Work hardens to over 80,000 PSI strength. Over two times the strength of other steel bellhousings
Specifications
Specifications
-
Specifications

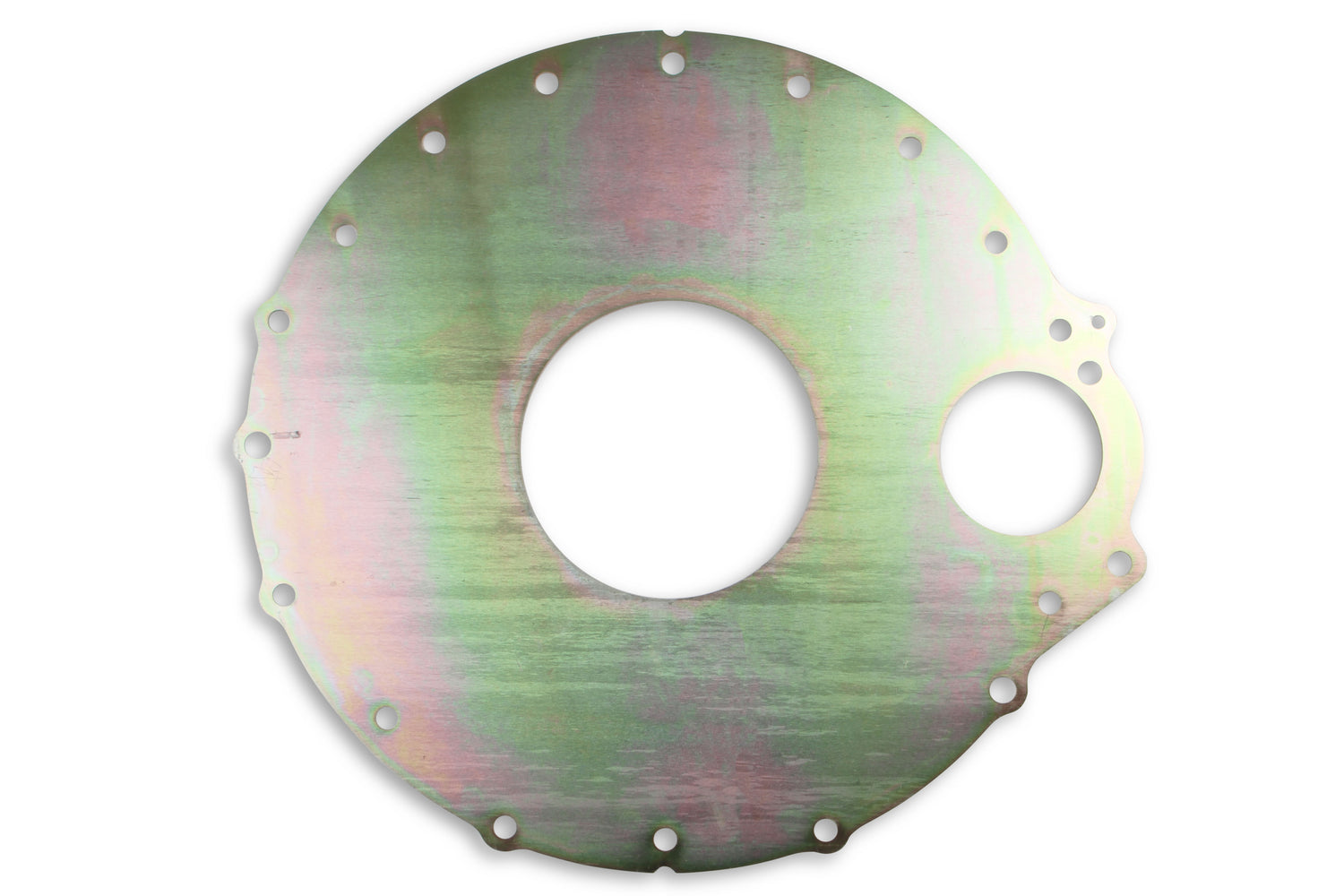

Brand Quick Time Category Transmission Certification 6.1 SFI Clutch Operation Hydraulic Color Black Emission Code 5 Engine Chrysler Hemi (Gen II) Engine Chrysler Big Block Engine Make Mopar Engine Plate RM-6074-C Finish Semi-gloss Flywheel 130 Tooth Height 7.405 inch Make Mopar Material Steel part type Transmission Bell Housing Patented yes Product Type Bellhousing SFI Approved Yes SFI Certification 6.1 Sub Category Transmission Hard Parts Trans Bore 4.807 / 5.125 / 4.355 Trans. Bore Diameter 4.807 / 5.125 / 4.355 inch Transmission Mopar 3 Speeds A230 & A250 Transmission Mopar 4 Speeds A833 & A903 Transmission Type Manual Warranty Manufacturer's Limited 90 Day Warranty Weight 30 Weight 22 -
