Quick Fuel Technology | SKU:
XP-4412-A

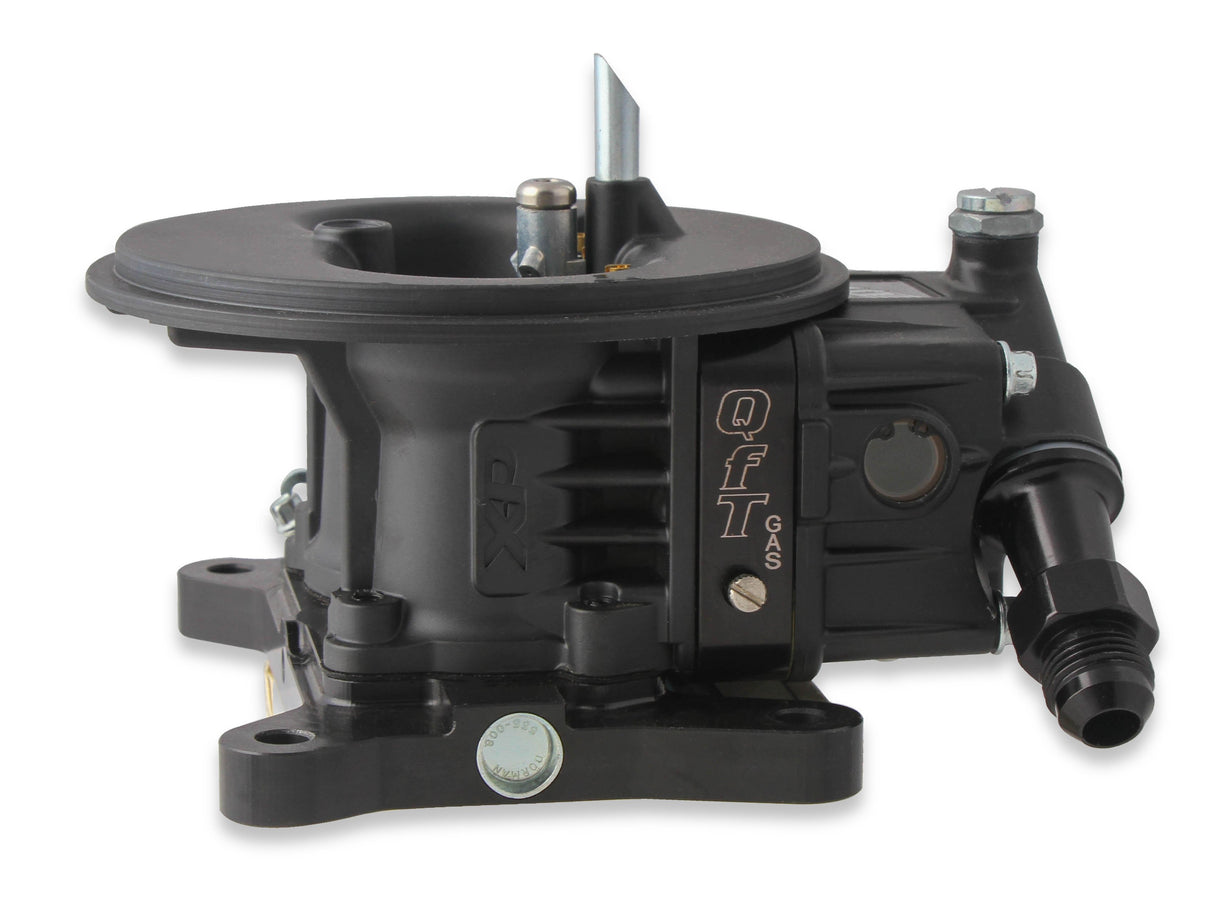

Quick Fuel Technology XP-Series Carburetor 500CFM Circle Track Alcohol - XP-4412-A
500 CFM - 2300 - Black - Methanol
Regular price
$1,744.00 NZD
+ GST
Unit price
/
Unavailable
Shipping calculated at checkout.
Quick Fuel Technology XP-Series Carburetor 500CFM Circle Track Alcohol - XP-4412-A
is not in stock at Fast Lane Spares and will ship direct from supplier.
Please contact us prior to purchasing if you would like an accurate ETA.
⚠ Special Order Item — ships direct from supplier. No returns, exchanges, or cancellations once processed. Please allow 7–20 days shipping.
Stock Status:
Description
Description
500 CFM - 2300 - Black - Methanol
Part Number: XP-4412-A
In circle track classes that mandate two-barrel carburetors, customizing a street carburetor has been the norm for decades. Not anymore. Designed from the ground up to meet the unique demands of circle track racing, QFT's new XP-Series offers the performance benefits of a custom carburetor in an affordable, turnkey, class-legal package. At a bare minimum, modifying a standard street carburetor for circle track duty typically involves changing the throttle-plates, floats, and metering blocks. These custom modifications can easily exceed the cost of a turnkey QFT two-barrel carb while still lacking many of the key features that only a clean-sheet redesign can offer. A high-flow aluminum main body design centers the venturi over the throttle-body assembly. To further increase airflow, QFT centers the air horn over the venturi, removes the choke tower, and carefully profiles the air inlet transition. The result is enhanced airflow and fuel distribution, which improves throttle-response and horsepower. All XP-Series carburetors are equipped with roller bearing seals which provide smoother throttle response, less wear on shaft, and longer life. Available in 500- and 600 cfm sizes, the XP-Series sets a new standard in two-barrel circle track carbs.
Features and Benefits
•High-flow aluminum main body with centered venturi for improved performance and better air/fuel distribution
•Black anodized billet 2-Circuit metering block and throttle body

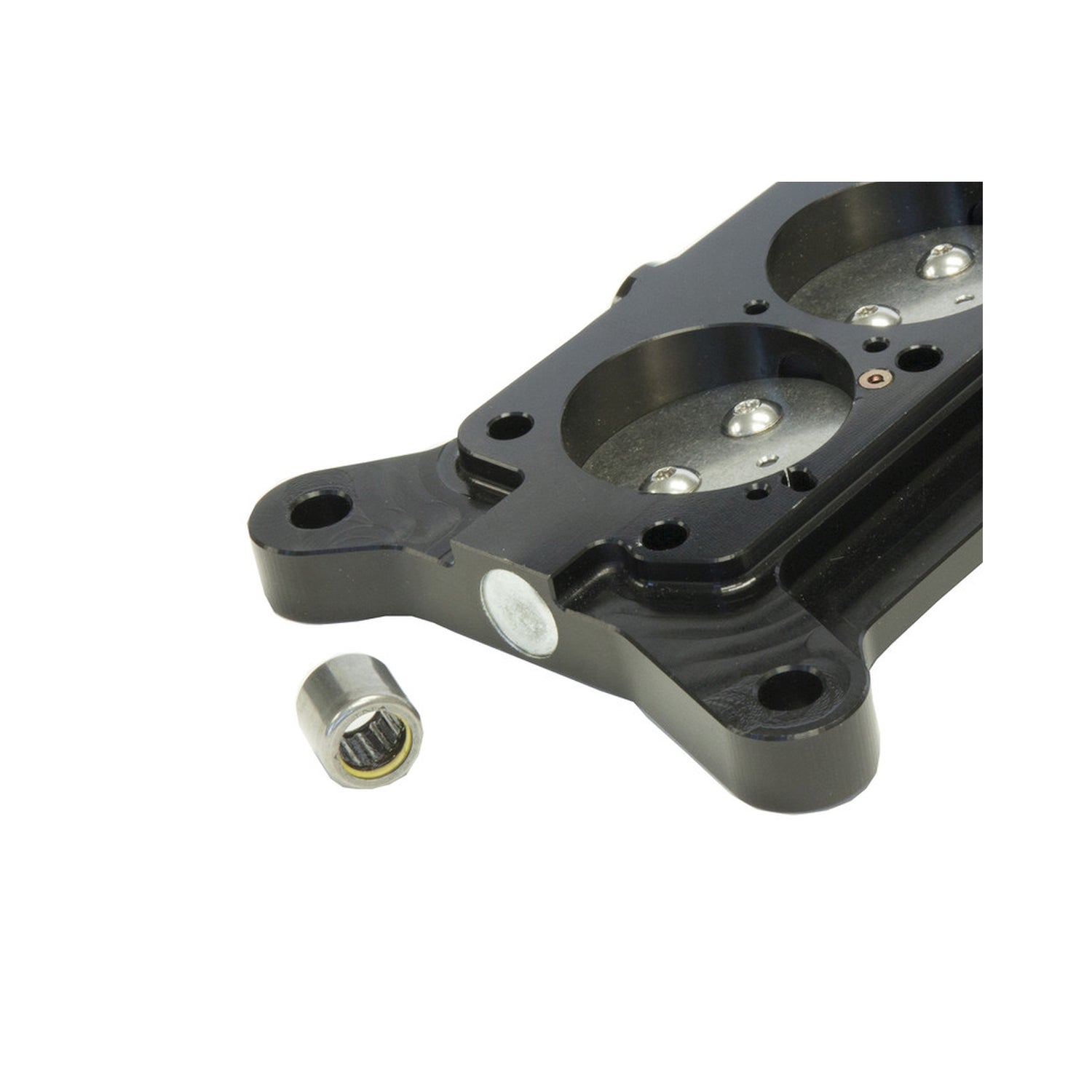

•Throttle body incorporates roller bearing seals which provide smoother operation,
• less wear on shaft, and longer life
•Anti-siphon check valve in main body to reduce pump pull-over
•Changeable emulsion bleeds and power valve channel restrictions for better tuning capabilities
•Dual inlet fuel bowl with #8AN fittings
•Dual sight glass windows for easy float adjustment
•Single wedge circle track float
•Exclusive Black Diamond® coating for enhanced corrosion protection and appearance.
• Provides a 6% reduction in fuel temperature.
Part Number: XP-4412-A
In circle track classes that mandate two-barrel carburetors, customizing a street carburetor has been the norm for decades. Not anymore. Designed from the ground up to meet the unique demands of circle track racing, QFT's new XP-Series offers the performance benefits of a custom carburetor in an affordable, turnkey, class-legal package. At a bare minimum, modifying a standard street carburetor for circle track duty typically involves changing the throttle-plates, floats, and metering blocks. These custom modifications can easily exceed the cost of a turnkey QFT two-barrel carb while still lacking many of the key features that only a clean-sheet redesign can offer. A high-flow aluminum main body design centers the venturi over the throttle-body assembly. To further increase airflow, QFT centers the air horn over the venturi, removes the choke tower, and carefully profiles the air inlet transition. The result is enhanced airflow and fuel distribution, which improves throttle-response and horsepower. All XP-Series carburetors are equipped with roller bearing seals which provide smoother throttle response, less wear on shaft, and longer life. Available in 500- and 600 cfm sizes, the XP-Series sets a new standard in two-barrel circle track carbs.
Features and Benefits
•High-flow aluminum main body with centered venturi for improved performance and better air/fuel distribution
•Black anodized billet 2-Circuit metering block and throttle body
•Throttle body incorporates roller bearing seals which provide smoother operation,
• less wear on shaft, and longer life
•Anti-siphon check valve in main body to reduce pump pull-over
•Changeable emulsion bleeds and power valve channel restrictions for better tuning capabilities
•Dual inlet fuel bowl with #8AN fittings
•Dual sight glass windows for easy float adjustment
•Single wedge circle track float
•Exclusive Black Diamond® coating for enhanced corrosion protection and appearance.
• Provides a 6% reduction in fuel temperature.
Specifications
Specifications
-
Specifications

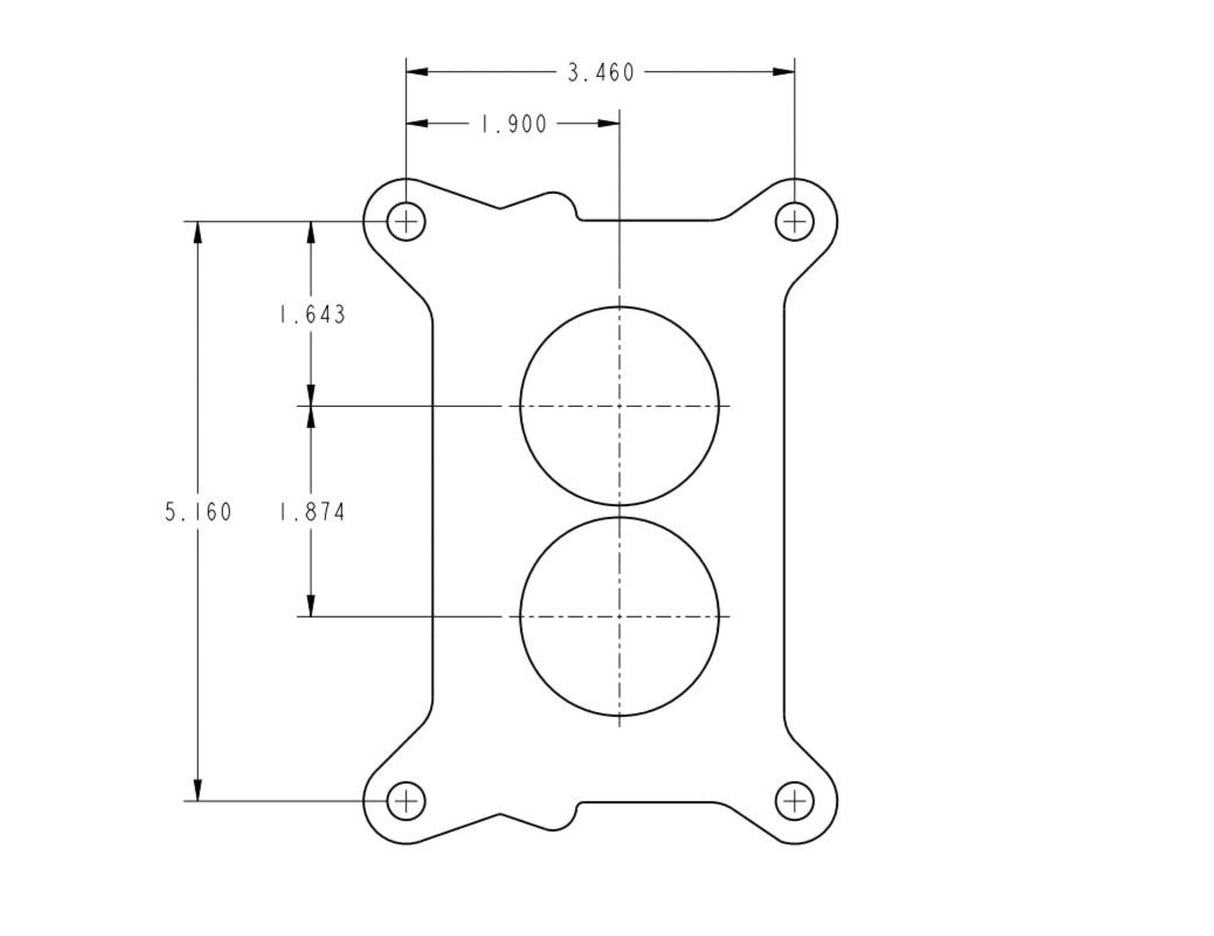

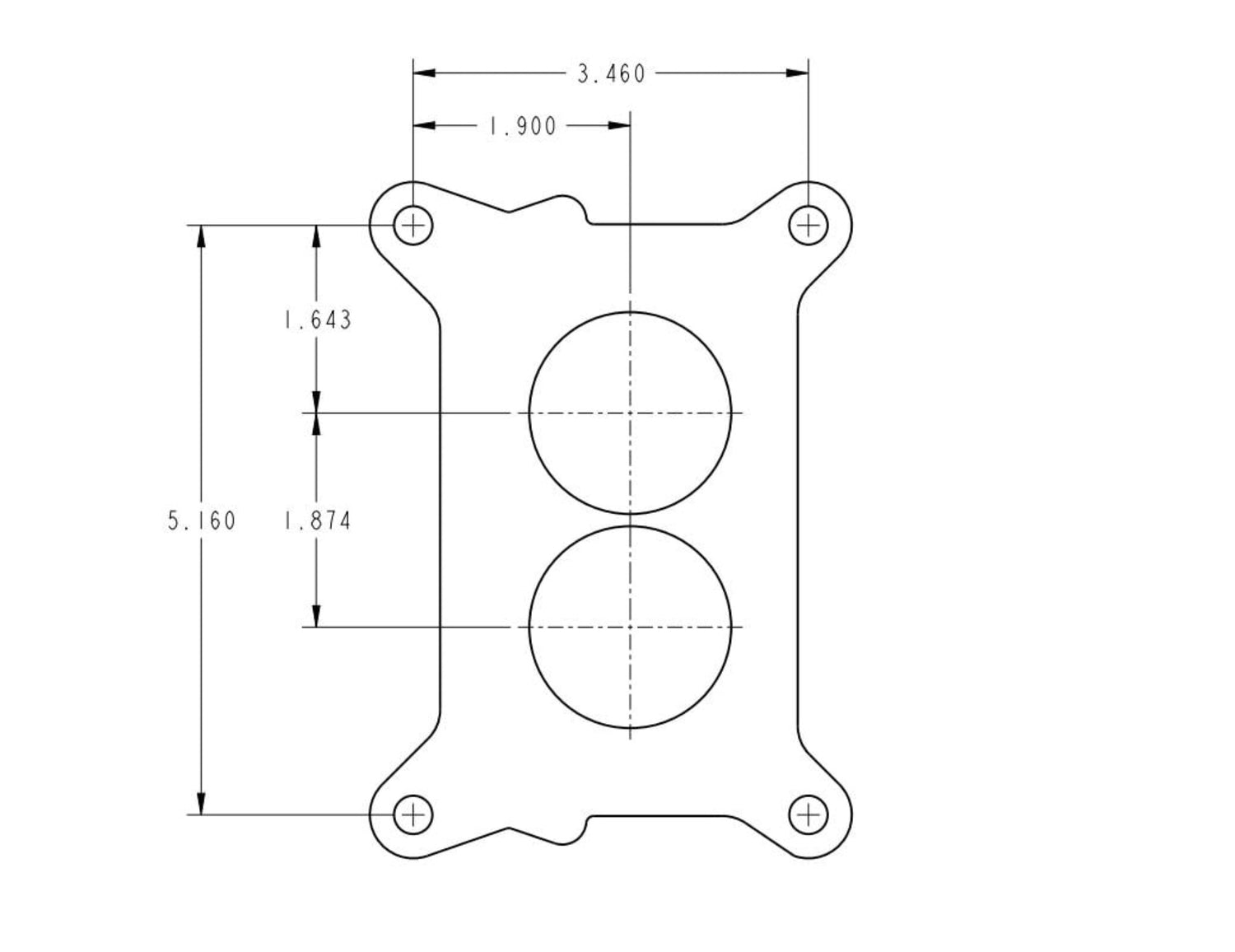

Adjustable Air Bleeds Yes Adjustable Emulsion Bleeds No Adjustable Idle Feed Restrictors No Air Cleaner Flange Diameter 5-1/8 Barrel Quantity 2 Barrels 2 Barrels Quantity 2 Billet Color Black Body Color Black Body Finish Black Diamond E-Coat Body Material Aluminum Booster Down Leg Booster Design Downleg Brand Quick Fuel Technology Carburetor Use Professional Race Category Air and Fuel Delivery CFM 500 CFM Rating 500 Choke None Choke Type None Circuit Count 2 Color Black Condition New Cubic Feet Per Minute Rating 500 Emission Code 3 Finish Black Flange Shape Square Flange Type 2300 2-BBL Float Level Externally Adjustable Fuel Methanol Fuel Inlet Count Single Fuel Inlet Type -8 Male Fuel System Carbureted Fuel Type Alcohol Gasket Or Seal Included Yes Grade Type Circle Track Linkage Attached Yes Marine Approved No Marine Use No Material Aluminum Meter Block Material Billet Aluminum Metering Block Color Black Model 2300 Mounting Hardware Included No Mounting Hole Quantity 4 part type Carburetor Primary Float Type Center Hung Nitrophyl Primary Main Jet Size 128 Primary Power Valve 45 Primary Pump Nozzle Size 55 Primary Throttle Bore Diameter 1.6875 Primary Venturii Diameter 1.375 Product Type Carburetor Secondaries None Secondary Barrel Type None Secondary Jet Extensions No Secondary Main Jet Size N/A Secondary Throttle Bore Diameter 1.6875 Series XP-Series Sub Category Carburetion Supercharged Application No Throttle Bore Diameter 1-11/16 inch Throttle Kickdown Provision(S) Compatible with GM A/T kickdown linkage Warning California Proposition 65 Warranty Manufacturer's Limited 90 Day Warranty
