Quick Fuel Technology | SKU:
SS-850

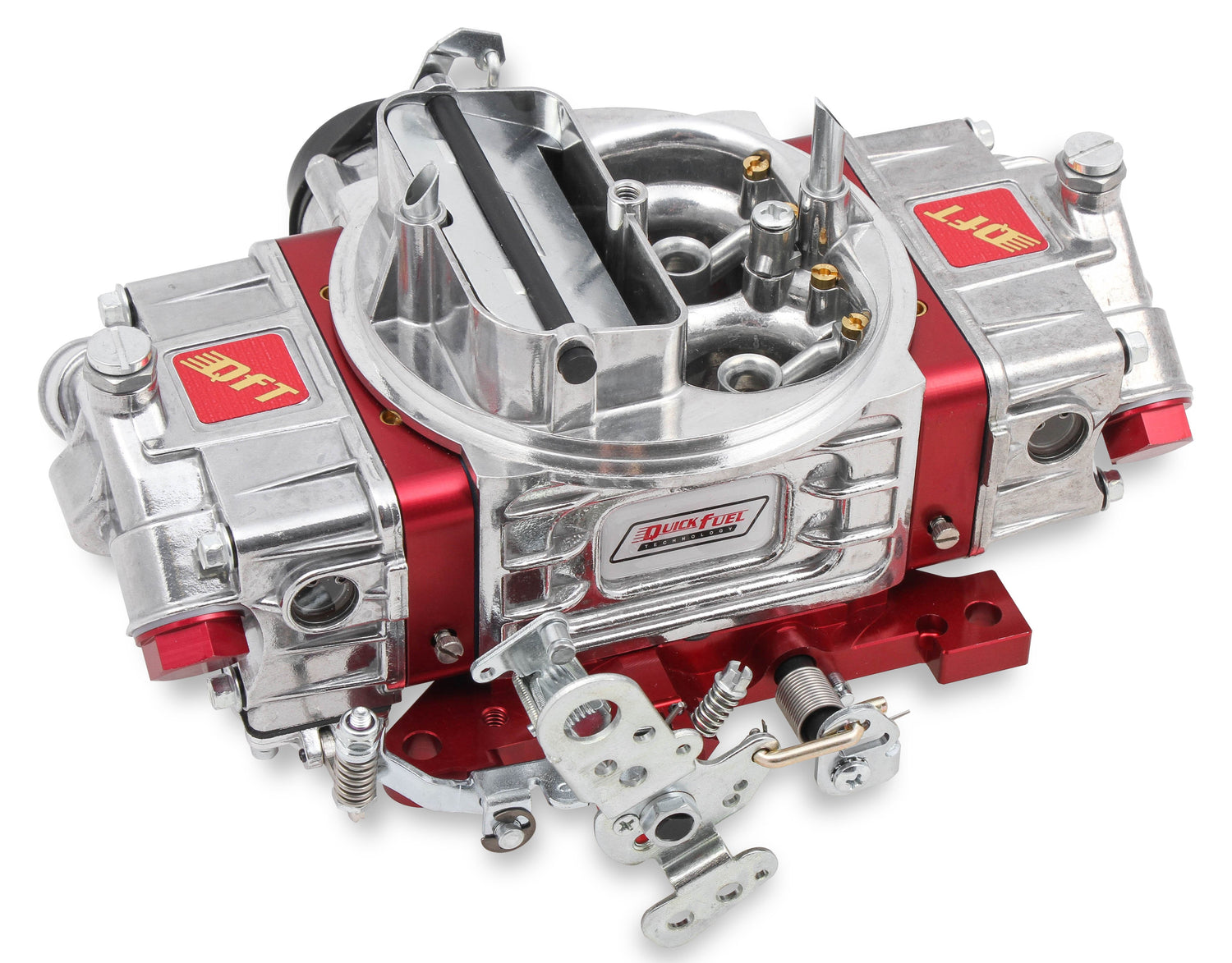

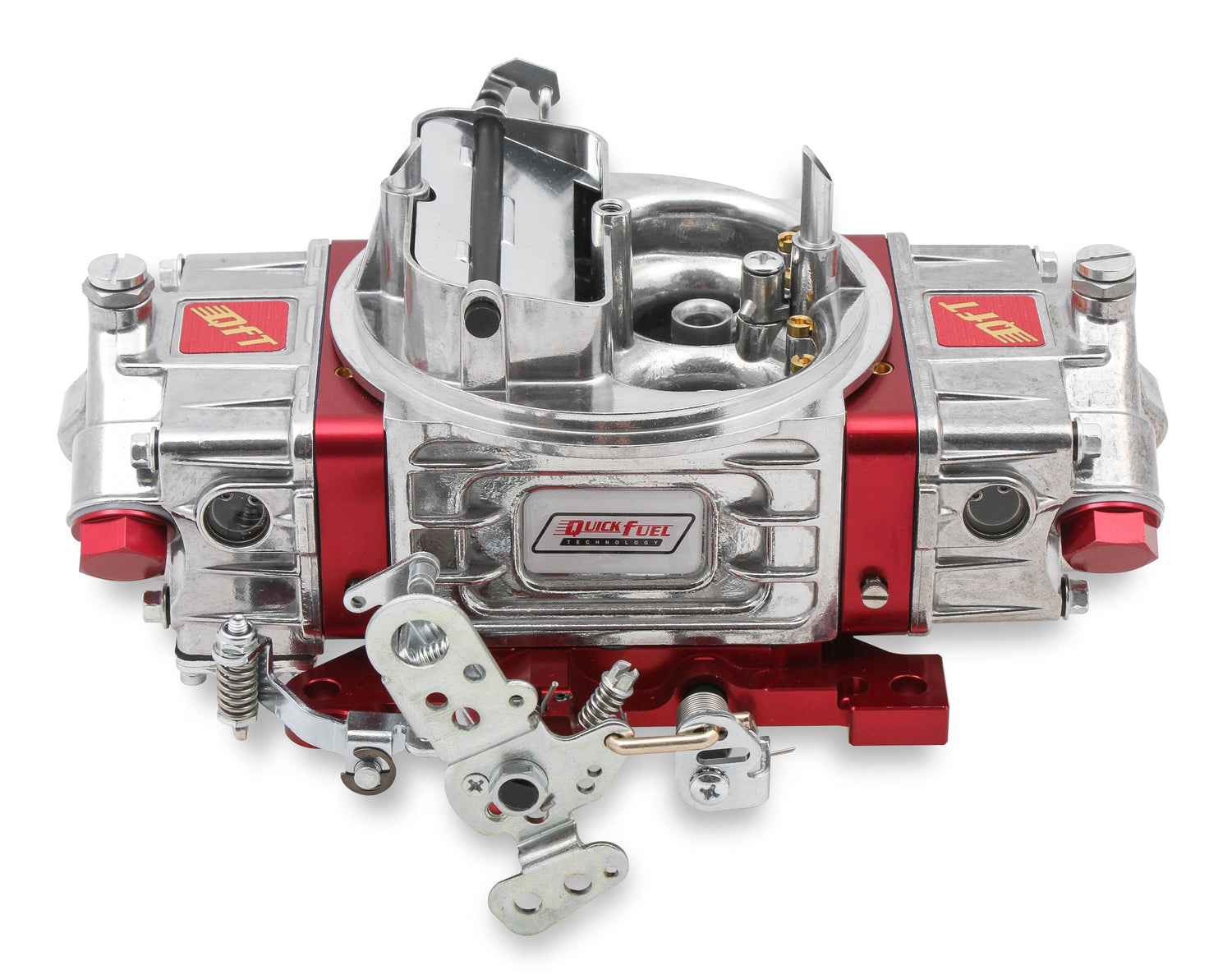

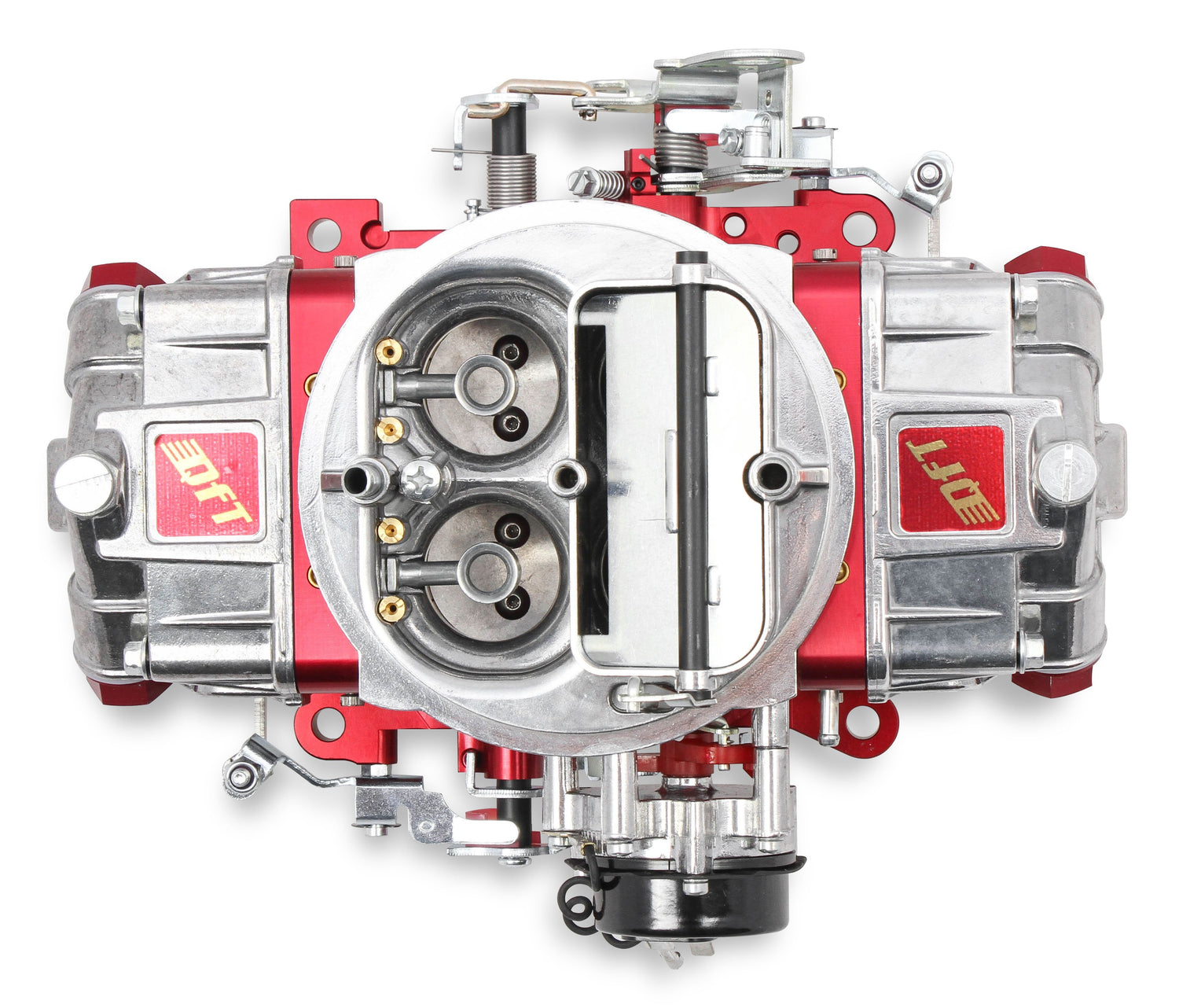

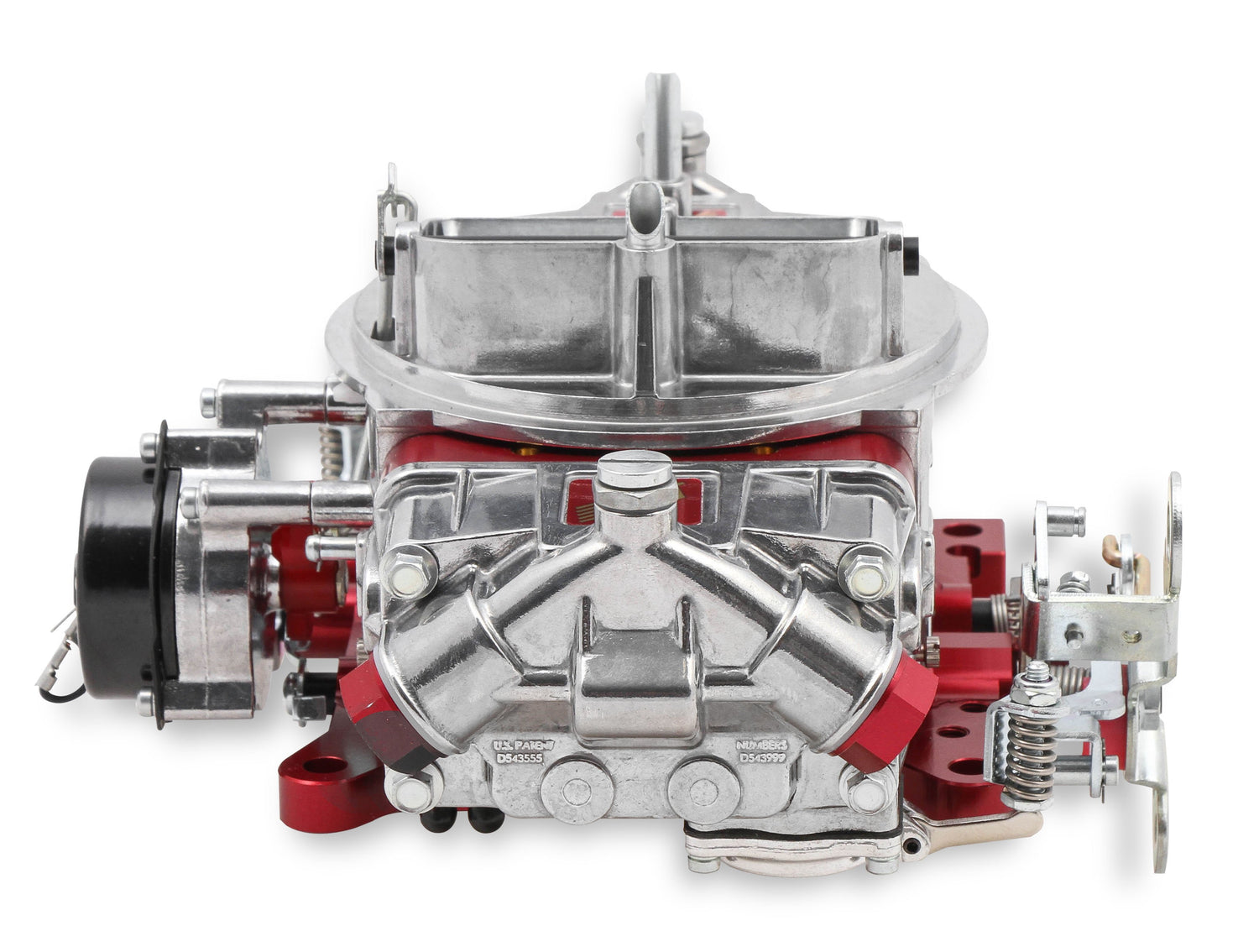

Quick Fuel Technology SS-Series Carburetor 850CFM - SS-850
850 CFM - 4150 - Mechanical Secondaries - Shiny - Gasoline
Regular price
$1,752.50 NZD
+ GST
Unit price
/
Unavailable
Shipping calculated at checkout.
Quick Fuel Technology SS-Series Carburetor 850CFM - SS-850
is not in stock at Fast Lane Spares and will ship direct from supplier.
Please contact us prior to purchasing if you would like an accurate ETA.
⚠ Special Order Item — ships direct from supplier. No returns, exchanges, or cancellations once processed. Please allow 7–20 days shipping.
Stock Status:
Description
Description
850 CFM - 4150 - Mechanical Secondaries - Shiny - Gasoline
Part Number: SS-850

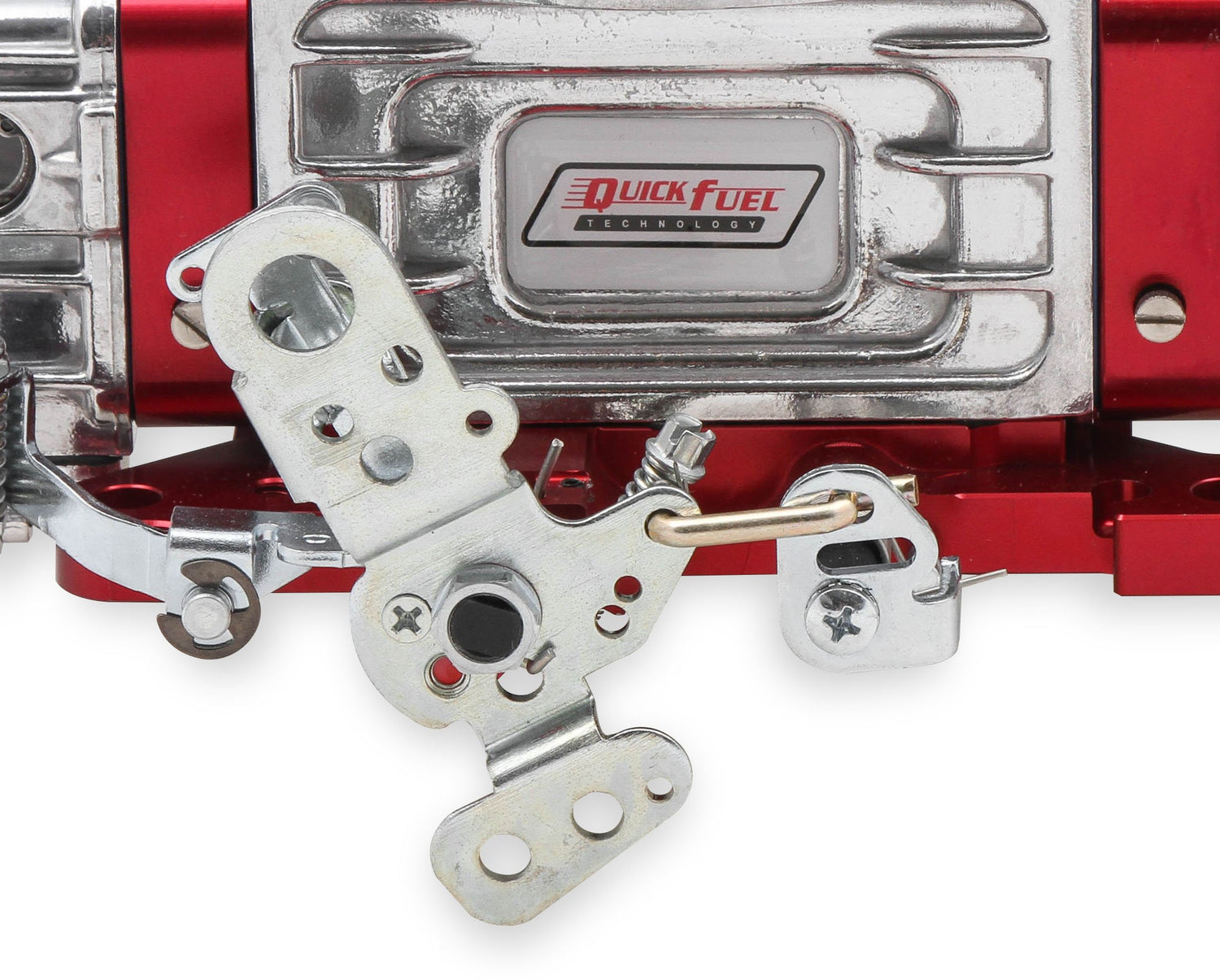

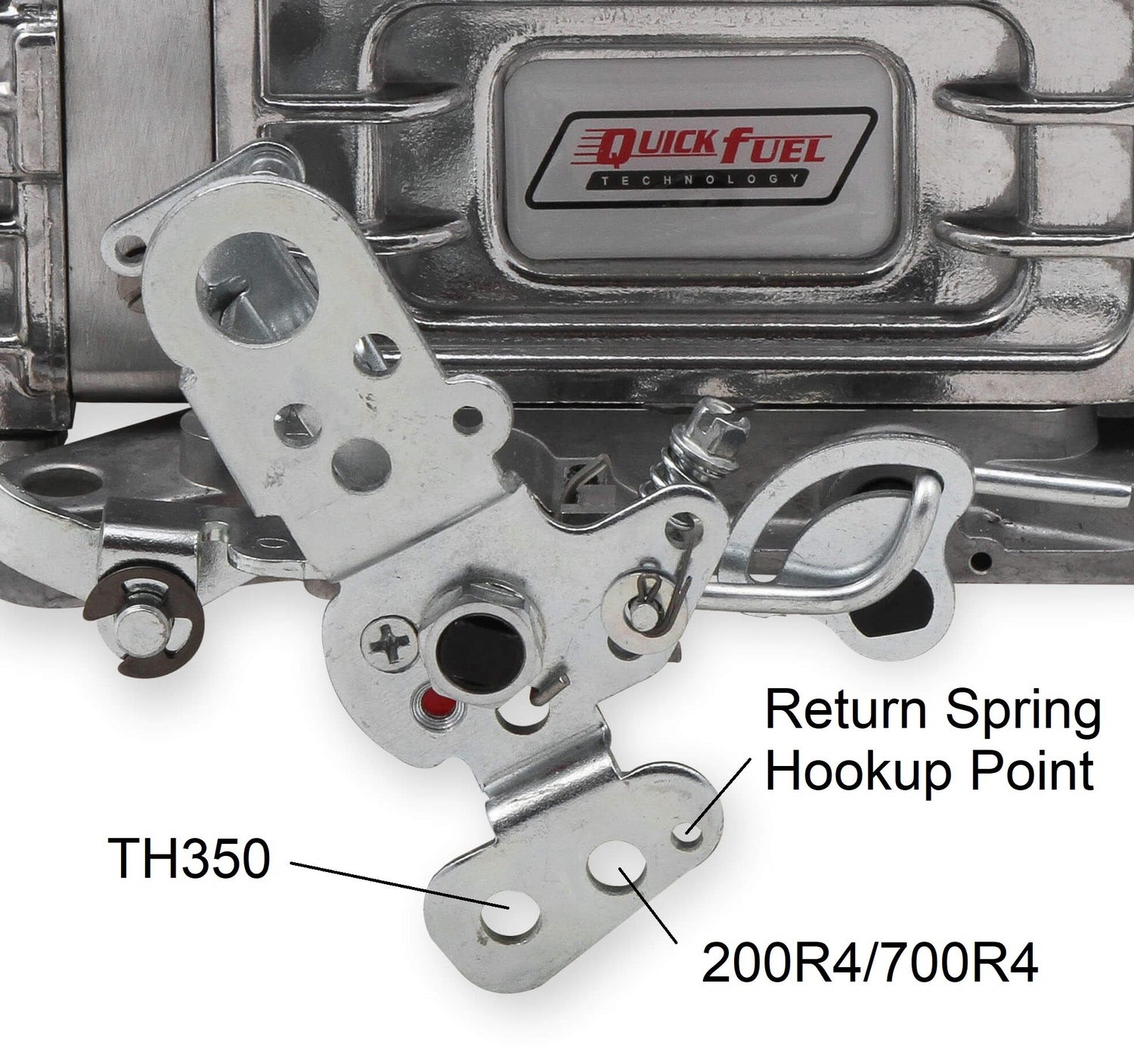

Super Street Series carburetors combine street-friendly drivability and track-capable performance in a single value-oriented package. Setting them apart from ordinary street carbs, they feature billet dual metering blocks and throttle-bodies that offer tighter tolerances and eliminate porosity. Not only are Super Street Series carbs available with both vacuum or mechanical secondaries, QFT™ also offers models designed and calibrated specifically for E85 fuel and blow-through forced induction applications. Running alternative fuel or boost no longer requires an expensive custom carburetor. All SS-Series carburetors are equipped with universal throttle levers to accommodate Ford A/T kickdown, GM 700 R4 mounting holes, and ability to mount brackets for Chrysler vehicles. Available in 8 different sizes, bolting on the ultimate street/strip carburetor has never been easier.
Features and Benefits
•Billet dual metering blocks & throttle bodies for improved durability
•Changeable idle, high-speed air bleeds & power valve restrictions
•Dual inlet fuel bowls with dual sight glass windows for easy float adjustment
•4-Corner idle for precise idle and smooth transition
•Fully-adjustable electric choke with easy one wire hookup
•Race-ready with notched secondary floats and jet extensions
•Polished or Black Diamond™ finish available (some models)

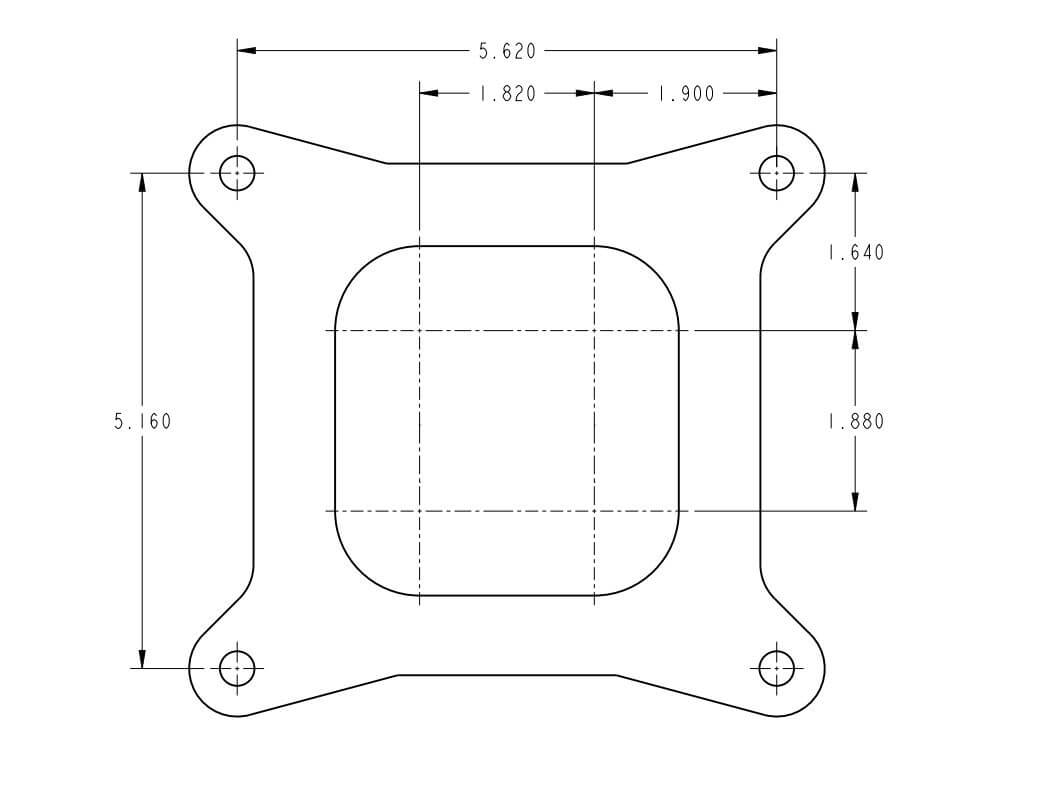

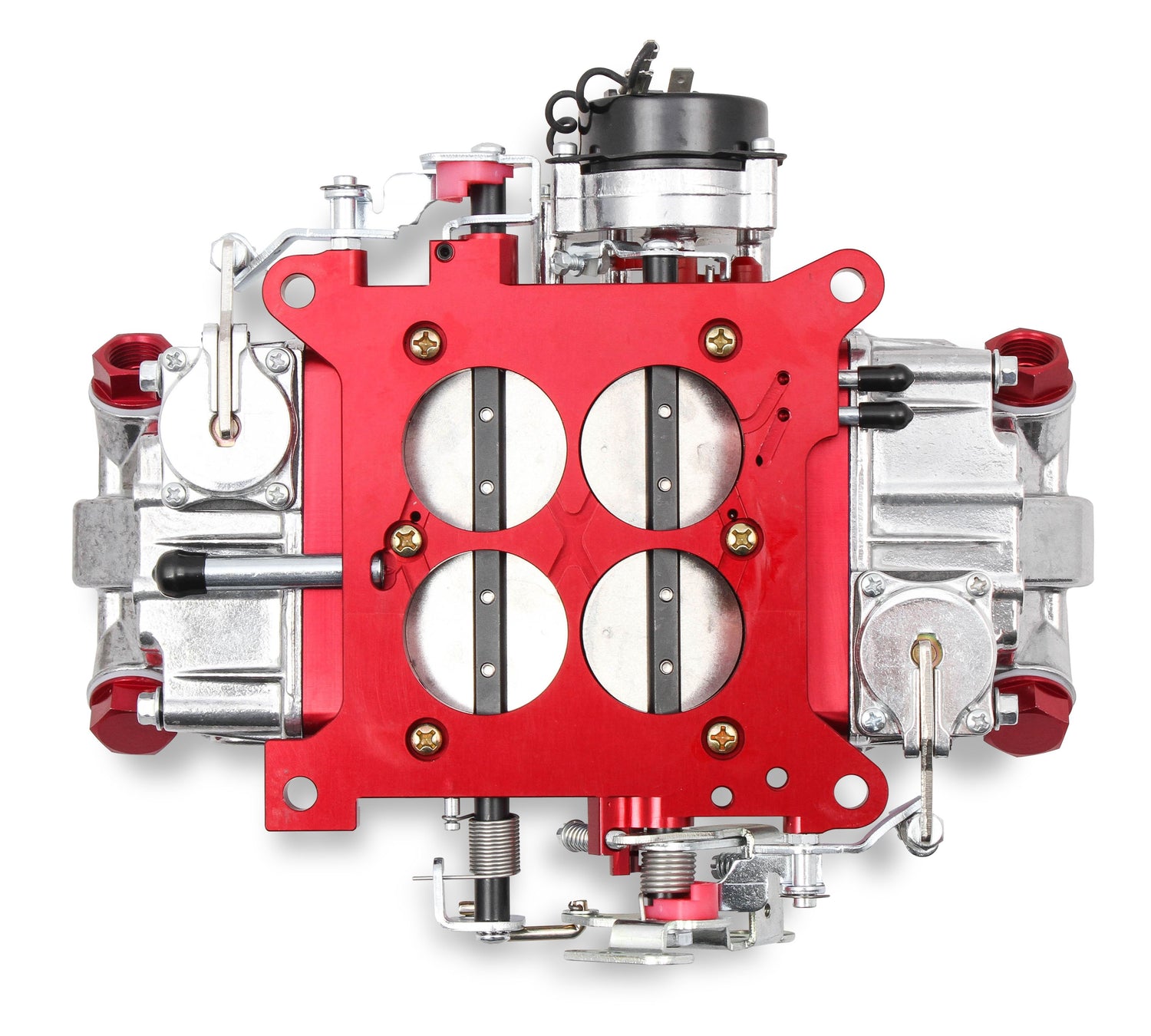

This model of carburetor has the square bore flange bolt pattern. It can replace Holley, Edelbrock, Carter AFB, and Autolite style carburetors with 5 3/16" x 5 5/8" bolt pattern. If you have a spreadbore style intake manifold, you will need an adapter to install this carburetor. Similar to the Mr. Gasket #1932.
Part Number: SS-850
Super Street Series carburetors combine street-friendly drivability and track-capable performance in a single value-oriented package. Setting them apart from ordinary street carbs, they feature billet dual metering blocks and throttle-bodies that offer tighter tolerances and eliminate porosity. Not only are Super Street Series carbs available with both vacuum or mechanical secondaries, QFT™ also offers models designed and calibrated specifically for E85 fuel and blow-through forced induction applications. Running alternative fuel or boost no longer requires an expensive custom carburetor. All SS-Series carburetors are equipped with universal throttle levers to accommodate Ford A/T kickdown, GM 700 R4 mounting holes, and ability to mount brackets for Chrysler vehicles. Available in 8 different sizes, bolting on the ultimate street/strip carburetor has never been easier.
Features and Benefits
•Billet dual metering blocks & throttle bodies for improved durability
•Changeable idle, high-speed air bleeds & power valve restrictions
•Dual inlet fuel bowls with dual sight glass windows for easy float adjustment
•4-Corner idle for precise idle and smooth transition
•Fully-adjustable electric choke with easy one wire hookup
•Race-ready with notched secondary floats and jet extensions
•Polished or Black Diamond™ finish available (some models)
This model of carburetor has the square bore flange bolt pattern. It can replace Holley, Edelbrock, Carter AFB, and Autolite style carburetors with 5 3/16" x 5 5/8" bolt pattern. If you have a spreadbore style intake manifold, you will need an adapter to install this carburetor. Similar to the Mr. Gasket #1932.
Specifications
Specifications
-
Specifications
Adjustable Air Bleeds Yes Adjustable Emulsion Bleeds Yes Adjustable Idle Feed Restrictors Yes Air Cleaner Flange Diameter 5-1/8 Barrel Quantity 4 Barrels 4 Barrels Quantity 4 Billet Color Red Body Color Polished Aluminum Body Finish Polished Body Material Aluminum Booster Down Leg Booster Design Downleg Brand Quick Fuel Technology Carburetor Use Performance and Race Category Air and Fuel Delivery CFM 850 CFM Rating 850 Choke Electric Choke Type Electric Circuit Count 2 Color Polished/Red Condition New Cubic Feet Per Minute Rating 850 Emission Code 3 Finish Shiny Flange Shape Square Flange Type Square/4150 Float Level Externally Adjustable Fuel Gasoline Fuel Inlet Center to Center 9.5 Fuel Inlet Count Dual Fuel Inlet Type 5/8-18 Inverted Flare Fuel System Carbureted Fuel Type Gasoline Gasket Or Seal Included Yes Grade Type Street/Strip Linkage Attached Yes Marine Approved No Marine Use No Material Aluminum Meter Block Material Billet Aluminum Metering Block Color Red Model 4150 Mounting Hardware Included No Mounting Hole Quantity 4 part type Carburetor Primary Float Type Center Hung Nitrophyl Primary Main Jet Size 80 Primary Power Valve 65 Primary Pump Nozzle Size 35 Primary Throttle Bore Diameter 1.75 Primary Venturii Diameter 1.4 Product Type Carburetor Secondaries Mechanical Secondary Barrel Type Mechanical Secondary Float Type Center Hung Notched Nitrophyl Secondary Jet Extensions No Secondary Main Jet Size 86 Secondary Throttle Bore Diameter 1.75 Series SS-Series Sub Category Carburetion Supercharged Application No Throttle Bore Diameter 1-3/4 inch Throttle Kickdown Provision(S) Compatible with GM A/T kickdown linkage Vacuum Ports 1 timed (spark) port, 1 full, and 1 PCV port Warning California Proposition 65 Warranty Manufacturer's Limited 90 Day Warranty -
