Quick Fuel Technology | SKU:
SL-450-VS

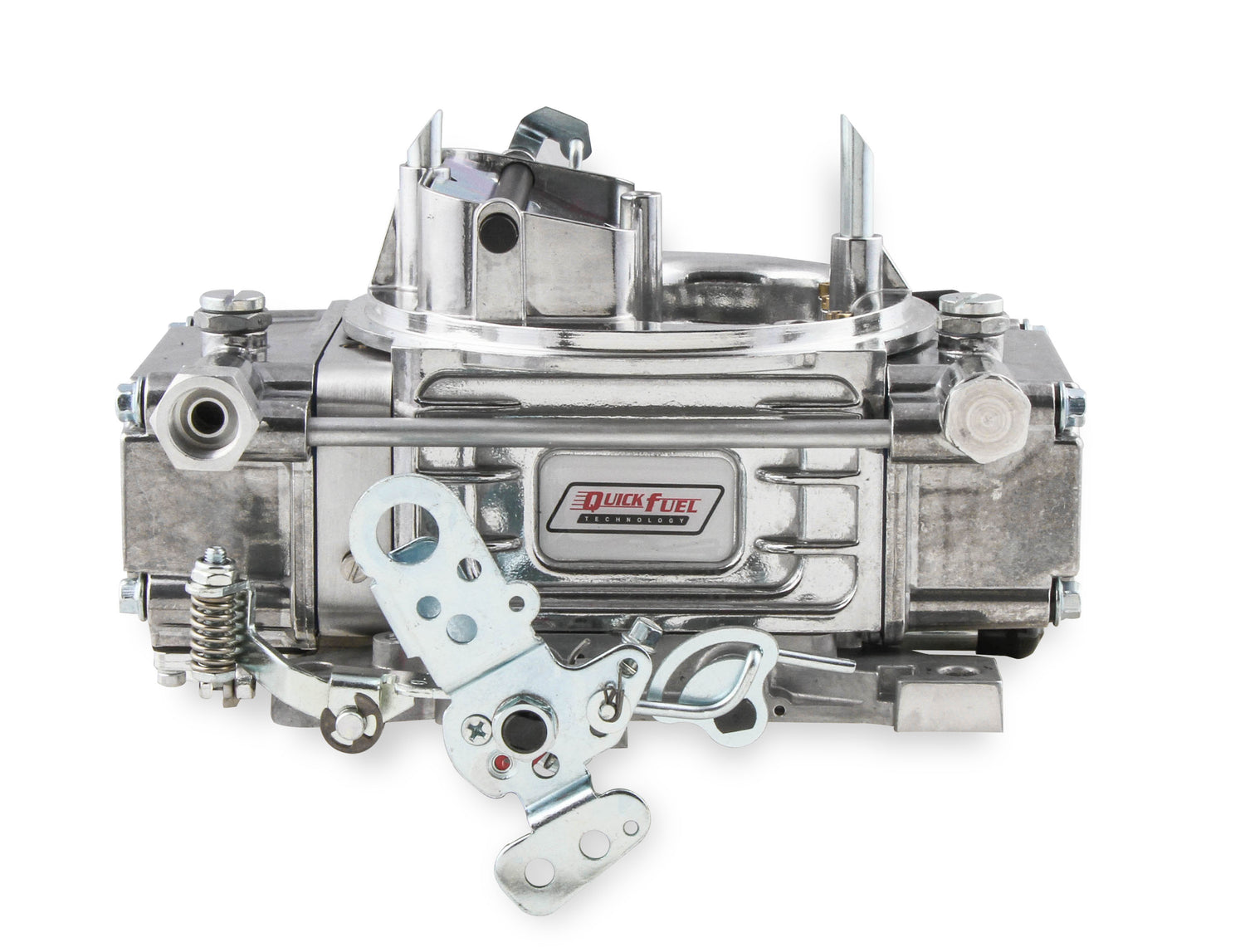

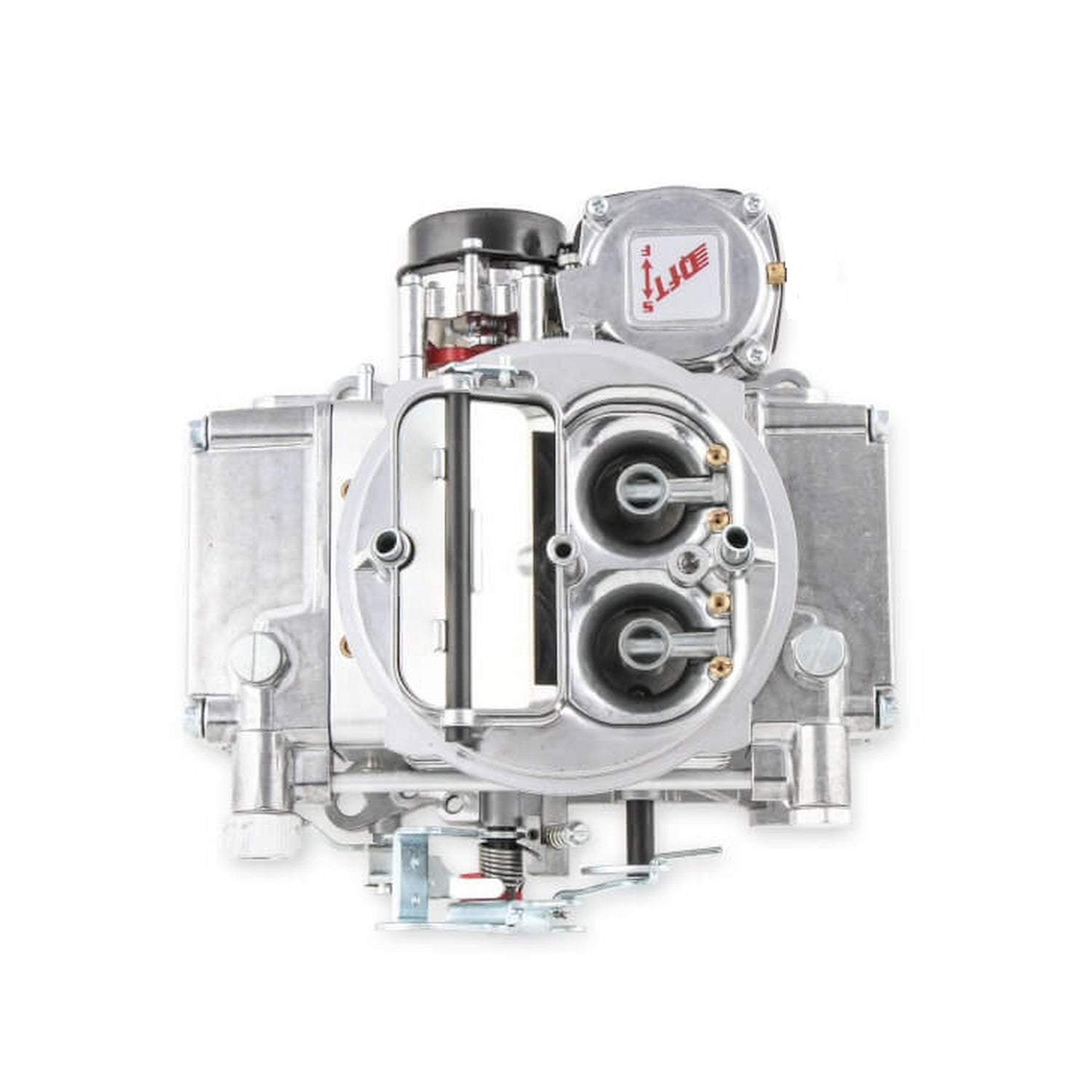

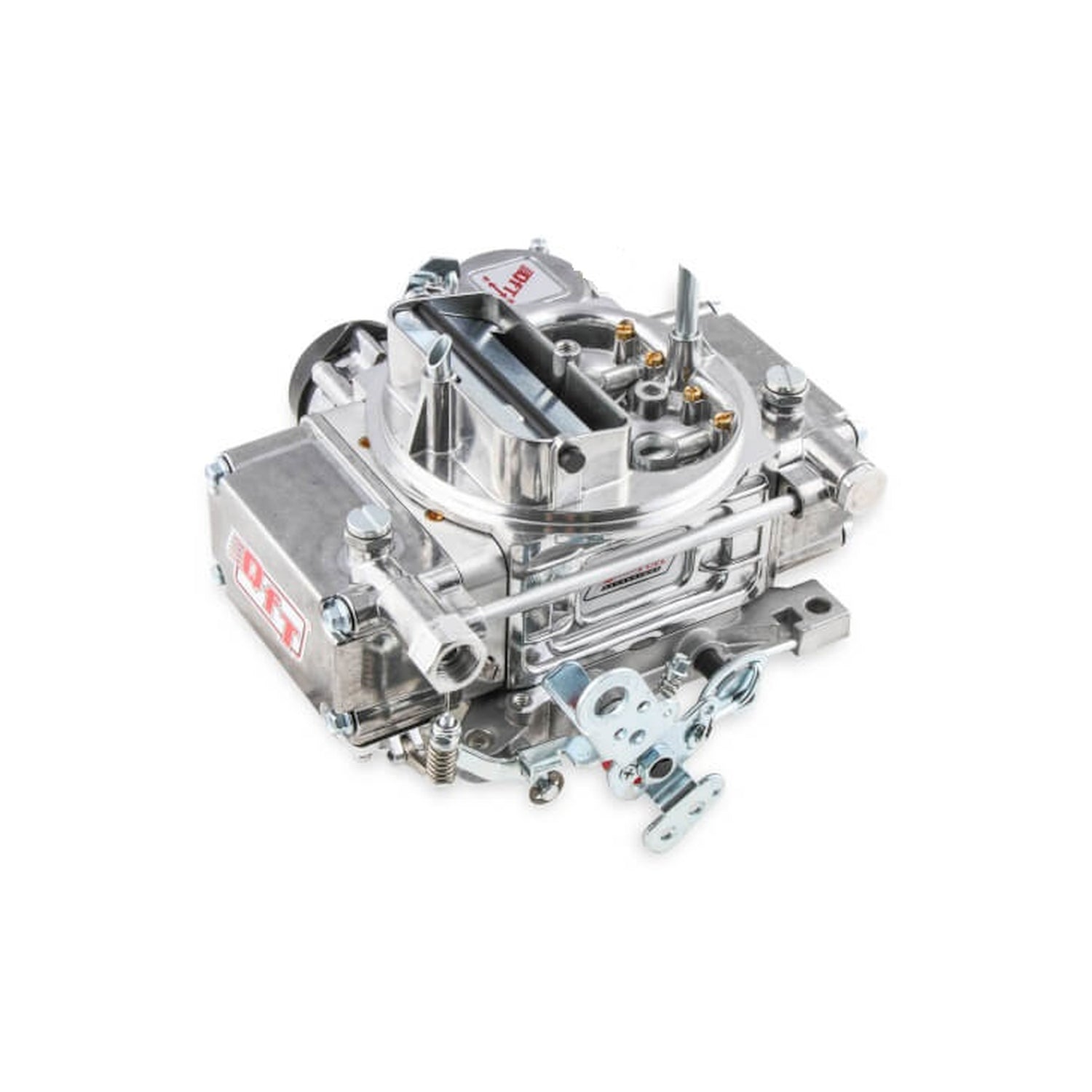

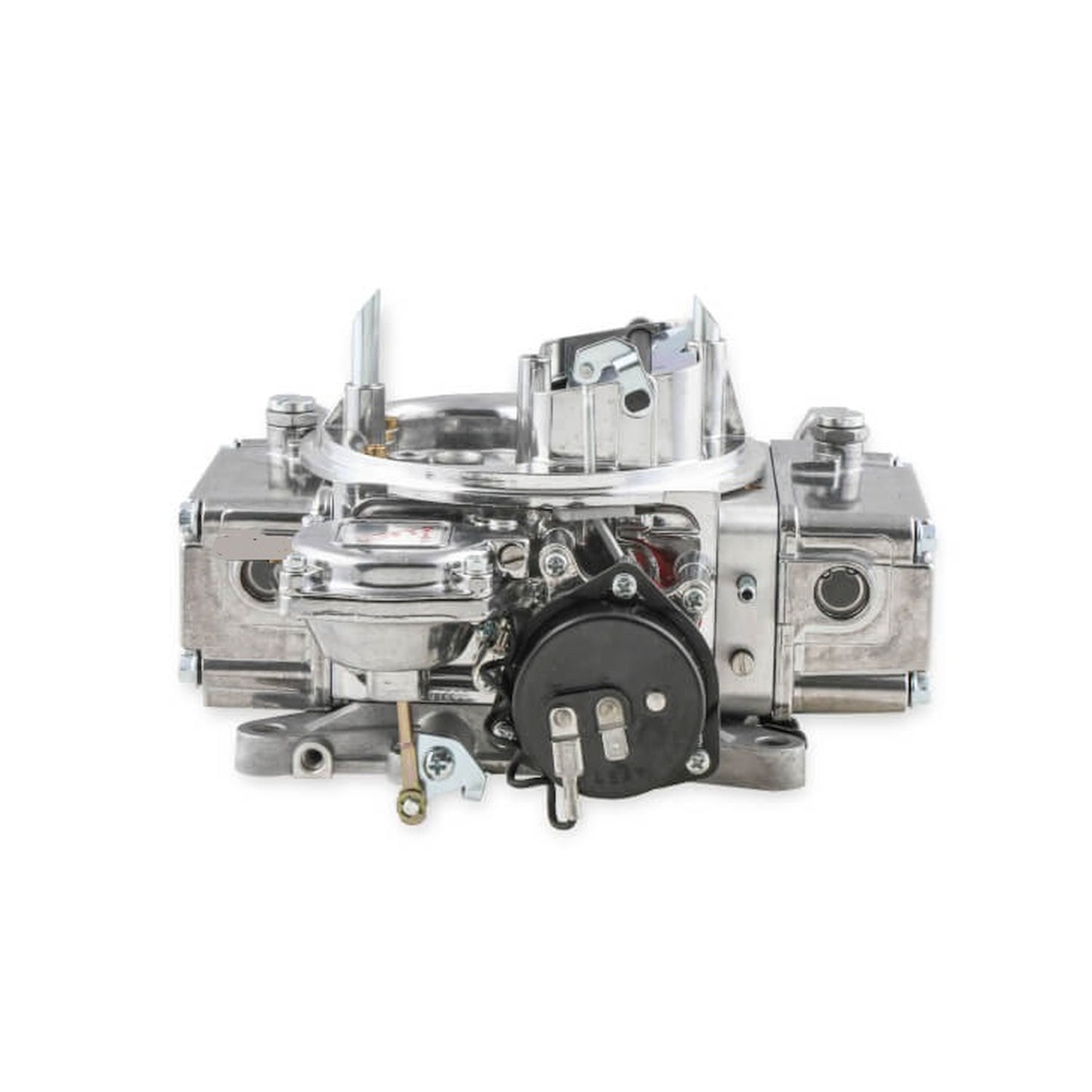

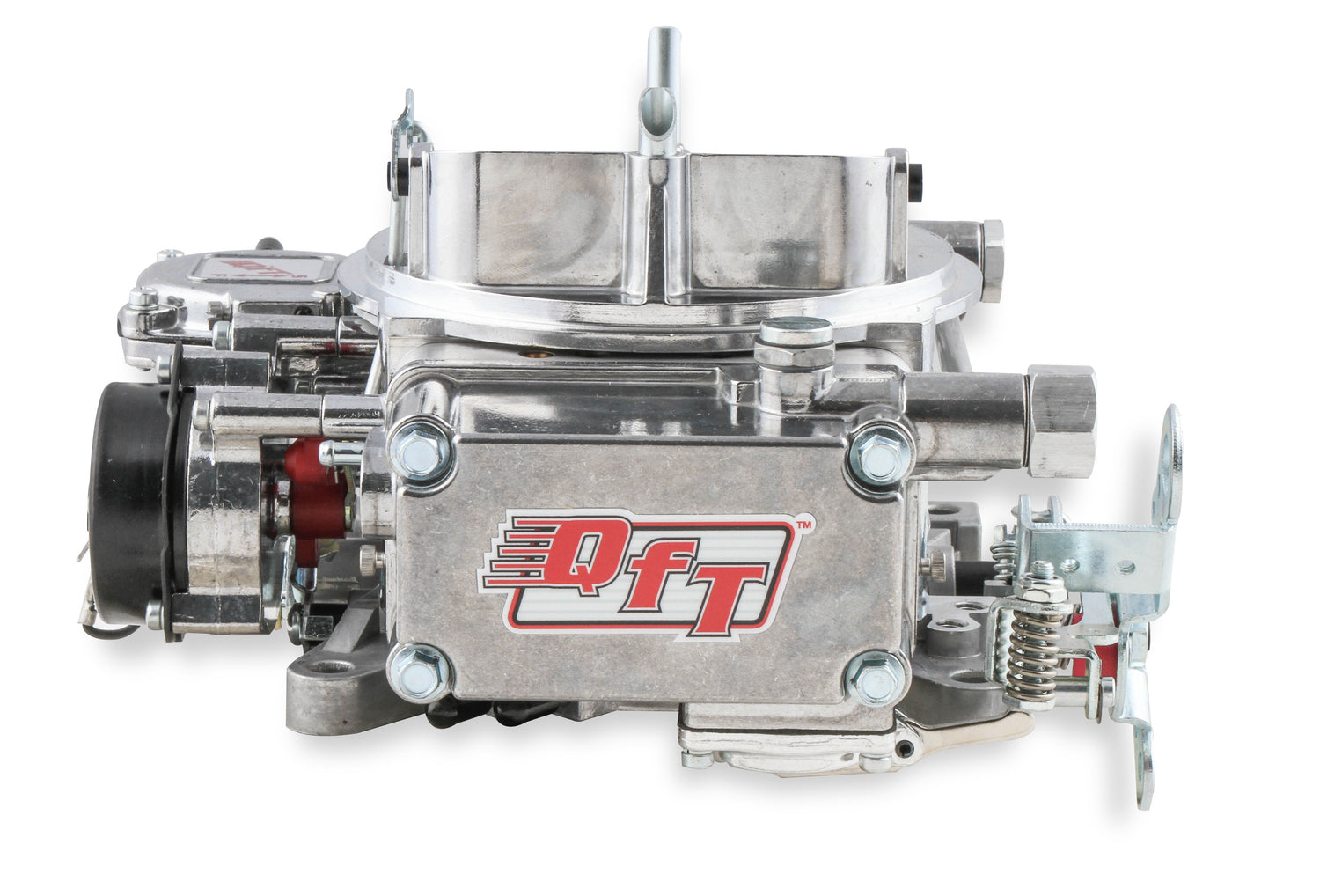

Quick Fuel Technology Slayer Series Carburetor 450CFM VS - SL-450-VS
450 CFM - 4160 - Vacuum Secondaries - Shiny - Gasoline
Regular price
$1,032.70 NZD
+ GST
Unit price
/
Unavailable
Shipping calculated at checkout.
Quick Fuel Technology Slayer Series Carburetor 450CFM VS - SL-450-VS
is not in stock at Fast Lane Spares and will ship direct from supplier.
Please contact us prior to purchasing if you would like an accurate ETA.
⚠ Special Order Item — ships direct from supplier. No returns, exchanges, or cancellations once processed. Please allow 7–20 days shipping.
Stock Status:
Description
Description
450 CFM - 4160 - Vacuum Secondaries - Shiny - Gasoline
Part Number: SL-450-VS

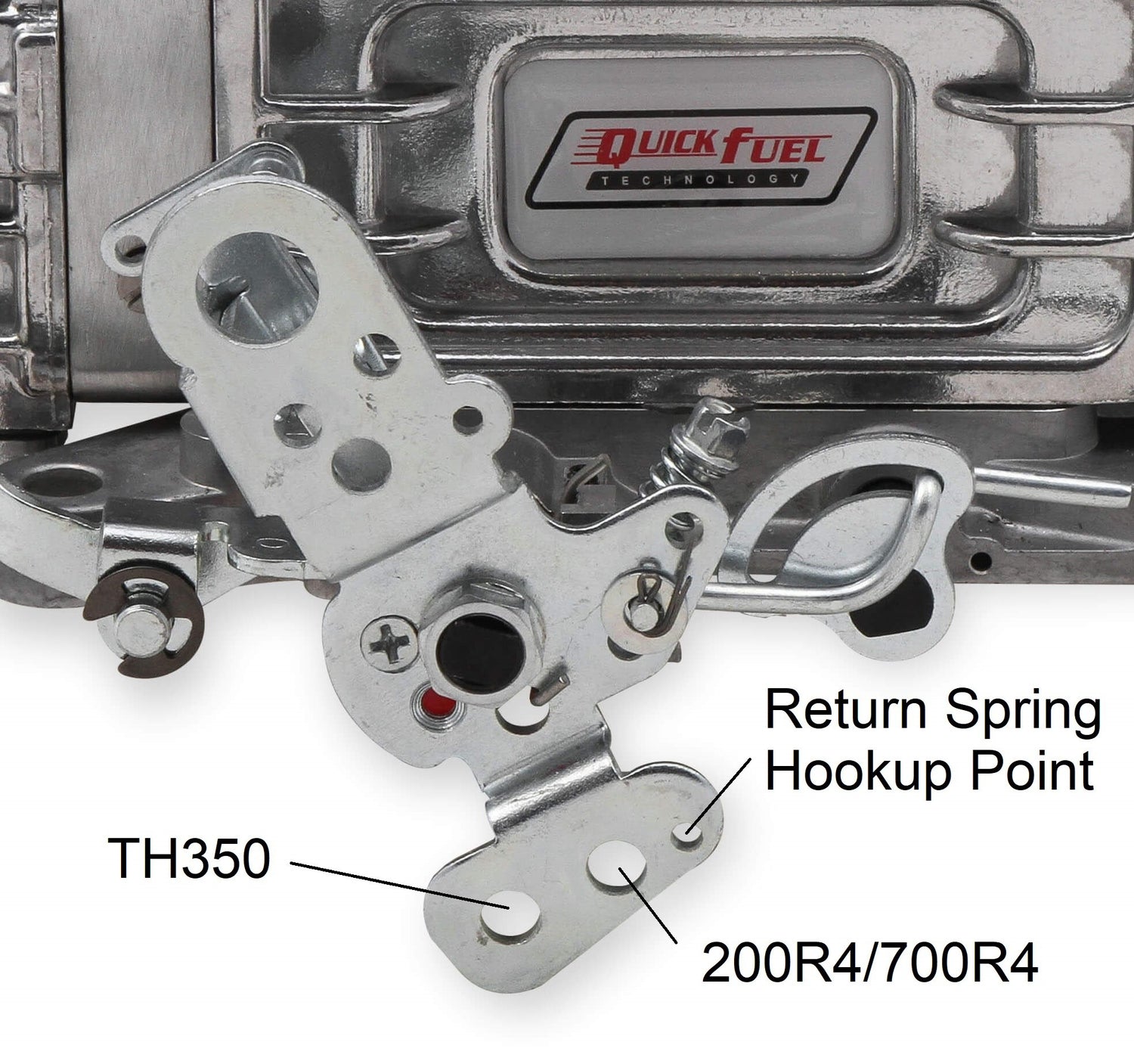

Slayer Series street carburetors are designed with many of the same innovations and features that are built into all QFT™ race-winning carburetors, including changeable air bleeds and power valve channel restrictions. It's designed with a secondary metering plate with changeable jets, and features all aluminum components for additional weight savings. All Slayer Series carburetors are equipped with universal throttle levers to accommodate Ford A/T kickdown, GM 700 R4 mounting holes, and ability to mount brackets for Chrysler vehicles. Slayer Series are available in 450, 600, and 750 cfm vacuum secondary models.
Features and Benefits
• Vacuum Secondaries
• Electric Choke
• Single Metering Block
• Secondary Metering Plate
• Cast Aluminum Throttle Body
• Single Sight Glass Windows
• Changeable Air Bleeds
• Adjustable Needles & Seats
• Notched Secondary Floats w/Jet Extensions

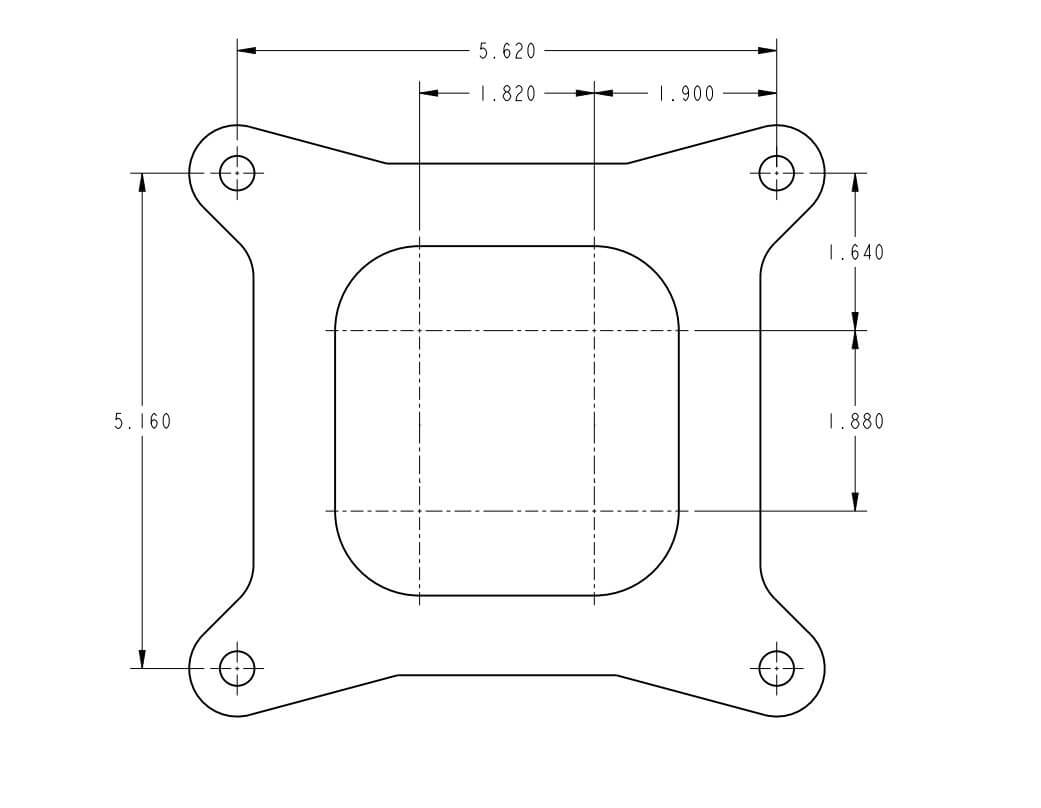

This model of carburetor has the square bore flange bolt pattern. It can replace Holley, Edelbrock, Carter AFB, and Autolite style carburetors with 5 3/16" x 5 5/8" bolt pattern. If you have a spreadbore style intake manifold, you will need an adapter to install this carburetor. Similar to the Mr. Gasket #1932.
Part Number: SL-450-VS
Slayer Series street carburetors are designed with many of the same innovations and features that are built into all QFT™ race-winning carburetors, including changeable air bleeds and power valve channel restrictions. It's designed with a secondary metering plate with changeable jets, and features all aluminum components for additional weight savings. All Slayer Series carburetors are equipped with universal throttle levers to accommodate Ford A/T kickdown, GM 700 R4 mounting holes, and ability to mount brackets for Chrysler vehicles. Slayer Series are available in 450, 600, and 750 cfm vacuum secondary models.
Features and Benefits
• Vacuum Secondaries
• Electric Choke
• Single Metering Block
• Secondary Metering Plate
• Cast Aluminum Throttle Body
• Single Sight Glass Windows
• Changeable Air Bleeds
• Adjustable Needles & Seats
• Notched Secondary Floats w/Jet Extensions
This model of carburetor has the square bore flange bolt pattern. It can replace Holley, Edelbrock, Carter AFB, and Autolite style carburetors with 5 3/16" x 5 5/8" bolt pattern. If you have a spreadbore style intake manifold, you will need an adapter to install this carburetor. Similar to the Mr. Gasket #1932.
Specifications
Specifications
-
Specifications
Adjustable Air Bleeds Yes Adjustable Emulsion Bleeds No Adjustable Idle Feed Restrictors No Air Cleaner Flange Diameter 5-1/8 Barrel Quantity 4 Barrels 4 Barrels Quantity 4 Billet Color Diecast-No Billet Body Color Polished Aluminum Body Finish Polished Body Material Aluminum Booster Straight Booster Design Straight Brand Quick Fuel Technology Carburetor Use Street Category Air and Fuel Delivery CFM 450 CFM Rating 450 Choke Electric Choke Type Electric Circuit Count 2 Color Polished Aluminum Condition New Cubic Feet Per Minute Rating 450 Emission Code 3 Finish Shiny Flange Shape Square Flange Type Square/4150 Float Level Externally Adjustable Fuel Gasoline Fuel Inlet Count Single Fuel Inlet Type 9/16-24 Fuel System Carbureted Fuel Type Gasoline Gasket Or Seal Included Yes Grade Type Street Linkage Attached Yes Marine Approved No Marine Use No Material Aluminum Meter Block Material Cast Aluminum Metering Block Color Shiny Model 4160 Mounting Hardware Included No Mounting Hole Quantity 4 part type Carburetor Primary Float Type Side Hung Nitrophyl Primary Main Jet Size 55 Primary Power Valve 65 Primary Pump Nozzle Size 25 Primary Throttle Bore Diameter 1.5625 Primary Venturii Diameter 1.093 Product Type Carburetor Secondaries Vacuum Secondary Barrel Type Vacuum Secondary Float Type Side Hung Nitrophyl Secondary Jet Extensions No Secondary Main Jet Size 60 Secondary Throttle Bore Diameter 1.5625 Series Slayer Series Sub Category Carburetion Supercharged Application No Throttle Bore Diameter 1-9/16 inch Throttle Kickdown Provision(S) Compatible with GM A/T kickdown linkage Vacuum Ports 1 timed (spark) port, 1 full, and 1 PCV port Warning California Proposition 65 Warranty Manufacturer's Limited 90 Day Warranty -
Instructions
