Quick Fuel Technology | SKU:
M-850
Quick Fuel Technology M-Series 850CFM Marine Carburetor - M-850
850 CFM - 4150 - Mechanical Secondaries - Black - Gasoline
Sold out
Regular price
$2,129.40 NZD
+ GST
Unit price
/
Unavailable
Shipping calculated at checkout.
Quick Fuel Technology M-Series 850CFM Marine Carburetor - M-850
is not in stock at Fast Lane Spares and will ship direct from supplier.
Please contact us prior to purchasing if you would like an accurate ETA.
Stock Status:
Description
Description
850 CFM - 4150 - Mechanical Secondaries - Black - Gasoline
Part Number: M-850
QFT brings its engineering expertise to the marine market. The M-Series feature billet-style metering blocks and throttle bodies for more precise performance and exceptional strength.
•Exclusive Black Diamond coating for enhanced corrosion protection and appearance, coating provides a 6% reduction in fuel temperature

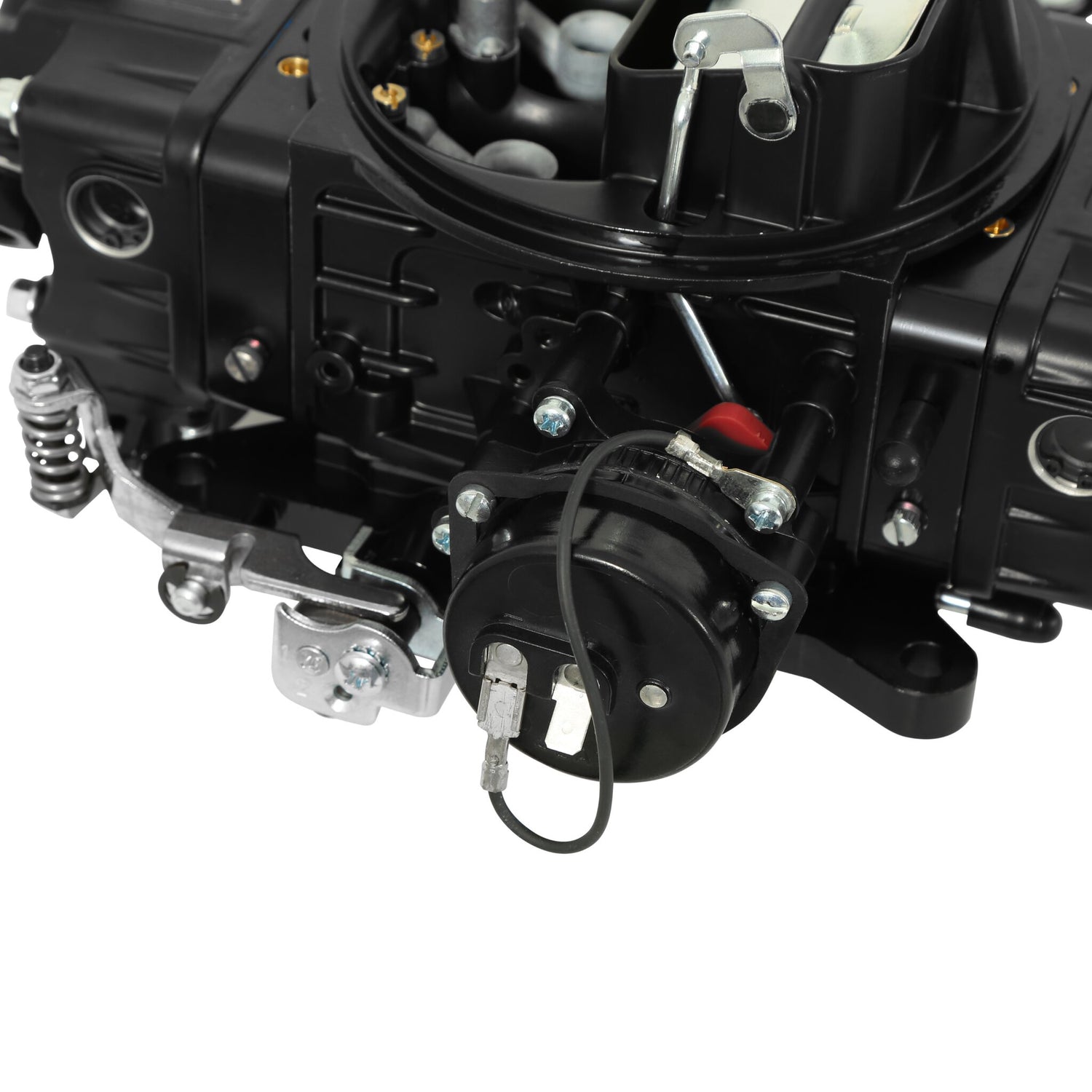

•Electric choke - Fully adjustable, one wire hookup
•J tubes to prevent spillage
•PTFE-coated throttle shafts with PTFE bearing ribbons and stainless steel plates
•Built-in sight glass windows for easy float adjustment
•Changeable primary idle feed and power valve channel restrictions, plus changeable idle air and high speed bleeds
•QuickLink™ secondary adjustment for fast and easy changing of opening rates
•Available in eight different sizes from 350-1,050 cfm

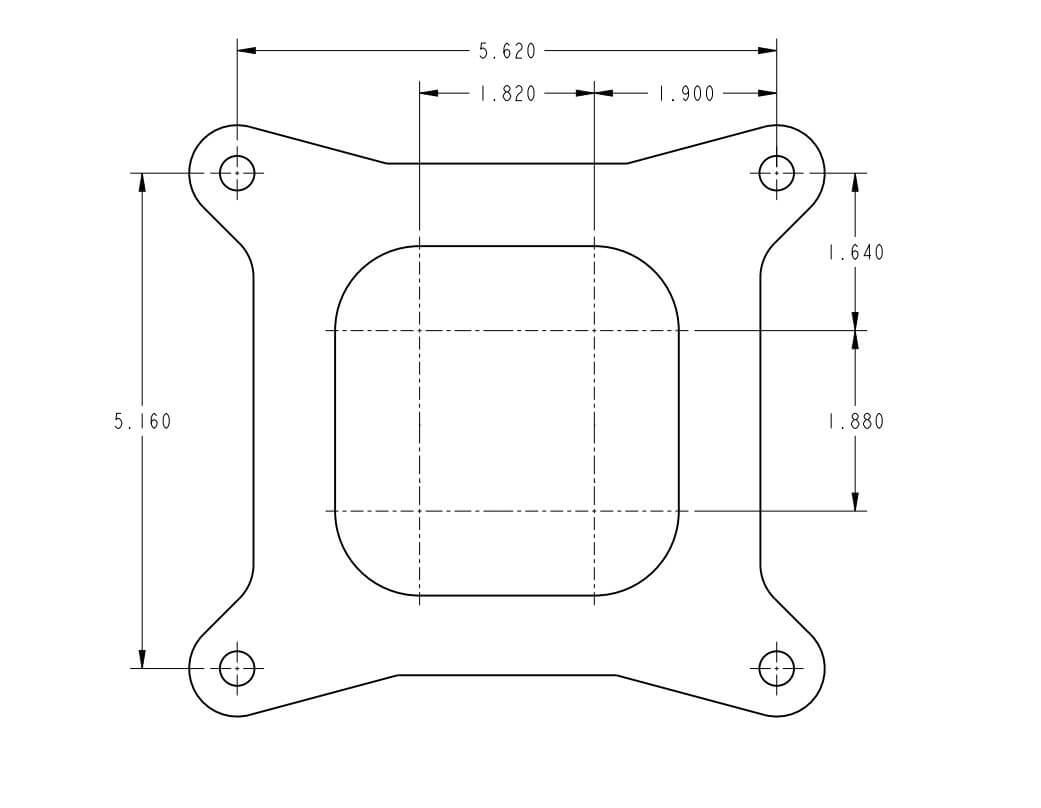

This model of carburetor has the square bore flange bolt pattern. It can replace Holley, Edelbrock, Carter AFB, and Autolite style carburetors with 5 3/16" x 5 5/8" bolt pattern. If you have a spreadbore style intake manifold, you will need an adapter to install this carburetor. Similar to the Mr. Gasket #1932.
Part Number: M-850
QFT brings its engineering expertise to the marine market. The M-Series feature billet-style metering blocks and throttle bodies for more precise performance and exceptional strength.
•Exclusive Black Diamond coating for enhanced corrosion protection and appearance, coating provides a 6% reduction in fuel temperature
•Electric choke - Fully adjustable, one wire hookup
•J tubes to prevent spillage
•PTFE-coated throttle shafts with PTFE bearing ribbons and stainless steel plates
•Built-in sight glass windows for easy float adjustment
•Changeable primary idle feed and power valve channel restrictions, plus changeable idle air and high speed bleeds
•QuickLink™ secondary adjustment for fast and easy changing of opening rates
•Available in eight different sizes from 350-1,050 cfm
This model of carburetor has the square bore flange bolt pattern. It can replace Holley, Edelbrock, Carter AFB, and Autolite style carburetors with 5 3/16" x 5 5/8" bolt pattern. If you have a spreadbore style intake manifold, you will need an adapter to install this carburetor. Similar to the Mr. Gasket #1932.
Specifications
Specifications
-
Specifications
Adjustable Air Bleeds Yes Adjustable Emulsion Bleeds No Adjustable Idle Feed Restrictors No Air Cleaner Flange Diameter 5-1/8 Barrel Quantity 4 Barrels 4 Barrels Quantity 4 Billet Color Diecast-No Billet Body Color Black Body Finish Black Diamond E-Coat Body Material Aluminum Booster Down Leg Booster Design Downleg Brand Quick Fuel Technology Carburetor Use Marine Category Air and Fuel Delivery CFM 850 CFM Rating 850 Choke Electric Choke Type Electric Circuit Count 2 Color Black Condition New Cubic Feet Per Minute Rating 850 Emission Code 3 Finish Black Flange Shape Square Flange Type Square/4150 Float Level Externally Adjustable Fuel Gasoline Fuel Inlet Center to Center 9.5 Fuel Inlet Count Dual Fuel Inlet Type 5/8-18 Inverted flare Fuel System Carbureted Fuel Type Gasoline Gasket Or Seal Included Yes Grade Type Marine Linkage Attached Yes Marine Approved Yes Marine Engine Size Universal Marine Use Yes Material Aluminum Meter Block Material Cast Aluminum Metering Block Color Black Model 4160 Mounting Hardware Included No Mounting Hole Quantity 4 part type Carburetor Primary Float Type Center Hung Nitrophyl Primary Main Jet Size 82 Primary Power Valve 6.5 Primary Pump Nozzle Size 37 Primary Throttle Bore Diameter 1.75 Primary Venturii Diameter 1.56 Product Type Quick Fuel Marine Carburetor Secondaries Mechanical Secondary Barrel Type Mechanical Secondary Float Type Center Hung Nitrophyl Secondary Jet Extensions No Secondary Main Jet Size 94 Secondary Throttle Bore Diameter 1.75 Series M-Series Sub Category Carburetion Supercharged Application No Throttle Bore Diameter 1-3/4 inch Vacuum Ports 1 timed (spark) port, 1 full, and 1 PCV port Warning California Proposition 65 Warranty Manufacturer's Limited 90 Day Warranty -
