Quick Fuel Technology | SKU:
M-750

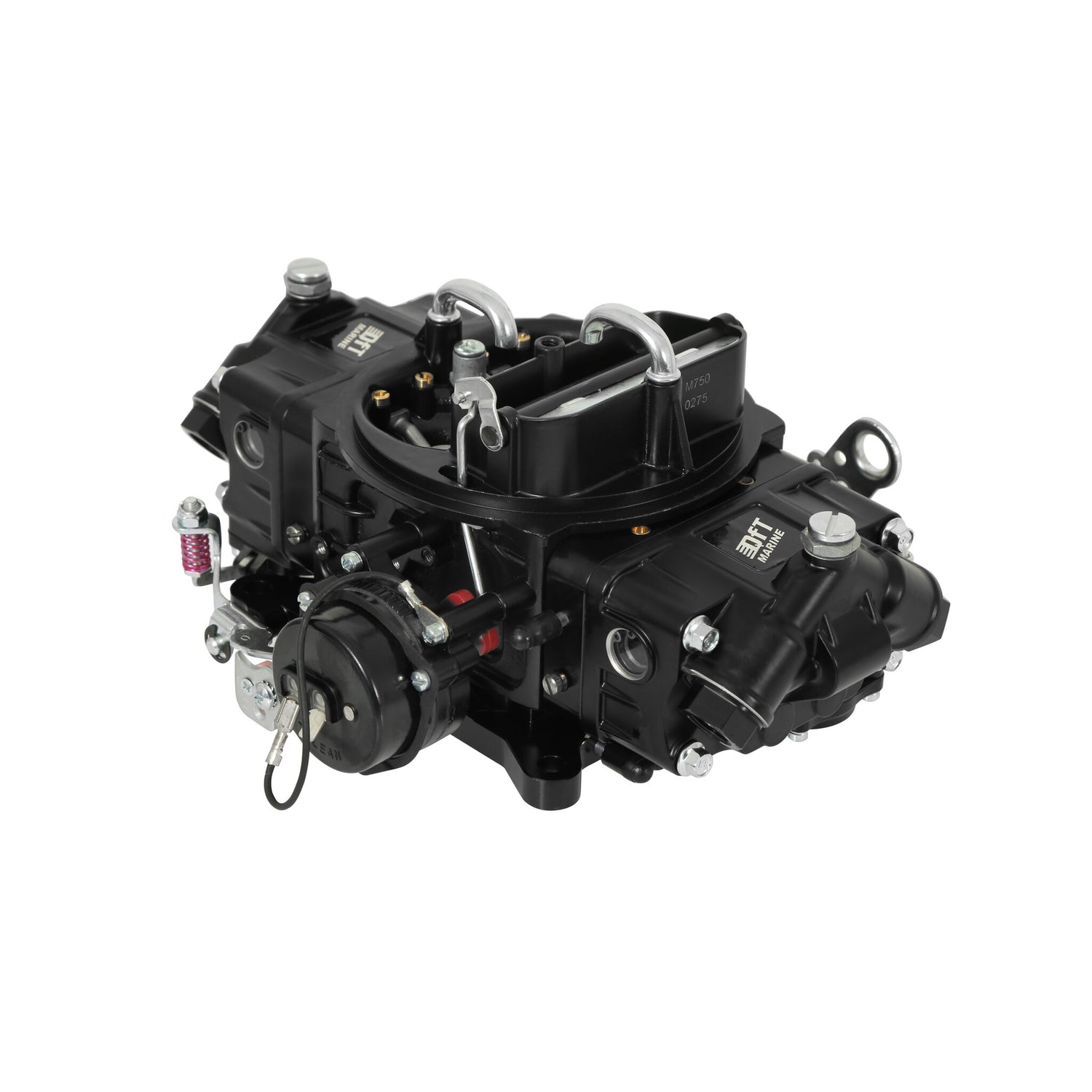

Quick Fuel M-Series 750CFM Marine Carburetor - M-750
750 CFM - 4150 - Mechanical Secondaries - Black - Gasoline
Sold out
Regular price
$1,886.50 NZD
+ GST
Unit price
/
Unavailable
Shipping calculated at checkout.
Quick Fuel M-Series 750CFM Marine Carburetor - M-750 is not in stock at Fast Lane Spares and will ship direct from supplier.
Stock Status:
Description
Description
750 CFM - 4150 - Mechanical Secondaries - Black - Gasoline
Part Number: M-750

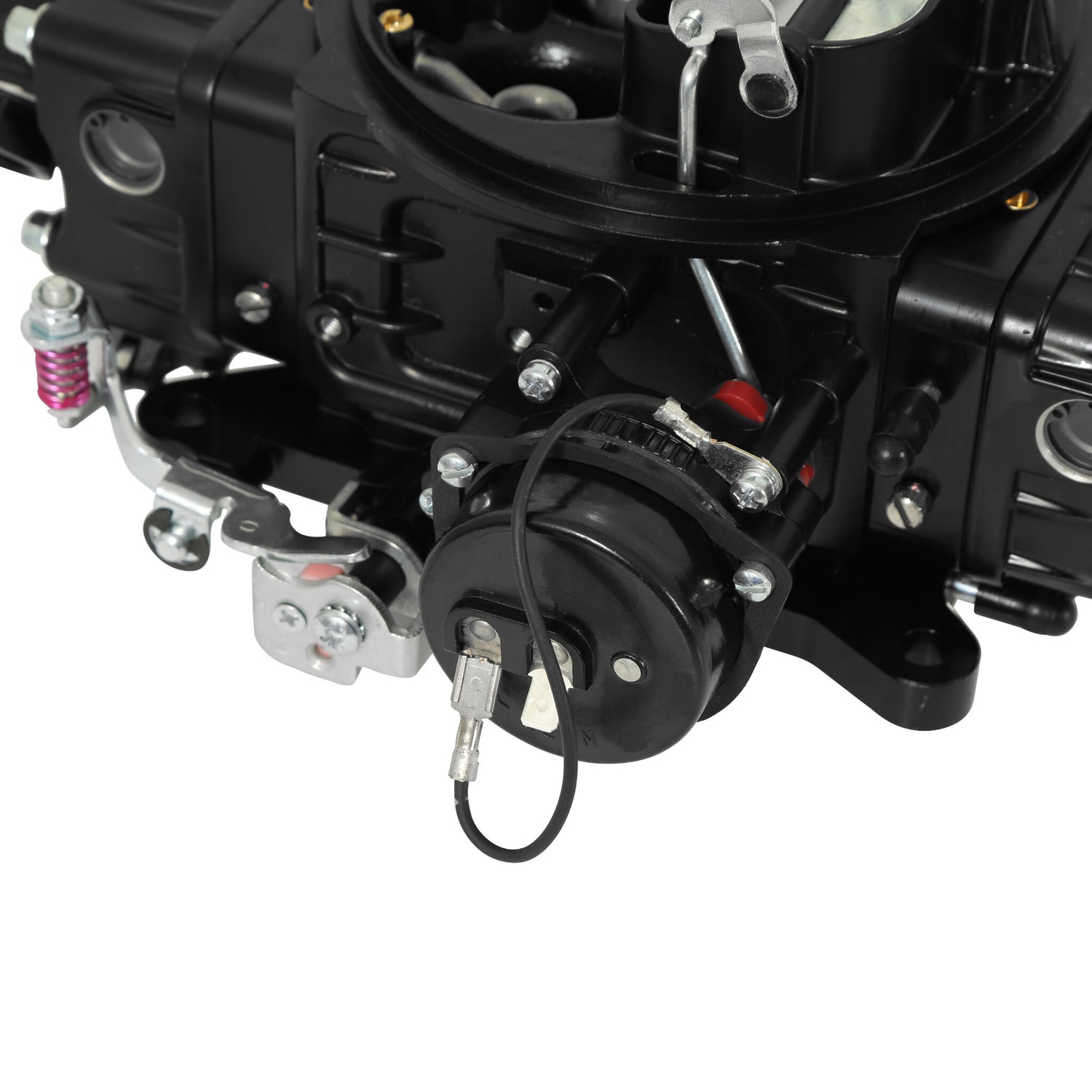

QFT brings its engineering expertise to the marine market. The M-Series feature billet-style metering blocks and throttle bodies for more precise performance and exceptional strength. •Exclusive Black Diamond coating for enhanced corrosion protection and appearance, coating provides a 6% reduction in fuel temperature •Electric choke - Fully adjustable, one wire hookup •J tubes to prevent spillage •PTFE-coated throttle shafts with PTFE bearing ribbons and stainless steel plates •Built-in sight glass windows for easy float adjustment •Changeable primary idle feed and power valve channel restrictions, plus changeable idle air and high speed bleeds •QuickLink™ secondary adjustment for fast and easy changing of opening rates •Available in eight different sizes from 350-1,050 cfm

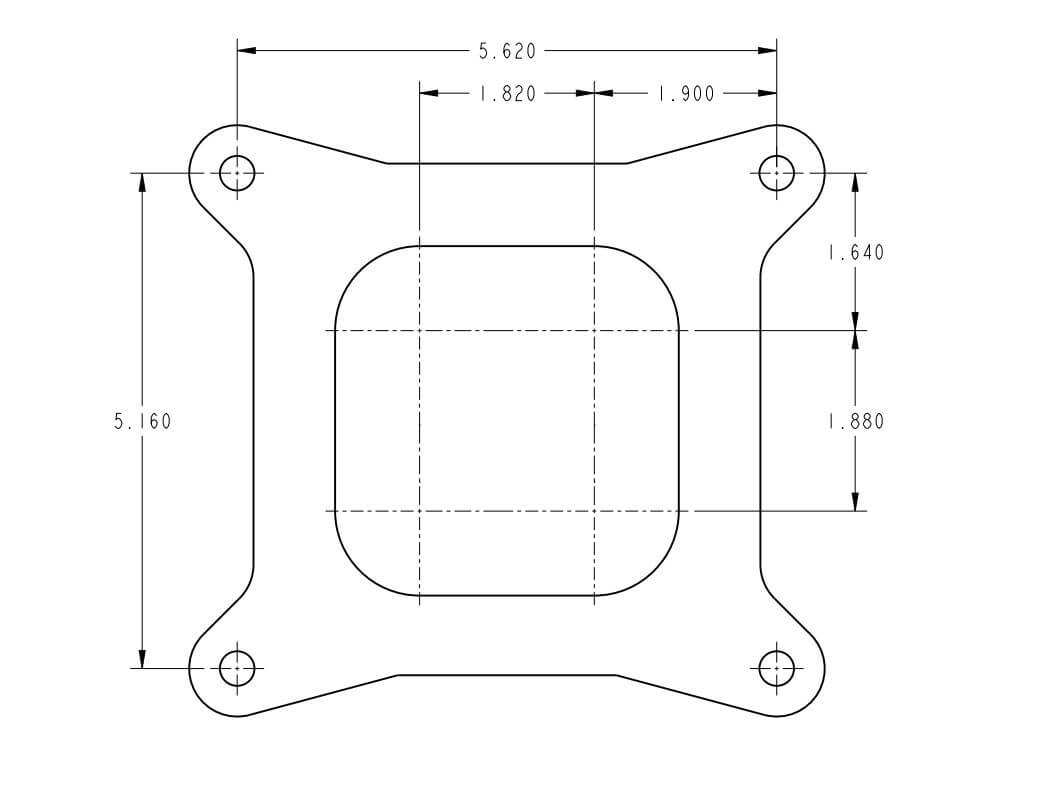

This model of carburetor has the square bore flange bolt pattern. It can replace Holley, Edelbrock, Carter AFB, and Autolite style carburetors with 5 3/16" x 5 5/8" bolt pattern. If you have a spreadbore style intake manifold, you will need an adapter to install this carburetor. Similar to the Mr. Gasket #1932.
Part Number: M-750
QFT brings its engineering expertise to the marine market. The M-Series feature billet-style metering blocks and throttle bodies for more precise performance and exceptional strength. •Exclusive Black Diamond coating for enhanced corrosion protection and appearance, coating provides a 6% reduction in fuel temperature •Electric choke - Fully adjustable, one wire hookup •J tubes to prevent spillage •PTFE-coated throttle shafts with PTFE bearing ribbons and stainless steel plates •Built-in sight glass windows for easy float adjustment •Changeable primary idle feed and power valve channel restrictions, plus changeable idle air and high speed bleeds •QuickLink™ secondary adjustment for fast and easy changing of opening rates •Available in eight different sizes from 350-1,050 cfm
This model of carburetor has the square bore flange bolt pattern. It can replace Holley, Edelbrock, Carter AFB, and Autolite style carburetors with 5 3/16" x 5 5/8" bolt pattern. If you have a spreadbore style intake manifold, you will need an adapter to install this carburetor. Similar to the Mr. Gasket #1932.
Specifications
Specifications
-
Specifications
Barrel Quantity 4 Barrels 4 Billet Color Diecast-No Billet Body Color Black Body Finish Black Diamond E-Coat Body Material Aluminum Booster Down Leg Brand Quick Fuel Technology Carburetor Use Marine Category Air and Fuel Delivery CFM 750 Choke Electric Choke Type Electric Circuit 2 Color Black Condition New Cubic Feet Per Minute Rating 750 Emission Code 3 Finish Black Flange Shape Square Flange Type Square/4150 Fuel Gasoline Fuel System Carbureted Gasket Or Seal Included Yes Grade Type Performance High Speed Air Bleed 31 Idle Air Bleed Size 70 Linkage Attached Yes Marine Engine Size Universal Marine Use Yes Material Aluminum Model 4150 part type Carburetor Primary Main Jet 75 Primary Power Valve 65 Primary Pump Nozzle Size 32 Product Type Quick Fuel Marine Carburetor Secondaries Mechanical Secondary Main Jet 83 Sub Category Carburetion Supercharged Application No Throttle Bore 1-11/16 inch Warning California Proposition 65 Warranty Manufacturer's Limited 90 Day Warranty -
