Quick Fuel Technology | SKU: 30-805QFT

Quick Fuel Low Pressure Regulator (Methanol Fuel) - 30-805QFT

Name: Quick Fuel Low Pressure Regulator (Methanol Fuel) - 30-805QFT
Brand: Quick Fuel Technology
SKU: 30-805QFT
Price: 119.3 NZD
Availability: InStock

Low Pressure Regulator

$119.30 NZD + GST

Shipping calculated at checkout.

⚠ Special Order Item — ships direct from supplier. No returns, exchanges, or cancellations once processed. Please allow 7–20 days shipping.

Description

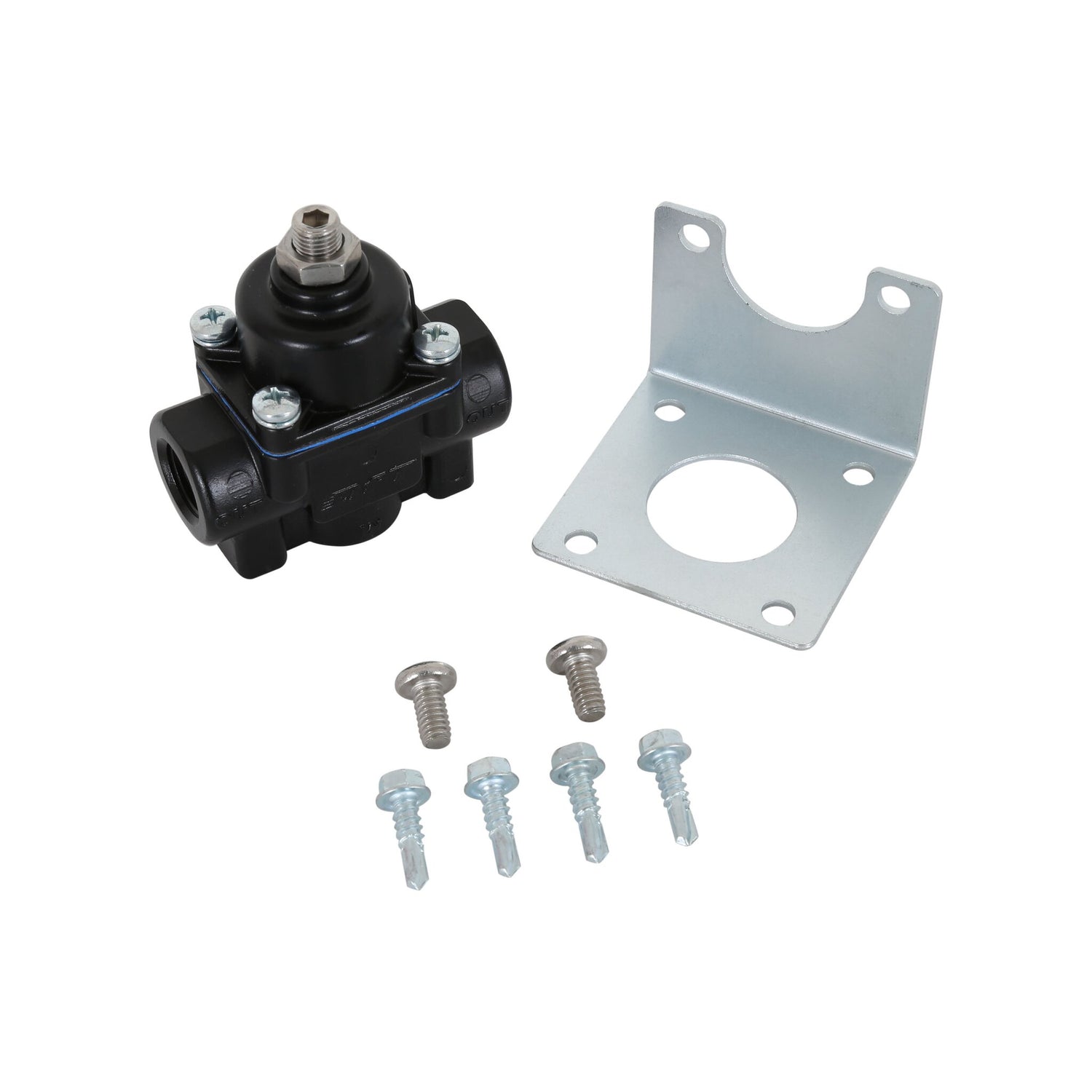

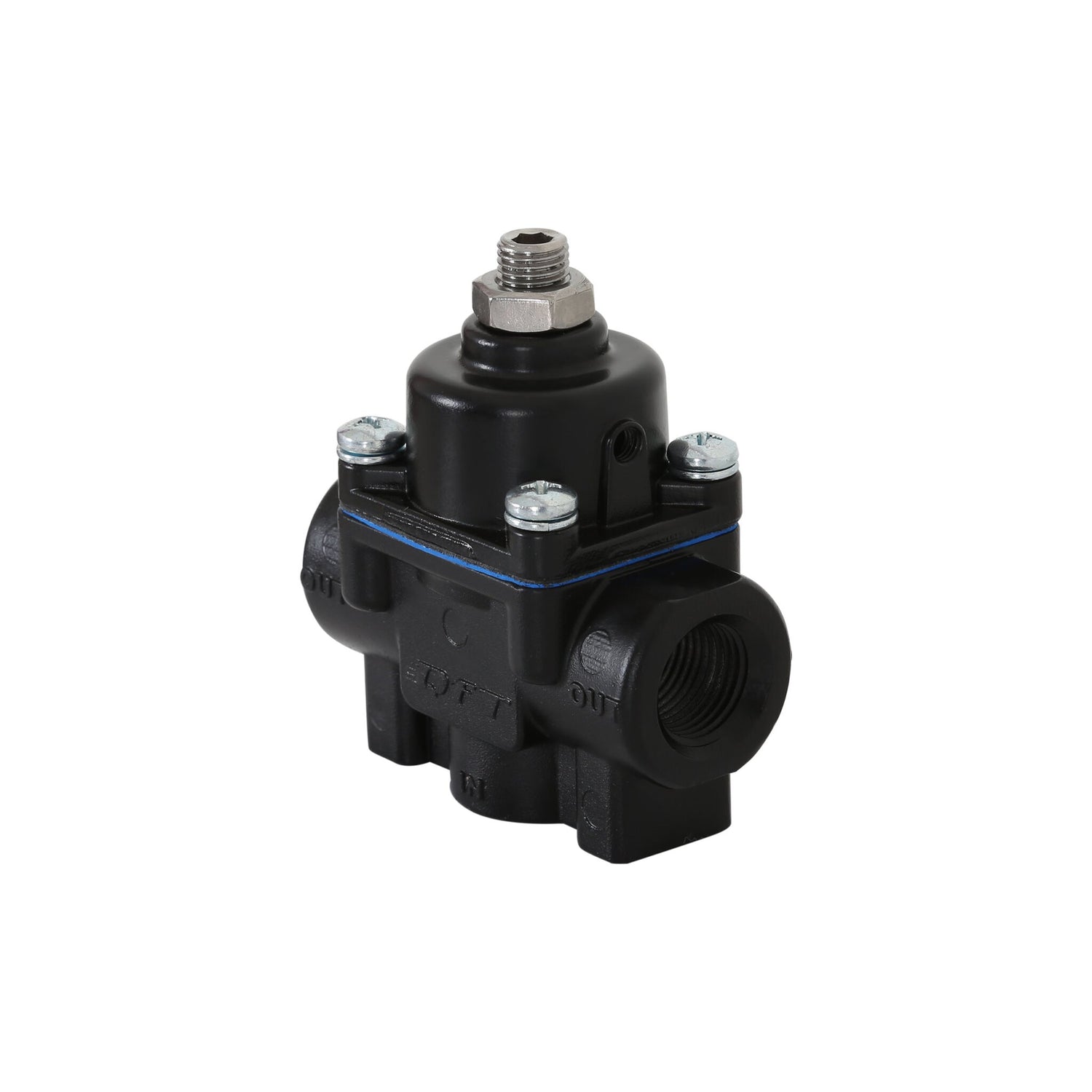

Low Pressure Regulator

Part Number: 30-805QFT

Pressure regulator with ball and stem activation and GFLT diaphragm. Designed for methanol fuel.

Features and Benefits

• •Supports up to 600 HP engines
• •Black anodized housing
• •Adjustable from 4.5 - 9 PSI; Preset to 6.5 PSI
• •3/8" NPT Ports
• •.250" (1/4") restriction

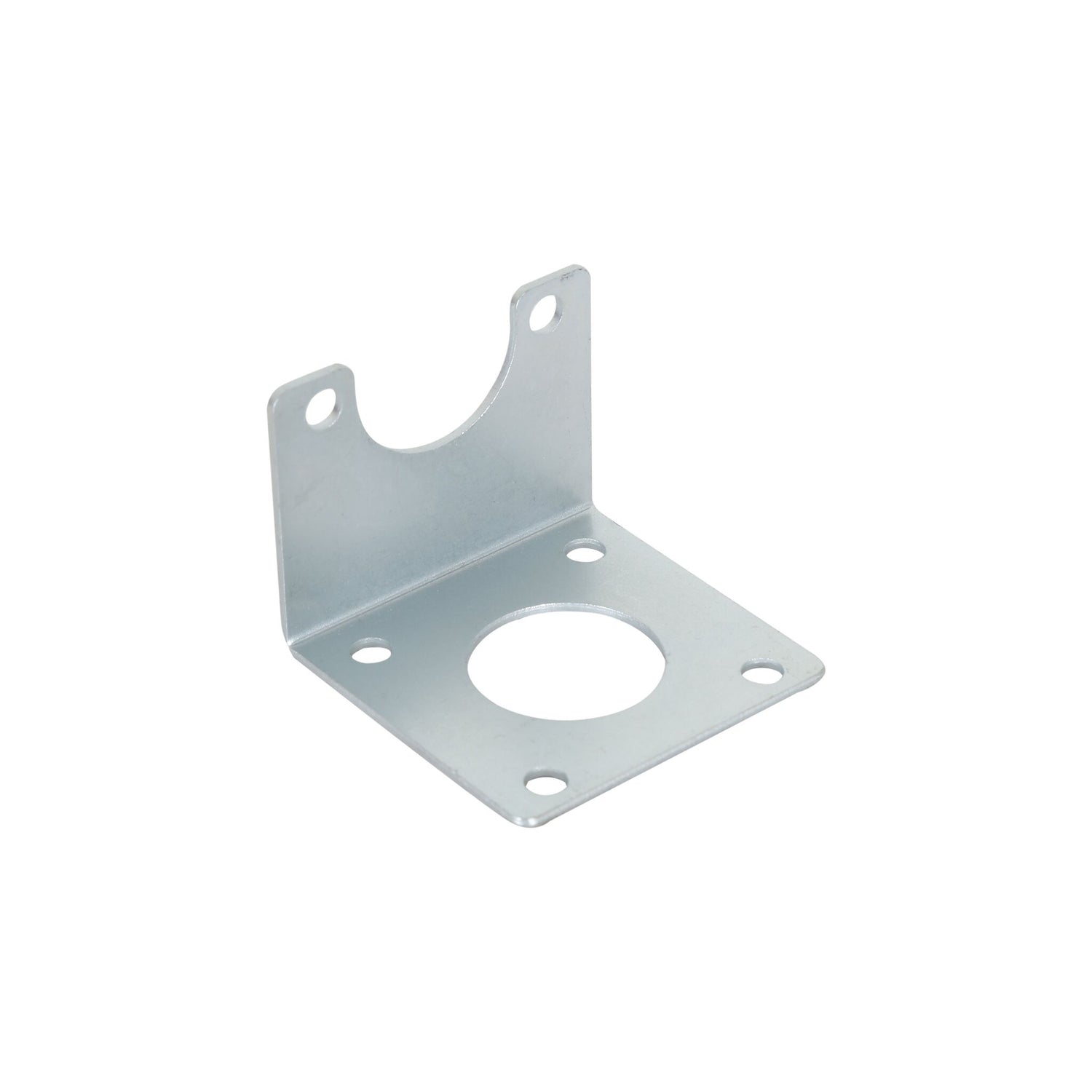

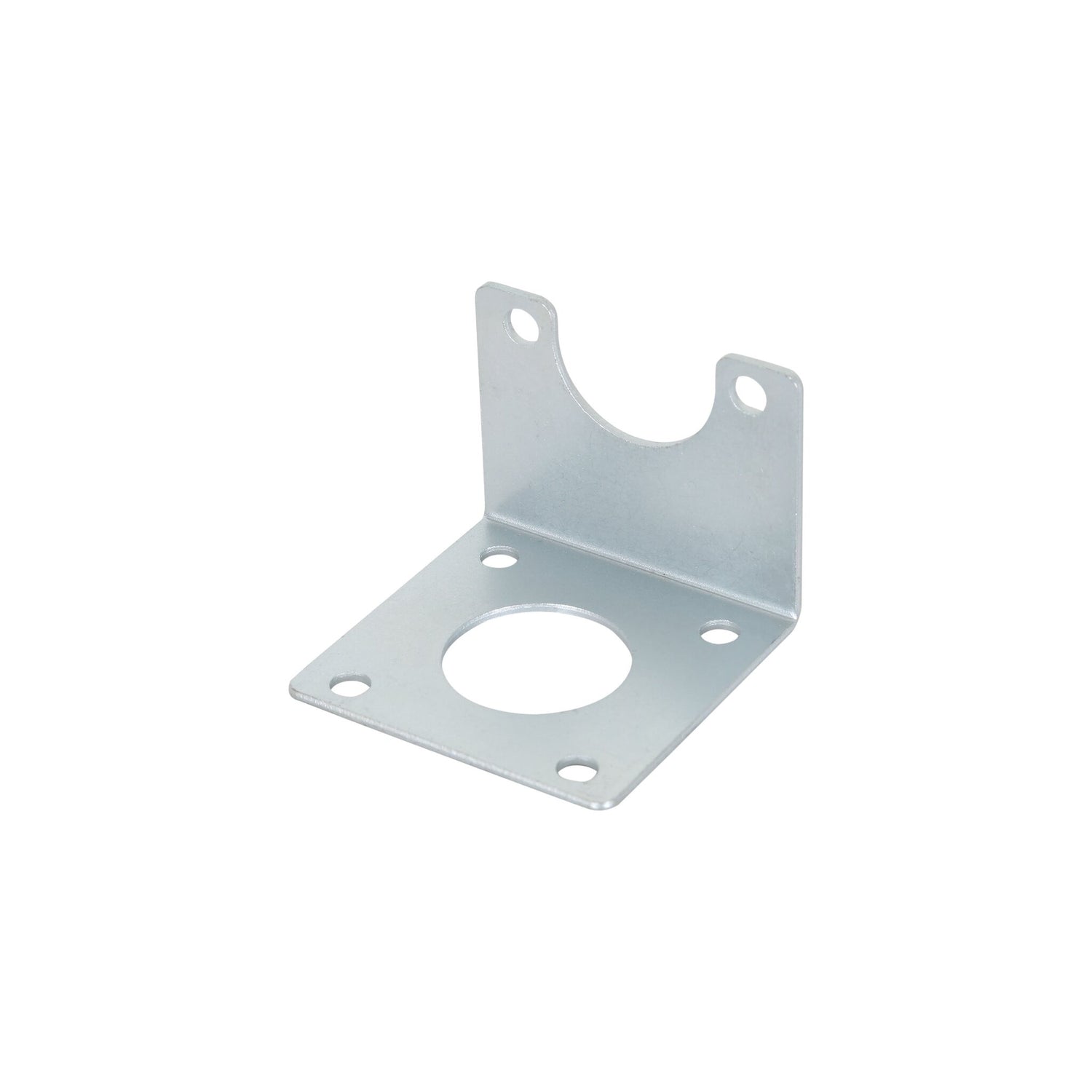

• •Includes mounting bracket
• •Includes an 1/8" NPT port for manifold reference
• Boost Reference 1-1

Specifications

Adjustable	Yes
Brand	Quick Fuel Technology
Category	Air and Fuel Delivery
Color	Black
Emission Code	5
Fuel Type	Gasoline
Gauge Included	No
Grade Type	Performance
Inlet Gender	Female
Inlet Port Diameter	3/8
Inlet Port Quantity	1
Inlet Type	NPT
Material	Aluminum
Maximum Pressure	9
Minimum Pressure	4.5
Mounting Bracket Included	Yes
Outlet Gender	Female
Outlet Port Diameter	3/8
Outlet Port Quantity	2
Outlet Type	NPT
part type	Fuel Pressure Regulator
Product Type	Fuel Pressure Regulator
Sub Category	Carburetion
Warranty	Manufacturer's Limited 90 Day Warranty
