Quick Fuel Technology | SKU: 30-804QFT

Quick Fuel Low Pressure Regulator - 30-804QFT

Name: Quick Fuel Low Pressure Regulator - 30-804QFT
Brand: Quick Fuel Technology
SKU: 30-804QFT
Price: 114.5 NZD
Availability: InStock

Low Pressure Regulator

$114.50 NZD + GST

Shipping calculated at checkout.

⚠ Special Order Item — ships direct from supplier. No returns, exchanges, or cancellations once processed. Please allow 7–20 days shipping.

Description

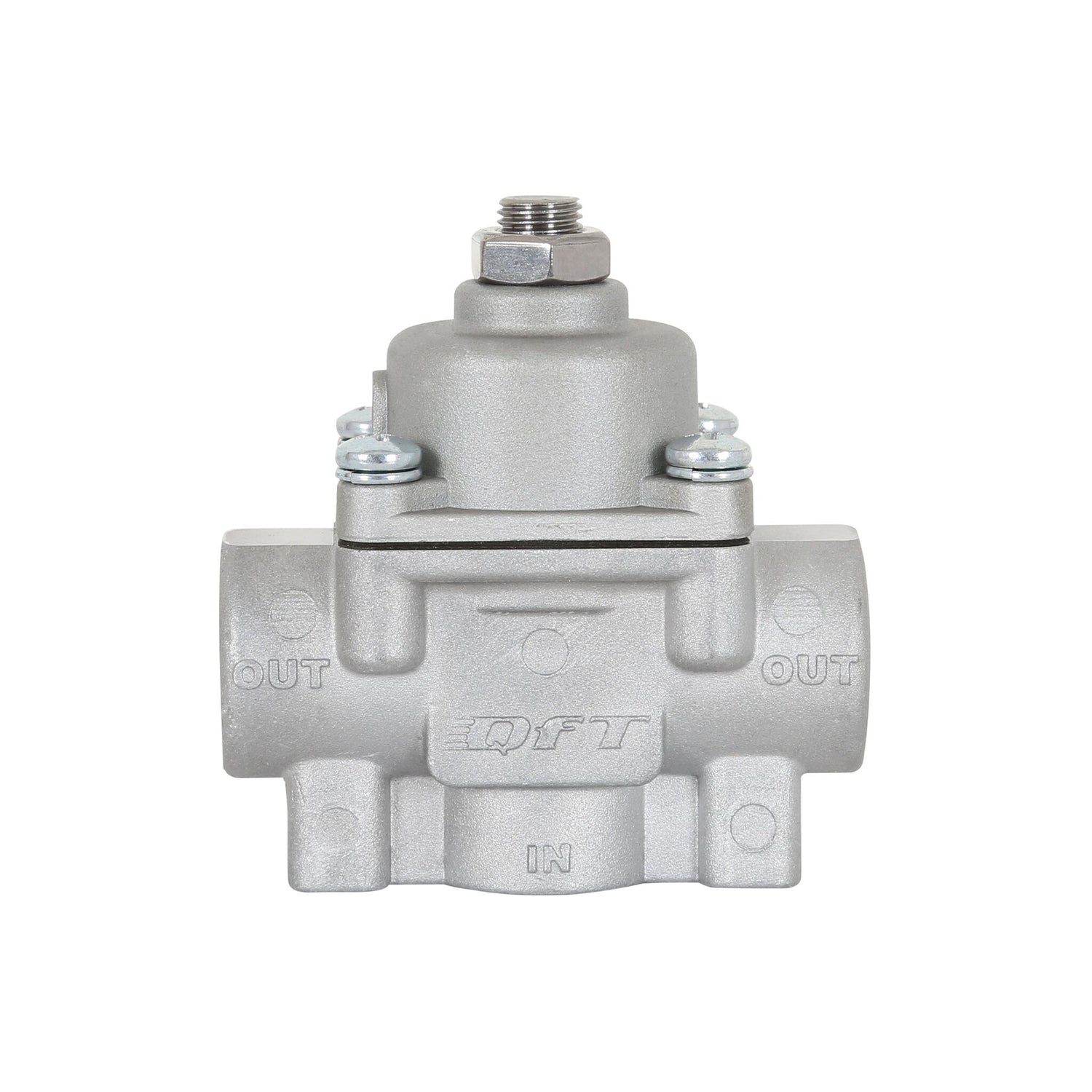

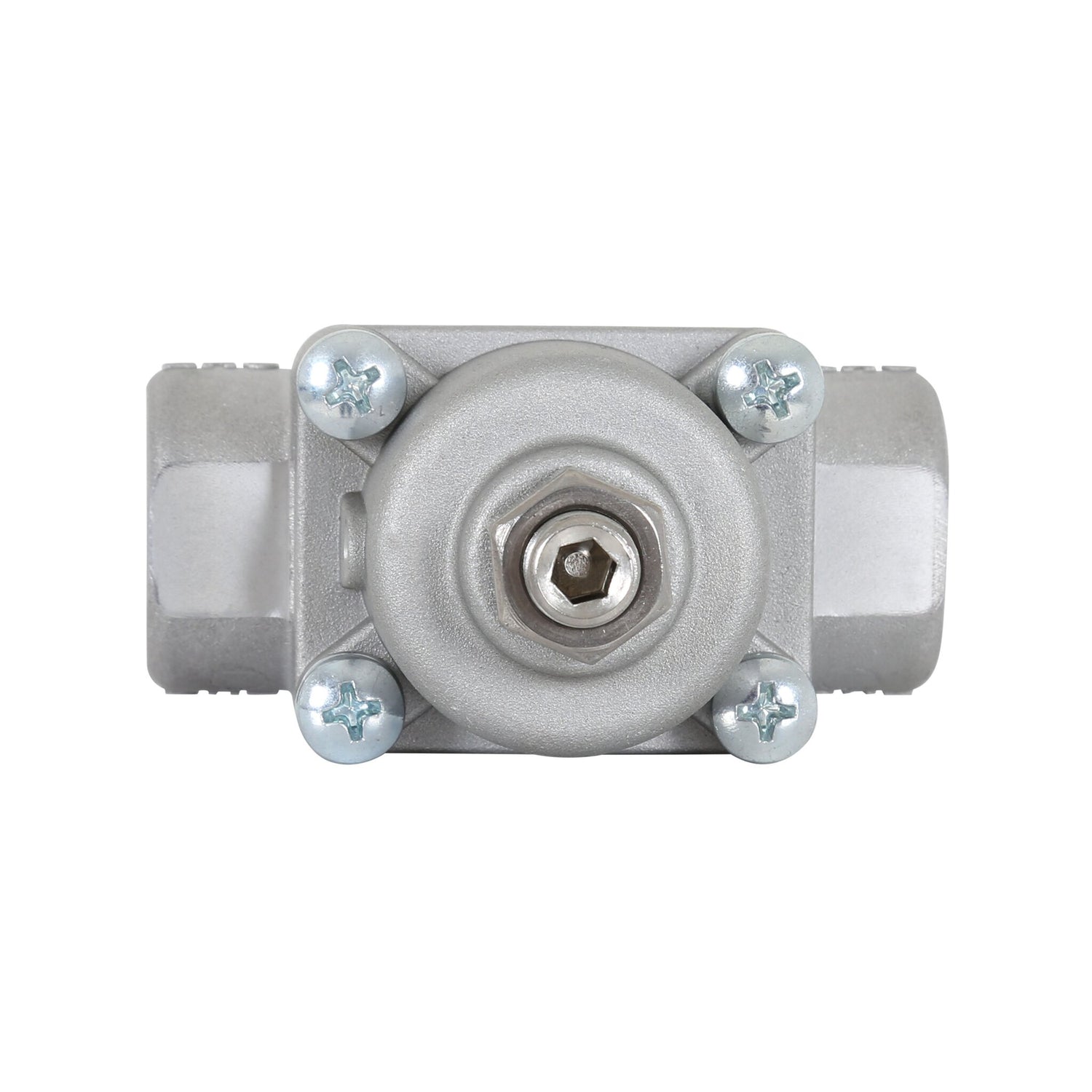

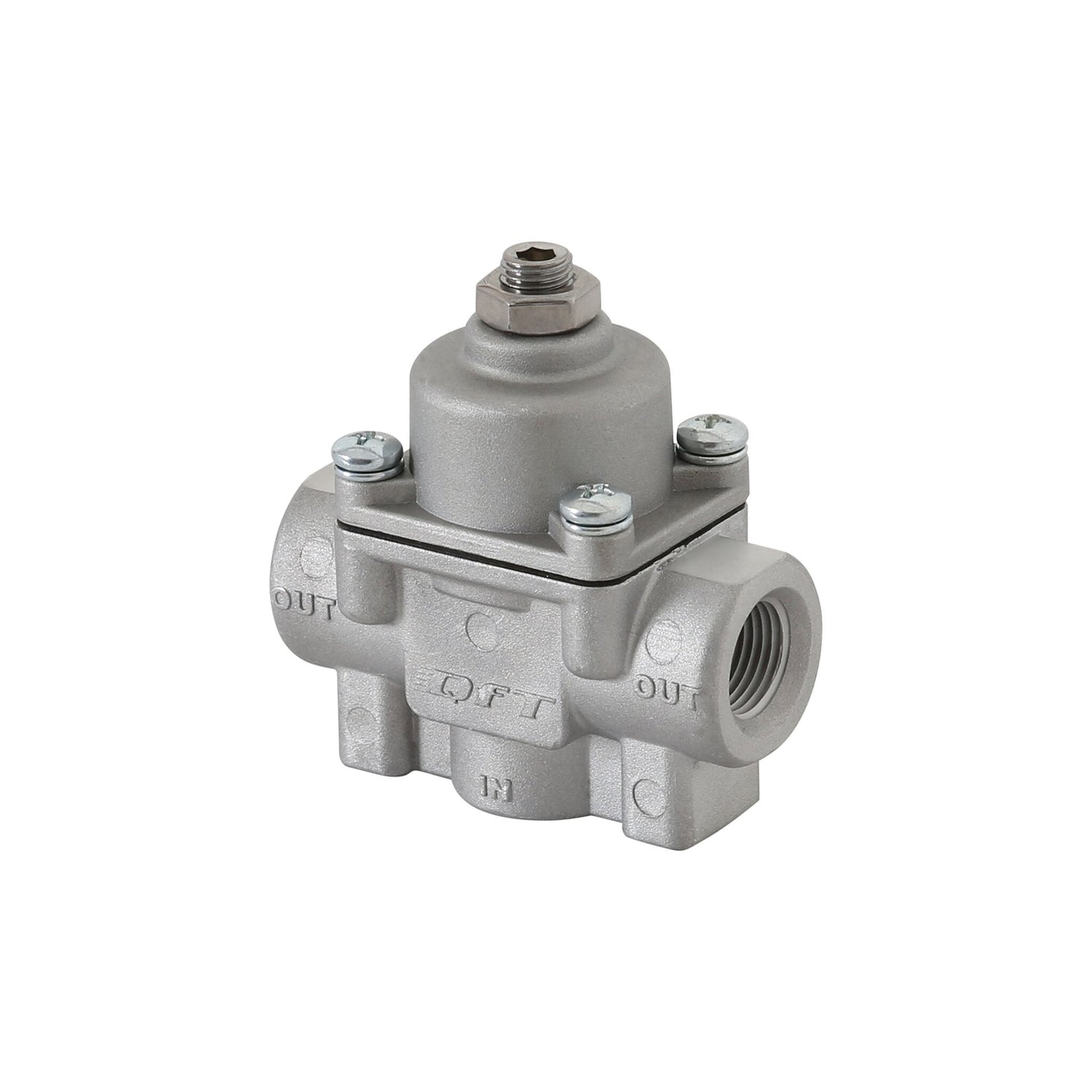

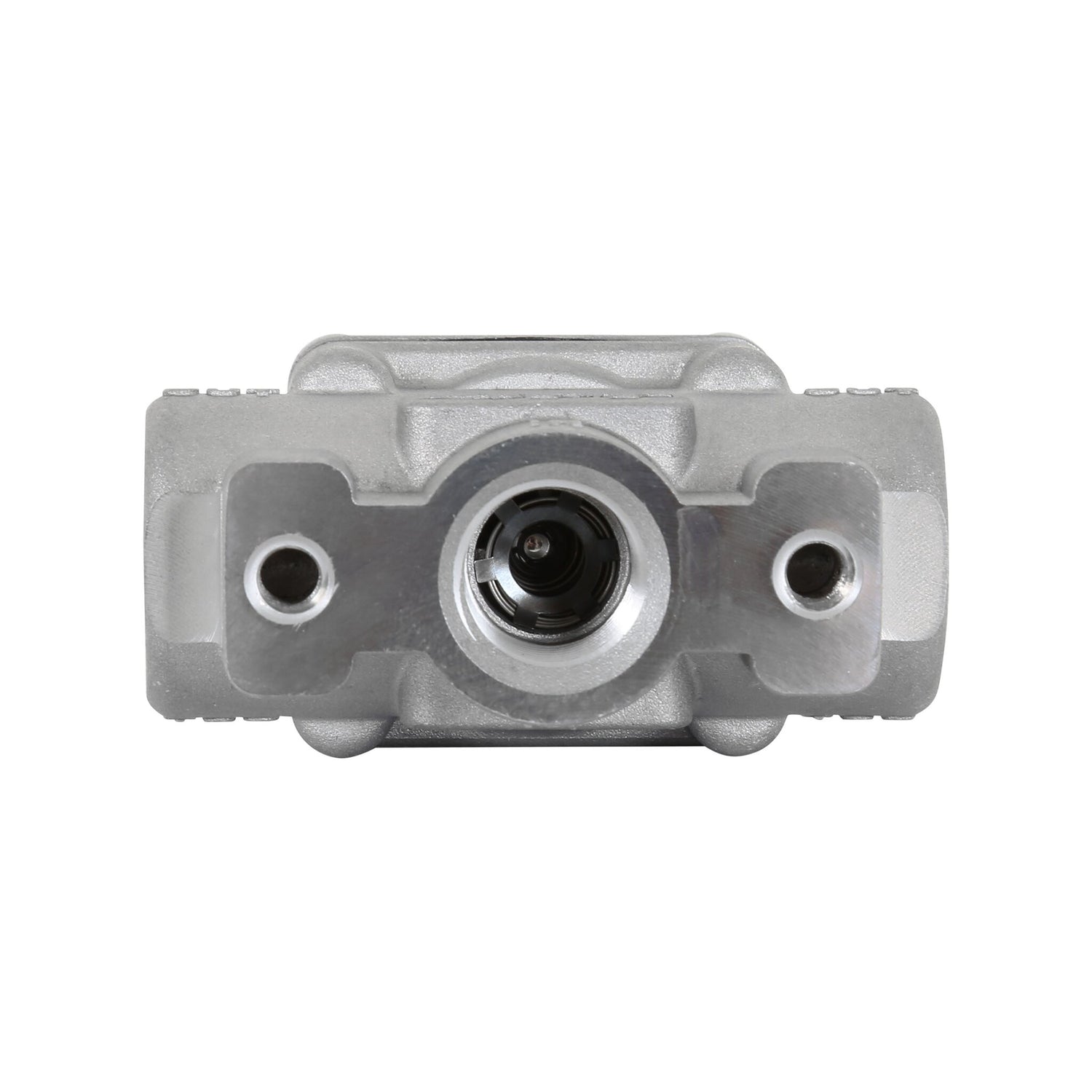

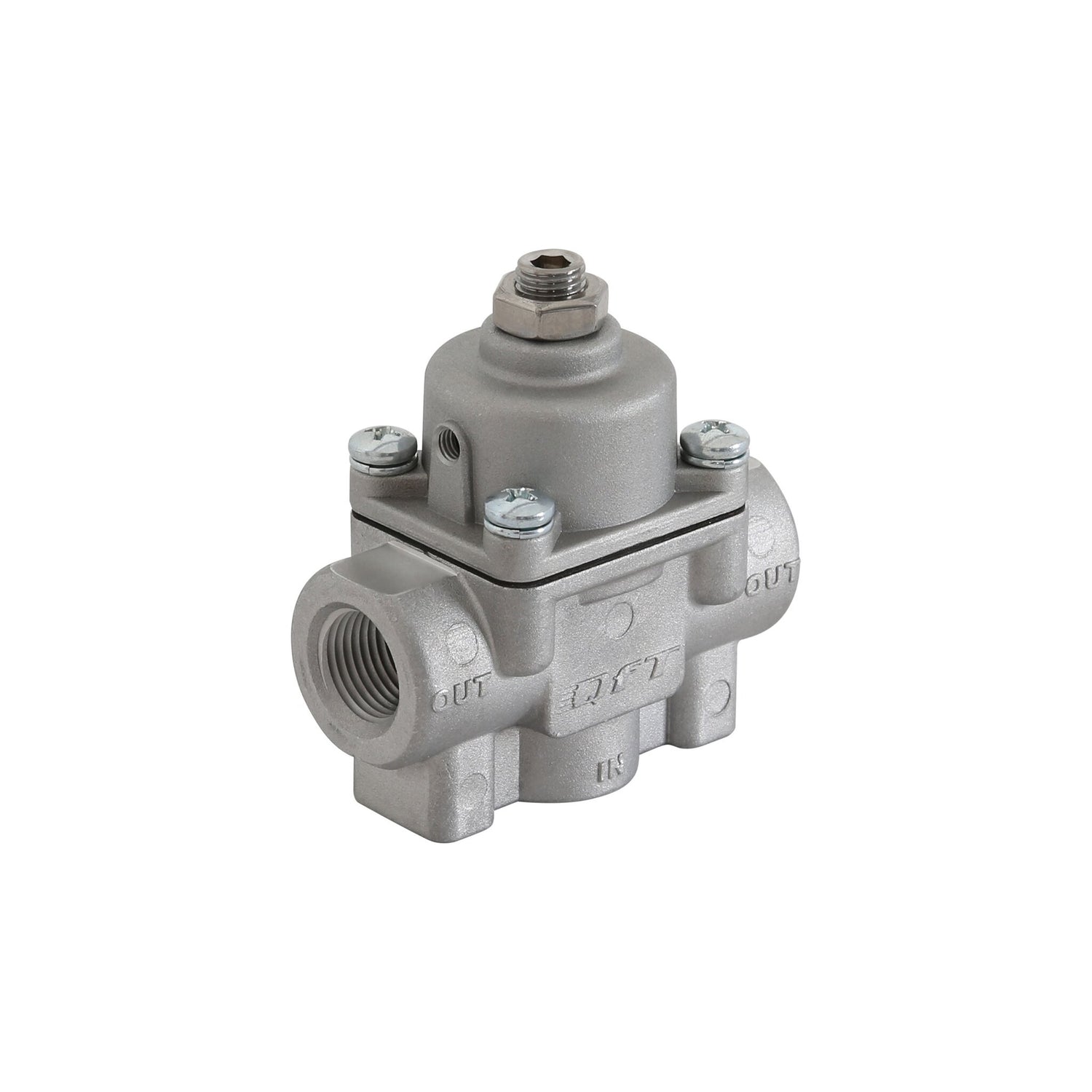

Low Pressure Regulator

Part Number: 30-804QFT

Based on the same technology as our 30-803 fuel pressure regulator, our new low pressure regulator is built with premium components and designed to operate within the 1-4 PSI range. Includes mounting bracket and detailed instructions. 3/8" NPT ports.

Features and Benefits

• •Supports 4-barrel gas engines up to 600 HP
• •.250" (1/4") restriction

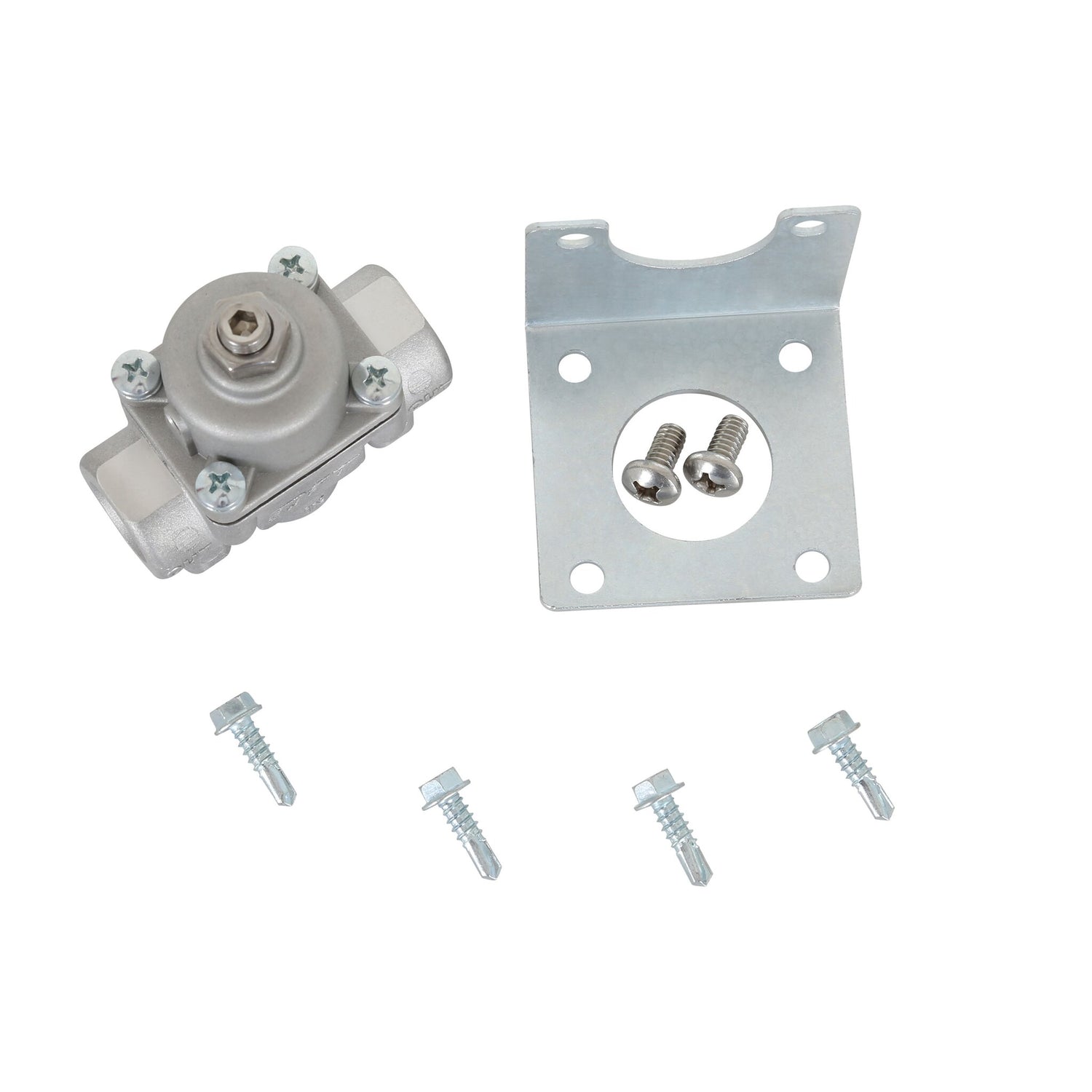

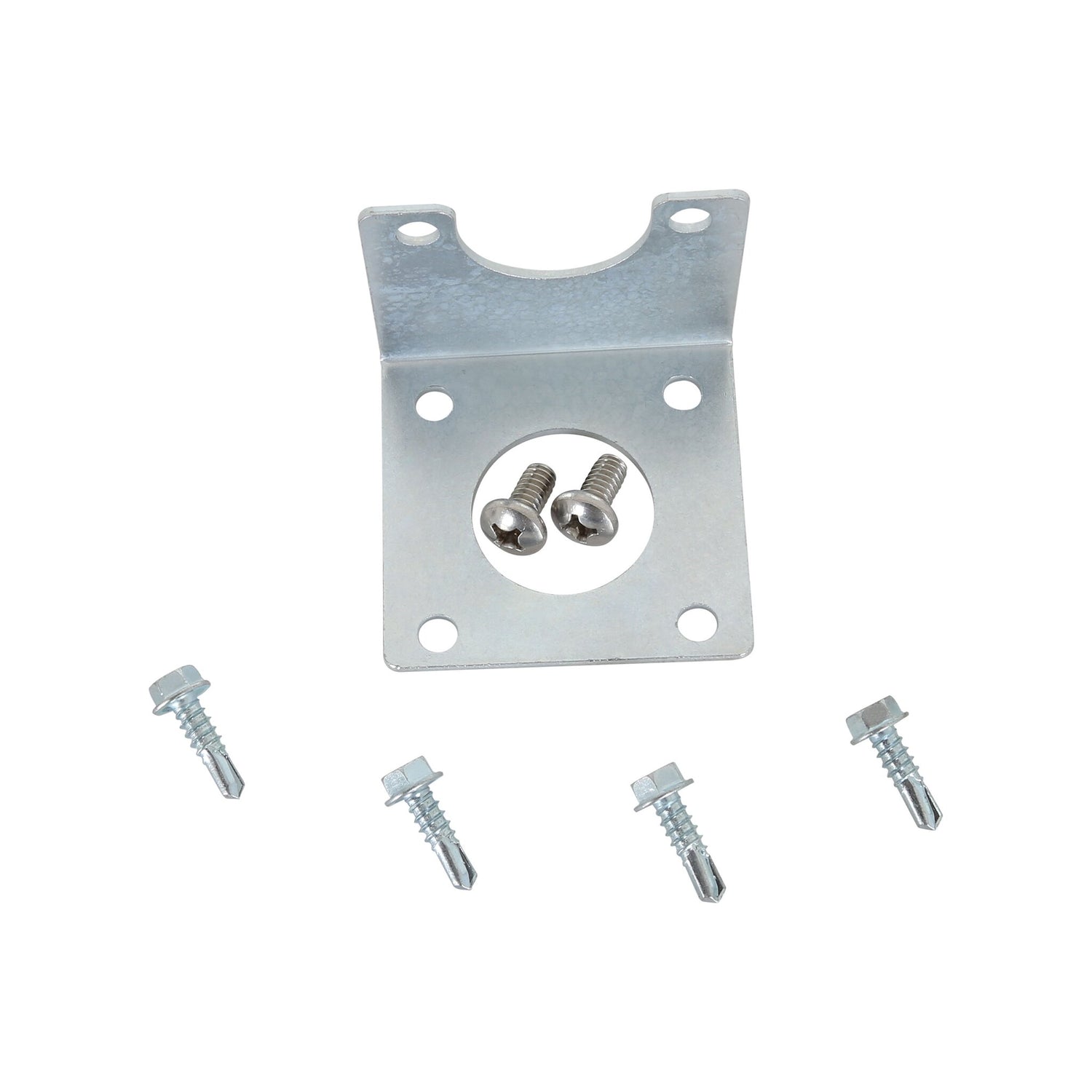

• •Includes mounting bracket
• •Includes an 1/8" NPT port for manifold reference
• Boost Reference 1-1

Specifications

Adjustable	Yes
Brand	Quick Fuel Technology
Category	Air and Fuel Delivery
Color	Raw
Emission Code	5
Fuel Type	Gasoline
Gauge Included	No
Grade Type	Performance
Inlet Gender	Female
Inlet Port Diameter	3/8
Inlet Port Quantity	1
Inlet Type	NPT
Material	Aluminum
Maximum Pressure	4
Minimum Pressure	1
Mounting Bracket Included	Yes
Outlet Gender	Female
Outlet Port Diameter	3/8
Outlet Port Quantity	2
Outlet Type	NPT
part type	Fuel Pressure Regulator
Product Type	Fuel Pressure Regulator
Sub Category	Carburetion
Warranty	Manufacturer's Limited 90 Day Warranty
