Quick Fuel Technology | SKU: 30-899QFT

Quick Fuel Bypass Regulator W/JET - 30-899QFT

Name: Quick Fuel Bypass Regulator W/JET - 30-899QFT
Brand: Quick Fuel Technology
SKU: 30-899QFT
Price: 264.8 NZD
Availability: InStock

Bypass Regulator W/JET

$264.80 NZD + GST

Shipping calculated at checkout.

⚠ Special Order Item — ships direct from supplier. No returns, exchanges, or cancellations once processed. Please allow 7–20 days shipping.

Description

Bypass Regulator W/JET

Part Number: 30-899QFT

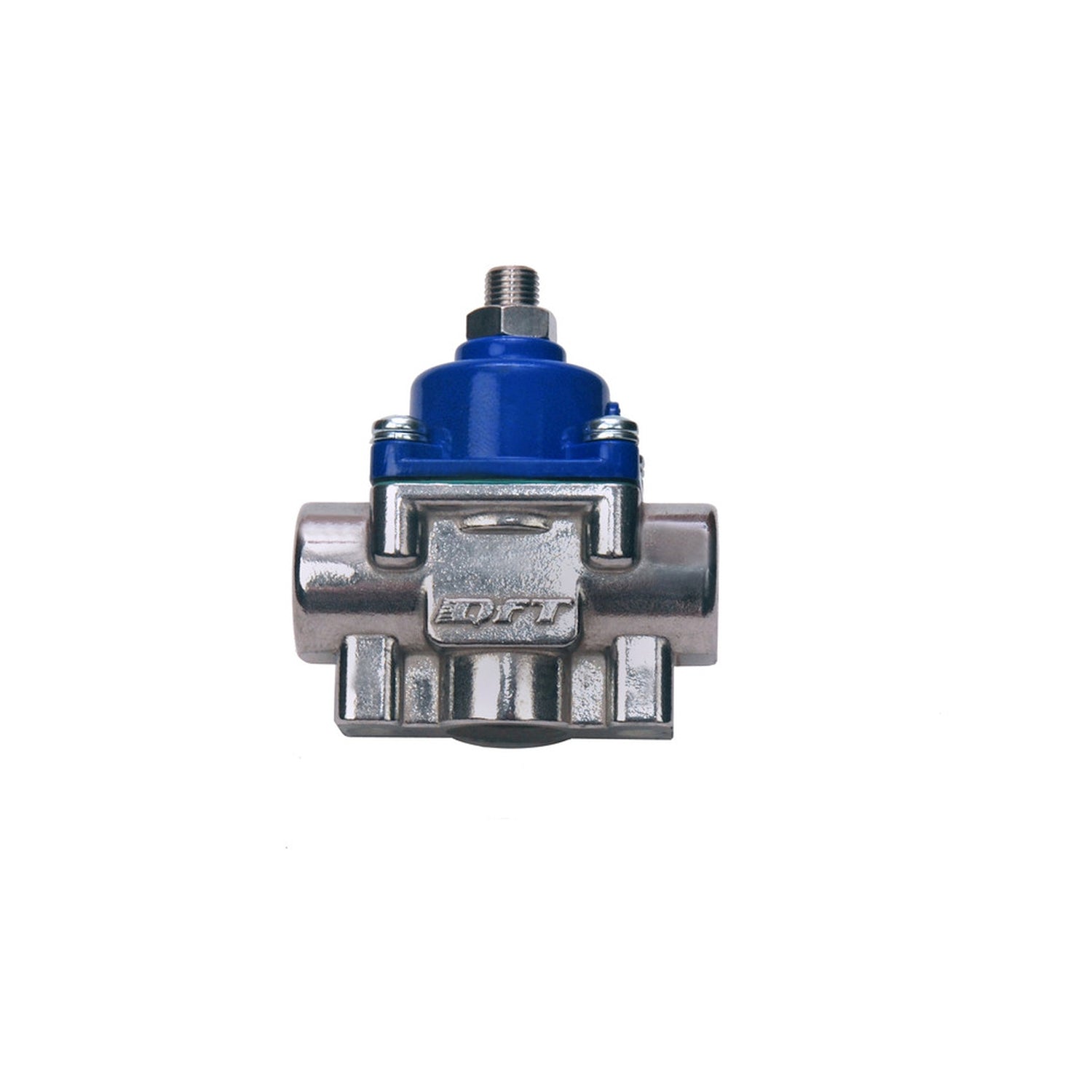

Cast Bypass Regulator W/JET - Features blue powder-coated top and is desgined for use with a belt driven or mechanical fuel pump. Adjustable jet provides tuning of low RPM fuel pressure. Comes with stainless mounting bracket. All threads are NPT.

Features and Benefits

• •Adjustable from 4.5 - 9 PSI; Preset to 6.5 PSI
• •3/8" NPT ports
• •.375" (3/8") restriction
• •Recommended for use with alcohol fuels
• •Includes an 1/8" NPT port for manifold reference
• Boost Reference 1-1

Specifications

Adjustable	Yes
Brand	Quick Fuel Technology
Category	Air and Fuel Delivery
Color	Blue
Emission Code	5
Fuel Type	Gasoline
Gauge Included	No
Grade Type	Performance
Inlet Gender	Female
Inlet Port Diameter	3/8
Inlet Port Quantity	1
Inlet Type	NPT
Material	Aluminum
Maximum Pressure	9
Minimum Pressure	4.5
Mounting Bracket Included	Yes
Outlet Gender	Female
Outlet Port Diameter	3/8
Outlet Port Quantity	2
Outlet Type	NPT
part type	Fuel Pressure Regulator
Product Type	Fuel Pressure Regulator
Sub Category	Carburetion
Warning	California Proposition 65
Warranty	Manufacturer's Limited 90 Day Warranty
