Quick Fuel Technology | SKU:
30-900QFT

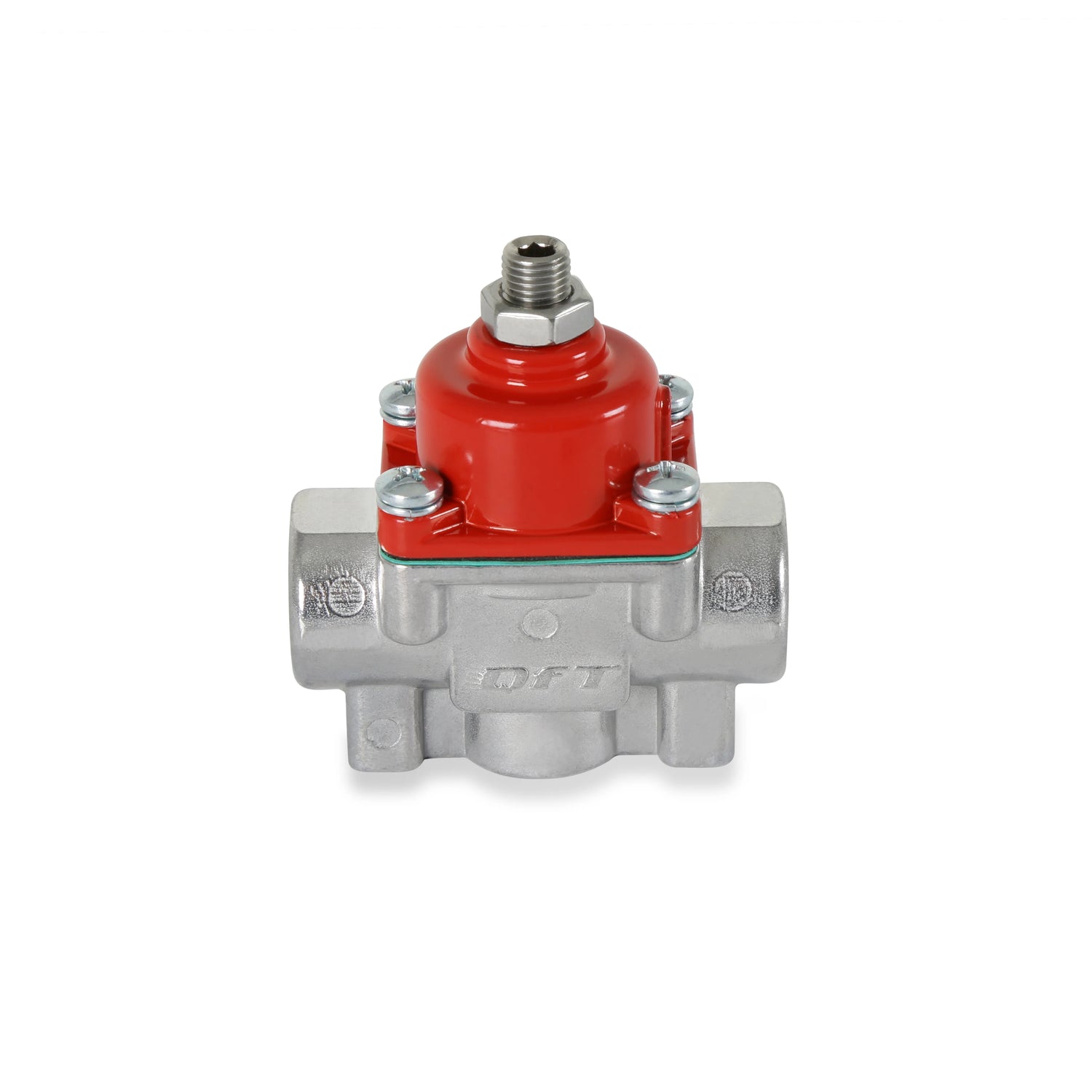

Quick Fuel Bypass Regulator - 30-900QFT
Bypass Regulator
Regular price
$295.70 NZD
+ GST
Unit price
/
Unavailable
Shipping calculated at checkout.
Quick Fuel Bypass Regulator - 30-900QFT
is not in stock at Fast Lane Spares and will ship direct from supplier.
Please contact us prior to purchasing if you would like an accurate ETA.
⚠ Special Order Item — ships direct from supplier. No returns, exchanges, or cancellations once processed. Please allow 7–20 days shipping.
Stock Status:
Description
Description
Bypass Regulator
Part Number: 30-900QFT

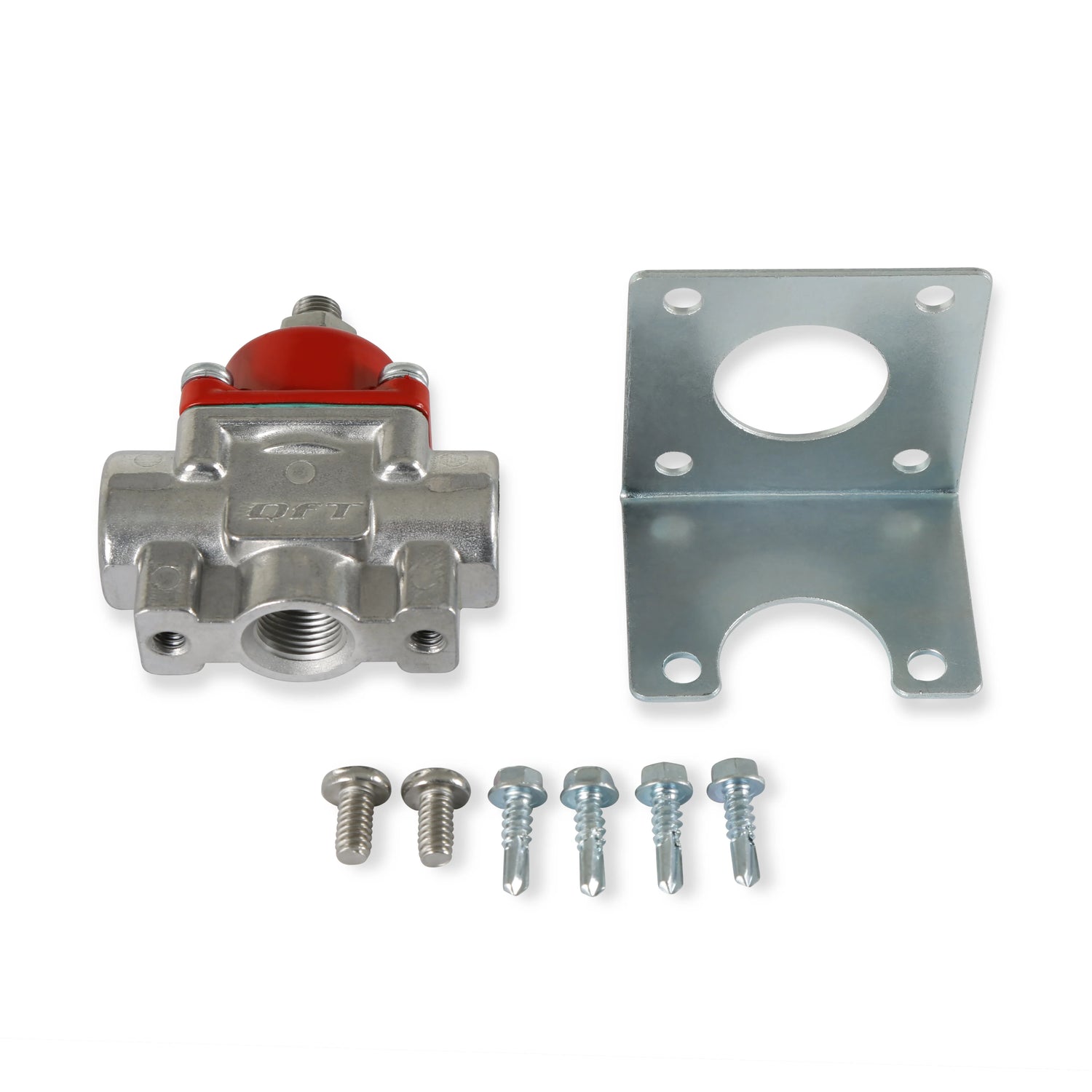

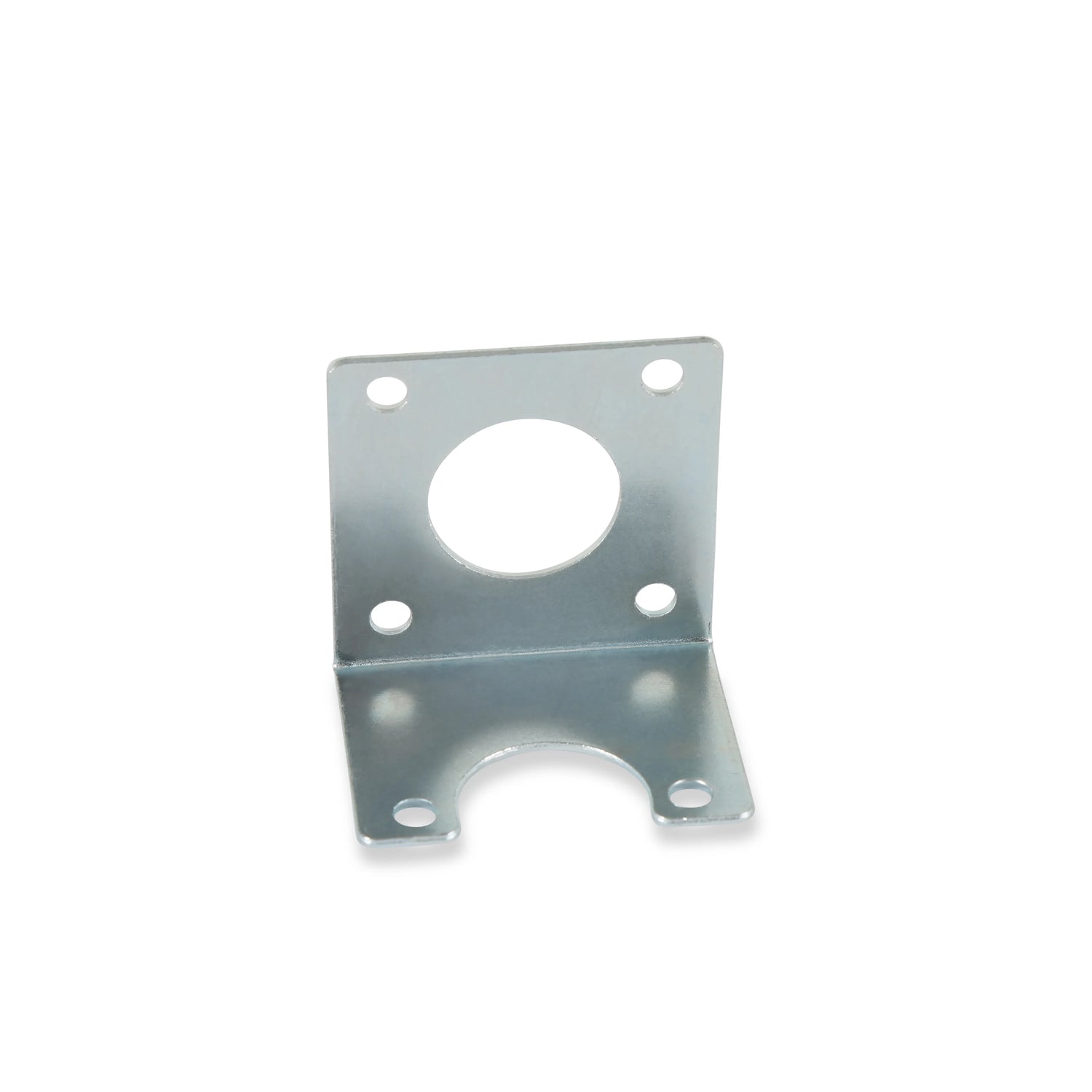

Bypass Regulator recommended for steady-state mechanical and electric fuel pumps. Comes with stainless mounting bracket. All thread are NPT.
Features and Benefits
• •Eliminates "creep" at low RPM without affecting fuel flow
• •Adjustable from 4.5 - 9 PSI; Preset to 6.5 PSI
• •3/8" NPT ports •.375" (3/8") restriction
• •Compatible for use with gas, alcohol and E85 fuels
• •Includes an 10-32 port for manifold reference Boost Reference 1-1
Part Number: 30-900QFT
Bypass Regulator recommended for steady-state mechanical and electric fuel pumps. Comes with stainless mounting bracket. All thread are NPT.
Features and Benefits
• •Eliminates "creep" at low RPM without affecting fuel flow
• •Adjustable from 4.5 - 9 PSI; Preset to 6.5 PSI
• •3/8" NPT ports •.375" (3/8") restriction
• •Compatible for use with gas, alcohol and E85 fuels
• •Includes an 10-32 port for manifold reference Boost Reference 1-1
Specifications
Specifications
-
Specifications
Adjustable Yes Brand Quick Fuel Technology Category Air and Fuel Delivery Color Red Emission Code 5 Fuel Type Gasoline Gauge Included No Grade Type Performance Inlet Gender Female Inlet Port Diameter 3/8 Inlet Port Quantity 1 Inlet Type NPT Material Aluminum Maximum Pressure 9 Minimum Pressure 4.5 Mounting Bracket Included Yes Outlet Gender Female Outlet Port Diameter 3/8 Outlet Port Quantity 2 Outlet Type NPT part type Fuel Pressure Regulator Product Type Fuel Pressure Regulator Style Bypass Sub Category Carburetion Warning California Proposition 65 Warranty Manufacturer's Limited 90 Day Warranty -
