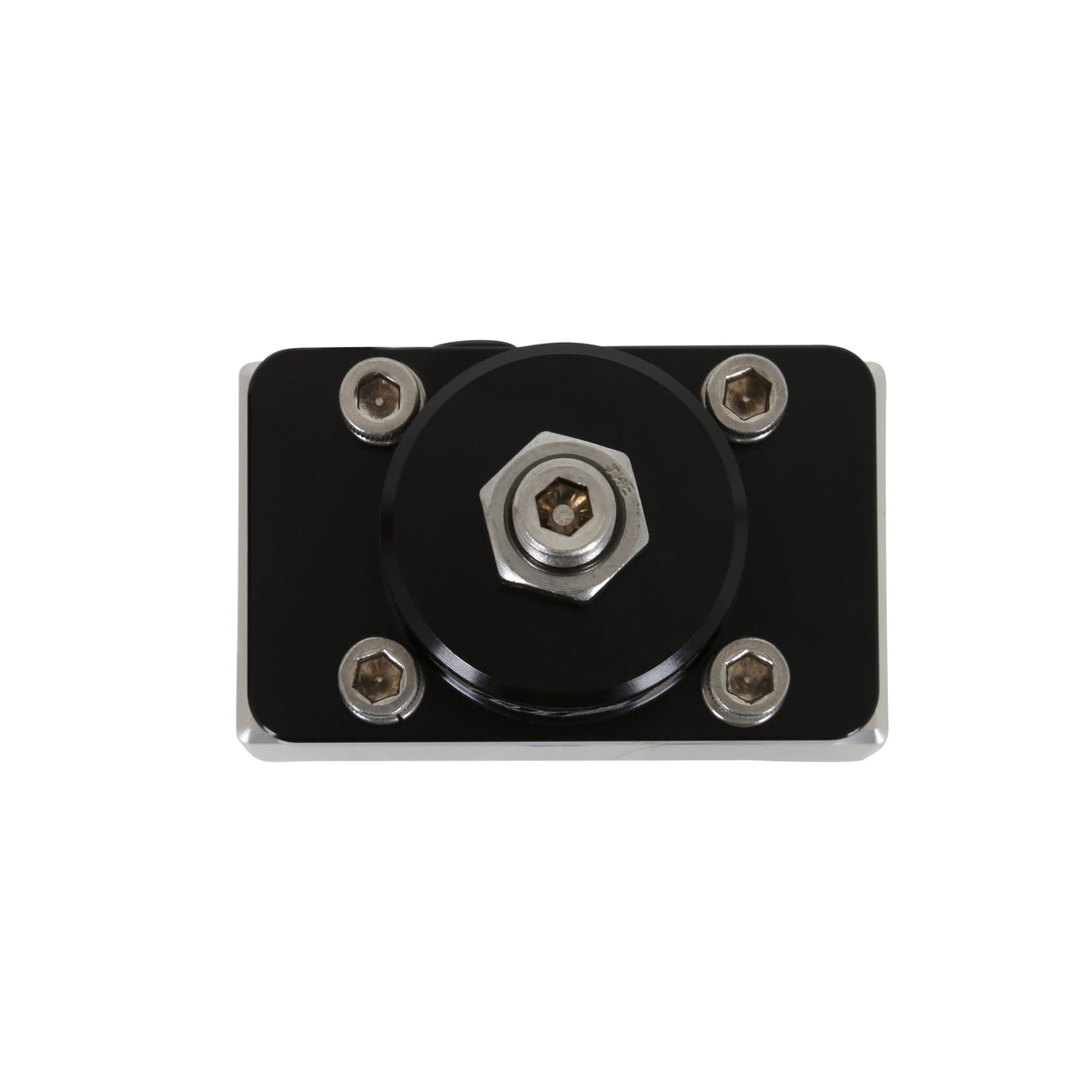

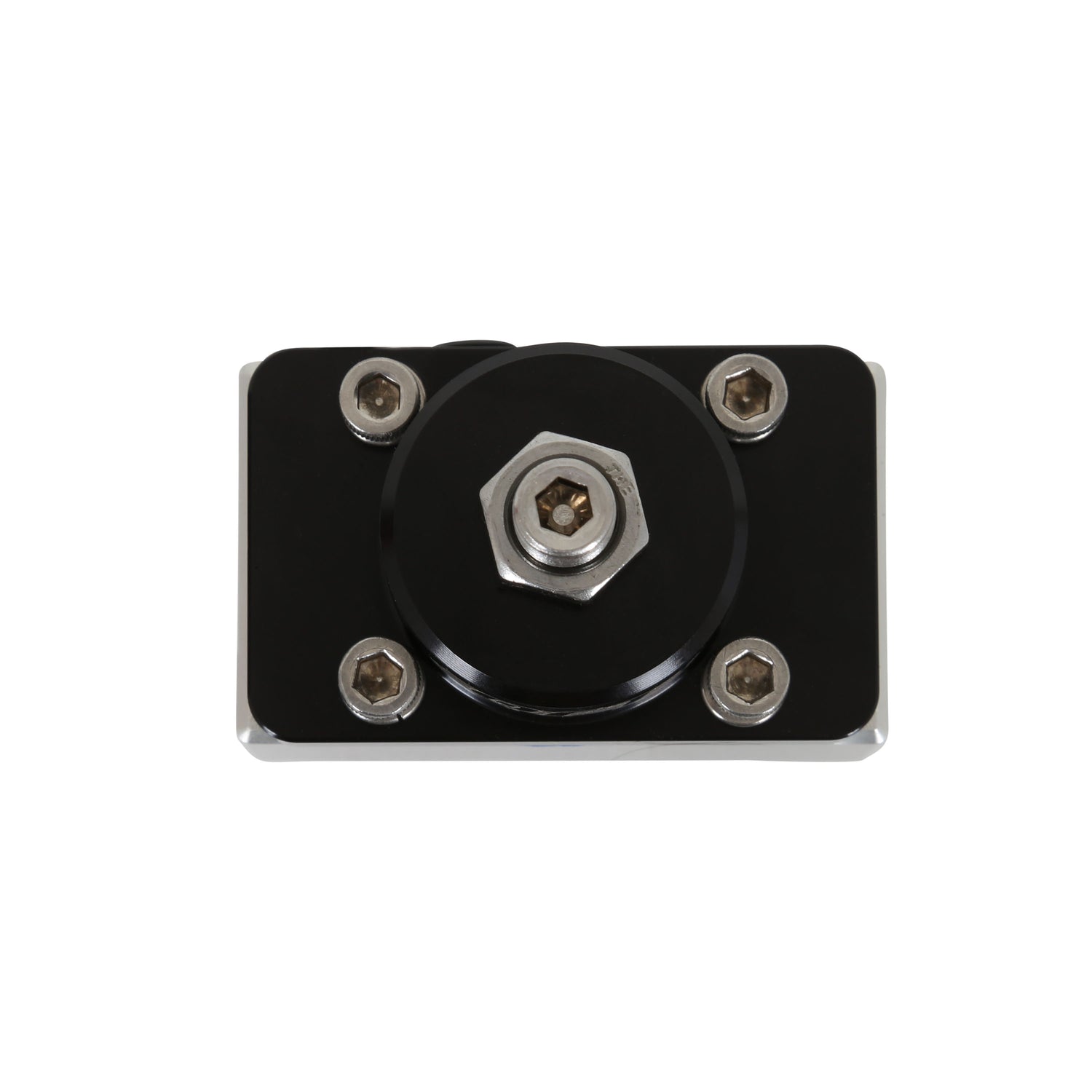

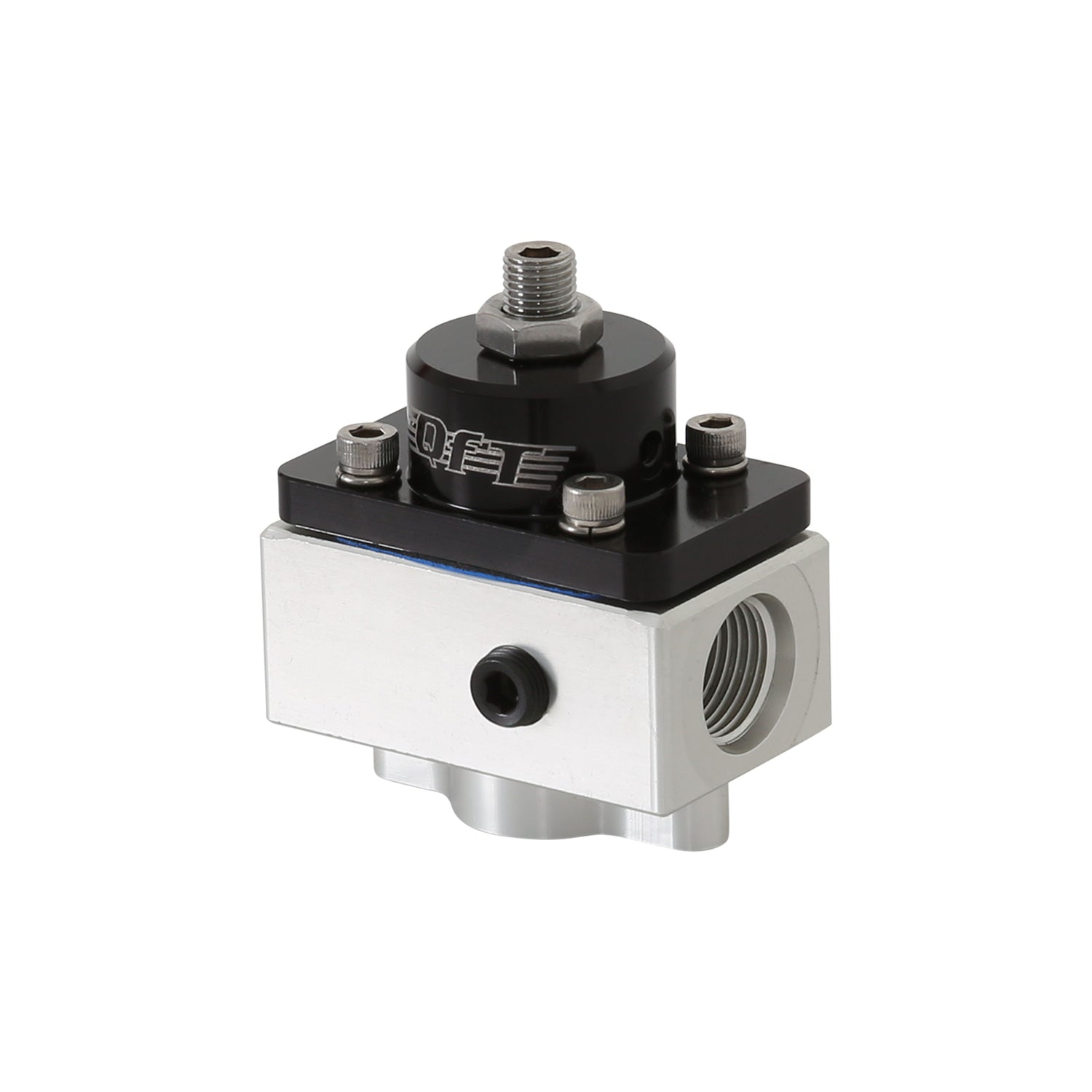

Quick Fuel Billet Pressure Regulator - 30-1803QFT
1 to 1 Boost Reference
Quick Fuel Billet Pressure Regulator - 30-1803QFT is not in stock at Fast Lane Spares and will ship direct from supplier
Description
Description
Part Number: 30-1803QFT

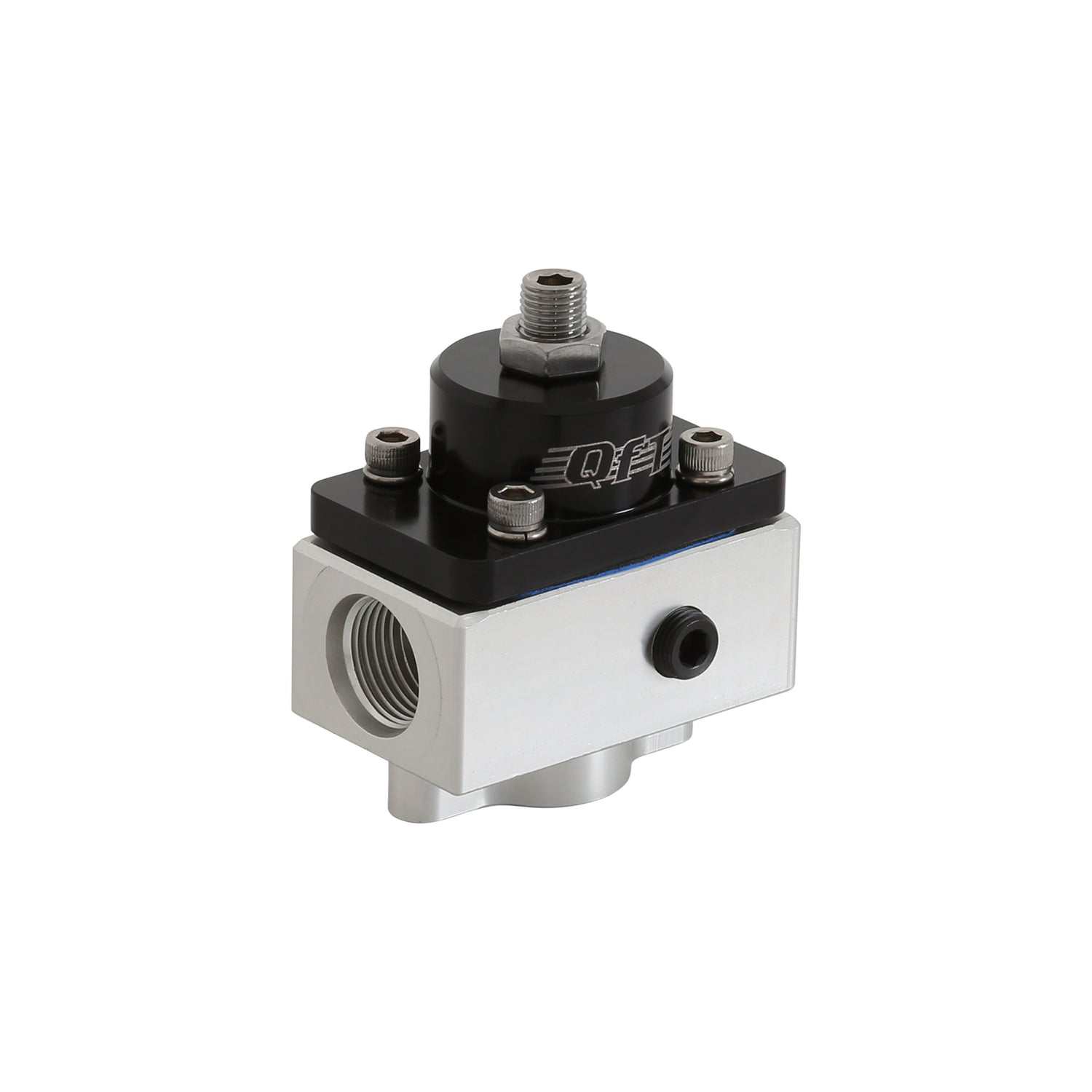

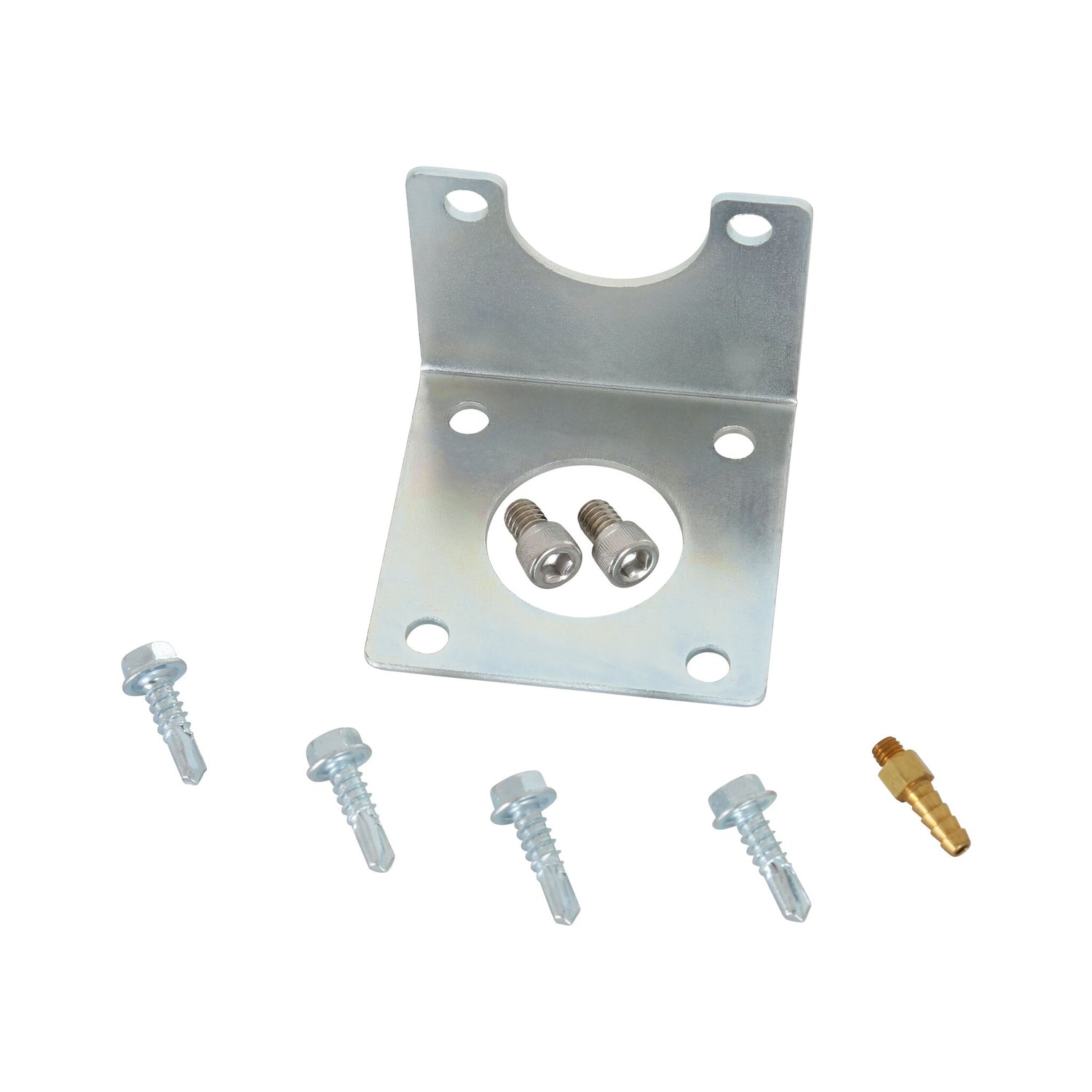

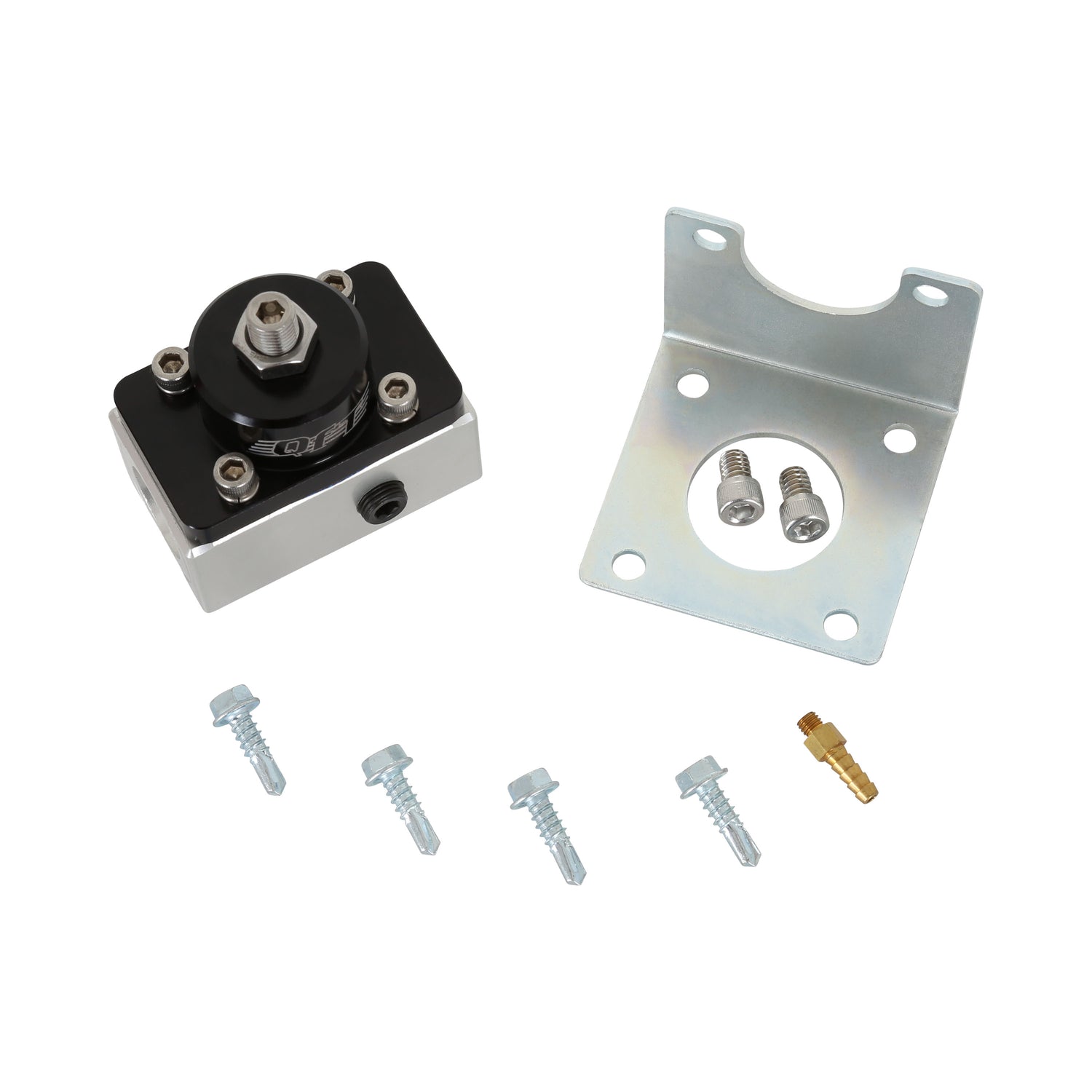

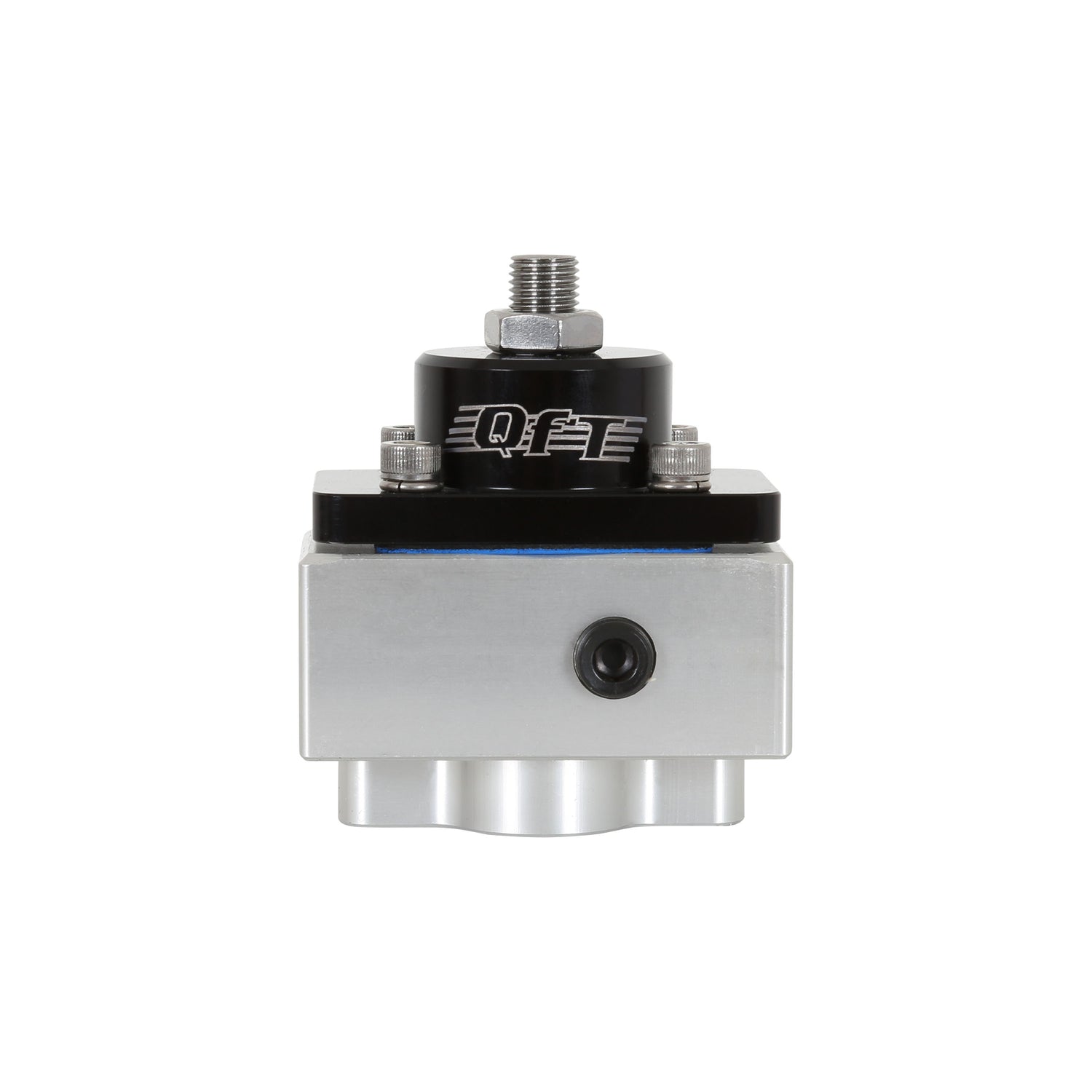

Billet Regulator - Designed for use with a fuel pump that does not need to be bypassed. Black anodized top has a fitting for boost referenced applications and regulator body has port for fuel pressure gauge. Comes with laser cut stainless mounting bracket and hardware. #8 AN O-Ring fittings required. •Designed to operate within 4.5 - 9 PSI; Preset at 7 PSI •.250" (1/4") restriction •Compatible with QFT™ billet fuel pressure regulator logs •Can be used with gas, alcohol and E85 fuels •Includes an 1/8" NPT port for manifold reference Boost Reference 1-1
Features and Benefits
• Designed to operate within 4.5 - 9 PSI; Preset at 7 PSI
• .250" (1/4") restriction
• Compatible with QFT™ billet fuel pressure regulator logs
• Can be used with gas, alcohol and E85 fuels
Specifications
Specifications
-
Specifications
Adjustable Yes Brand Quick Fuel Technology Category Air and Fuel Delivery Emission Code 5 Fuel Type Gasoline Gauge Included No Gauge Port Included Yes Grade Type Performance Inlet Type 8 AN ORB Maximum Pressure 9 Minimum Pressure 4.5 Mounting Bracket Included Yes Outlet Type 8 AN ORB part type Fuel Pressure Regulator Product Type Fuel Pressure Regulator Rebuildable Yes Style Boost Referenced Sub Category Carburetion Vacuum Port Quantity 1 Warning California Proposition 65 Warranty Manufacturer's Limited 90 Day Warranty -
