Quick Fuel Technology | SKU:
30-1899QFT
Quick Fuel Billet Bypass Regulator W/JET - 30-1899QFT
Alcohol compatible
Regular price
$391.30 NZD
+ GST
Unit price
/
Unavailable
Shipping calculated at checkout.
Quick Fuel Billet Bypass Regulator W/JET - 30-1899QFT is not in stock at Fast Lane Spares and will ship direct from supplier.
⚠ Special Order Item — ships direct from supplier. No returns, exchanges, or cancellations once processed. Please allow 7–20 days shipping.
Stock Status:
Description
Description
Alcohol compatible
Part Number: 30-1899QFT

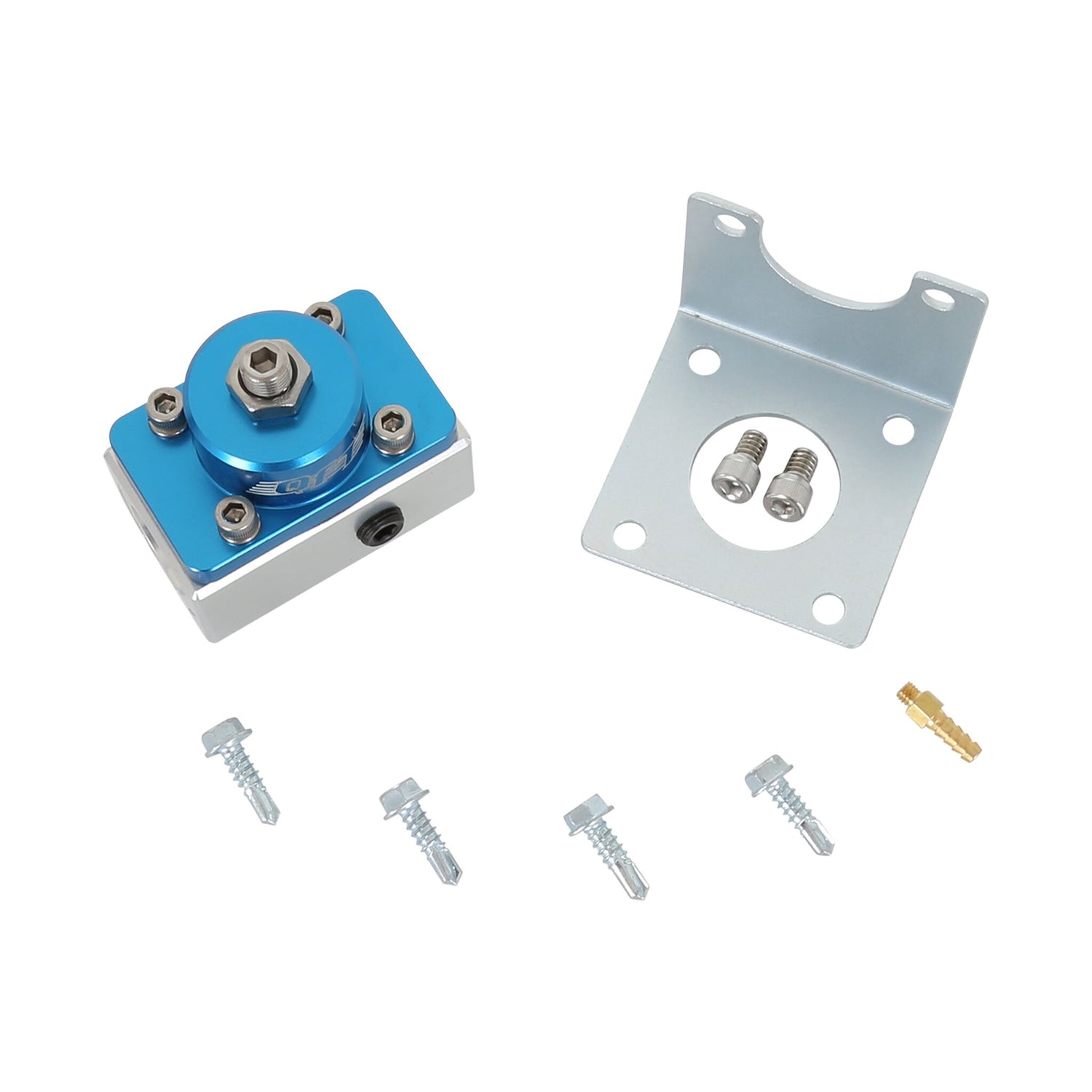

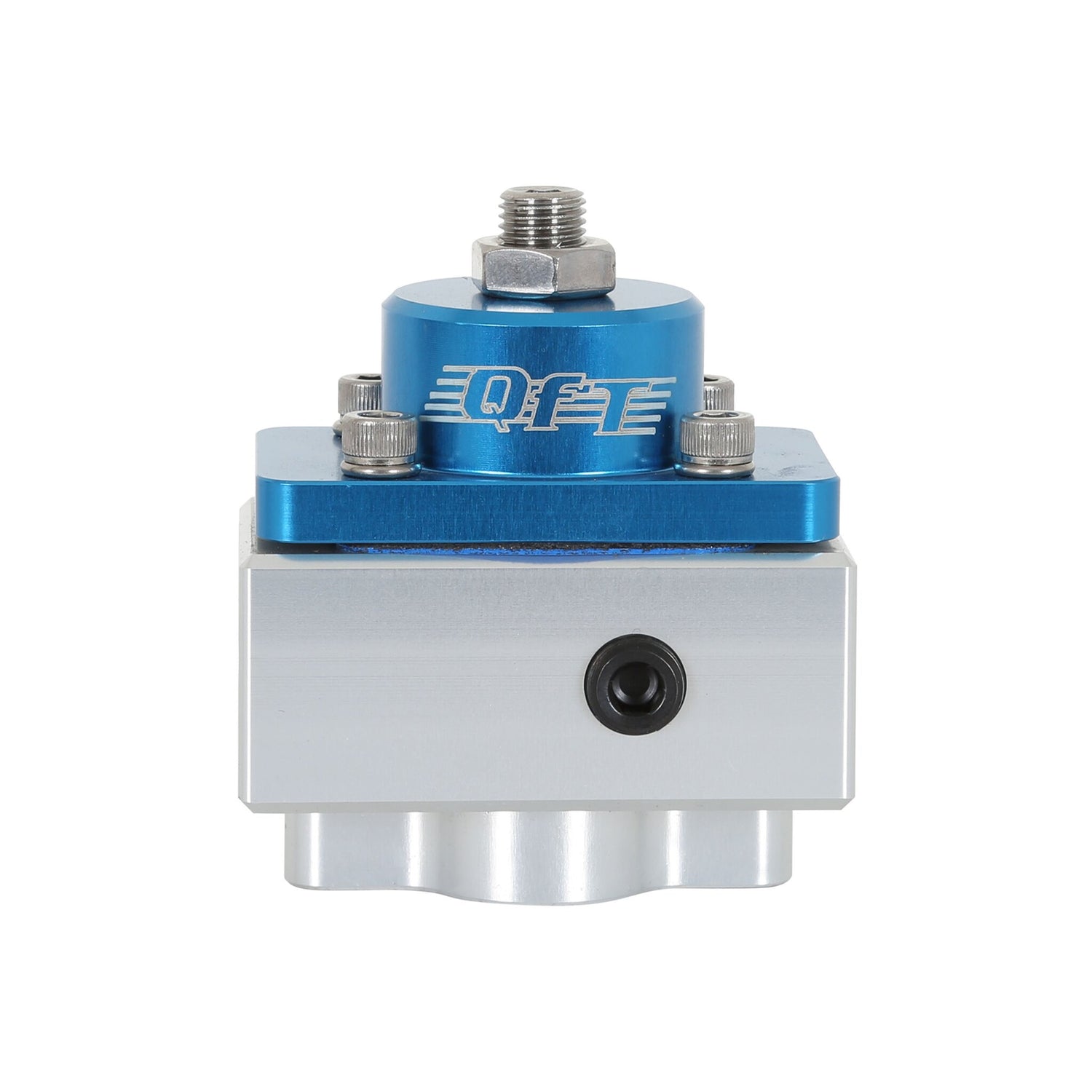

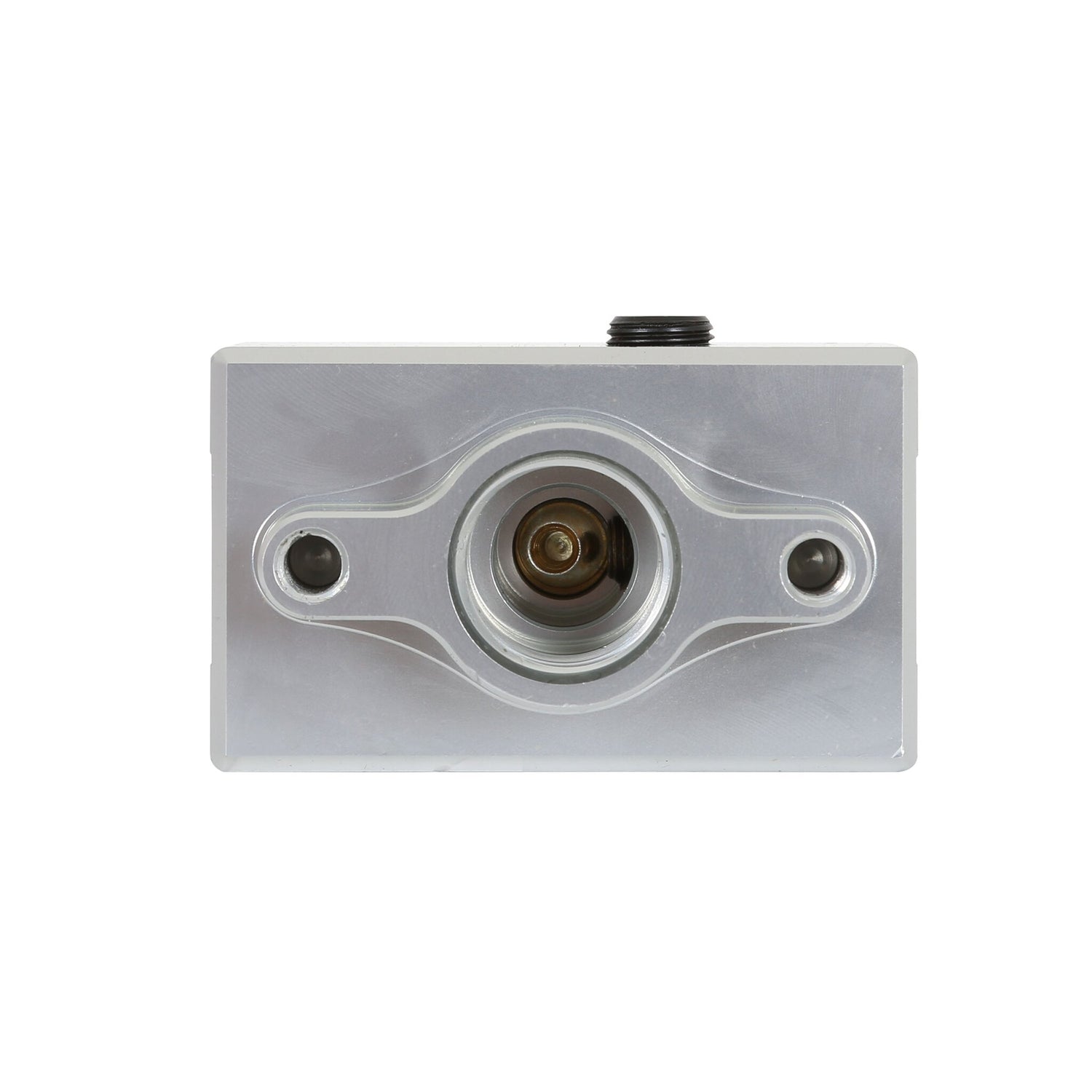

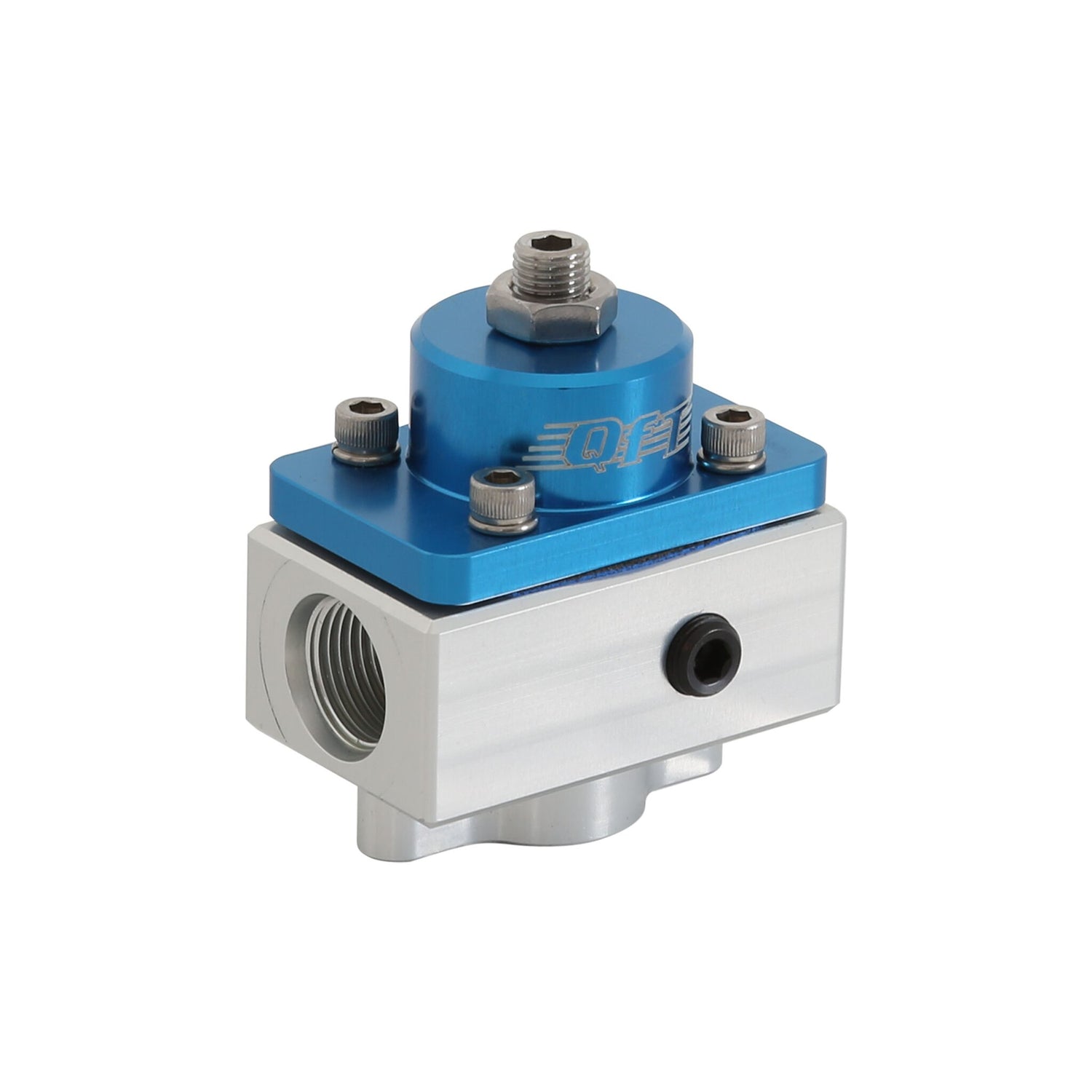

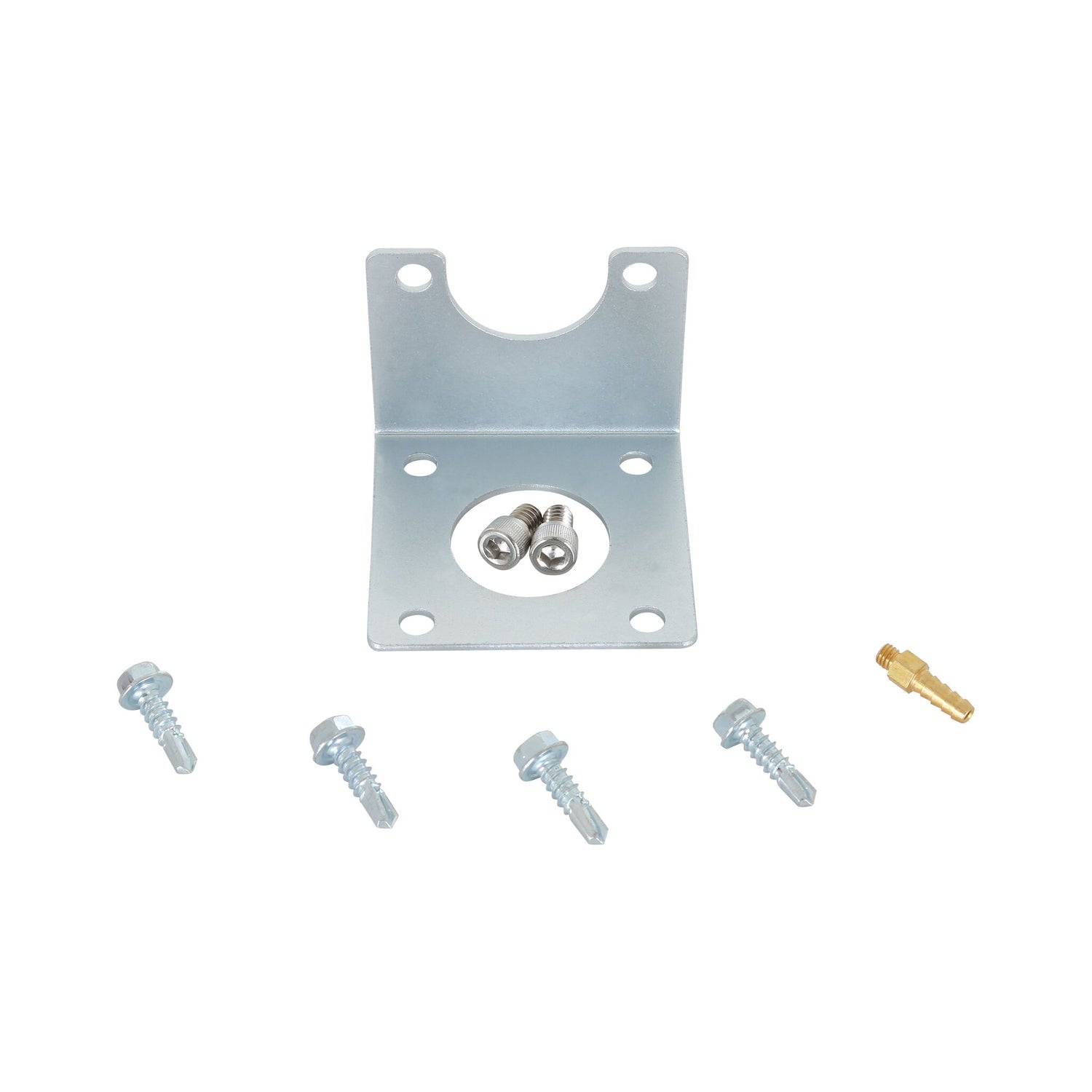

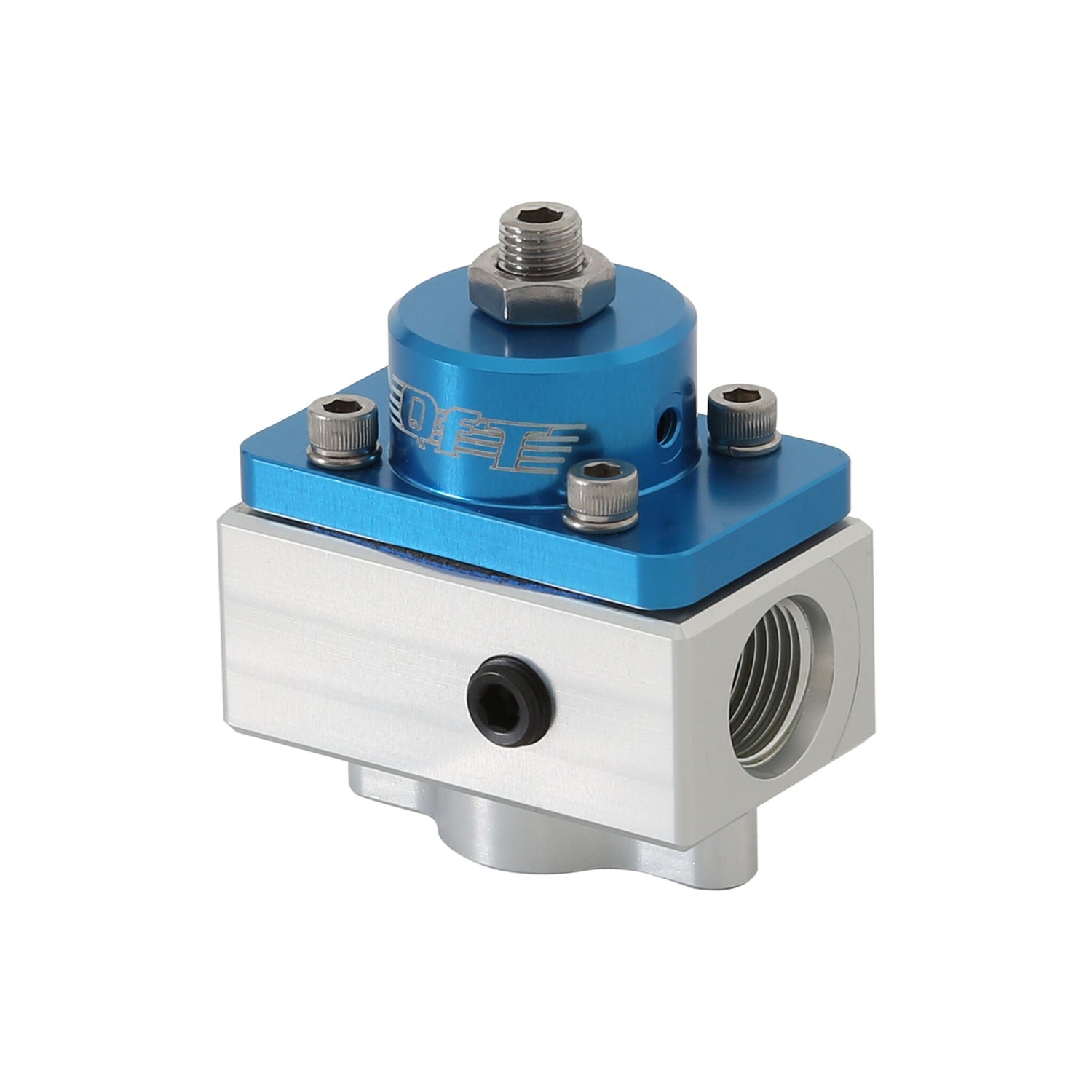

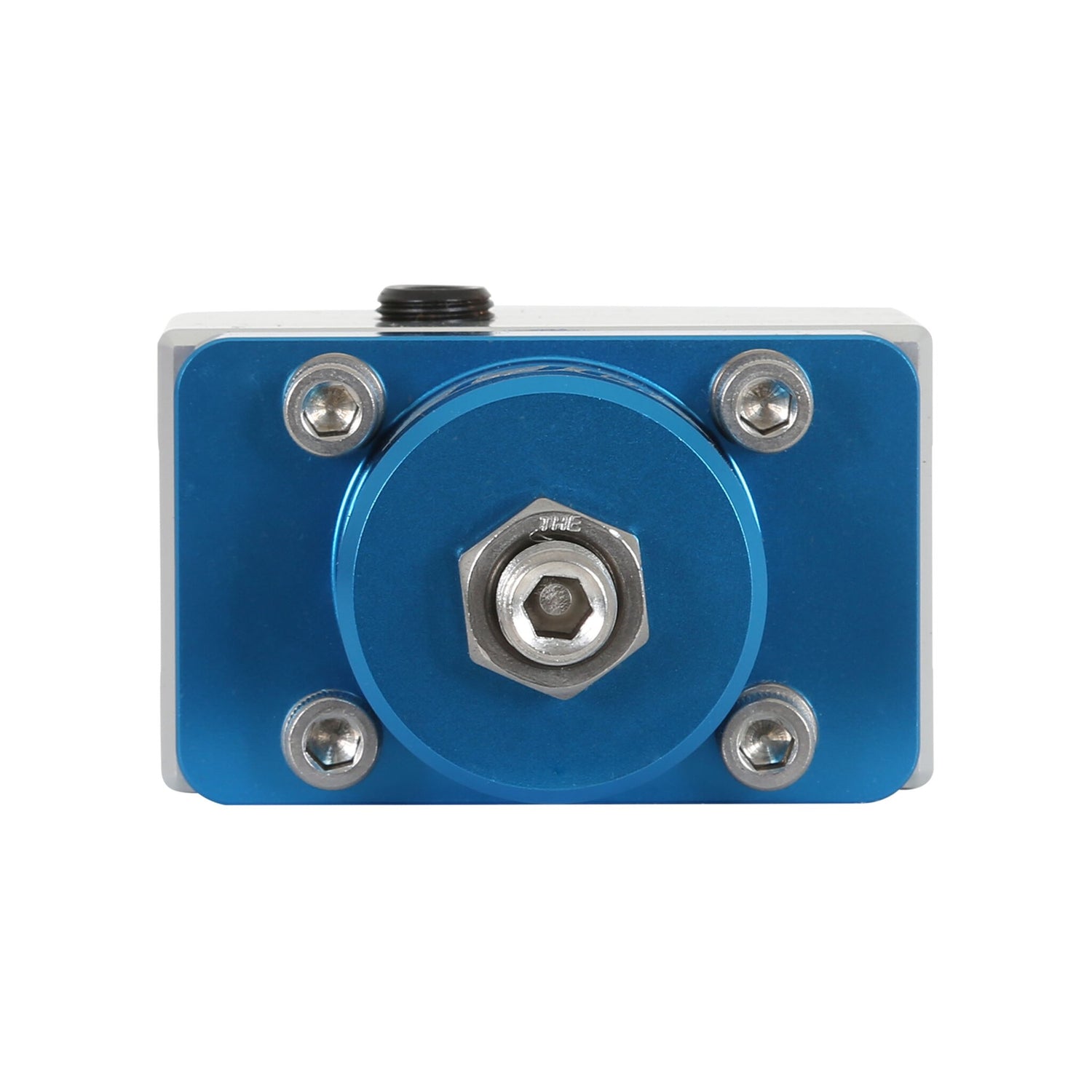

Billet Bypass Regulator W/JET - Designed for use with a mechanical fuel pump where fuel pressure is variable. By-Pass feature is restricted with a jet that can be adjusted to set your desired low-side fuel pressure. Blue anodized top has a fitting for boost referenced applications, comes with laser cut stainless mounting bracket and hardware. #8 AN O-Ring fittings required.
Features and Benefits
• Designed to operate within 4.5 - 9 PSI; Preset at 7 PSI
• .350" (7/20") restriction
• Designed for use with alcohol fuel
• Compatible with QFT™ billet fuel pressure regulator logs
• Boost Reference 1-1
• Includes an 1/8" NPT port for manifold reference
Part Number: 30-1899QFT
Billet Bypass Regulator W/JET - Designed for use with a mechanical fuel pump where fuel pressure is variable. By-Pass feature is restricted with a jet that can be adjusted to set your desired low-side fuel pressure. Blue anodized top has a fitting for boost referenced applications, comes with laser cut stainless mounting bracket and hardware. #8 AN O-Ring fittings required.
Features and Benefits
• Designed to operate within 4.5 - 9 PSI; Preset at 7 PSI
• .350" (7/20") restriction
• Designed for use with alcohol fuel
• Compatible with QFT™ billet fuel pressure regulator logs
• Boost Reference 1-1
• Includes an 1/8" NPT port for manifold reference
Specifications
Specifications
-
Specifications
Adjustable Yes Brand Quick Fuel Technology Category Air and Fuel Delivery Emission Code 5 Fuel Type Gasoline Gauge Included No Gauge Port Included Yes Grade Type Performance Inlet Type 8 AN ORB Maximum Pressure 9 Minimum Pressure 4.5 Mounting Bracket Included Yes Outlet Type 8 AN ORB part type Fuel Pressure Regulator Product Type Fuel Pressure Regulator Rebuildable Yes Sub Category Carburetion Vacuum Port Quantity 1 Warning California Proposition 65 Warranty Manufacturer's Limited 90 Day Warranty -
