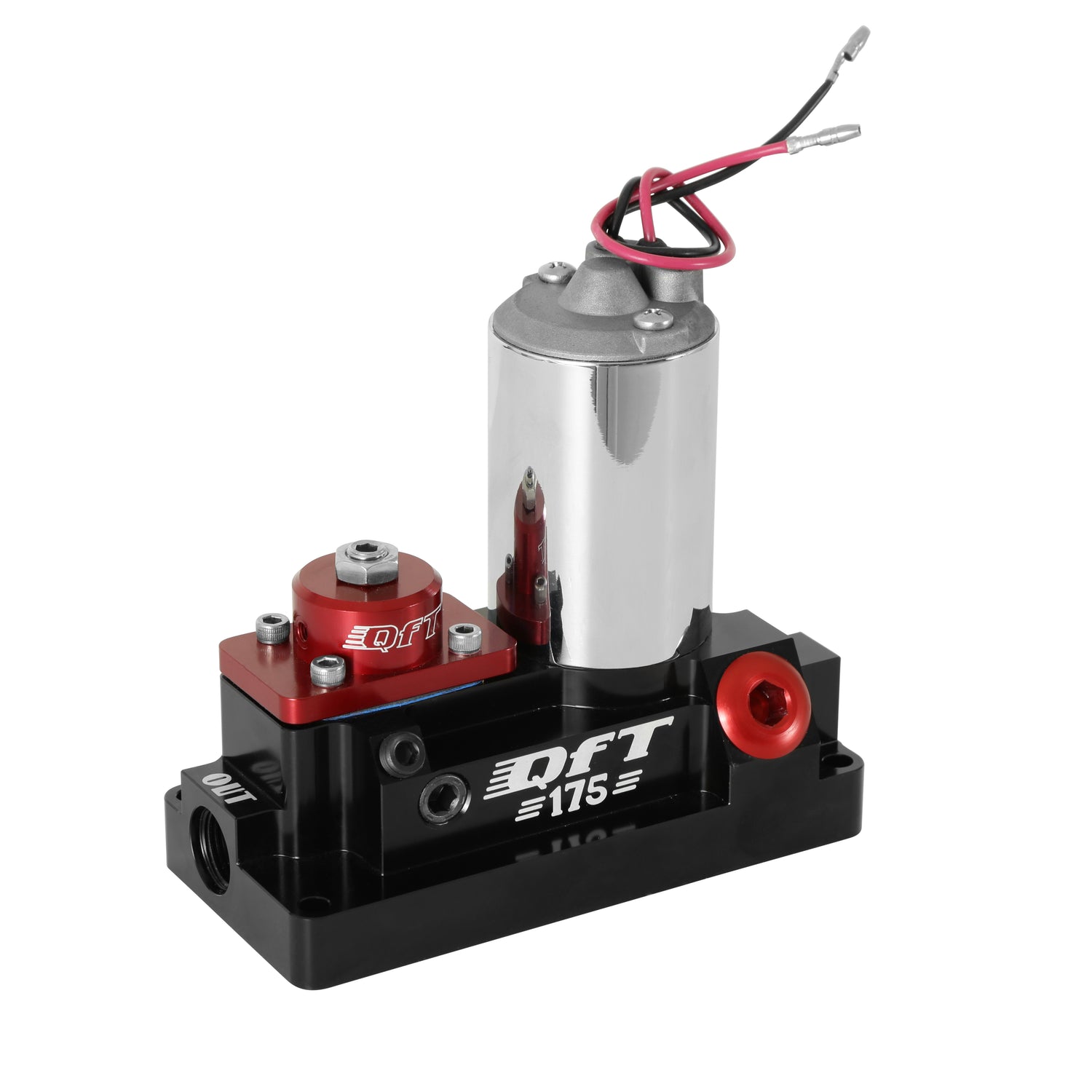

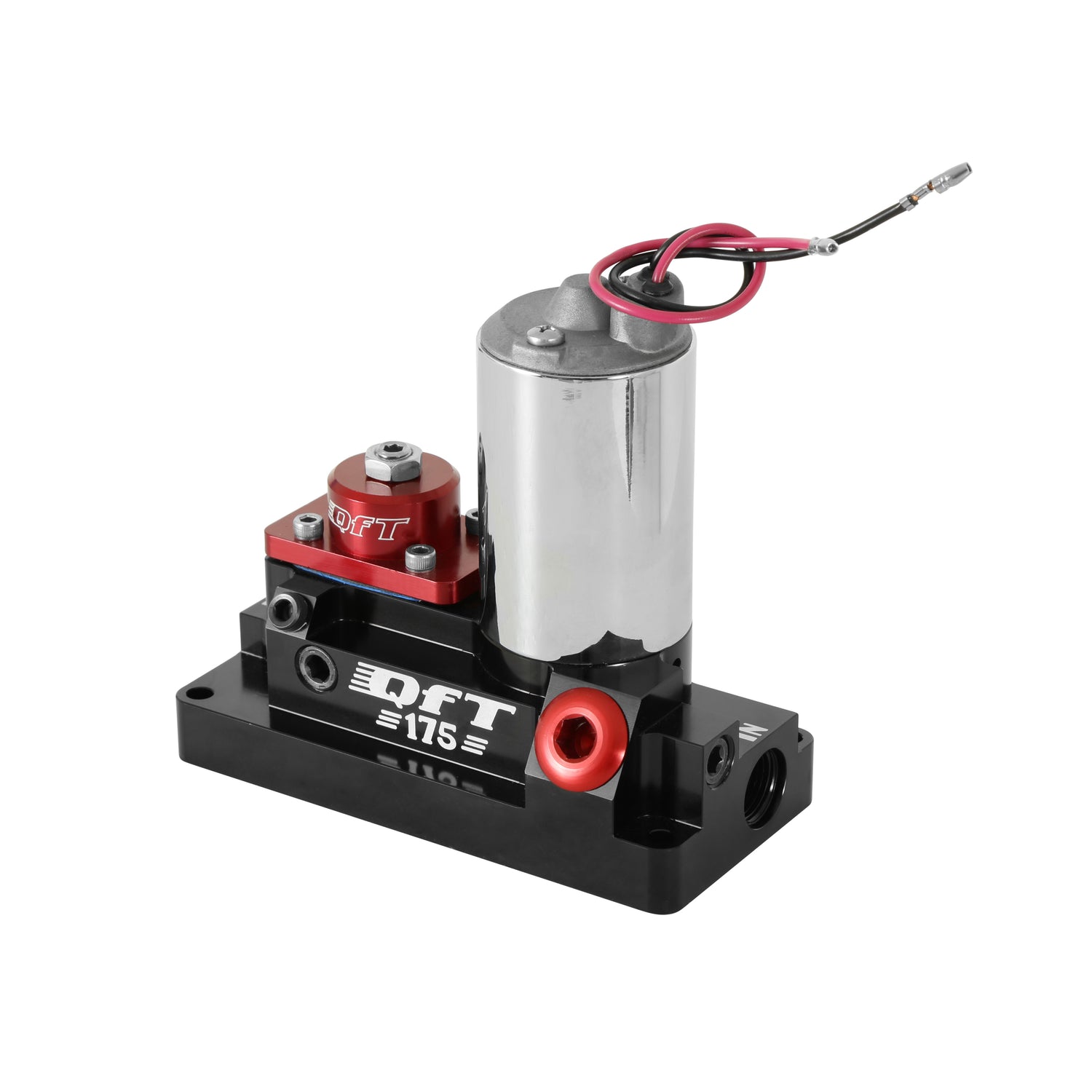

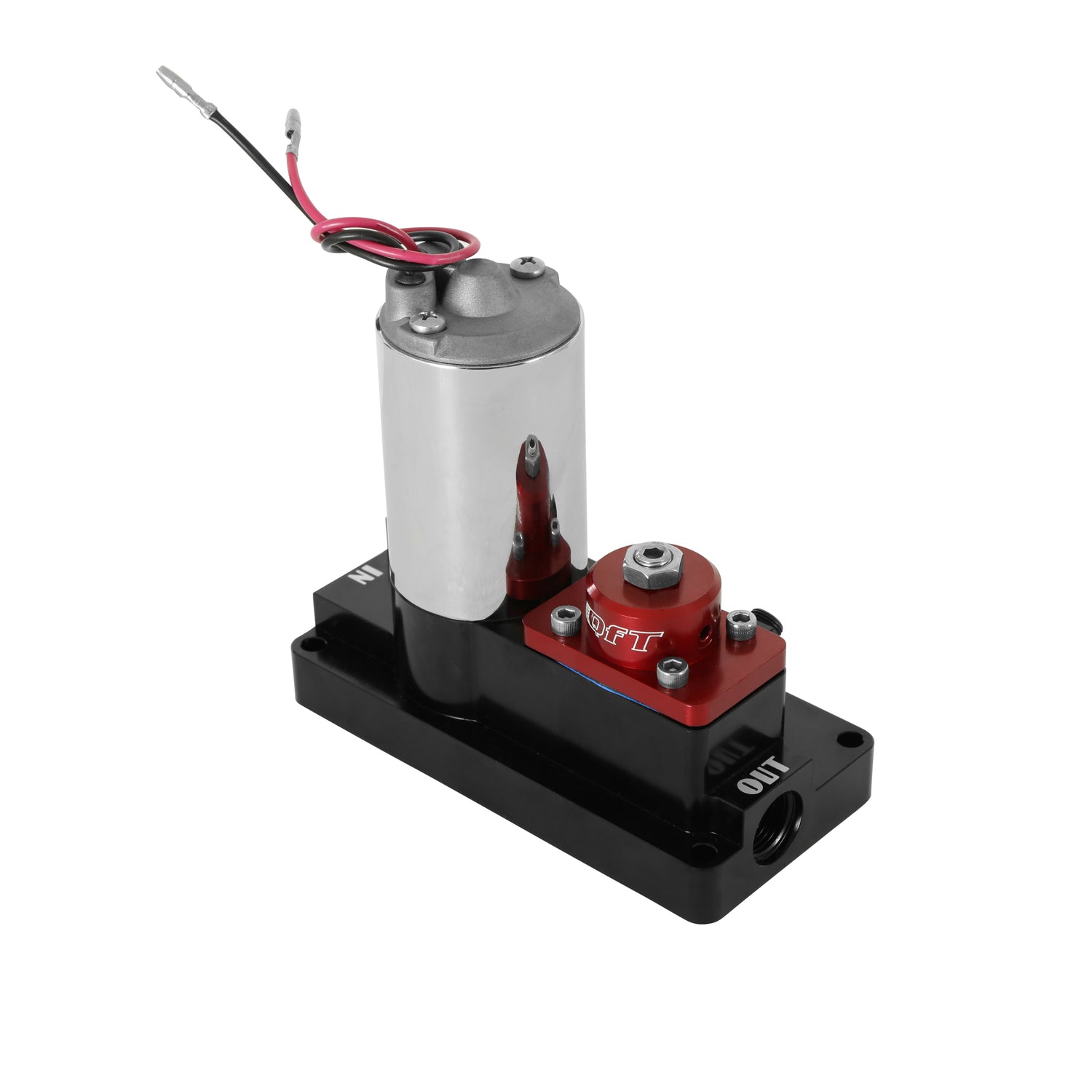

Quick Fuel 175 GPH Bypass Billet Electric Fuel Pump - 30-175QFT
175 GPH Bypass Billet Electric Fuel Pump
Quick Fuel 175 GPH Bypass Billet Electric Fuel Pump - 30-175QFT is not in stock at Fast Lane Spares and will ship direct from supplier
Description
Description
Part Number: 30-175QFT
175 GPH Billet Electric Fuel Pump designed for drag racing. Features #8 AN fuel inlet and outlets, built-in fuel pressure gauge port, and internal/external adjustable bypass. Fuel pump can be used either way, simply use the provided plug to switch bypass modes. Mounting bracket, hardware, and detailed instructions are included. *Fuel pressure gauge and fitting are not included
Features and Benefits
• • 175 GPH electric fuel pump

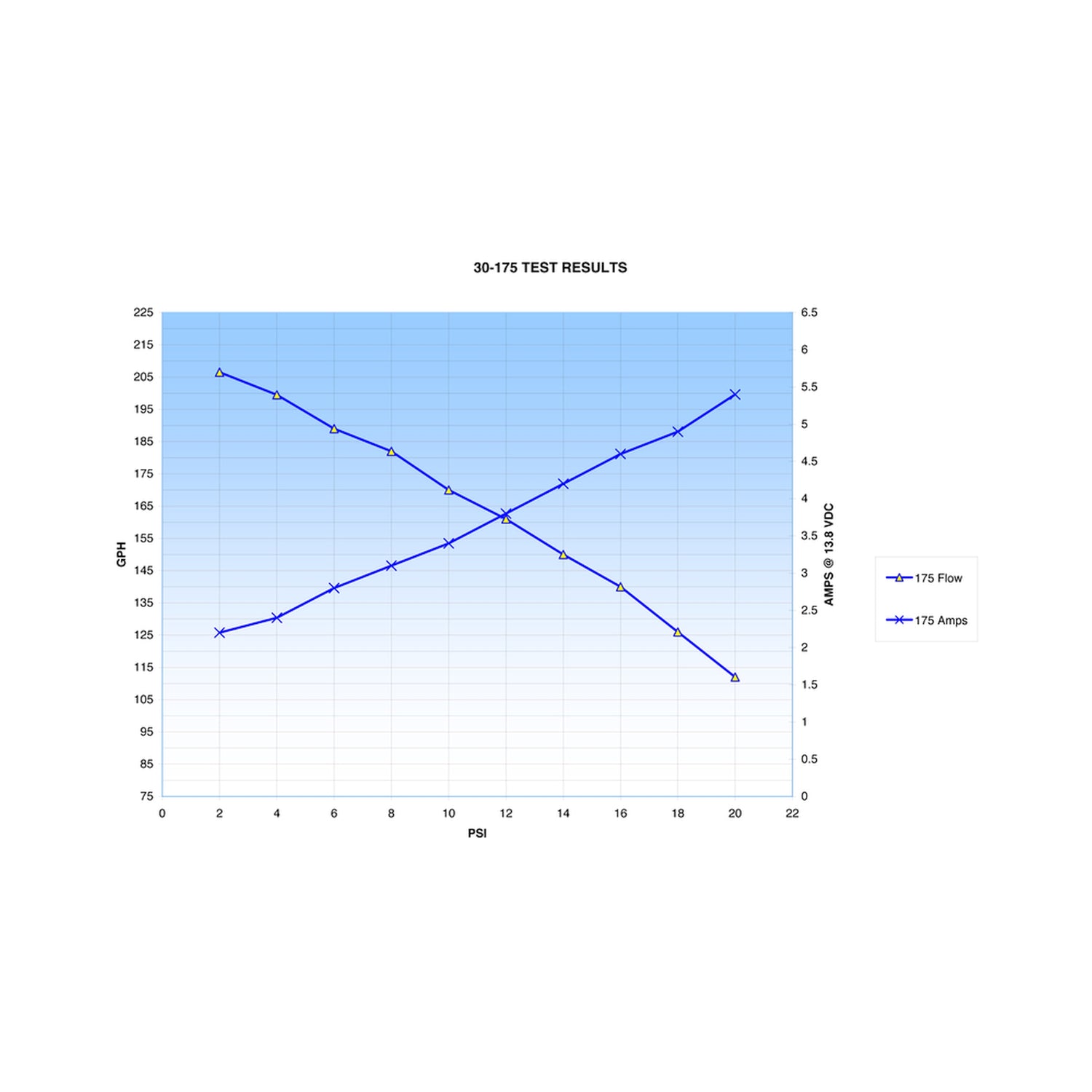

• • Supports up to 750 HP @ 18 PSI
• • Constructed of billet aluminum for added durability and increased fuel control

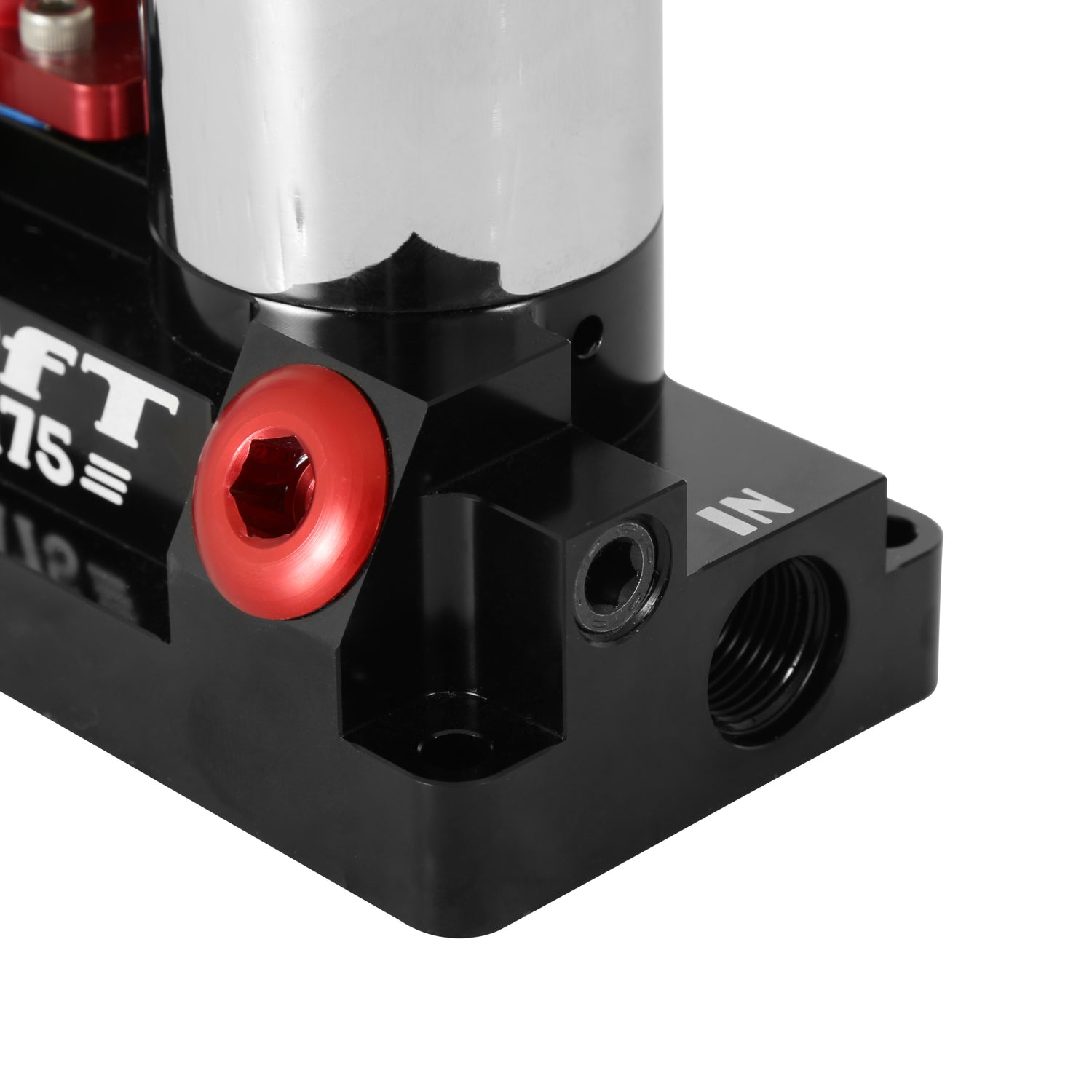

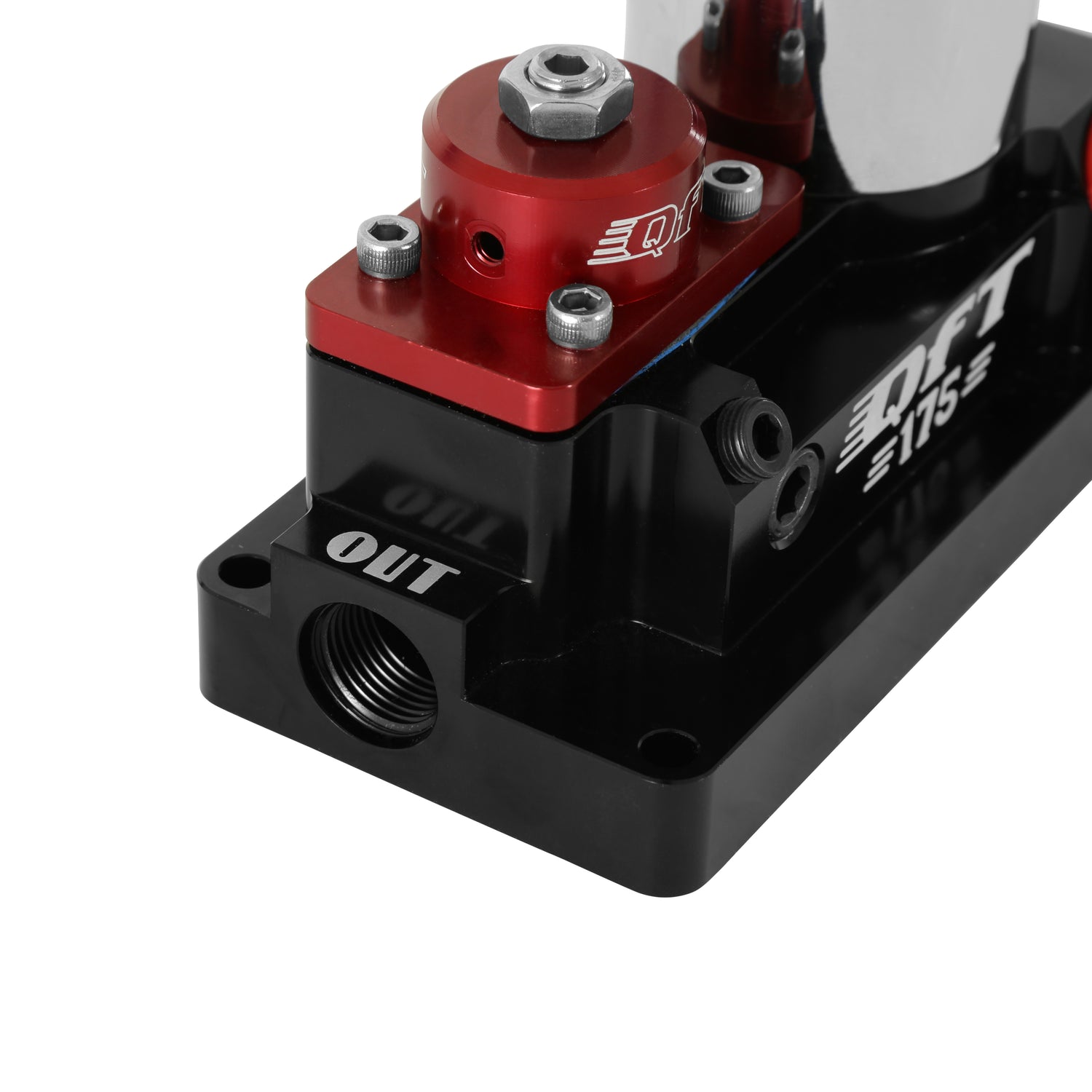

• • Features #8 AN O-ring inlet and outlet ports
• • Built-in fuel pressure gauge port
• • Internal and external adjustable bypass capability (Plug provided to switch bypass modes)
• • Mounting bracket, hardware, and detailed instructions included
Specifications
Specifications
-
Specifications
Average Flow Rating 175 Brand Quick Fuel Technology Category Air and Fuel Delivery Emission Code 5 Free Flow GPH 175 Fuel Delivery Type Carburetor Fuel Sending Unit Included No Fuel Type Gasoline / Ethanol / Methanol / E85 Gasket Or Seal Included No Grade Type Performance Inlet Type 8 AN ORB Internal Or External External Maximum Pressure 18 Mounting Bracket Included Yes Mounting Hardware Included No Negative Ground Yes Outlet Type 8 AN ORB part type Electric Fuel Pump Product Type Fuel Pump Regulator Included Yes Strainer Included No Sub Category Fuel Pumps and Related Components Universal Or Specific Fit Universal Warning California Proposition 65 Warranty Manufacturer's Limited 90 Day Warranty Wiring Harness Included No -

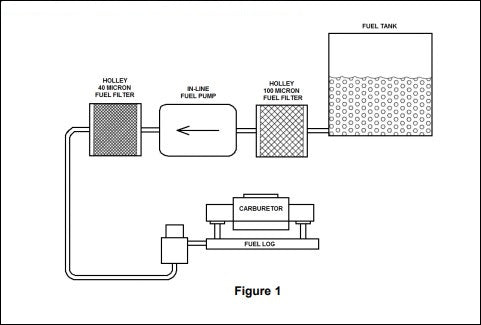

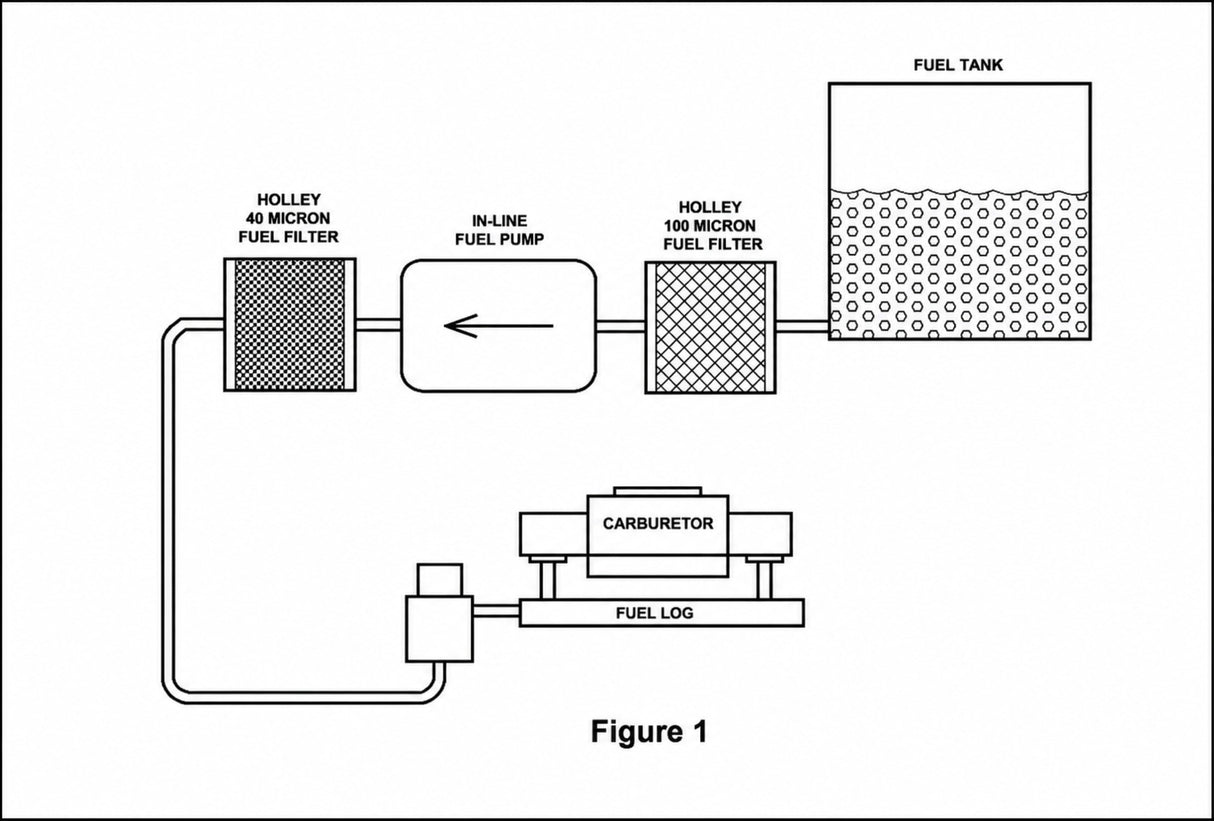

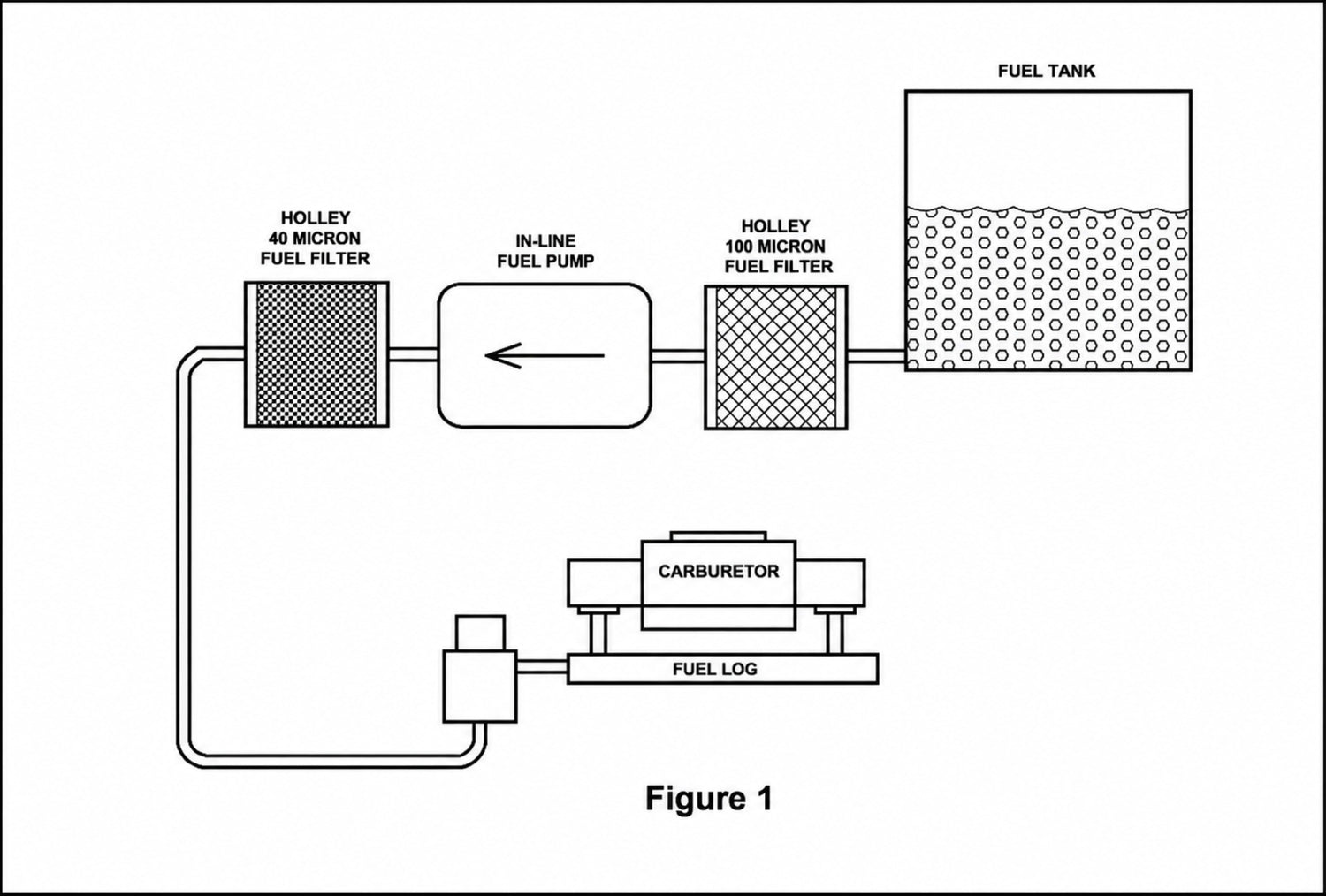

Instructions
