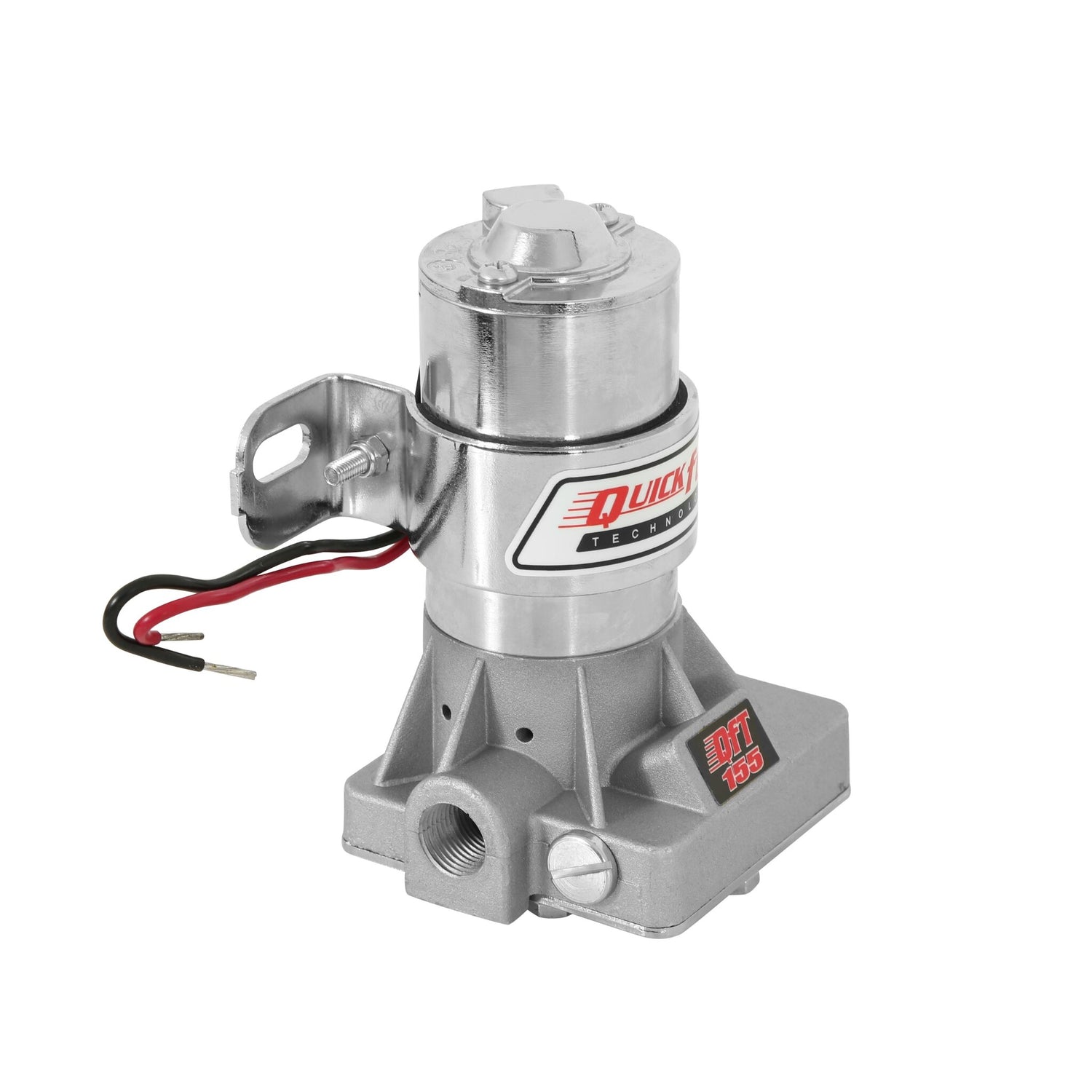

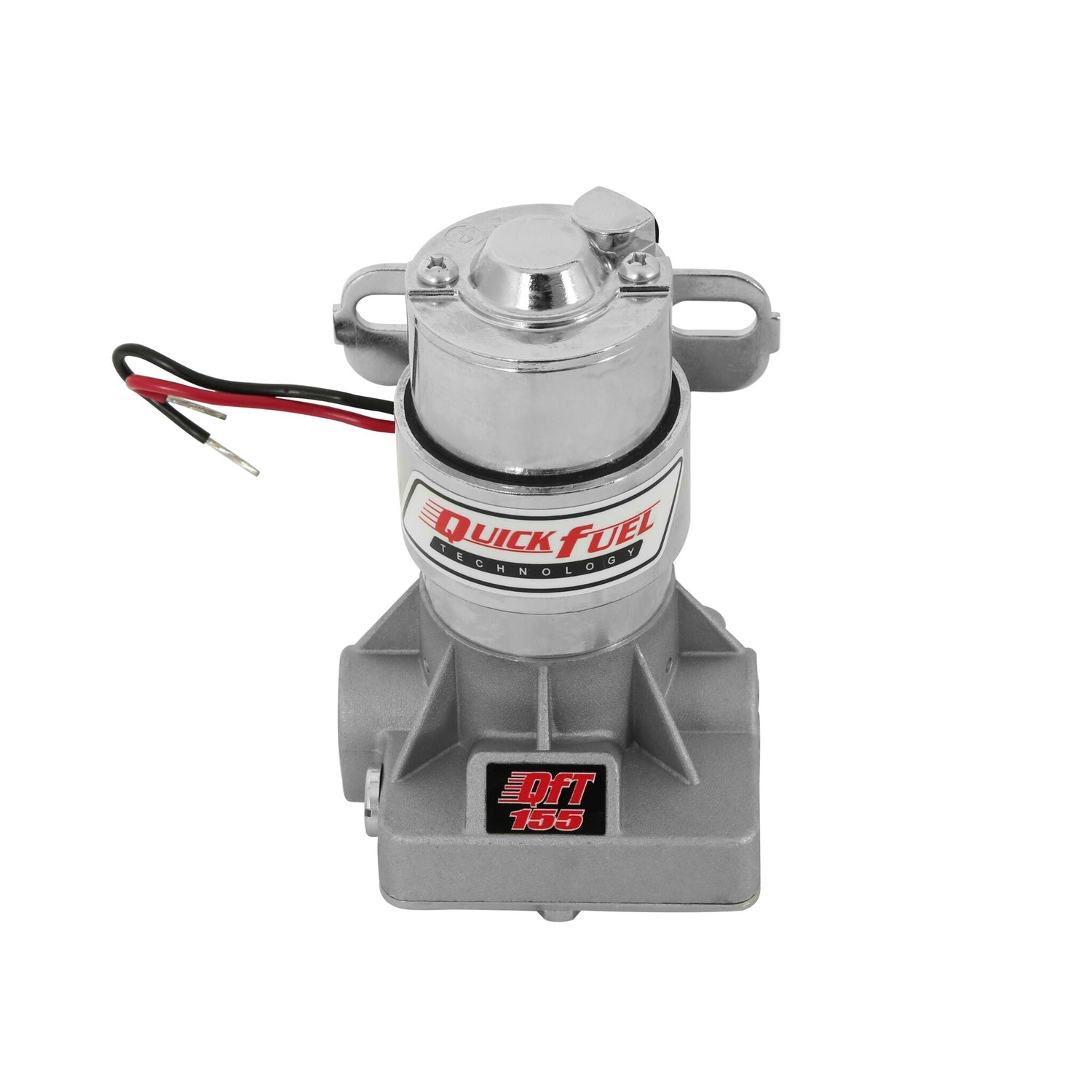

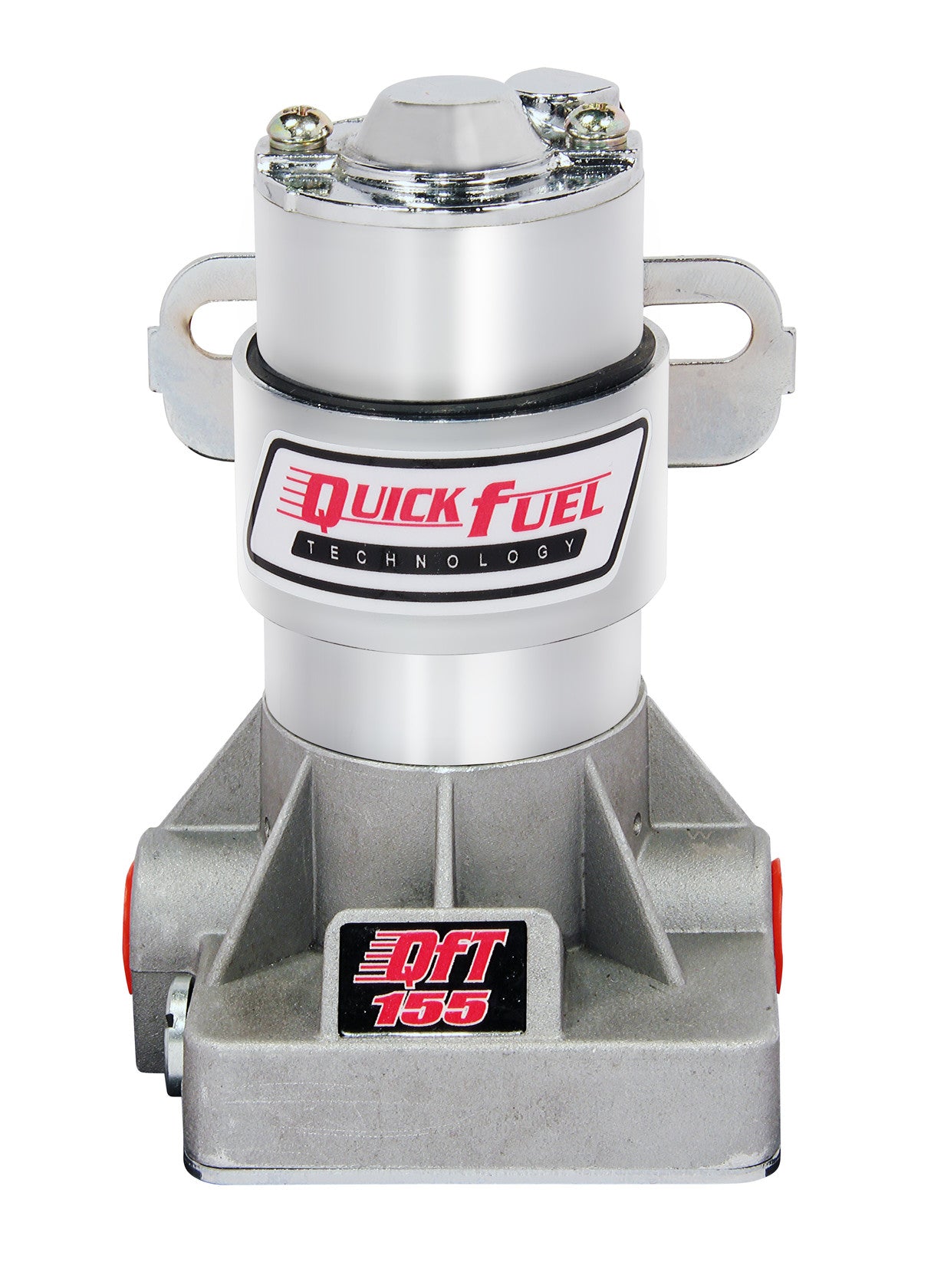

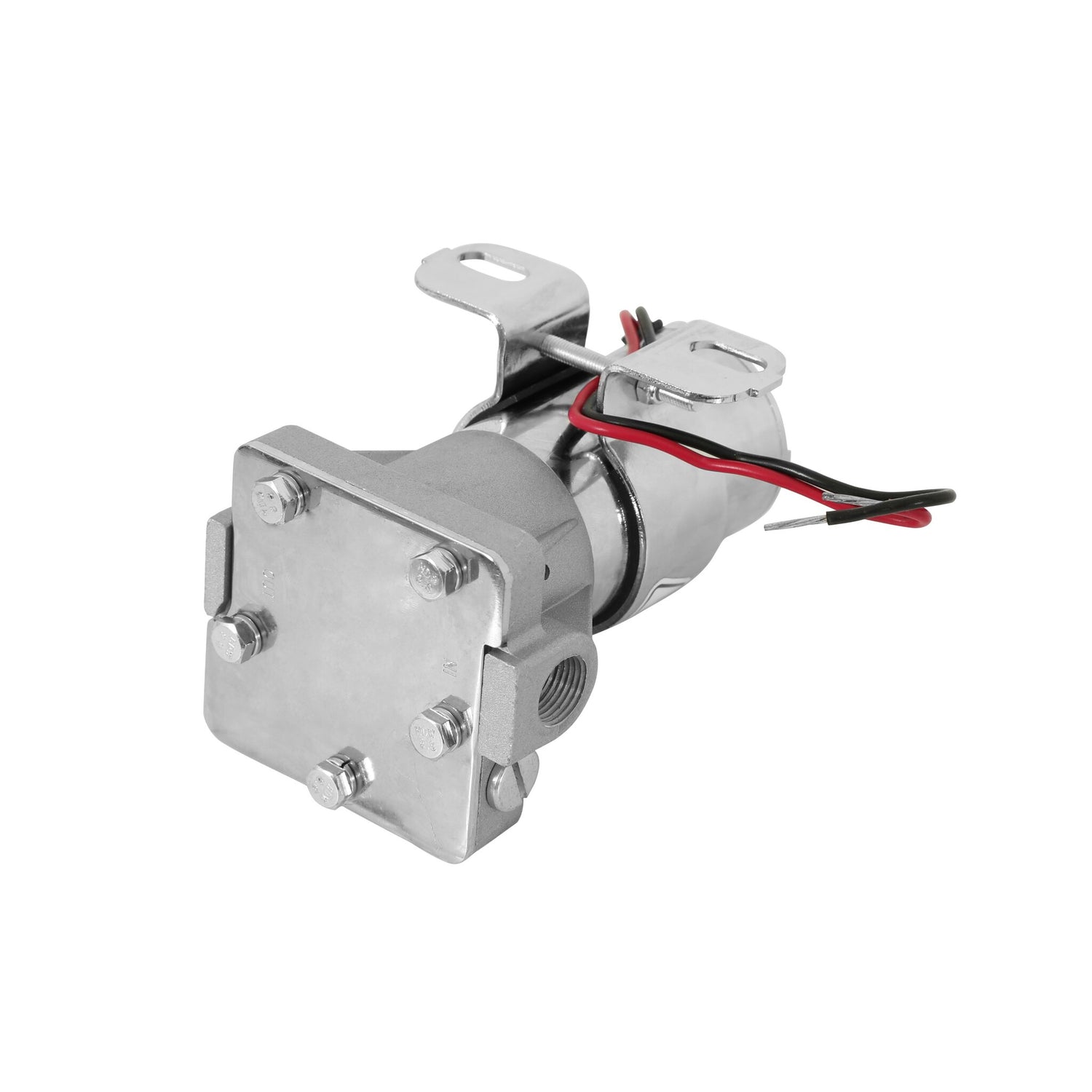

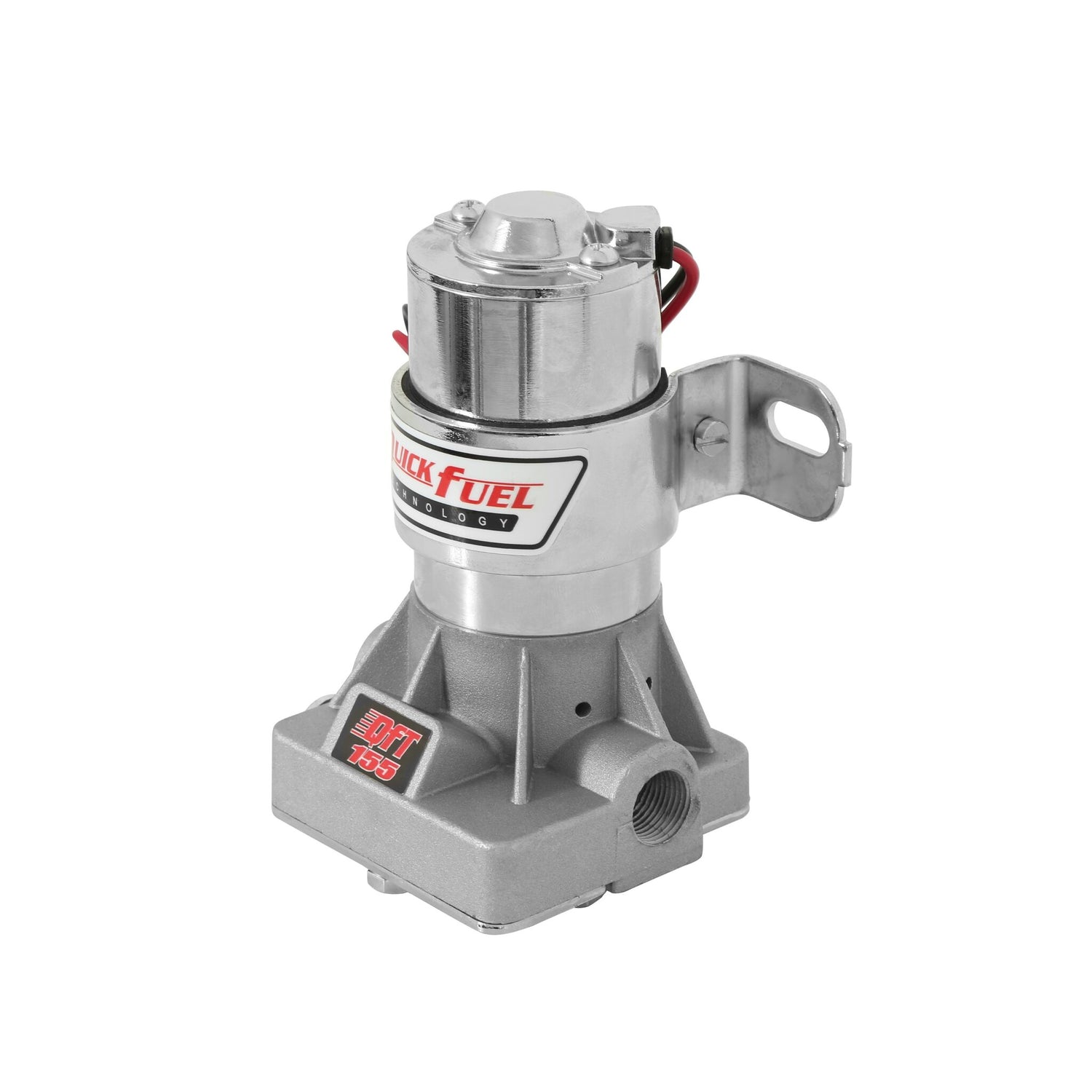

Quick Fuel 155 GPH Electric Fuel Pump - 30-155QFT

12 Volt

Part Number: 30-155QFT

QFT's electric fuel pumps are perfect for combinations that are neither stock nor all out race cars. Available in 155-, and 175 GPH models, these pumps flow more than enough fuel to support between 400-750 hp. These pumps draw just four amps of current and are capable of producing 14 psi of maximum pressure ( 30-155), and 18 psi of maximum pressure (30-175). All mounting hardware and brackets are included. • 155 GPH electric fuel pump • Designed for street & drag race applications • Supports up to 600 HP engines • Constructed of lightweight steel and aluminum • 14 PSI maximum pressure • Features 3/8" NPT inlet and outlet ports • Externally accessible pressure relief valve • Draws 4 Amps or less at full load • Recommend external bypass regulator (30-900 or 30-1900) for long duration use • Recommend 30-803 for non-bypass short duration use • Assigned U.S. Patent numbers D645,055, D645,057, and D645,058 • Mounting bracket, hardware, and detailed instructions included

Features and Benefits

• 155 GPH Flow Rate
• Constructed of Lightweight Steel and Aluminum
• 14 PSI Maximum Pressure
• Features 3/8" NPT Inlets and Outlets
• Externally Accessible Pressure Relief Valve
• Draws 4 Amps or Less at Full Load
• Designed for Carbureted Applications Only

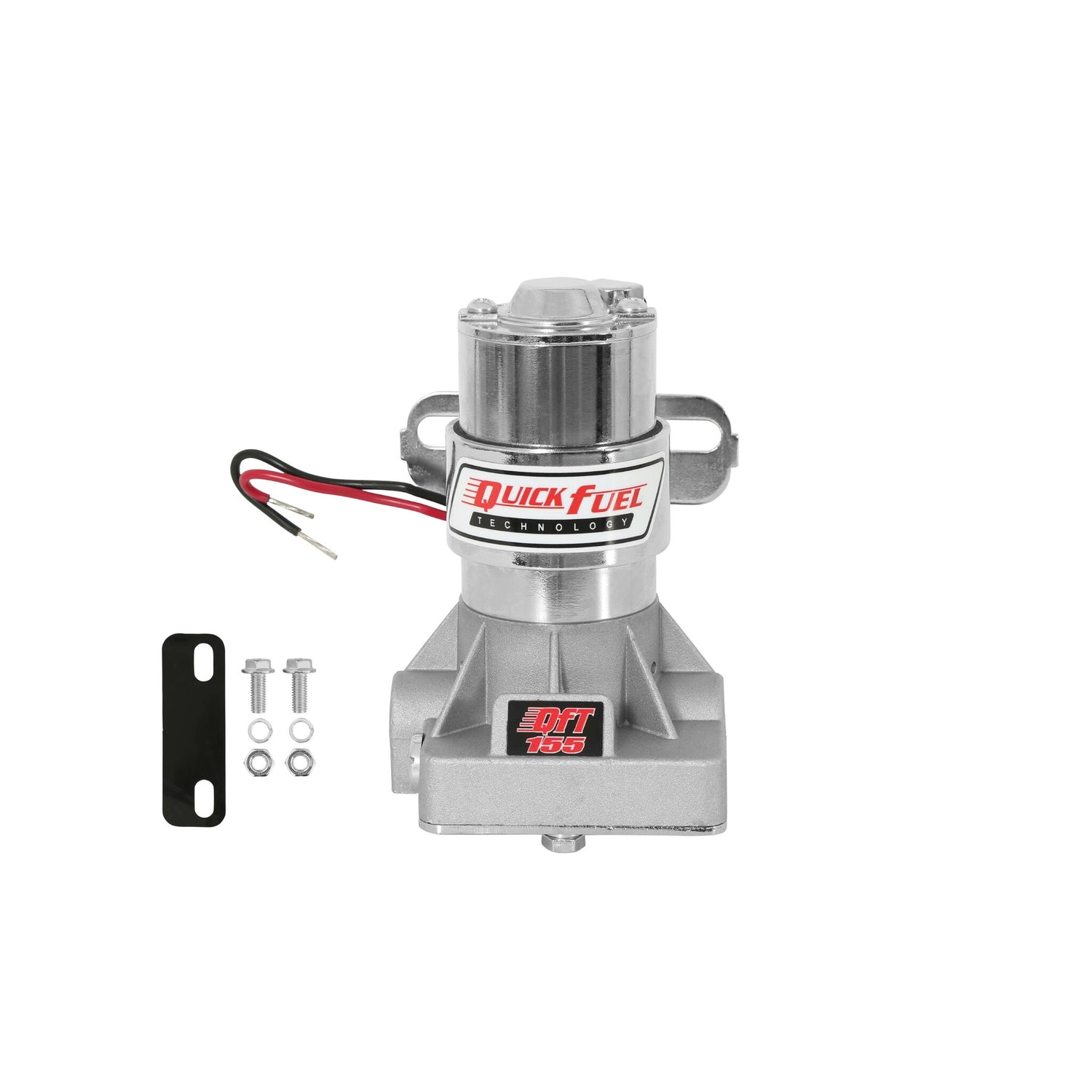

• Mounting Bracket, Hardware, and Instructions Included
