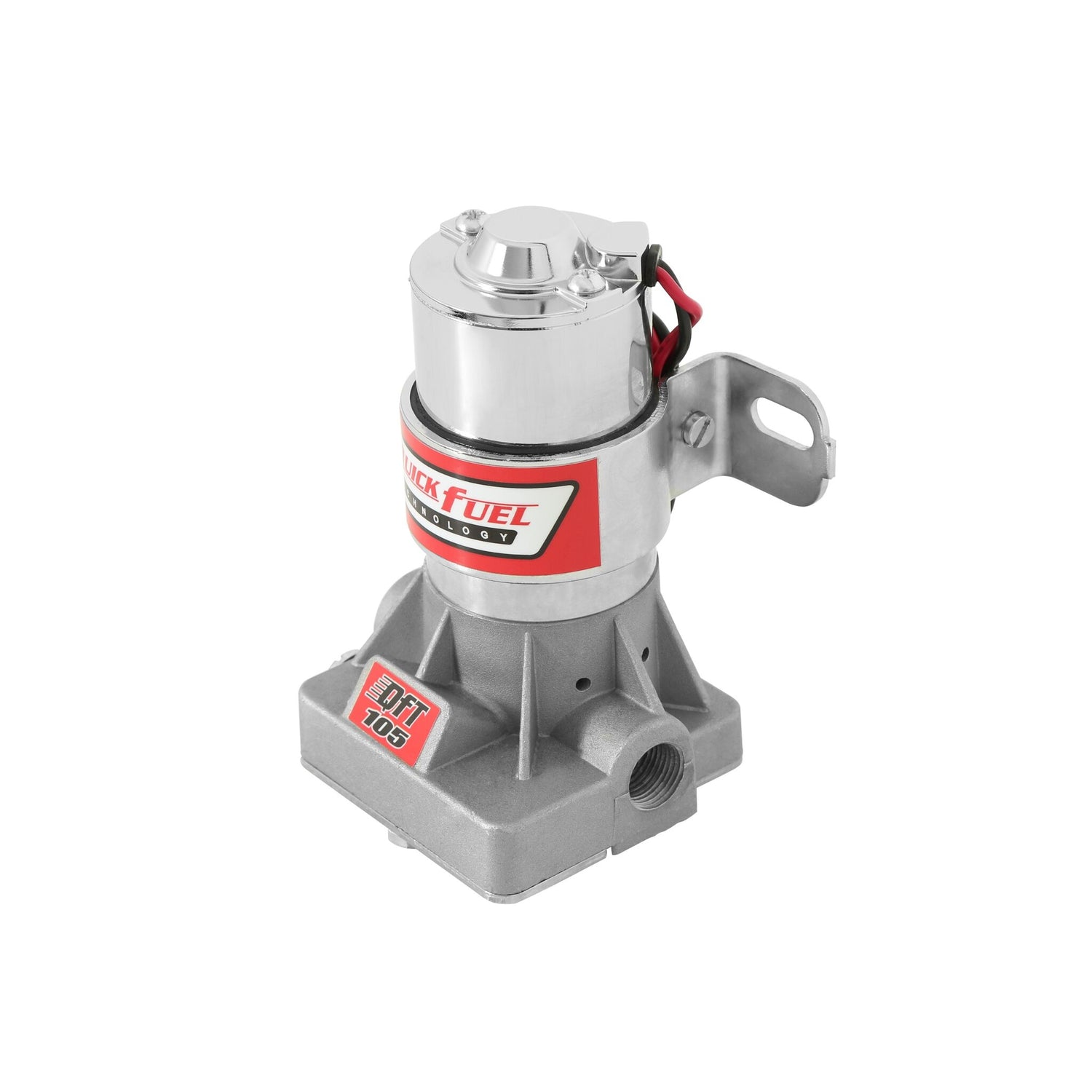

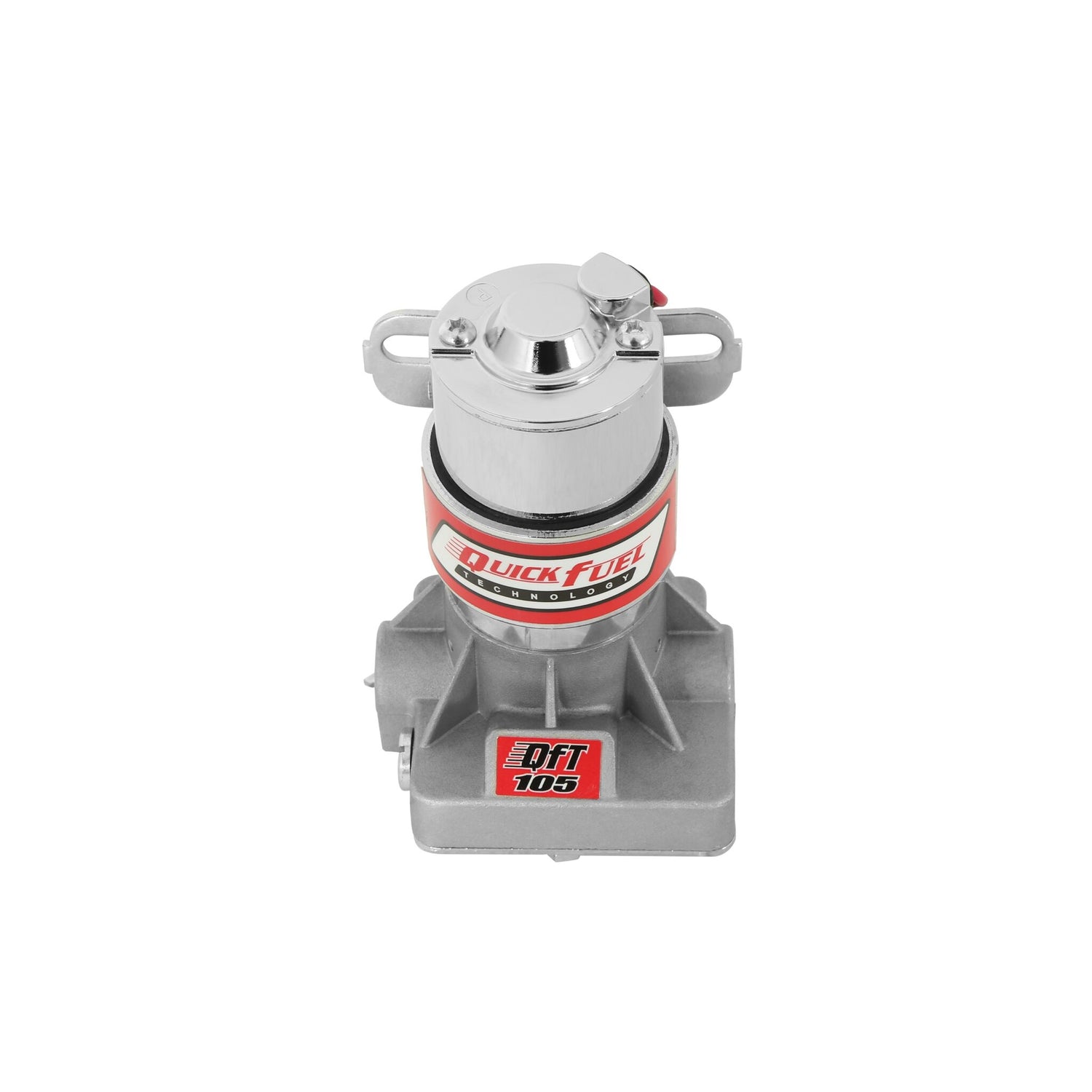

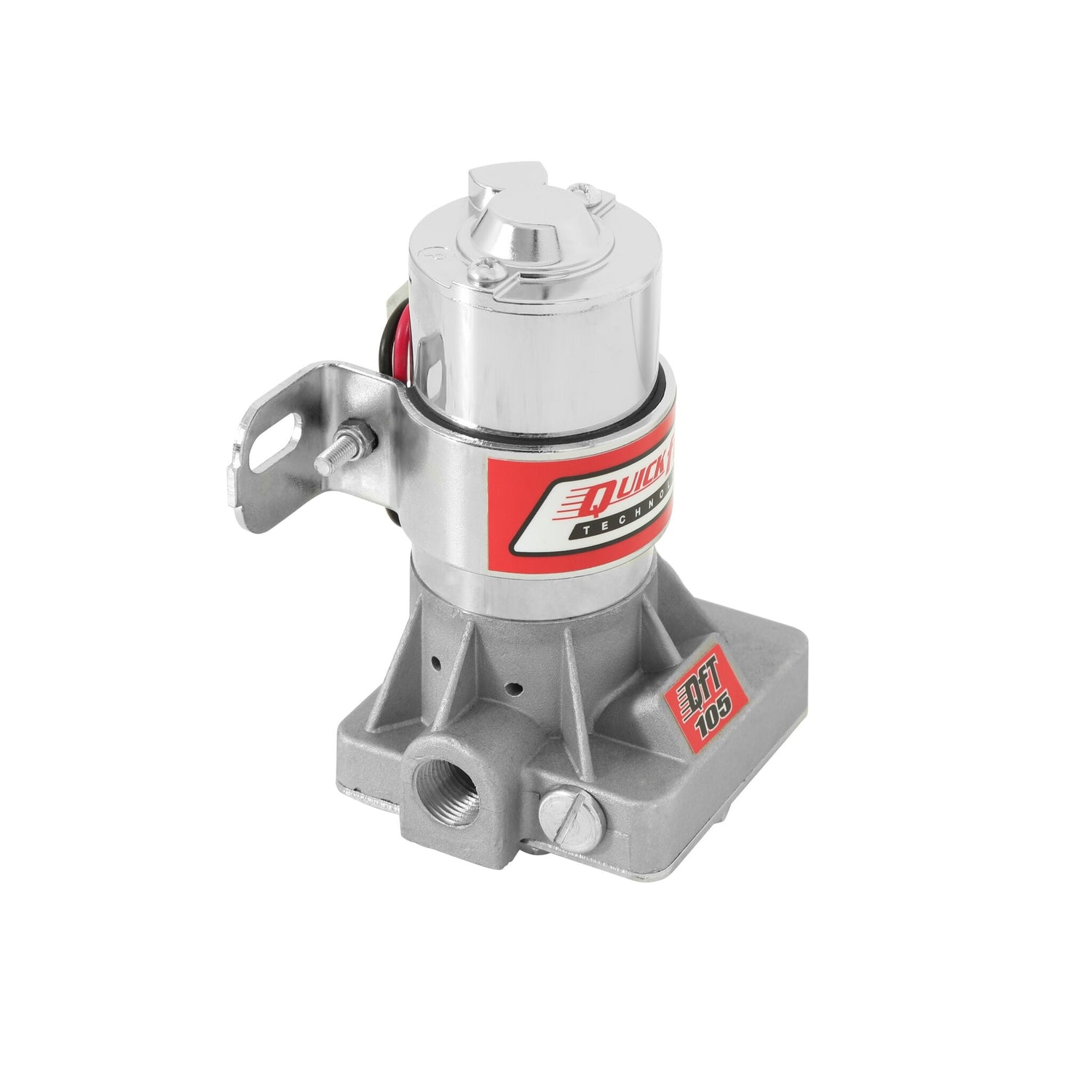

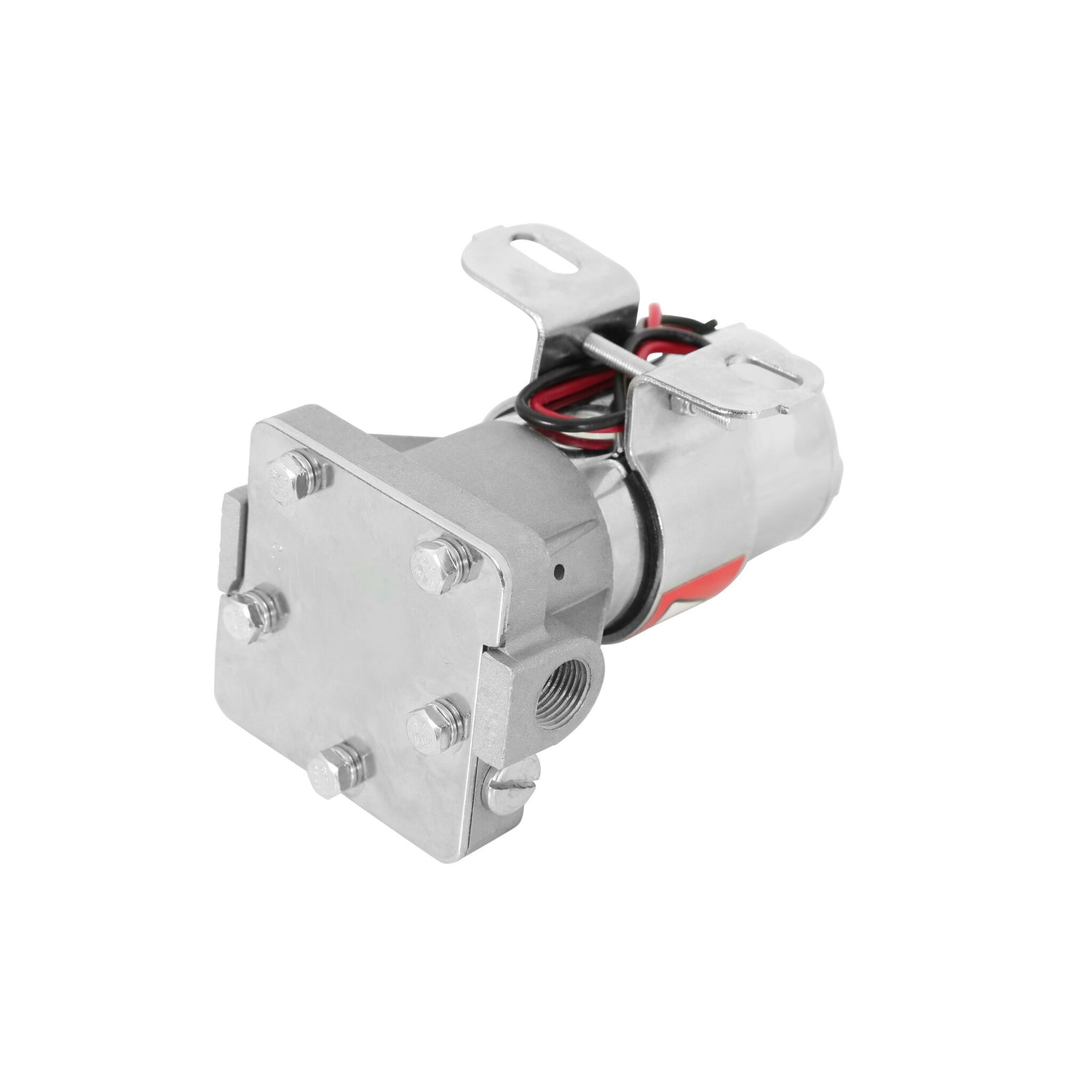

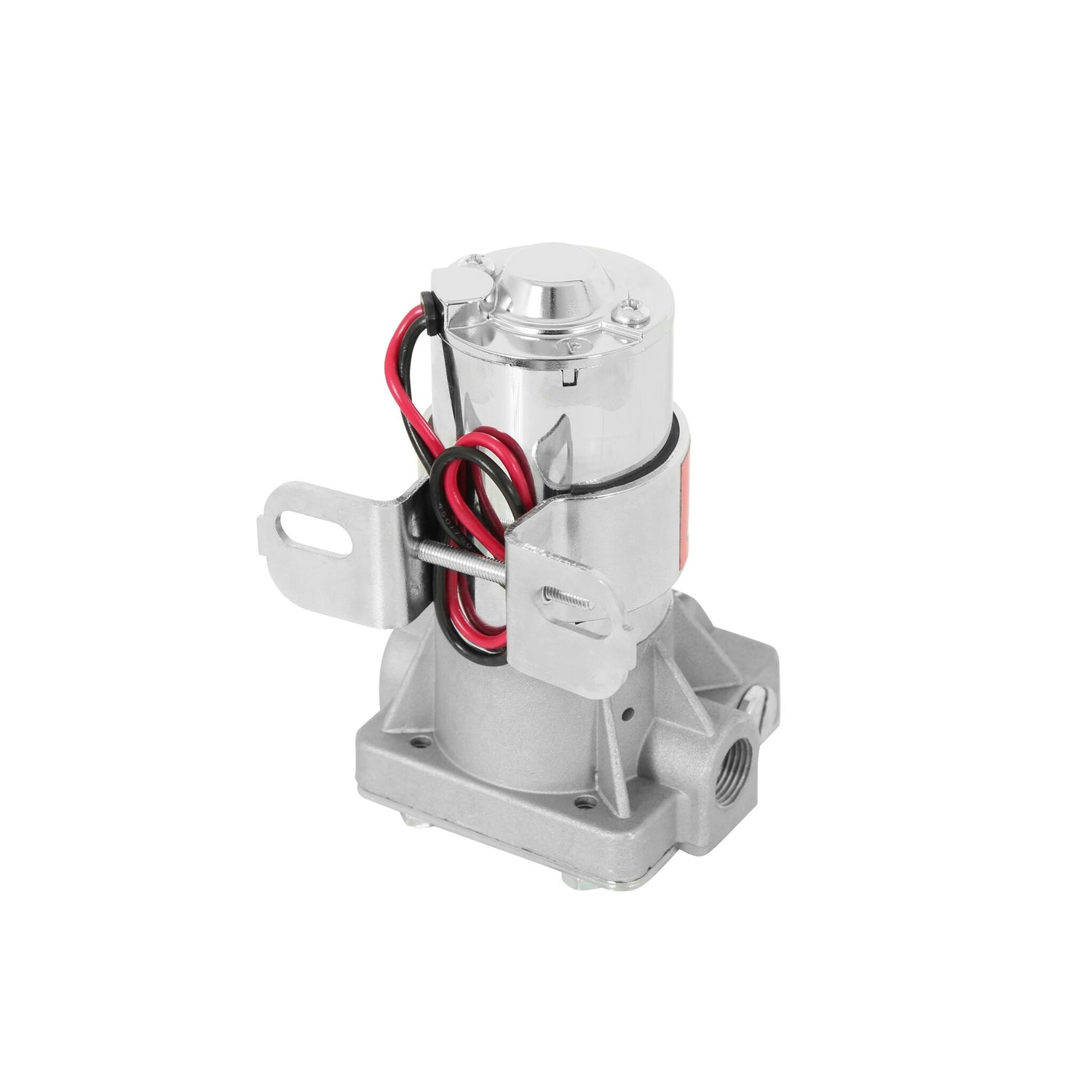

Quick Fuel 105 GPH Electric Fuel Pump - 30-105QFT
12 Volt
Quick Fuel 105 GPH Electric Fuel Pump - 30-105QFT is not in stock at Fast Lane Spares and will ship direct from supplier.
Description
Description
Part Number: 30-105QFT

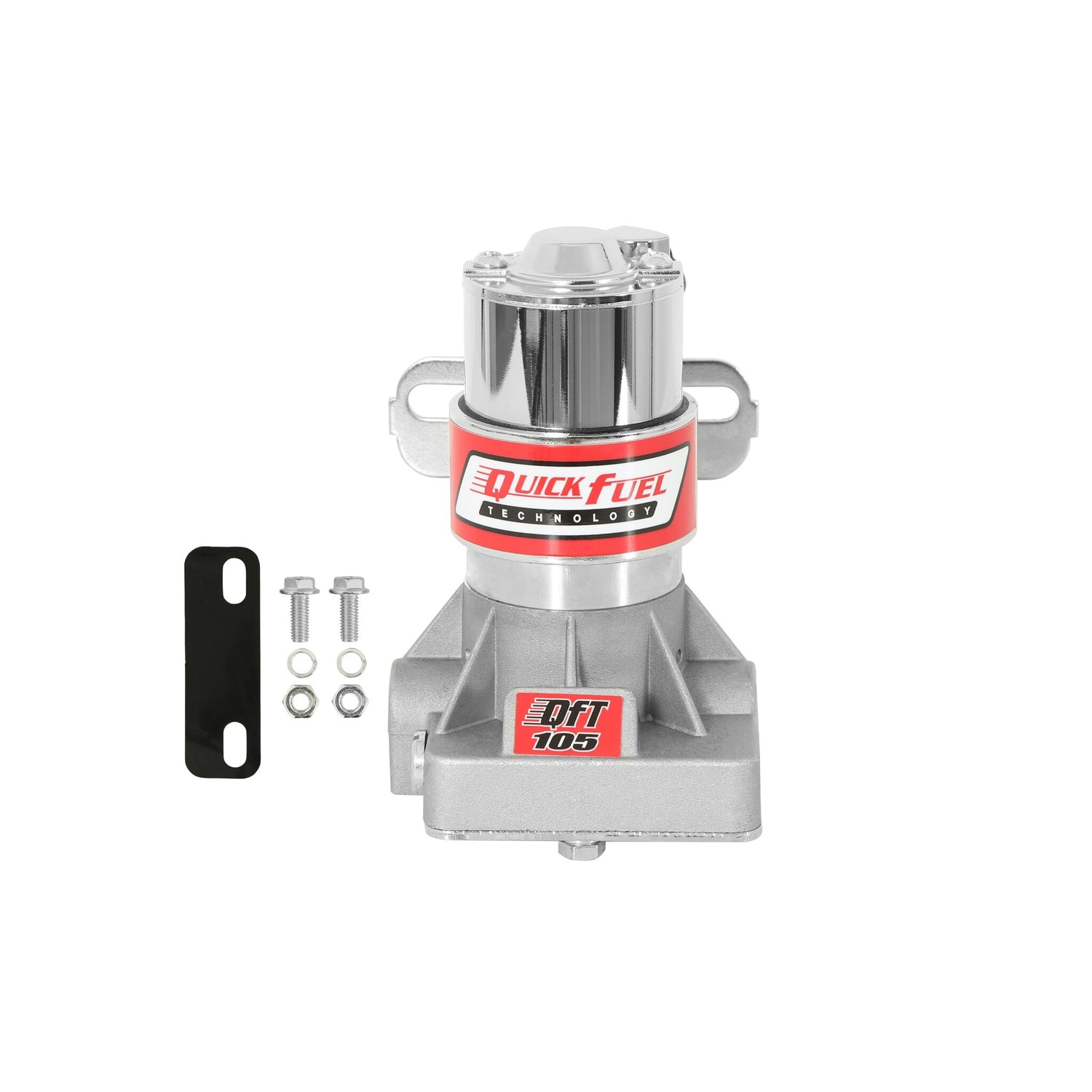

Designed for street/strip applications, the QFT 105 electric fuel pump will provide consistent performance and fuel control. This pump will flow more than enough fuel to support up to 350 HP engines. This pump draws four amps of current and is capable of producing 7 psi of maximum pressure. All mounting hardware and brackets are included.
Features and Benefits
• 105 GPH Flow Rate
• Constructed of Lightweight Steel and Aluminum
• 7 PSI Maximum Pressure
• Features 3/8" NPT Inlets and Outlets
• Externally Accessible Pressure Relief Valve
• Draws 4 Amps or Less at Full Load
• Designed for Carbureted Applications Only
• Not compatible for Methanol or E85 Fuels
Specifications
Specifications
-
Specifications
Average Flow Rating 105 Brand Quick Fuel Technology Category Air and Fuel Delivery Emission Code 5 Free Flow GPH 105 Fuel Delivery Type Carburetor Fuel Sending Unit Included No Fuel Type Gasoline Gasket Or Seal Included No Grade Type Performance Inlet Thread Diameter 3/8 Inlet Type NPT Internal Or External External Maximum Amperage Draw 4 Maximum Pressure 7 Mounting Bracket Included Yes Mounting Hardware Included Yes Negative Ground Yes Outlet Quantity 1 Outlet Thread Diameter 3/8 Outlet Type NPT part type Electric Fuel Pump Product Type Fuel Pump Regulator Included No Strainer Included No Sub Category Fuel Pumps and Related Components Universal Or Specific Fit Universal Warning California Proposition 65 Warranty Manufacturer's Limited 90 Day Warranty Wiring Harness Included No -
Instructions
