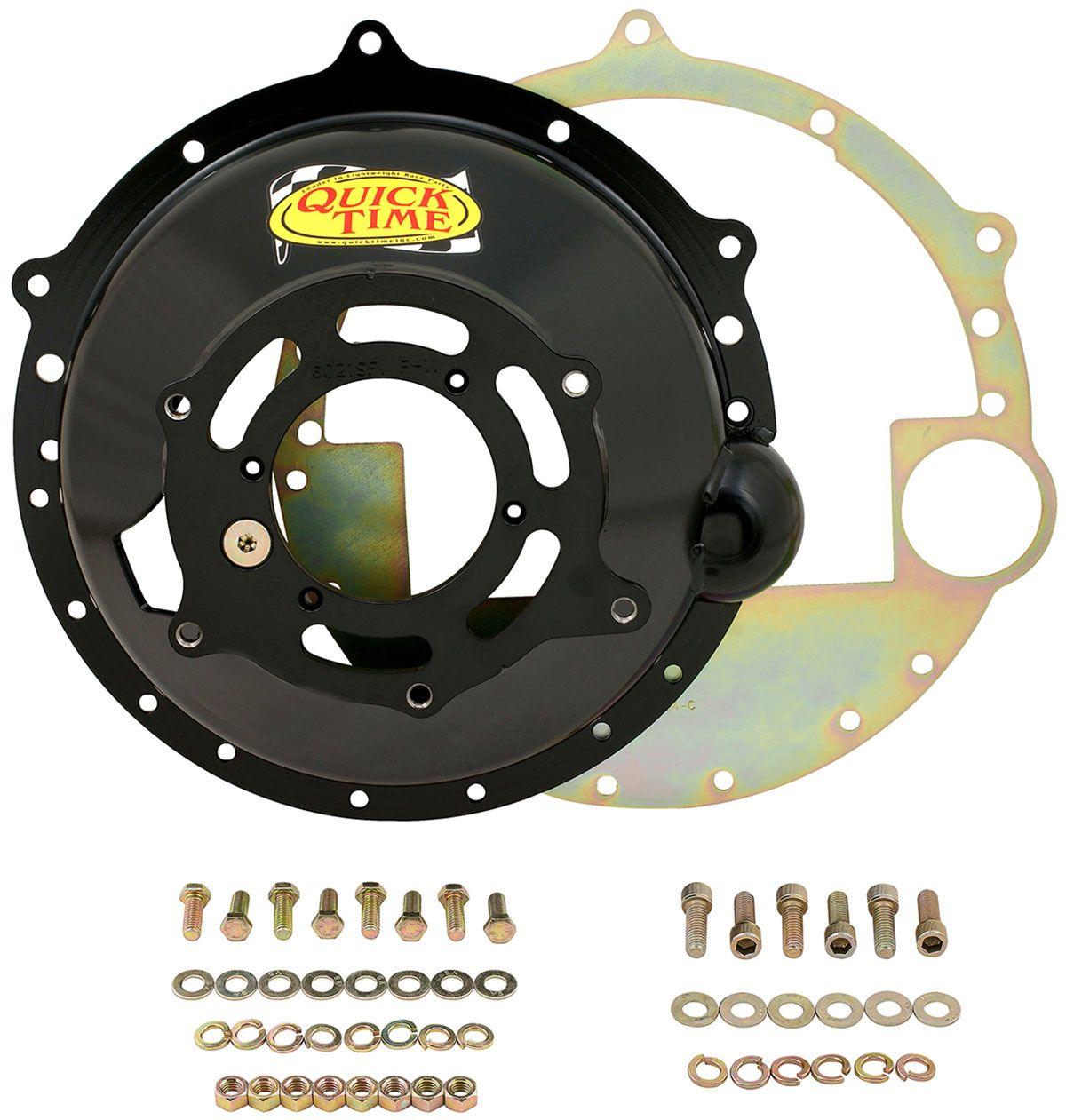

QTI Steel SFI 6.1 Bellhousing (QTRM-6021-SFI)
Suit SB & BB Chev With Muncie, Saginaw, T5 Transmission, 153 & 168 Tooth, 11" Clutch
QTI Steel SFI 6.1 Bellhousing (QTRM-6021-SFI) is not in stock at Fast Lane Spares and will ship direct from supplier
Description
Description
QUICKTIME BELLHOUSING SBC BBC
Suit SB & BB Chev With Muncie, Saginaw, T5 Transmission, 153 & 168 Tooth, 11" Clutch
Part Number: QTRM-6021-SFI
Features & Benefits:
Built from high grade steel - work hardened to over 80,000 PSI strength. Over two times the strength of typical steel bellhousings. Bellhousing cone is spin formed not rolled or stamped. This process provides consistent wall thickness and incredible strength. Laser cut components are added to assembly and CNC machined with extreme precision to provide a bellhousing that is parallel & centered to within .003". Precision manufacturing method permits QuickTime bellhousings to be the most dimensionally stable bellhousing available, permits less drivetrain wear. Designed to be the lightest, strongest and most accurate bellhousing available.
Specifications:
- Height: 6.290"
- Trans. Bore Diameter: 4.685"
- Engine: Small Block Chev, Big Block Chev
- Clutch Diameter: 10.5"
- Flywheel: 153 & 168 tooth
- Weight: 22lbs
- STD LH Fork Or Hydraulic Bearing Only
- Mini Starter
Transmission Application:
- Bert Racing
- Brin Racing
- Falcon
- Jerico
- Muncie
- Richmond
- Saginaw
- T10
- T5 Chev
- TKO 500 / 600 Chev
