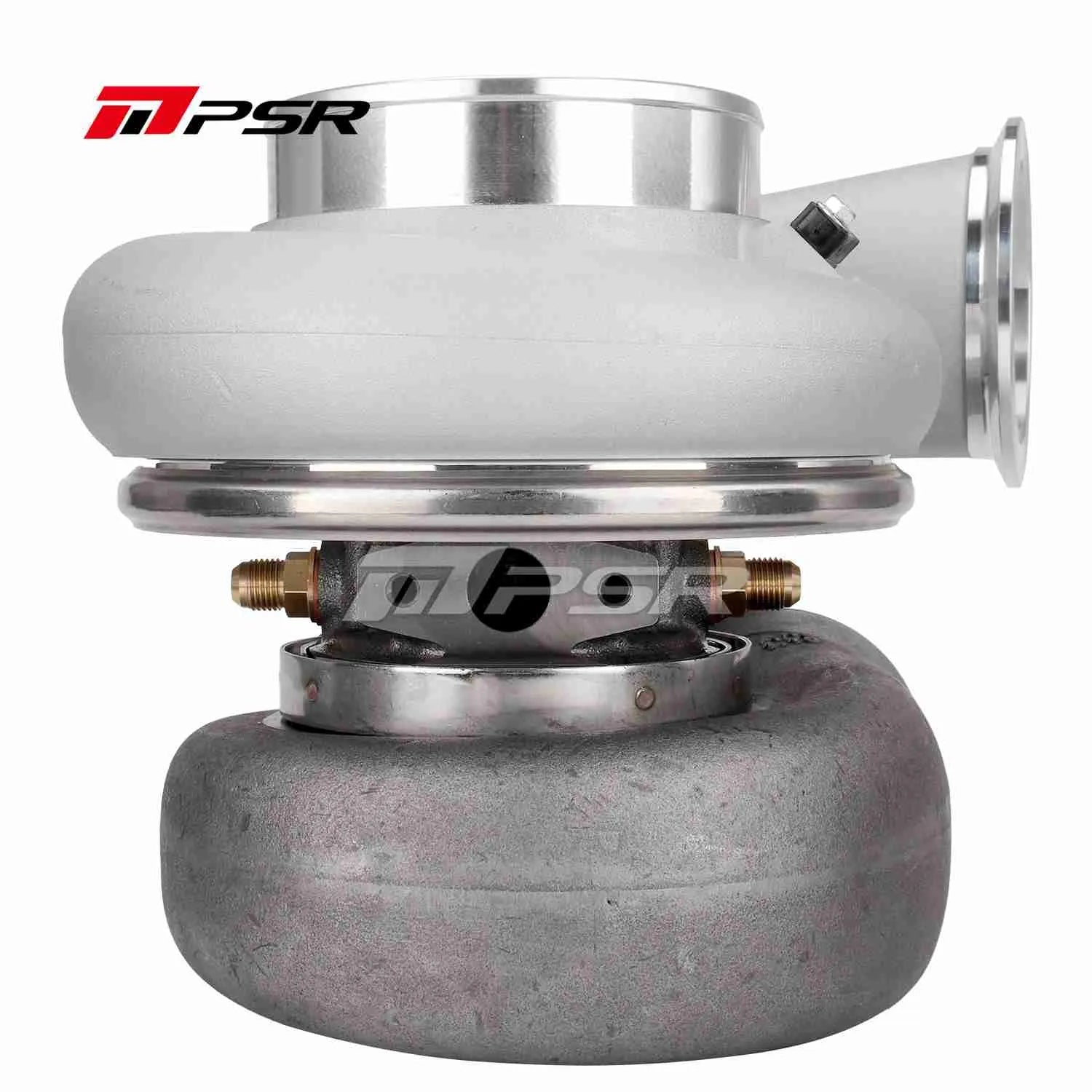

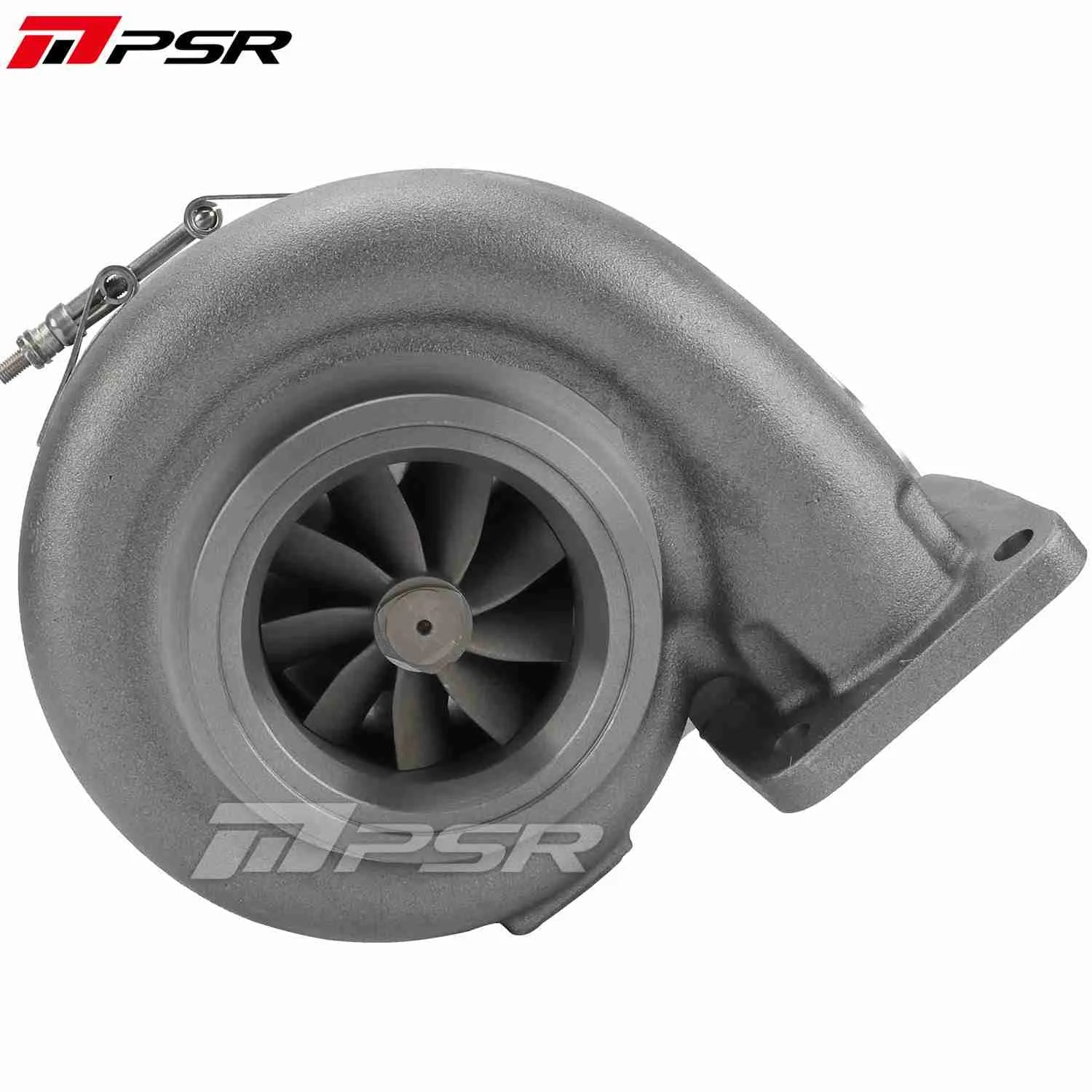

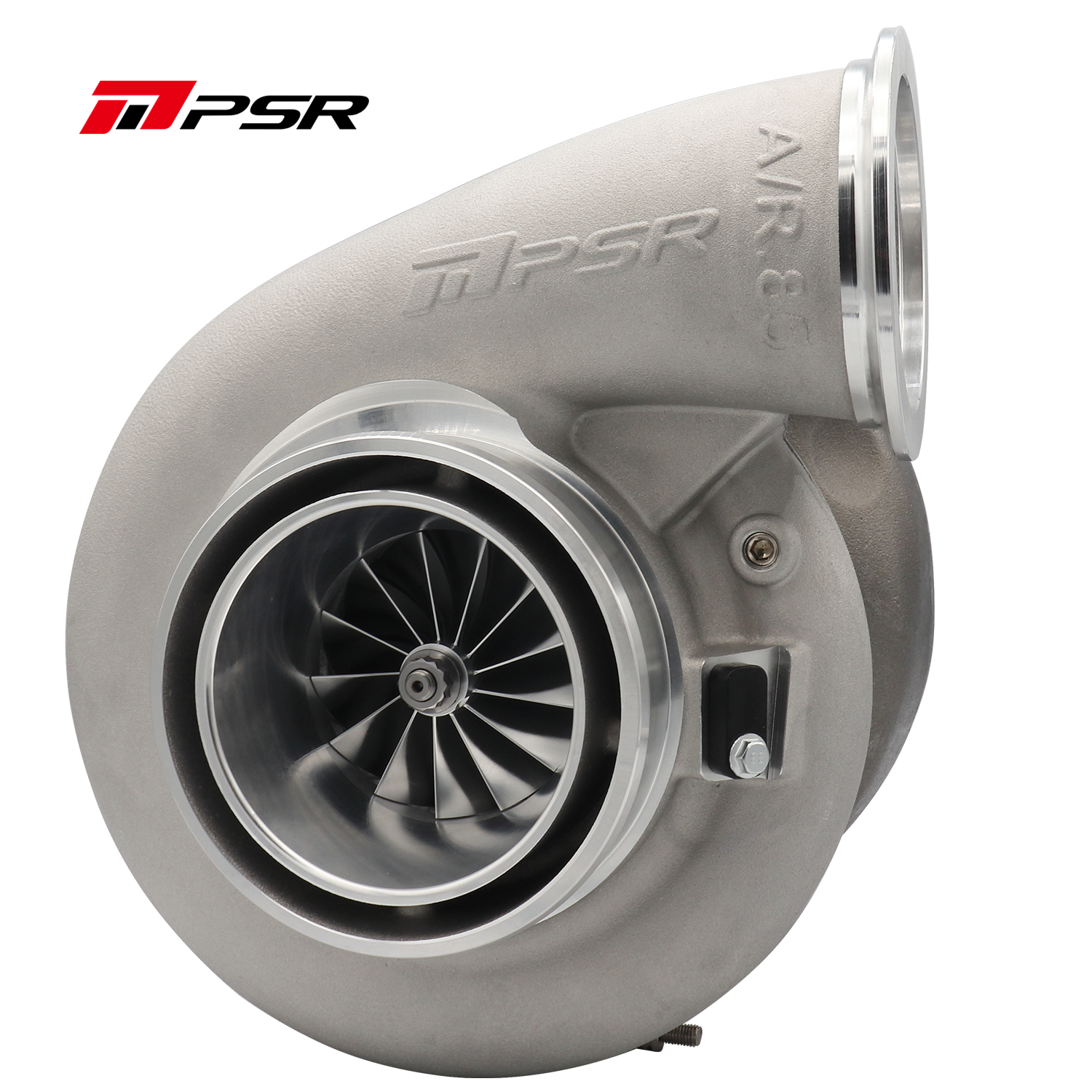

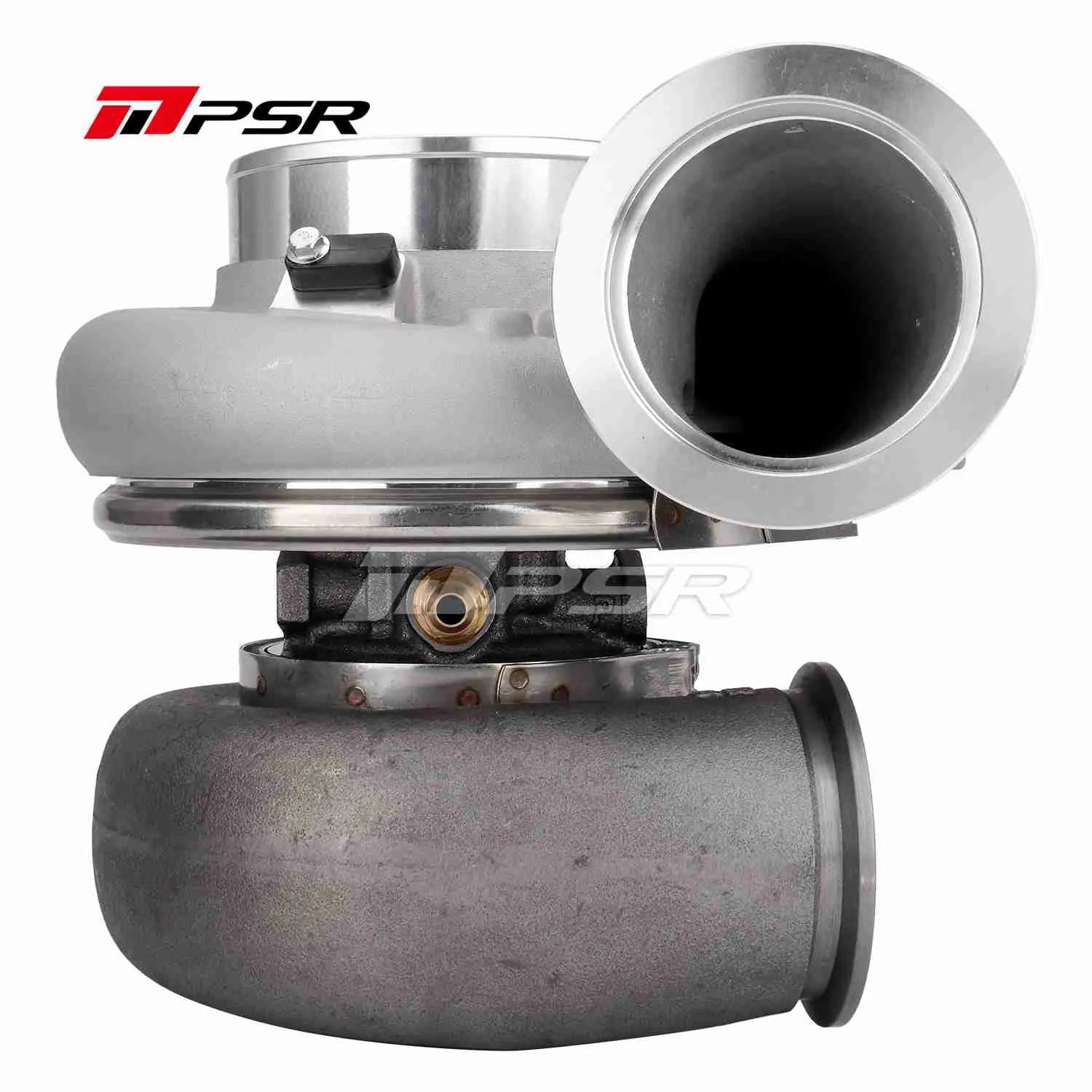

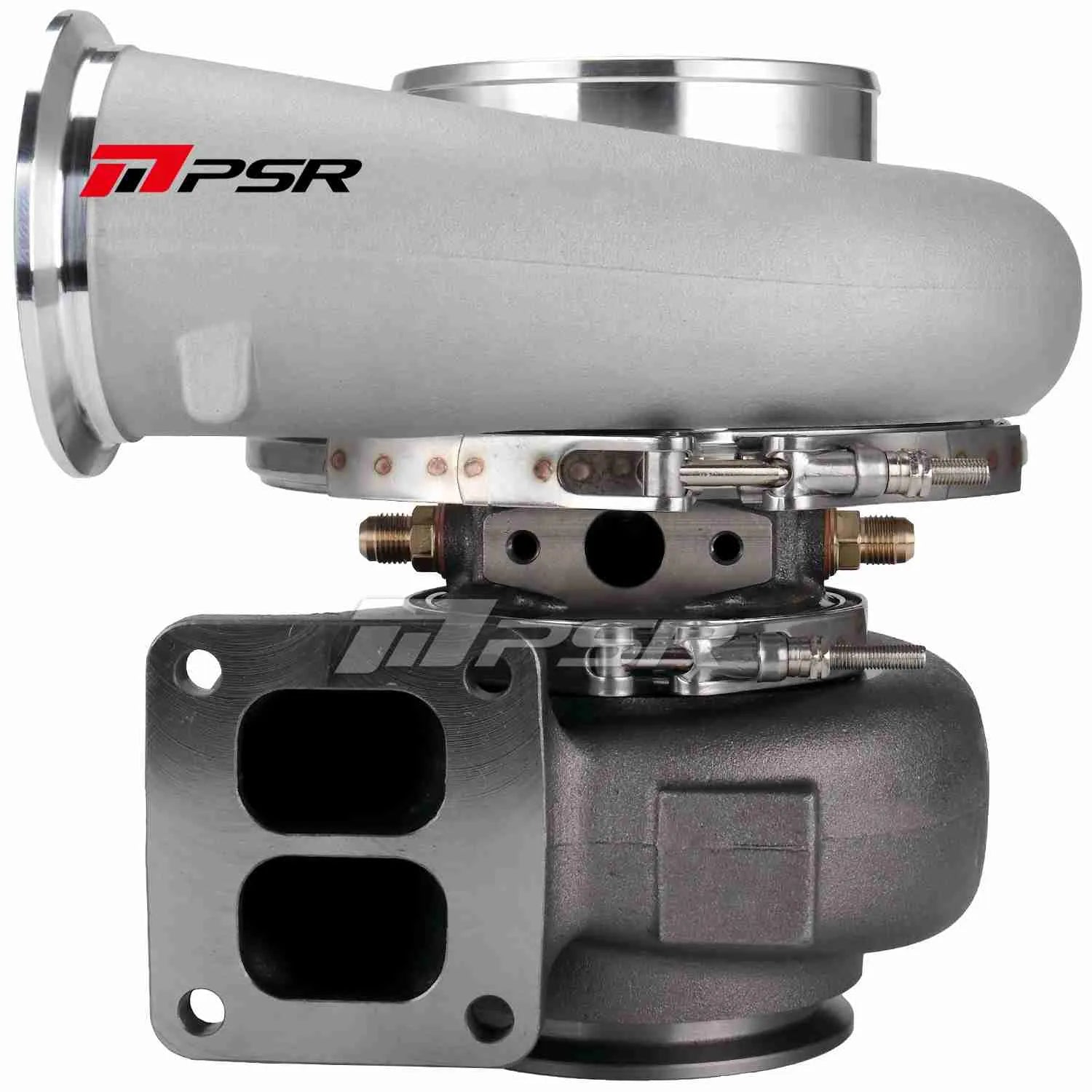

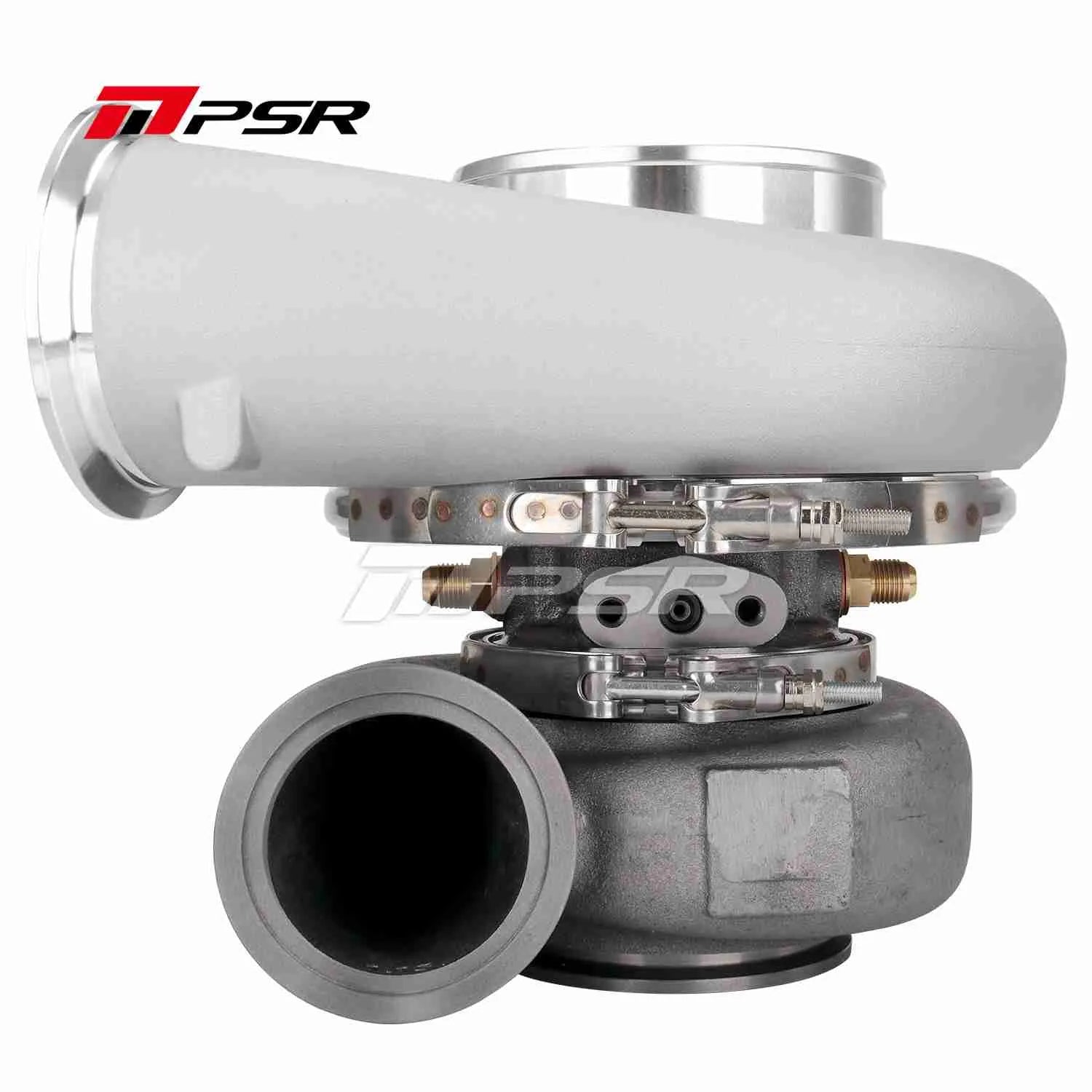

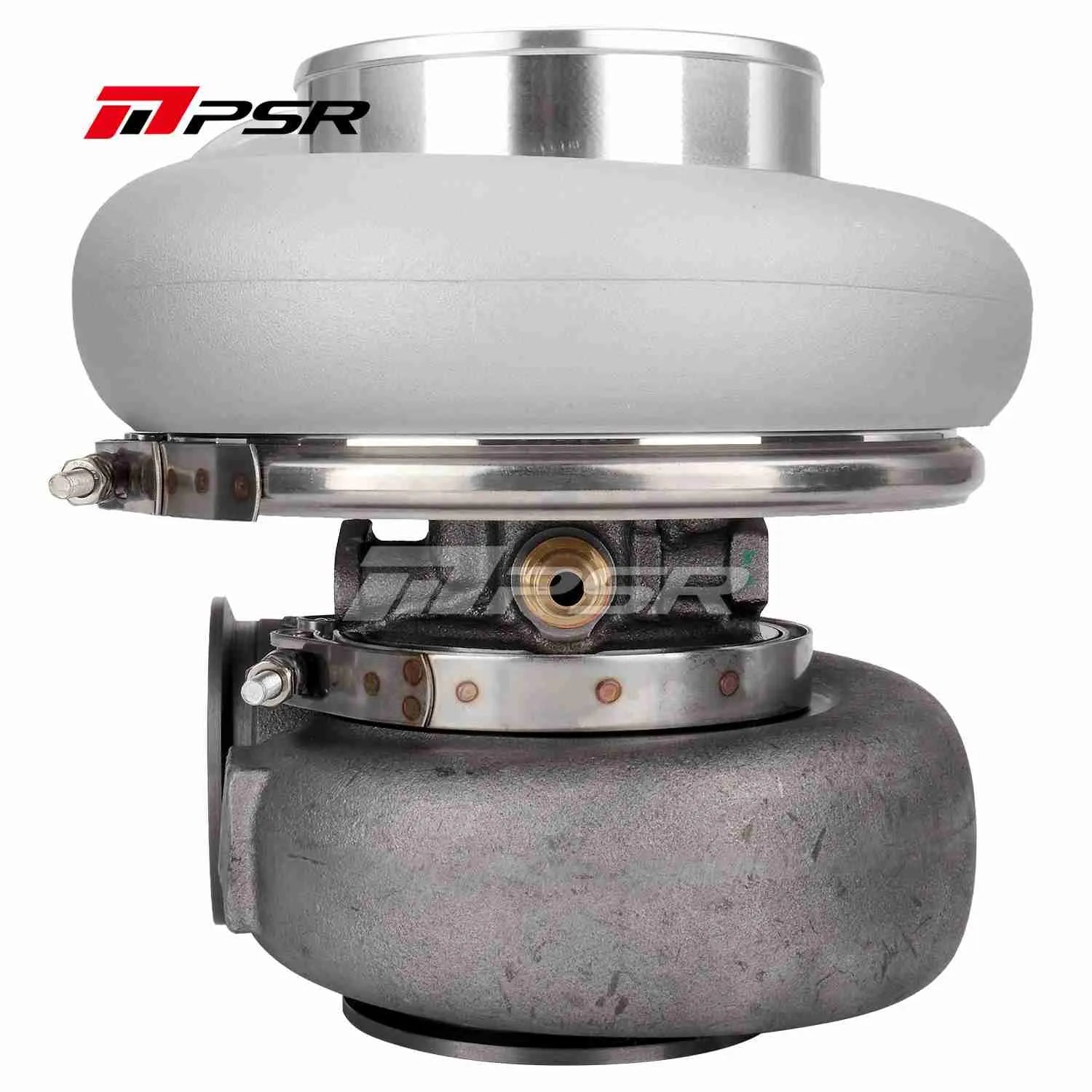

Pulsar PSR 7782G Dual Ball Bearing Turbocharger HP Rating 1500

• Dual ceramic ball bearing system provides optimal turbo response &
  better durability by reducing the shaft-motion
• 13 Blade G-Aero billet compressor wheel with extended tapered tip technology
• 9 Blade G-Aero Inconel 713c turbine wheel
• Anti-Surge ported-shroud compressor inlet, cover integrated with the speed sensor and pressure ports
• Water fittings included with the super core
• 8 Options in Turbine Housing
• HP rated at 1500HP at flywheel
• Installation Hardware: 3” flange kit for Comp. Outlet, T4 Gasket/3” flange kit for Turb. Inlet, 3.5”/4” flange kit for Turb. Outlet and oil Drain Fitting kit are included by default
• Oil Feed Fitting needs to be bought separately, check the link if you need it, 🔗

Description:

• Compressor Wheel: 76.6*109.2mm
• Turbine Wheel: 89*81.6mm
• Compressor Inlet: 5″ Hose
• Compressor Outlet: 3″ V-Band
• Turbine Inlet: 3″ V-Band/T4 open/ T4 divided
• Water Ports: -6AN
• Oil Feed: Flange Required (Recommended size: -4AN Std T4 Flange Non-Restricted)
• Oil Drain: -12AN (O-Ring sealed Flange Kit Incl’)

Turbine housing option:

1. 1. T4(Divided) inlet, Vband outlet (fits 4″ OD tubing), 1.01 A/R
   2. T4(Open) inlet, Vband outlet (fits 3.5″ OD tubing), 1.15 A/R
   3. T4(Divided) inlet, Vband outlet (fits 4″ OD tubing), 0.95A/R
   4. T4(Divided) inlet, Vband outlet (fits 3.5″ OD tubing), 1.15 A/R
   5. T4(Divided) inlet, Vband outlet (fits 4″ OD tubing), 1.28 A/R
   6. T4(Divided) inlet, Vband outlet (fits 4″ OD tubing), 1.44 A/R
   7. Vband inlet (fits 3″ OD tubing) and Vband outlet (fits 3.5″ OD tubing), 1.01 A/R
   8. Vband inlet (fits 3″ OD tubing) and Vband outlet (fits 3.5″ OD tubing), 1.15 A/R
   9. Vband inlet (fits 3″ OD tubing) and Vband outlet (fits 3.5″ OD tubing), 1.28 A/R
