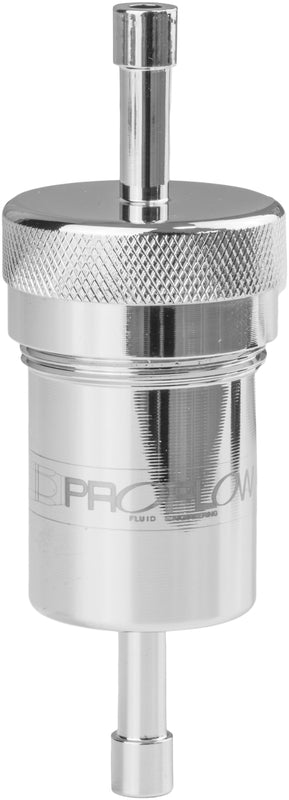

Proflow Fuel Filter Aluminium 1/4in. Hose barb 100 Micron Stainless Steel, Polished Silver - PFE606-04CH

Part Number: PFE606-04CH

Proflow's fuel filters are machined from billet aluminium and feature a removable 100 micron stainless steel element. A compact design uses a Viton o-ring to seal and features hose barb ends for a quick and easy connection.

Note: Although this barb is listed as 1/4" barb, actual size is approximately 5.5mm.

Suggested Micron Filtering:

• 100 Micron between fuel tank and suction side of pump
• 40 Micron between outlet side of pump and carburettor
• 10 Micron between outlet side of pump and fuel injection inlet
• Stainless screen has magnet to catch metalic particles
• Always use the largest filter room will allow, so as to maximise flow and prolong service intervals
