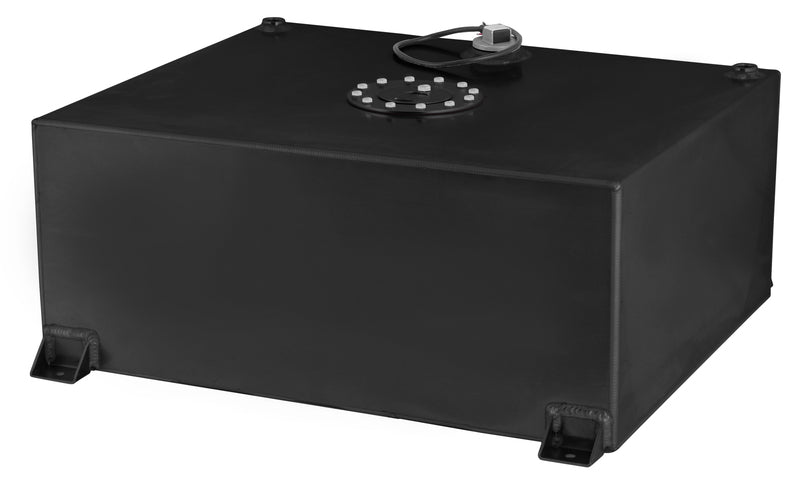

Proflow Fuel Cell, Tank, 20g, 78L, Aluminium, Flat Bottom Black 620 x 510 x 260mm, With Sender Two -10 AN Female Outlets, Each - PFEFC120FBBK

Part Number: PFEFC120FBBK

Made from 3 mm thick AL5052-H34 aluminium alloy, these aluminium fuel cells offer superior strength in a lightweight package. These cells have 100% robotically TIG-welded seams which can be seen with each corner weld. Other features include a billet aluminium flush-mount aircraft-style cap and AN8 or AN10 pickup ports. Plus these models include foam, which is E85 Compatible, a 0-90 ohm GM sending unit, and others come with 2 x AN10 outlet fittings. The flat bottom of these fuel cells make them easy to mount on flat panels.

Note: All tanks must have a vent fitted in order to avoid pressure build-up in the tank and be rubber mounted to isolate from vibration.
