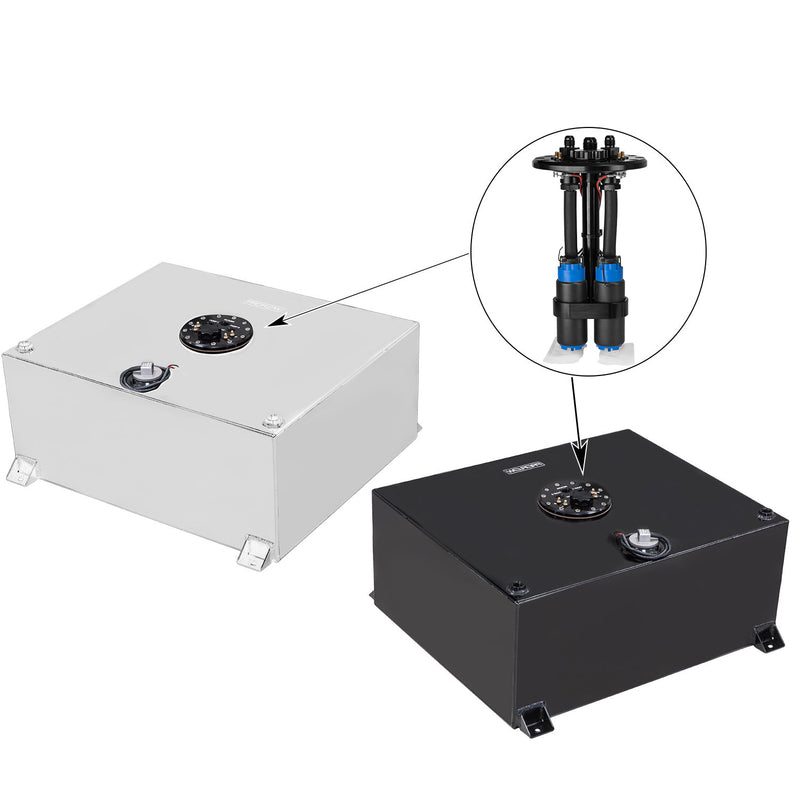

Proflow Fuel Cell, EFI Baffled Tank Kit, 20G (78L), Aluminium, Black 620 x 510 x 260mm, In tank Fuel Pump Module & 2x 340LPH Pumps - PFEFCA019

Part Number: PFEFCA019

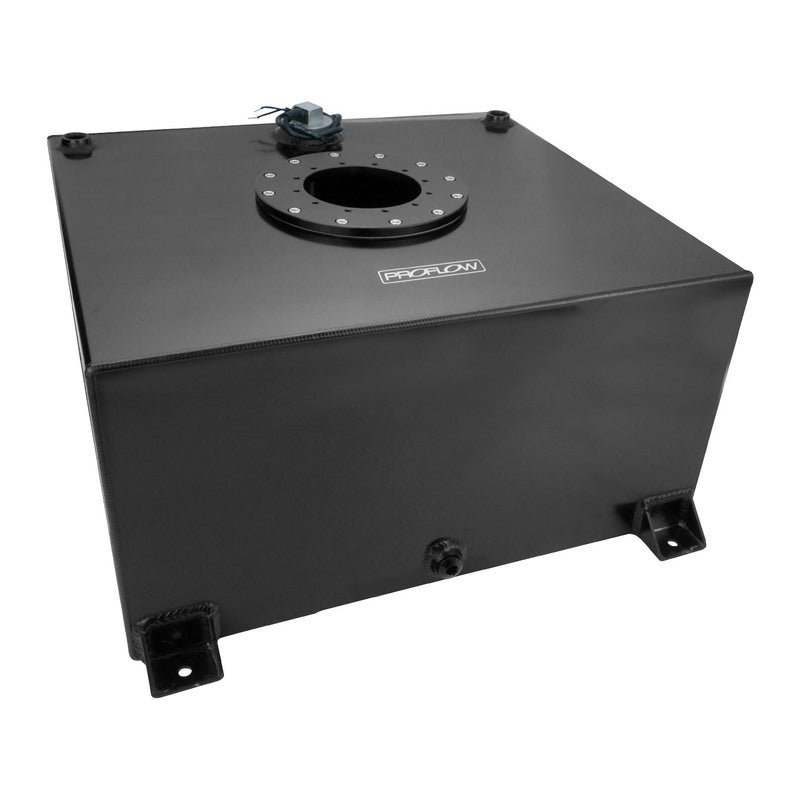

Made from 3 mm thick AL5052-H34 aluminium alloy, these aluminium fuel cells offer superior strength in a lightweight package. These cells have 100% robotically TIG-welded seams which can be seen with each corner weld. Other features include a billet aluminium flush-mount aircraft-style cap and AN8 or AN10 pickup ports. Plus these models include foam, which is E85 Compatible, a 0-90 ohm GM sending unit, and others come with 2 x AN10 outlet fittings. The flat bottom of these fuel cells make them easy to mount on flat panels.

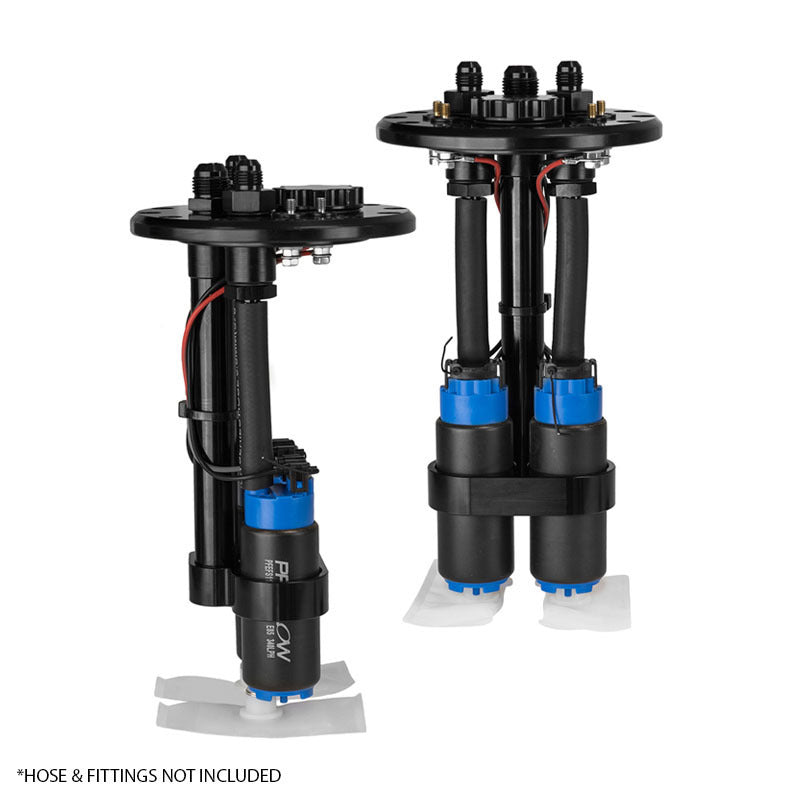

These EFI tank kits also come with Proflow's dual pump mount carrier's and 2 x Proflow 340LPH Fuel pumps.

Includes:

• 1x 20 gallon (78 litre) aluminium baffled fuel cell
• 1x dual fuel pump module assembly
• 2x 340LPH 600 HP fuel pumps

Note: All tanks must have a vent fitted in order to avoid pressure build-up in the tank and be rubber mounted to isolate from vibration.
