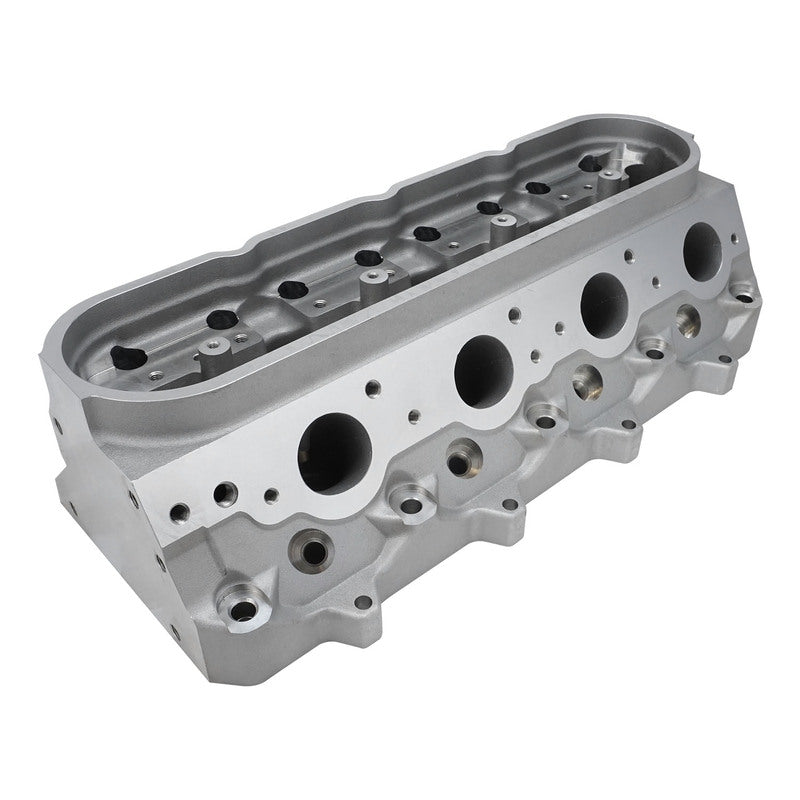

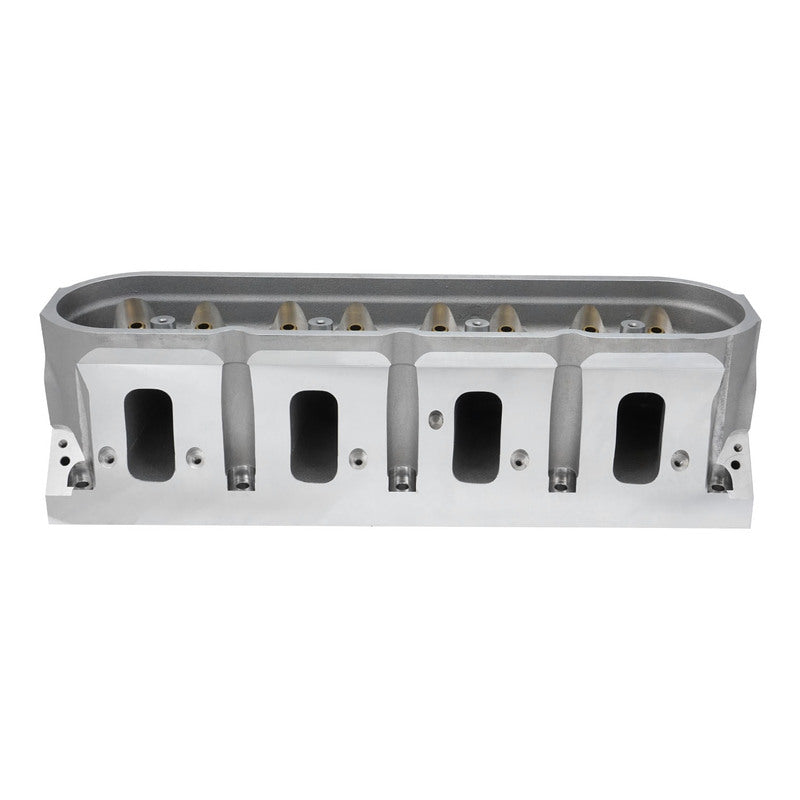

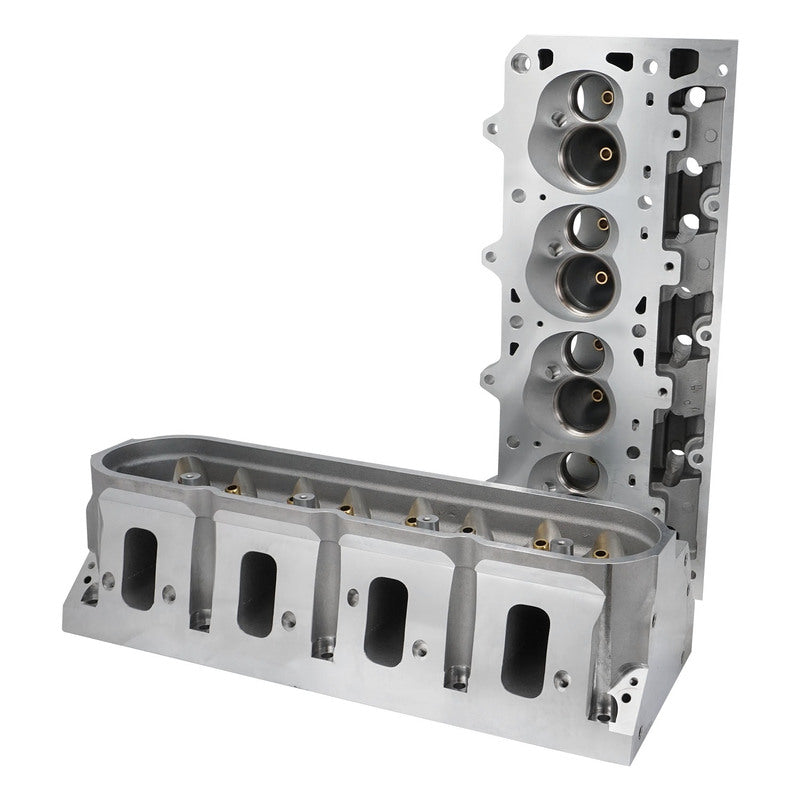

Proflow Cylinder Heads, LS3 SuperMax-B 260, Bare, Holden Commodore, Chev, Aluminium, 6-Bolt, LS3/L76/L77/L92/L98/LSX, 260cc Intake, 70cc Chamber, Pair - PFEAHCLS3-260-6B-B
Proflow Cylinder Heads, LS3 SuperMax-B 260, Bare, Holden Commodore, Chev, Aluminium, 6-Bolt, LS3/L76/L77/L92/L98/LSX, 260cc Intake, 70cc Chamber, Pair - PFEAHCLS3-260-6B-B is not in stock at Fast Lane Spares and will ship direct from supplier
Description
Description
Part Number: PFEAHCLS3-260-6B-B
LS3 SuperMax 260, Aluminium Cylinder Heads 15deg, Holden Chev, Bare Proflow does not sacrifice quality for a low price- you get both with our aluminium cylinder heads. Our LS3 cylinder heads are designed for street / race performance engines to give the ultimate in flow at a competitive price. Cast from A356 aluminium, these 15° LS3 rectangle port heads are designed to fit LS series engines with a 4.00" or larger bore. These bare 275cc heads accept 2.165" diameter intake valves and 1.60" exhaust valves and have a 0.625" deck thickness. Suits 6-bolt standard or LSX block designs.
SPECIFICATIONS
Material
A356.2 Aluminum
Intake Port Volume
260cc
Intake Port Location
Stock
Exhaust Port Volume
92cc
Exhaust Port Location
Stock
Combustion Chamber
70cc
Valve Angle
15°
Minimum Bore Diameter
4.000"
Maximum Valve Lift (in.)
0.55
Intake valve
2. 165" 8mm
Exhaust valve
1. 60" 8mm
