Painless Wiring 26 Circuit Wiring Harness - PW20202

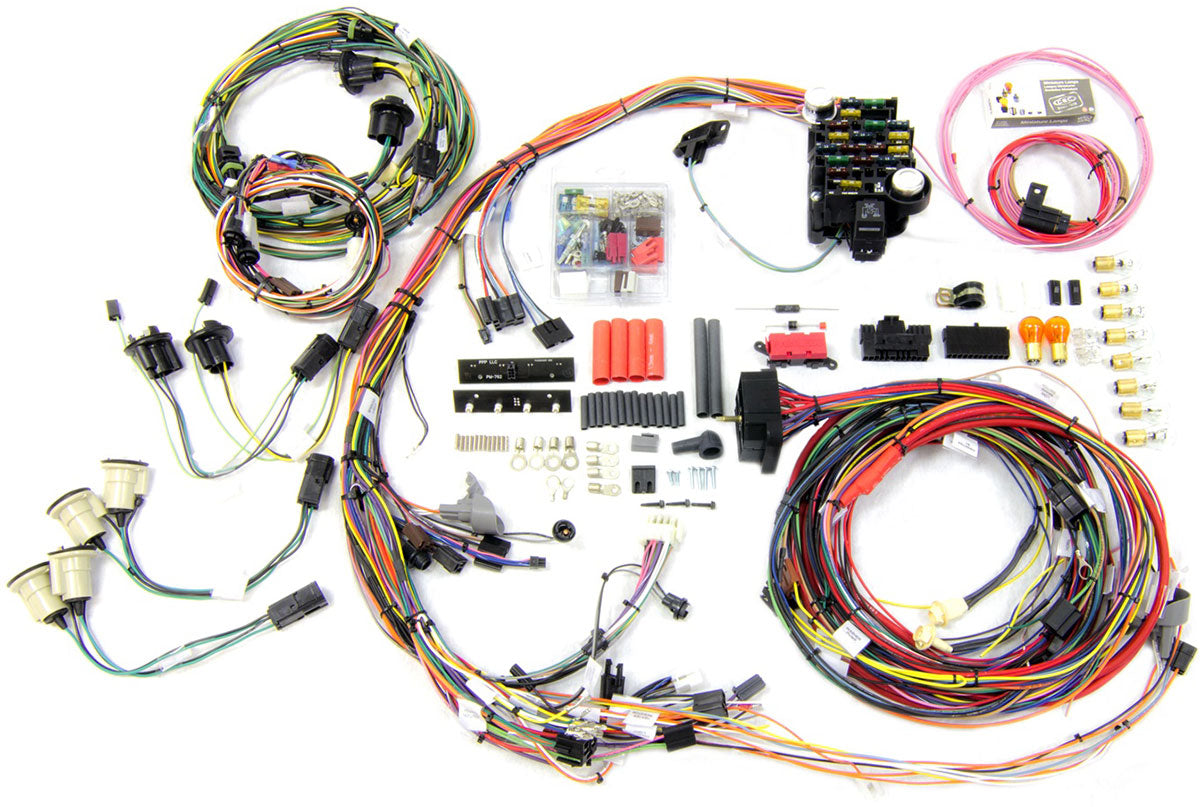

Your most complete 1969 Chevy Camaro Harness! Featuring 26 circuits with virtually every connector installed on the harness out of the box. This harness covers all common options and even features a fully integrated ground circuit.  Included are provisions for the RS headlights and taillights, cowl hood, and even a complete console harness!  Also included is our 120+ page manual full of color schematics, photos, and step-by-step instructions that make wiring your 1969 Camaro a breeze!

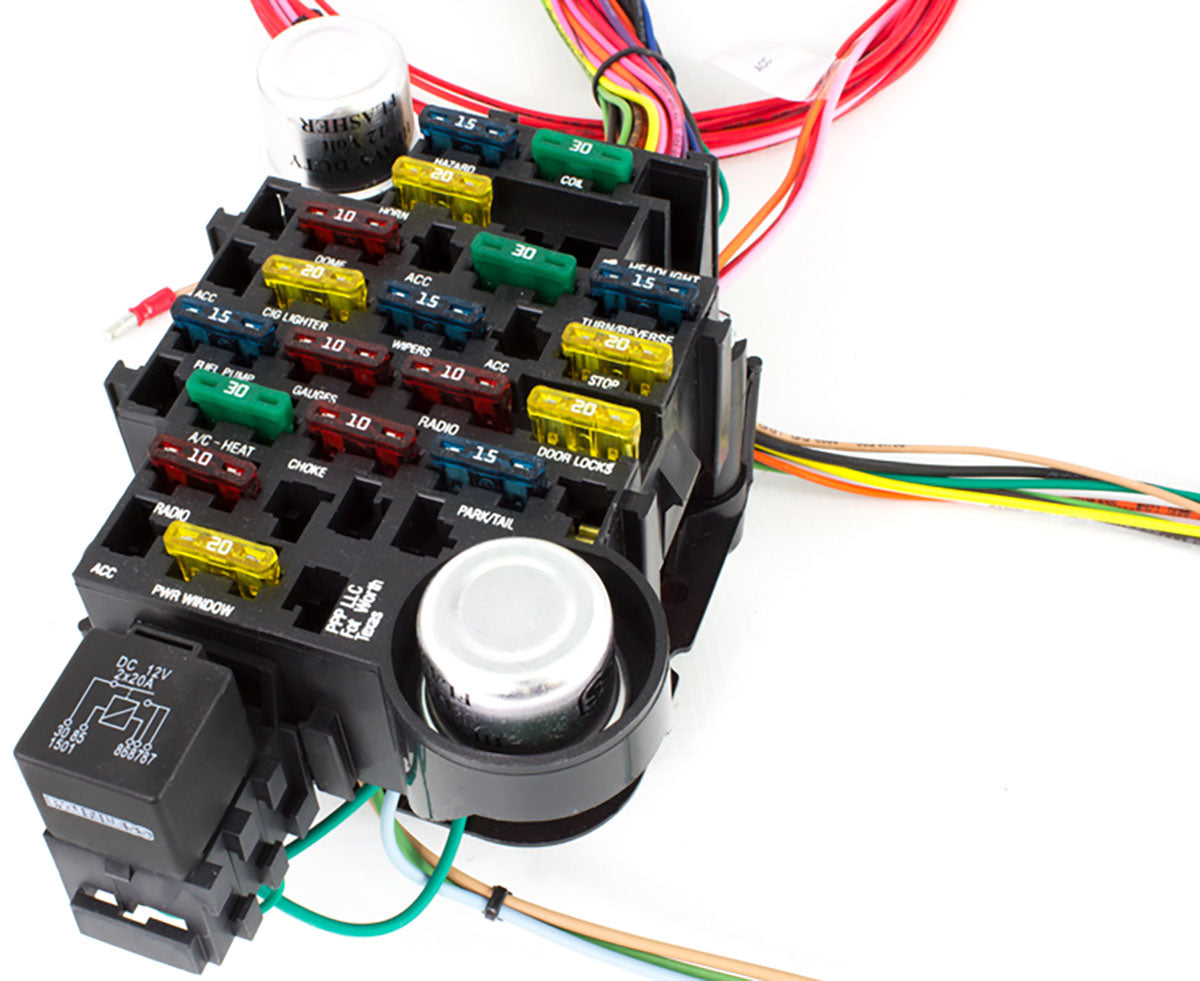

The heart of your new Camaro wiring harness is centered around this factory style precision molded fuse block. Updated ATC style fuses ensure that the 26 circuits stay protected and safe.

The backside of the fuse block utilizes a factory style bulkhead connector to ensure there is no trimming or cutting to your firewall.  This allows you to easily install the fuse block in the factory location.

Plug and play design makes install easy, no matter your options.  Also included are pre-terminated connectors for either standard or RS taillight options.  Don’t have RS taillights now but may add them down the road?  Simply unplug the new connector and plug in the new one!

The new status indicator circuit boards replace the brittle factory indicator light molded plastic and provide color correct incandescent bulbs to retain the factory look. Ever need to replace a bulb down the road?  The board are easily unplugged and removed and bulb changes are a breeze!

Each pre-terminated connector is tagged for easy routing and installation.

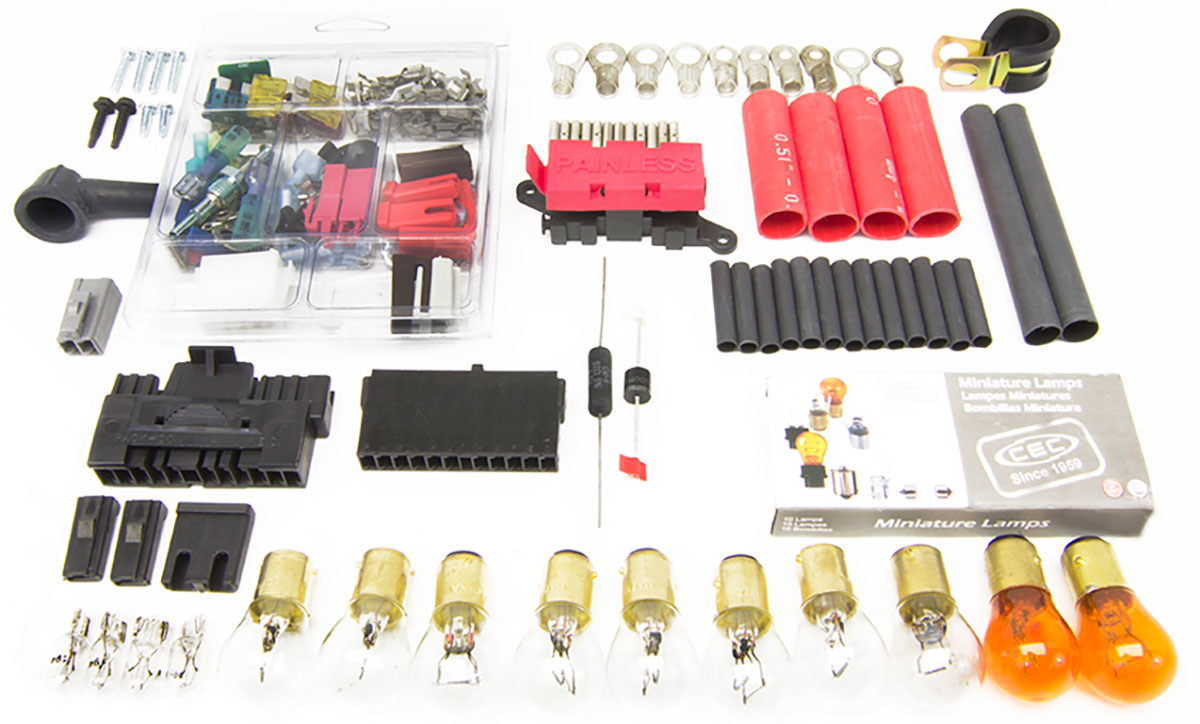

There is no need to make extra trips to the parts store with this kit.  Connectors, terminals, extra fuses, light bulbs, etc., all come in the box.

This harness includes circuits for:

1. Blower Motor
2. Accessory / Cigarette Lighter
3. Accessory Relay
4. Accessory/ RS/SS Headlight Covers
5. Backup Lights
6. Brake Lights
7. Charging
8. Electric Fuel Pump
9. Courtesy and Dome Lights
10. Electric Choke
11. Emergency Flashers
12. Fan Relay Activation Power
13. Fused Power Source
14. Glove Box Light
15. Headlights
16. Horn (Relay)
17. Ignition Coil
18. Instrument Panel Lighting and Gauges*
19. Park Lights
20. Radio/Clock (Constant and Switched)
21. Power Windows
22. Power Door Locks
23. Starting
24. Tail Lights and License Plate Light
25. Turn Signals
26. Wipers and Washer Pump

*Includes wires for: Aftermarket Gauge Power, Brake Warning Light, Fuel Gauge, Gear Indicator Light, Oil Gauge, Tachometer, Temperature Gauge, and Voltmeter

• Numerous components have the connectors and terminals pre-installed to make connections plug-n-play
• All exterior lights have the correct sockets and bulbs pre-installed
• 6 gauge charge wire and 150 amp MIDI fuse
• Fully integrated ground circuit
• 120+ page manual full of color schematics, photos, and step-by-step instructions
