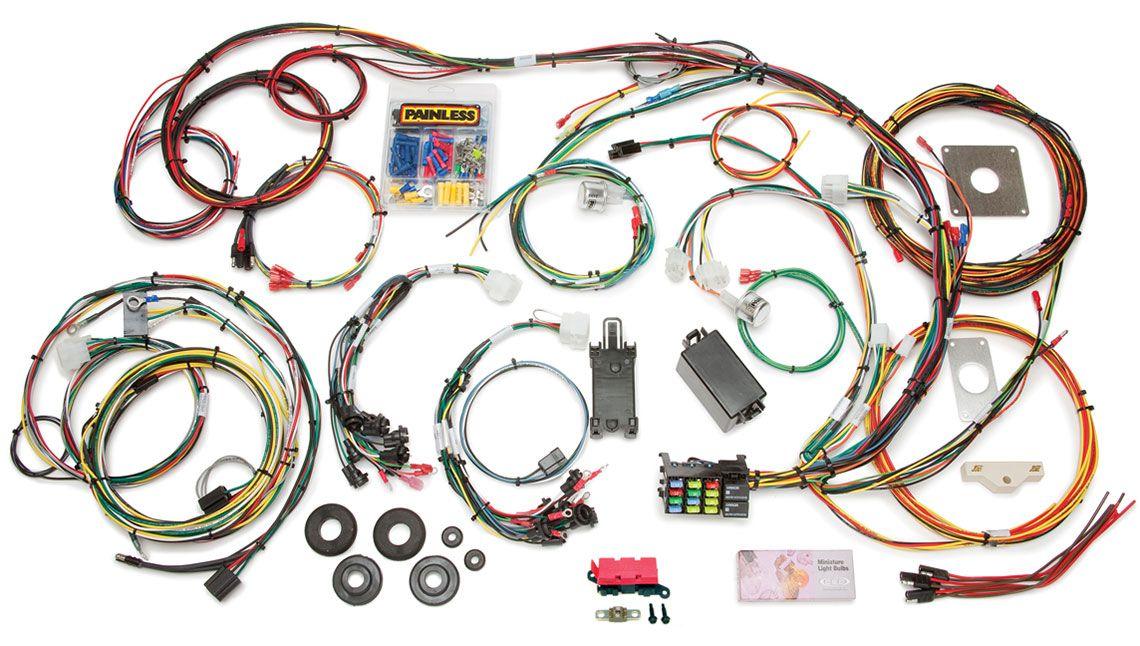

Painless 22 Circuit Mustang 1965-66 Wiring Harness Kit (PW20120)

This 22 circuit direct fit 1965-1966 Mustang harness has many of the factory connectorsalready installed on the harness out of the box. This harness uses our unique covered micro-fuse block. Alsofeatured is an auxiliary circuit with 20 amp relay for accessories such as fog lights, or an electric fuel pump. Each wire is custom printed with the circuit identification as well as using Ford color codes for easy installation.

Number of Circuits: 22 Circuits - 12 Fuses w/ HornRelay, Accessory Relay and Maxi Fuse
HarnessLength: Factory Fitment
Fuse Type: Mini Blade & Maxi Fuse
Firewall Passthrough: Grommet
Color Code Based: Factory Ford
Circuit Designations: Printedon Wires
Connectors Included:Blower motor, wipers, ignition, headlight switches, voltage regulator, turn signals and flashers, lighter, brake switch, dimmer switch, brake warning light and headlight bulbs

This harness includes circuits for:

• A/C & Heat
• Accessory /Cigarette Lighter
• Accessory Relay
• Backup Lights
• Brake Lights
• Charging
• Courtesy and Dome Lights
• Electric Choke
• Emergency Flashers
• Fan Relay Activation Power
• Fused Power Source
• Glove Box Light
• Headlights
• Horn (Relay)
• Ignition Coil
• Instrument Panel Lighting and Gauges*
• Park Lights
• Radio/Clock (Constant and Switched)
• Starting
• Tail Lights and License Plate Light
• Turn Signals
• Wipers and Washer Pump

* Including Wires For:

• Ammeter
• Fuel Gauge
• Oil Gauge
• Tachometer
• Temperature Gauge
• Voltmeter

NOTE: THIS WILL NOT FIT 1964 1/2 MUSTANGS
