PAC | SKU:
PAC-KS13

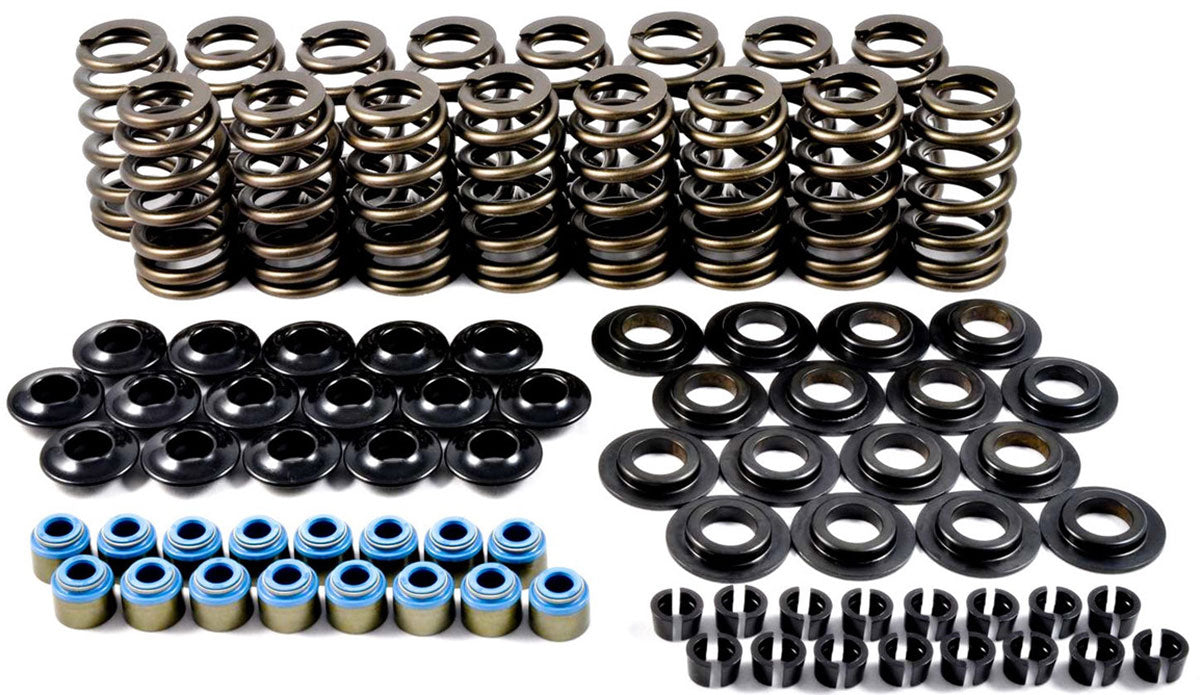

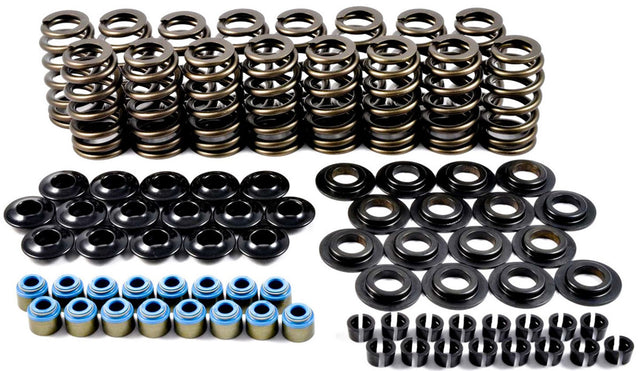

PAC RPM Series GM LS Beehive Spring Kit - PAC-KS13
135-348lbs @ 1.800", .625" Lift, 1.100" Coil Bind
Regular price
$1,109.10 NZD
+ GST
Unit price
/
Unavailable
Shipping calculated at checkout.
PAC RPM Series GM LS Beehive Spring Kit - PAC-KS13 is not in stock at Fast Lane Spares and will ship direct from supplier
Stock Status:
PAC RPM Series GM LS Beehive Spring Kit - PAC-KS13
Regular price
$1,109.10 NZD
+ GST
Unit price
/
Unavailable
Description
Description
LS BEEHIVE VALVE SPRING KIT
135-348lbs @ 1.800", .625" Lift, 1.100" Coil Bind
Part Number: PAC-KS13
Specifications:
Outer Diameter - Outer Valve Spring: 1.072" Top / 1.307" Bottom
Inner Diameter - Inner Valve Spring: 0.650" Top / 0.885" Bottom
Installed Height: 1.800"
Installed Load / Height (Valve Closed): 135 LB @ 1.800"
Open Height: 1.175"
Open Load: 348 PS
Open Load / Height (Valve Open): 348 LB @ 1.175"
Valve Spring Rate: 340 PS
Max Coil Bind: 1.100"
Max Valve Lift: 0.625"
Recommended Valve Spring Retainer - 300 Series: R310, R311, R363
Recommended Valve Spring Retainer - 500 Series: R510, R511
Recommended Valve Spring Seat: S111
Valve Spring Series: 1200 Series
Valve Spring Type: Ovate Wire Beehive
Primary Market: Circle Track, Street Performance
Inner Diameter - Inner Valve Spring: 0.650" Top / 0.885" Bottom
Installed Height: 1.800"
Installed Load / Height (Valve Closed): 135 LB @ 1.800"
Open Height: 1.175"
Open Load: 348 PS
Open Load / Height (Valve Open): 348 LB @ 1.175"
Valve Spring Rate: 340 PS
Max Coil Bind: 1.100"
Max Valve Lift: 0.625"
Recommended Valve Spring Retainer - 300 Series: R310, R311, R363
Recommended Valve Spring Retainer - 500 Series: R510, R511
Recommended Valve Spring Seat: S111
Valve Spring Series: 1200 Series
Valve Spring Type: Ovate Wire Beehive
Primary Market: Circle Track, Street Performance
