PAC | SKU: PAC-KS12

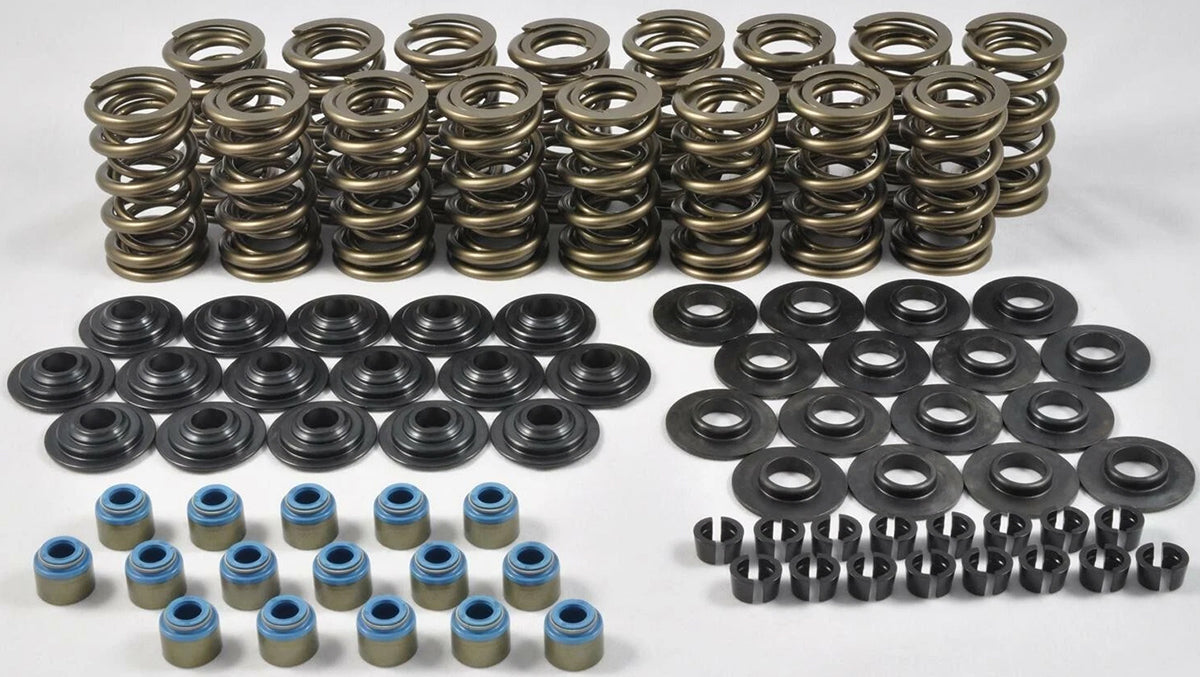

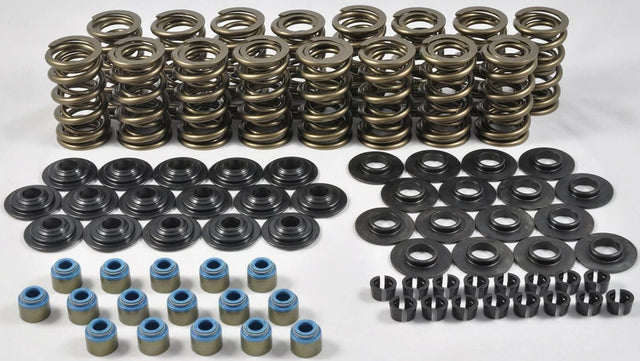

PAC Hotrod Series GM LS Dual Vavle Spring Kit with OE Locks - PAC-KS12

Name: PAC Hotrod Series GM LS Dual Vavle Spring Kit with OE Locks - PAC-KS12
Brand: PAC
SKU: PAC-KS12
Price: 1010.7 NZD
Availability: InStock

160-425lbs @ 1.800", .650" Lift, 1.020" Coil Bind

$1,010.70 NZD + GST

Shipping calculated at checkout.

Description

LS DUAL VALVE SPRING KIT

160-425lbs @ 1.800", .650" Lift, 1.020" Coil Bind

Part Number: PAC-KS12

Specifications:

Outer Diameter - Outer Valve Spring: 1.304"
Inner Diameter - Outer Valve Spring: 0.950"
Inner Diameter - Inner Valve Spring: 0.694"
Installed Height: 1.800"
Installed Load / Height (Valve Closed): 160 LB @ 1.800"
Open Height: 1.125"
Open Load: 425 PS
Open Load / Height (Valve Open): 425 LB @ 1.125"
Valve Spring Rate: 392 PS
Max Coil Bind: 1.020"
Max Valve Lift: 0.650"
Recommended Valve Spring Retainer - 300 Series: R335
Recommended Valve Spring Retainer - 400 Series: N/A
Recommended Valve Spring Retainer - 500 Series: N/A
Recommended Valve Spring Retainer - 600 Series: N/A
Recommended Valve Spring Seat: S129, S135
Recommended Valve Spring Cup: N/A
Valve Spring Series: 1900 Series
Valve Spring Type: Dual
Primary Application: Drag Race, Street Performance
