Aeroflow Oil System Filter Screen -12ORB to -12AN (AF237-12-12)
Suits Dry Sump Applications, Black Finish
Aeroflow Oil System Filter Screen -12ORB to -12AN (AF237-12-12) is not in stock at Fast Lane Spares and will ship direct from supplier
Aeroflow Oil System Filter Screen -12ORB to -12AN (AF237-12-12)
Description
Description
OIL SYSTEM FILTER SCREEN -12AN
Suits Dry Sump Applications, Black Finish
Part Number: AF237-12-12

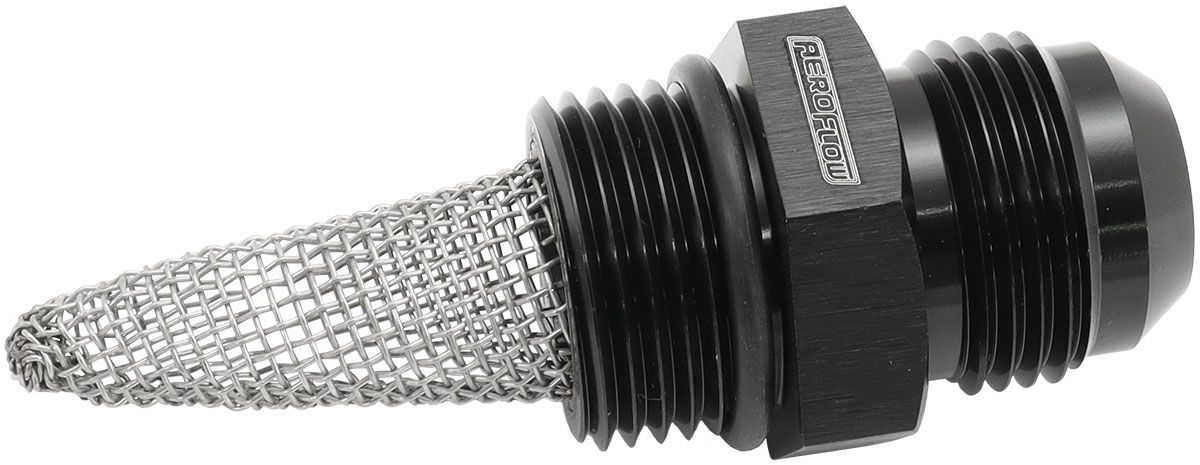

Aeroflow oil system filter screen fittings have a built-in oil screen filter within the aluminium fitting. This filter screen is designedto stop metal chips and debrisfrom reaching external or dry sump oil systems. The filter screen itself is made from 304stainless steel. It uses .015" diameter 16 mesh wire which is course enough toallow thick engine oil throughwith minimal restriction. We recommend to remove this fitting and inspect/clean out the screen every oil change.
Specifications: Length of Filter = 40mm
Length of -8ORB with filter = 55mm
Overall Length of Fitting = 90mm
Important Information: Please Note the internal screen filter element cannot be removed from fitting itself. It is machined into the fitting so it does not fall out.
