NOS Super Hi-Flo Bottle Valve with Black Face Gauge - 16137BNOS

Hi-Flo™ Nitrous Valve For NOS bottles 5 lbs. and larger

Part Number: 16137BNOS

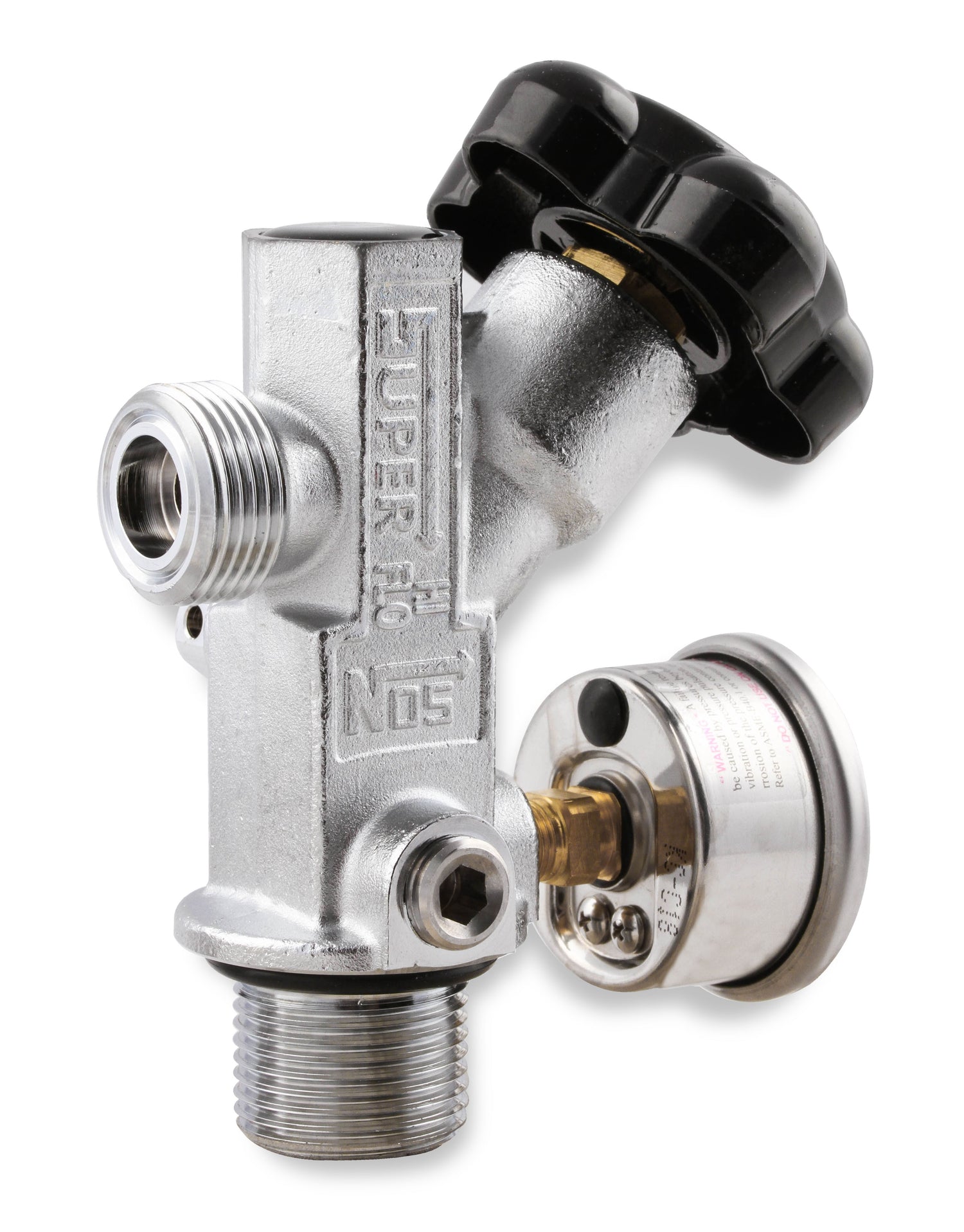

Our NOS Super Hi-Flo valve is one of the best available! Key features include a 1/8"NPT gauge port, 1/4"NPT accessory port, large outlet port, CGA #660 outlet threads, an O-ring seal, and large internal ports. This valve can support systems to 500+ HP. The newest versions of the NOS Super Hi-Flo™ valve are identified by the 45° handwheel and gauge port. This valve is a direct replacement for all NOS bottles, 5 lbs. and larger.

Features and Benefits

• 1/8” NPT Gauge Port
• 1/4” NPT Accessory Port
• Large Outlet Port
• CGA #660 Outlet Threads
• O-Ring Seal
• Large Internal Ports
• Identified By 45° Hand wheel
• Can Support 500+ Horsepower
• Cv Factor = 0.41

Valve to Bottle Torque = 100 ft-lb_x000D_ _x000D_ Does Not Include Siphon Tube or Bottle Nut Adapter
