NOS/Nitrous Oxide System | SKU:
15620NOS

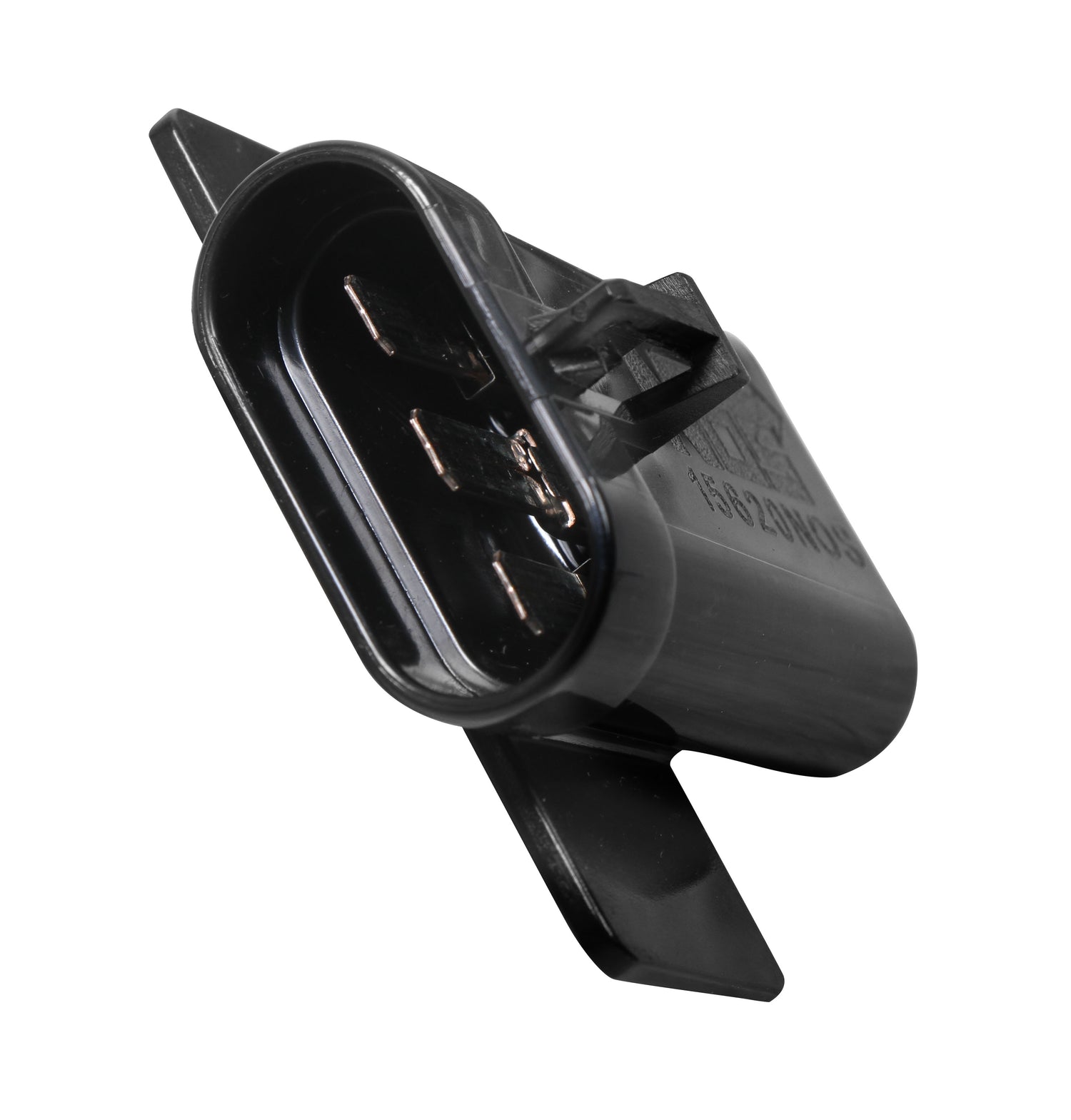

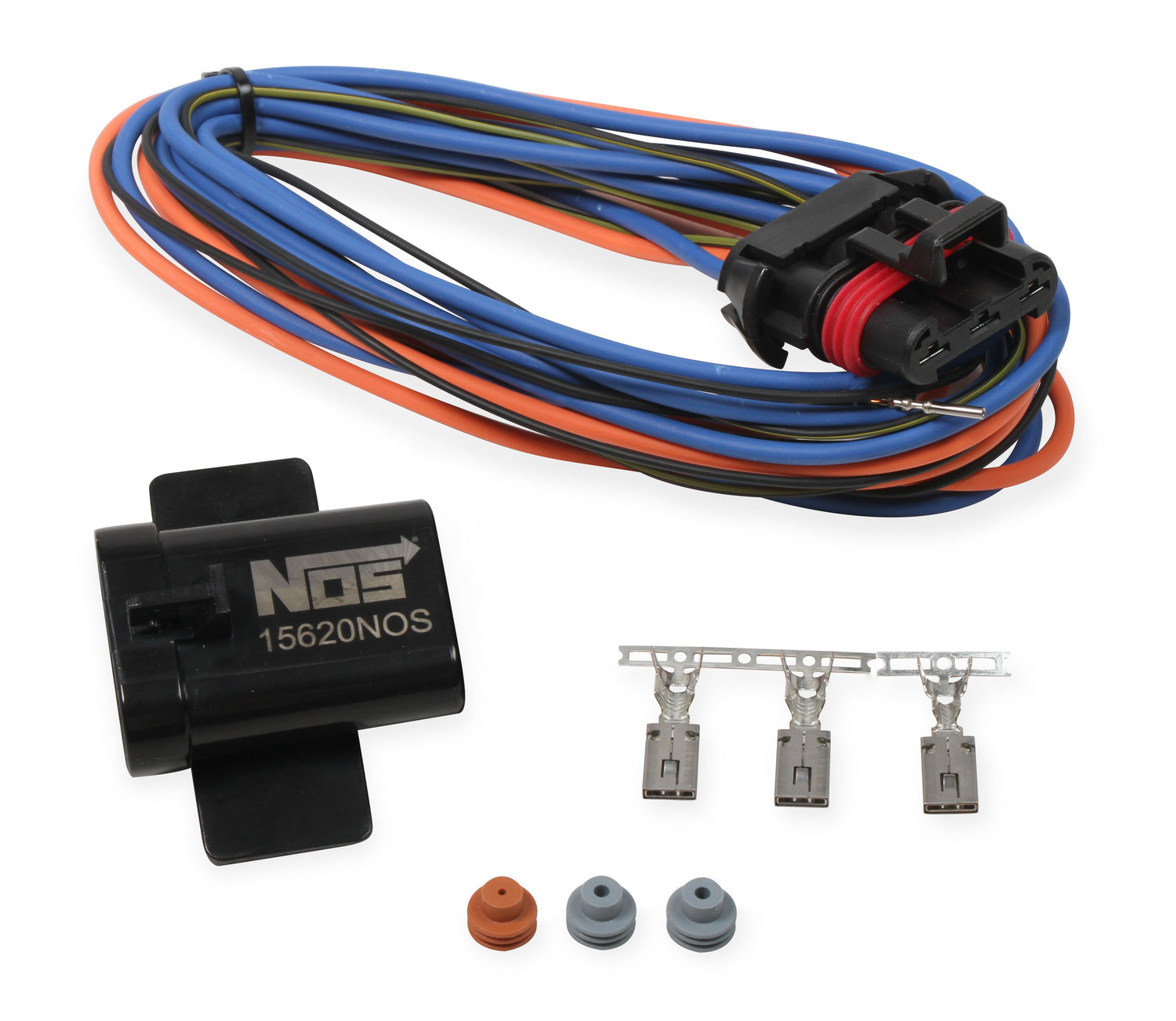

NOS Solid State Relay - 15620NOS
High current solid state relay for use with on/off load as well as PWM applications.
Regular price
$210.40 NZD
+ GST
Unit price
/
Unavailable
Shipping calculated at checkout.
NOS Solid State Relay - 15620NOS is not in stock at Fast Lane Spares and will ship direct from supplier
⚠ Special Order Item — ships direct from supplier. No returns, exchanges, or cancellations once processed. Please allow 7–20 days shipping.
Stock Status:
NOS Solid State Relay - 15620NOS
Regular price
$210.40 NZD
+ GST
Unit price
/
Unavailable
Description
Description
High current solid state relay for use with on/off load as well as PWM applications.
Part Number: 15620NOS
NOS have addressed the need for a reliable, rugged and affordable relay for controlling various electrical equipment on a race car. Originally designed to control the high current switching loads of nitrous solenoids, this solid state relay can also be used to control other high current devices such as electric water pumps, trans brakes & line locks. It has an ultra-low activation/release time of less than 16 microseconds to ensure no delays in reaction times. This relay can also be Pulse Width Modulated (PWM) with no minimum duty cycle at frequencies up to 1000hz.
Features and Benefits
• 5-20 volt DC Operation
• Rugged Solid State Circuitry
• Easy 3-Wire Connection

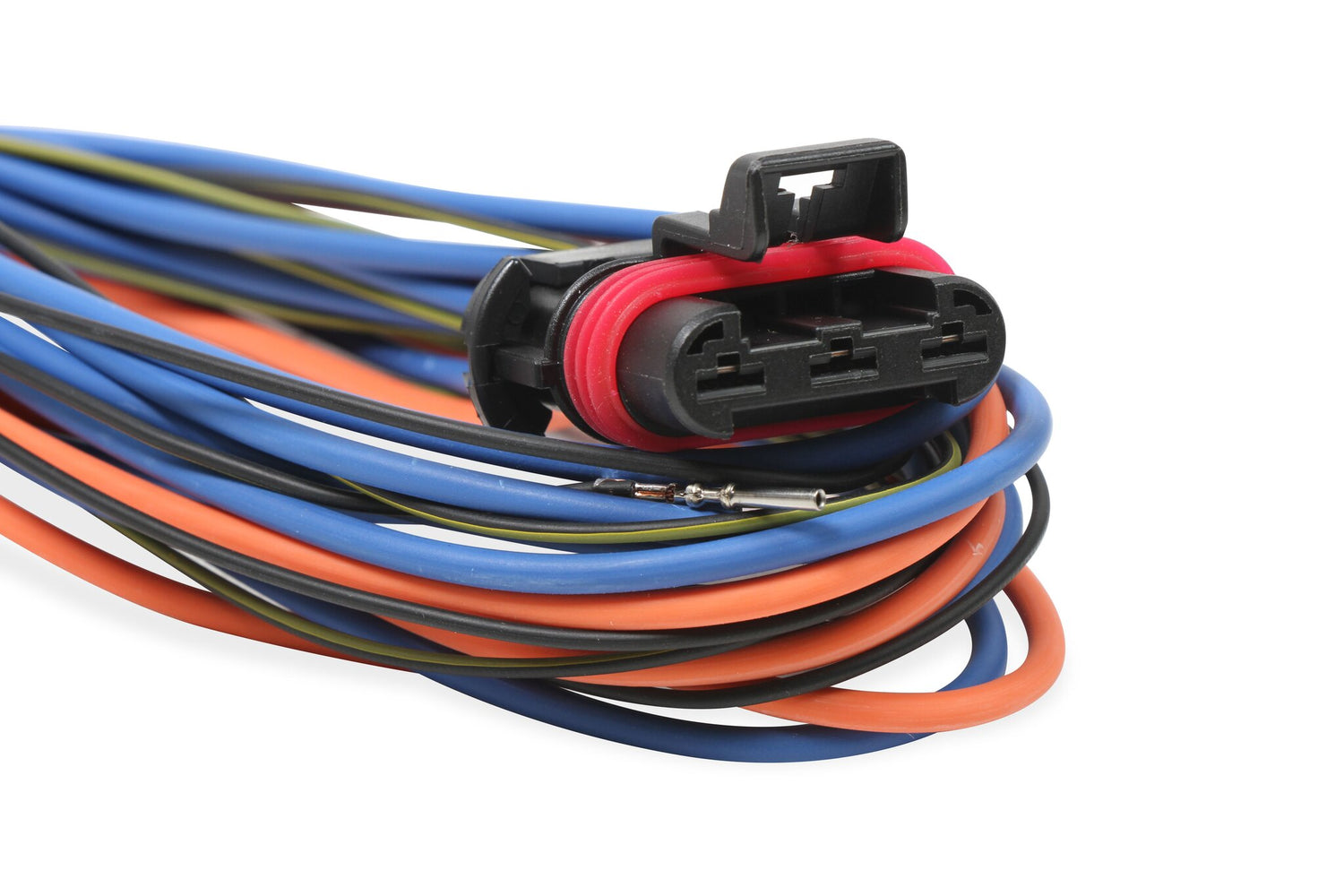

• Included Terminated Pigtail

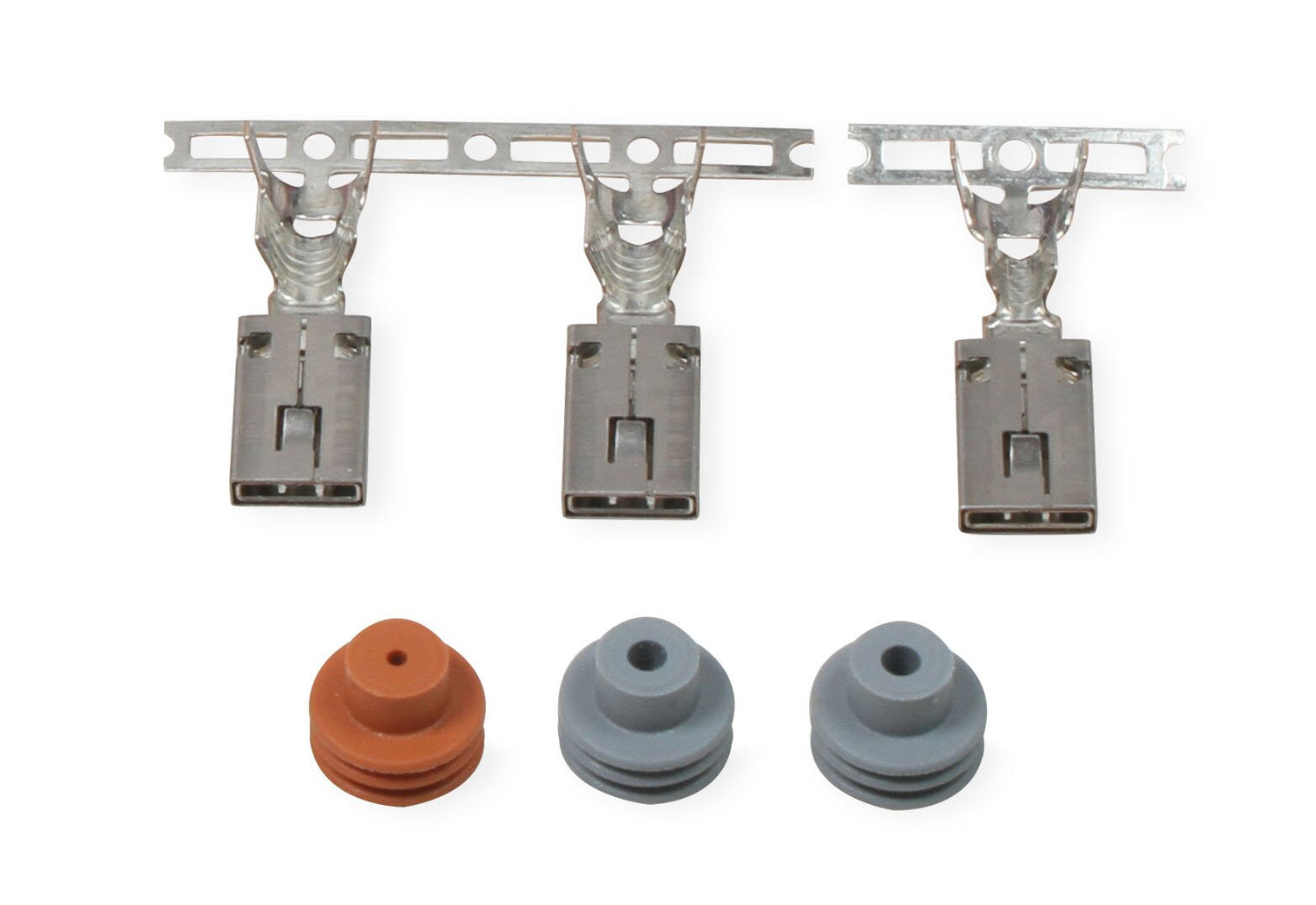

• Included Extra Contacts for "Build-Your-Own“ Wiring
• Ultra-fast activation <16 microseconds
• Pulse Width Modulation (PWM) Compatible
• PWM 0-100%
• Up to 1000hz frequency
• Vibration Resistant
• Maximum Continuous Current = 40amps
• Maximum Switching Current = 20amps
WARNING, CONNECTING BATTERY VOLTAGE TO THE BLUE WIRE WILL DAMAGE THE RELAY. VERIFY CONNECTIONS BEFORE APPLYING POWER 40amp maximum continuous load 20amp maximum Pulsed (PWM) load
Part Number: 15620NOS
NOS have addressed the need for a reliable, rugged and affordable relay for controlling various electrical equipment on a race car. Originally designed to control the high current switching loads of nitrous solenoids, this solid state relay can also be used to control other high current devices such as electric water pumps, trans brakes & line locks. It has an ultra-low activation/release time of less than 16 microseconds to ensure no delays in reaction times. This relay can also be Pulse Width Modulated (PWM) with no minimum duty cycle at frequencies up to 1000hz.
Features and Benefits
• 5-20 volt DC Operation
• Rugged Solid State Circuitry
• Easy 3-Wire Connection
• Included Terminated Pigtail
• Included Extra Contacts for "Build-Your-Own“ Wiring
• Ultra-fast activation <16 microseconds
• Pulse Width Modulation (PWM) Compatible
• PWM 0-100%
• Up to 1000hz frequency
• Vibration Resistant
• Maximum Continuous Current = 40amps
• Maximum Switching Current = 20amps
WARNING, CONNECTING BATTERY VOLTAGE TO THE BLUE WIRE WILL DAMAGE THE RELAY. VERIFY CONNECTIONS BEFORE APPLYING POWER 40amp maximum continuous load 20amp maximum Pulsed (PWM) load
Specifications
Specifications
-
Specifications
Brand NOS Category Air and Fuel Delivery Emission Code 4 Max Amp Load 40 Pack Qty 1 part type Carburetor Pig Tail Length 24" Product Type Relay Sub Category Carburetion Warning California Proposition 65 Warranty Manufacturer's Limited 90 Day Warranty -
