NOS/Nitrous Oxide System | SKU:
05163NOS
NOS Plate Wet Nitrous System - GM - 05163NOS

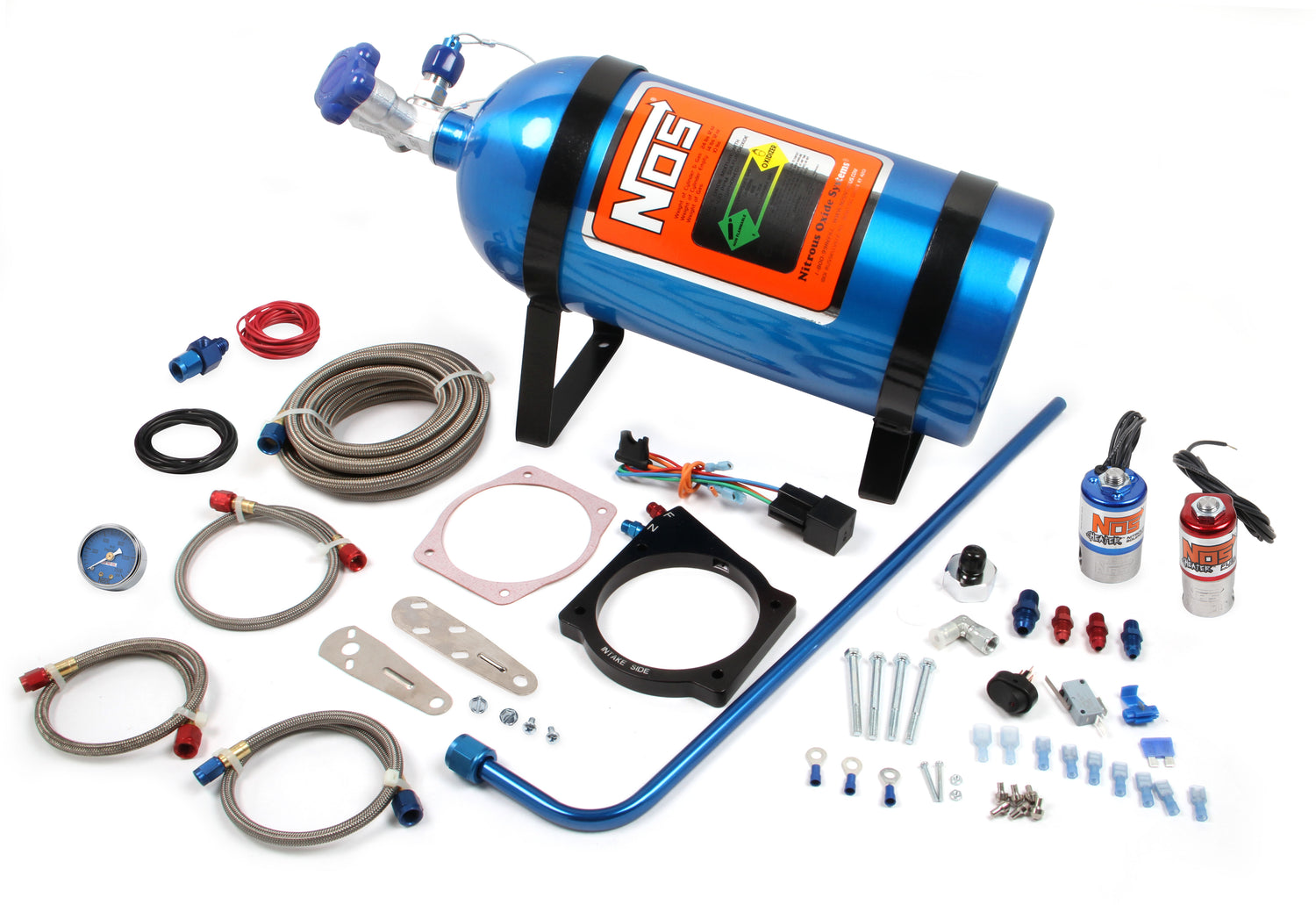

1997-2012 GM LS 90mm or 92mm 4-Bolt Cable Throttle Body. Blue system is adjustable up to 250 HP. Includes 10lb bottle, 92mm plate, and all installation items
Sold out
Regular price
$2,589.70 NZD
+ GST
Unit price
/
Unavailable
Shipping calculated at checkout.
NOS Plate Wet Nitrous System - GM - 05163NOS
is not in stock at Fast Lane Spares and will ship direct from supplier.
Please contact us prior to purchasing if you would like an accurate ETA.
Stock Status:
Description
Description
1997-2012 GM LS 90mm or 92mm 4-Bolt Cable Throttle Body. Blue system is adjustable up to 250 HP. Includes 10lb bottle, 92mm plate, and all installation items
Part Number: 05163NOS
If you are running one of the many LS based engines and would like to add up to 250 additional horsepower, NOS has a complete nitrous kit option for you. These kits are ideal for adding a little more power to that stock engine or a lot more power to that custom built Hot Rod. Available for 4-bolt, drive-by-wire or cable operated throttle bodies in 90mm, 92mm, 102mm & 105mm plate sizes. These are "Wet" plates, meaning the additional fuel is added though the nitrous system, so there are no requirements for an injector upgrade*. *It is important to ensure the existing fuel delivery system is adequate to support the expected power levels.
Features and Benefits
• Fits 90mm or 92mm cable actuated throttle body
• For use with drive-by-wire or cable operated Throttle Bodies
• Single ½” plate between the throttle body and manifold
• Ideal for use with the Holley Hi-Ram & MSD Atomic LS Manifold
• Supports up to 250 RWHP (Rear Wheel Horse Power)
• Plate outlet design maximizes distribution
• Includes a 10 lb. “NOS Blue” nitrous bottle with brackets
• 6061 Billet Aluminum, CNC Machined Plate
Retains stock throttle body location and orientation using a 1/2" billet aluminum plate. Power levels up to 250 RWHP do not require injector upgrade, however, the total fuel supply system must be sized according to expected power levels. Recommend 1 step colder spark plug up to 150 RWHP, 2 steps colder spark plug on 200 and up RW
Part Number: 05163NOS
If you are running one of the many LS based engines and would like to add up to 250 additional horsepower, NOS has a complete nitrous kit option for you. These kits are ideal for adding a little more power to that stock engine or a lot more power to that custom built Hot Rod. Available for 4-bolt, drive-by-wire or cable operated throttle bodies in 90mm, 92mm, 102mm & 105mm plate sizes. These are "Wet" plates, meaning the additional fuel is added though the nitrous system, so there are no requirements for an injector upgrade*. *It is important to ensure the existing fuel delivery system is adequate to support the expected power levels.
Features and Benefits
• Fits 90mm or 92mm cable actuated throttle body
• For use with drive-by-wire or cable operated Throttle Bodies
• Single ½” plate between the throttle body and manifold
• Ideal for use with the Holley Hi-Ram & MSD Atomic LS Manifold
• Supports up to 250 RWHP (Rear Wheel Horse Power)
• Plate outlet design maximizes distribution
• Includes a 10 lb. “NOS Blue” nitrous bottle with brackets
• 6061 Billet Aluminum, CNC Machined Plate
Retains stock throttle body location and orientation using a 1/2" billet aluminum plate. Power levels up to 250 RWHP do not require injector upgrade, however, the total fuel supply system must be sized according to expected power levels. Recommend 1 step colder spark plug up to 150 RWHP, 2 steps colder spark plug on 200 and up RW
Specifications
Specifications
-
Specifications
Adjustable Yes Bottle Color Blue Bottle Included Yes Bottle Material 6061 T-6 Aluminum Bottle Size 10 lb Bottle Valve Super Hi-Flo Bracket Material Steel Brackets Included Yes Brand NOS Category Air and Fuel Delivery Color Blue Delivery Style EFI Spacer Plate Emission Code 4 Feed Line Size 6AN Fuel Solenoid Cheater ll Included Jetting Horsepower 100, 125, 150 Jet Sizes Included 100, 125, 150 hp Jet Style Flare Material 6061-T6 Aluminum Max Horsepower 250 Nitrous Bottle Capacity 10 lbs Nitrous Solenoid Cheater Number of Solenoids 2 part type Nitrous Oxide Injection System Kit Plate Bolt Pattern 4 bolt Plate Diameter 90 mm Plate Flange GM 90mm LS 4 bolt Plate Height 1/2 inch Plate Included Yes Plate Thickness 1/2 inch Product Type Nitrous System Solenoid Top Cover Color Blue/Red Style Wet Sub Category Service Kits System Style Wet Warning California Proposition 65 Warranty Manufacturer's Limited 90 Day Warranty -
Instructions
