NOS/Nitrous Oxide System | SKU:
18178BNOS

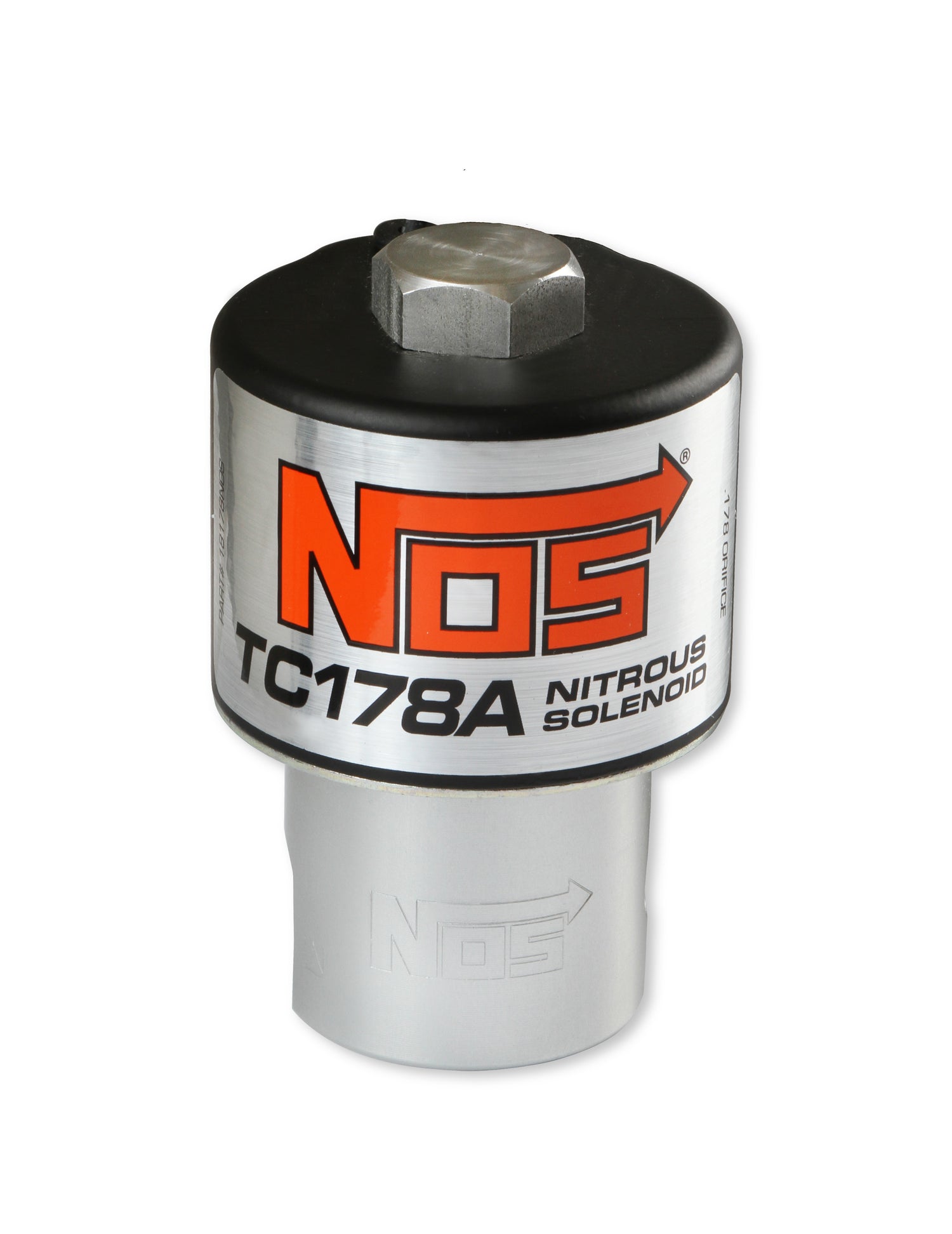

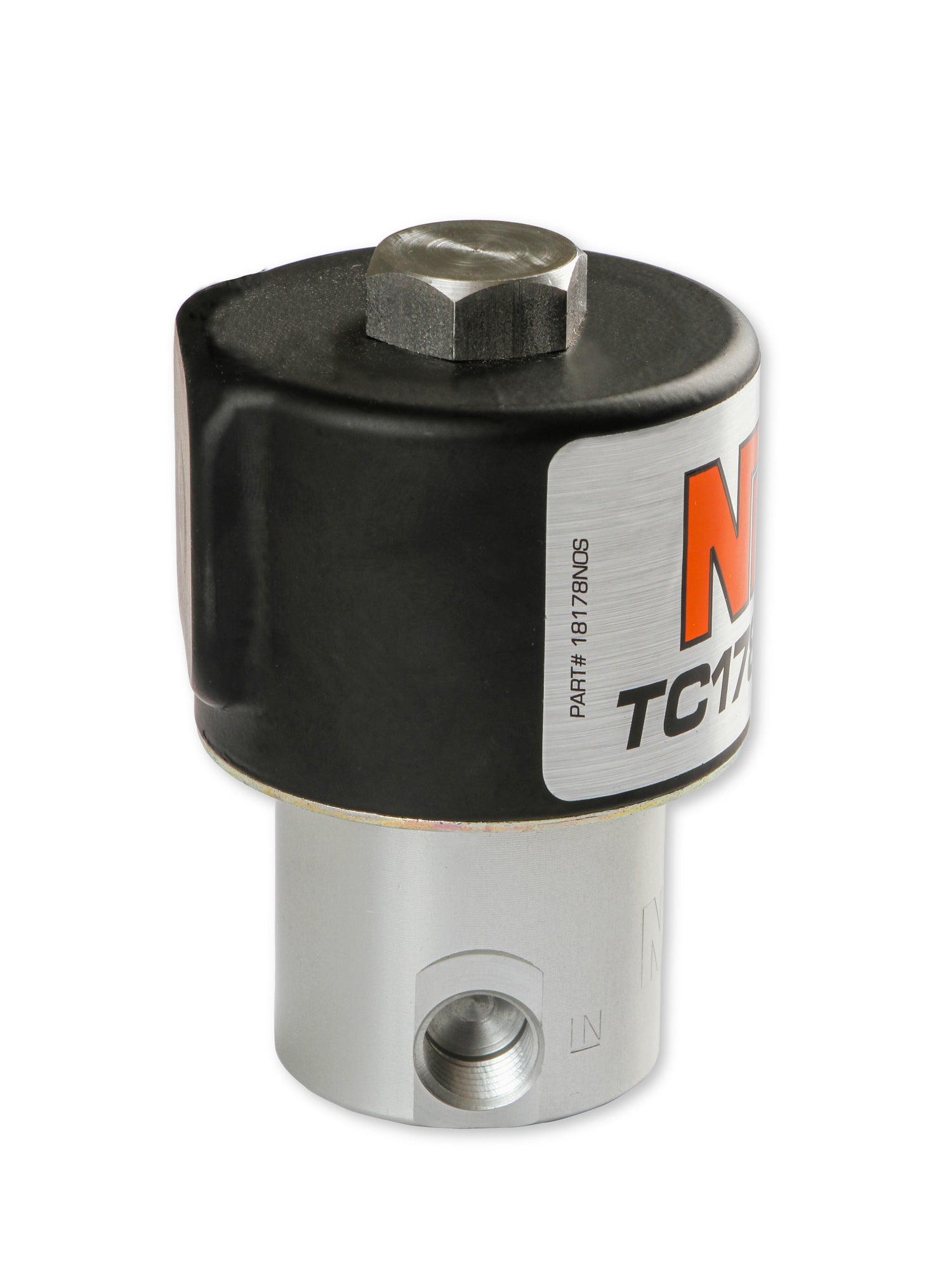

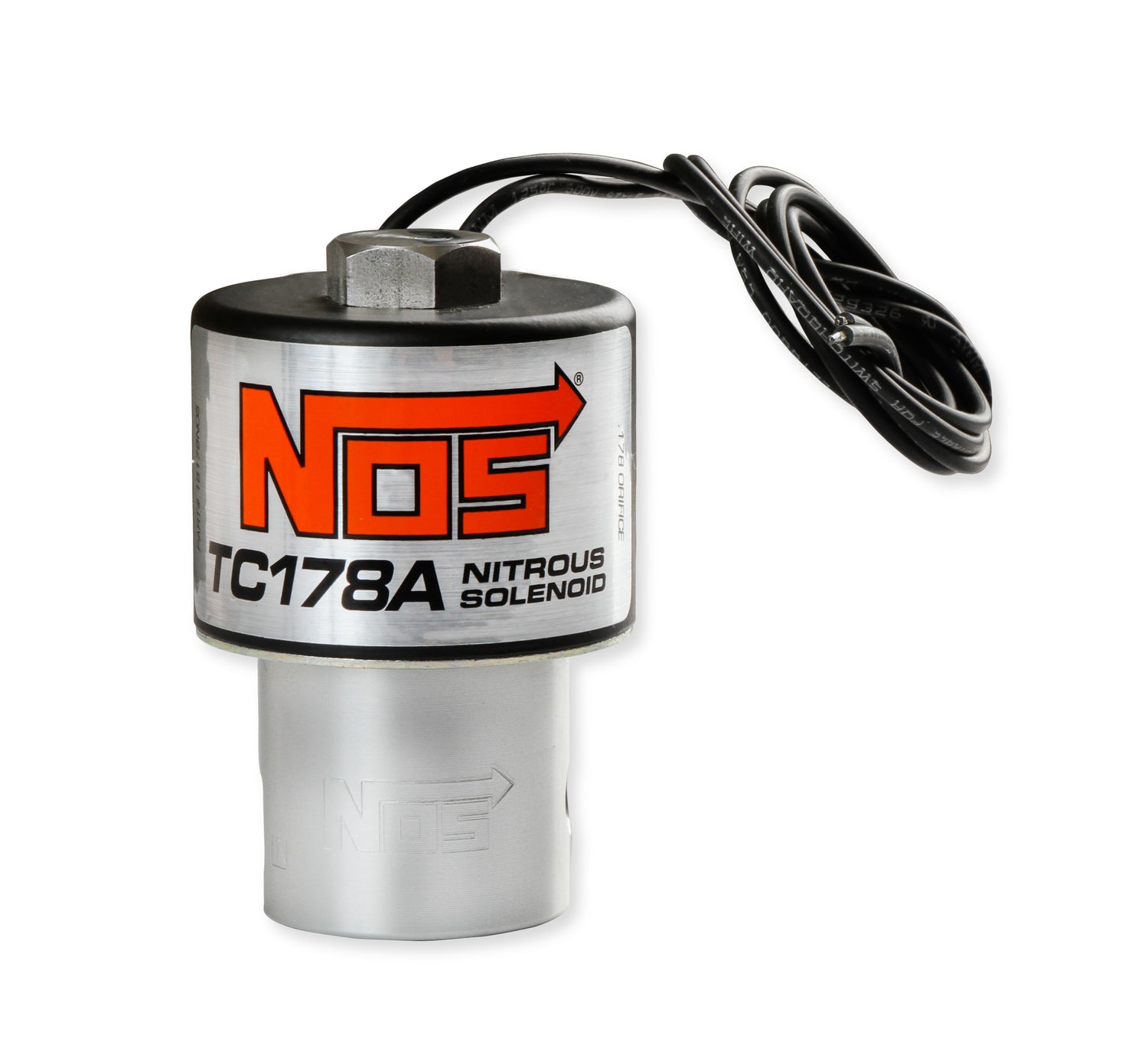

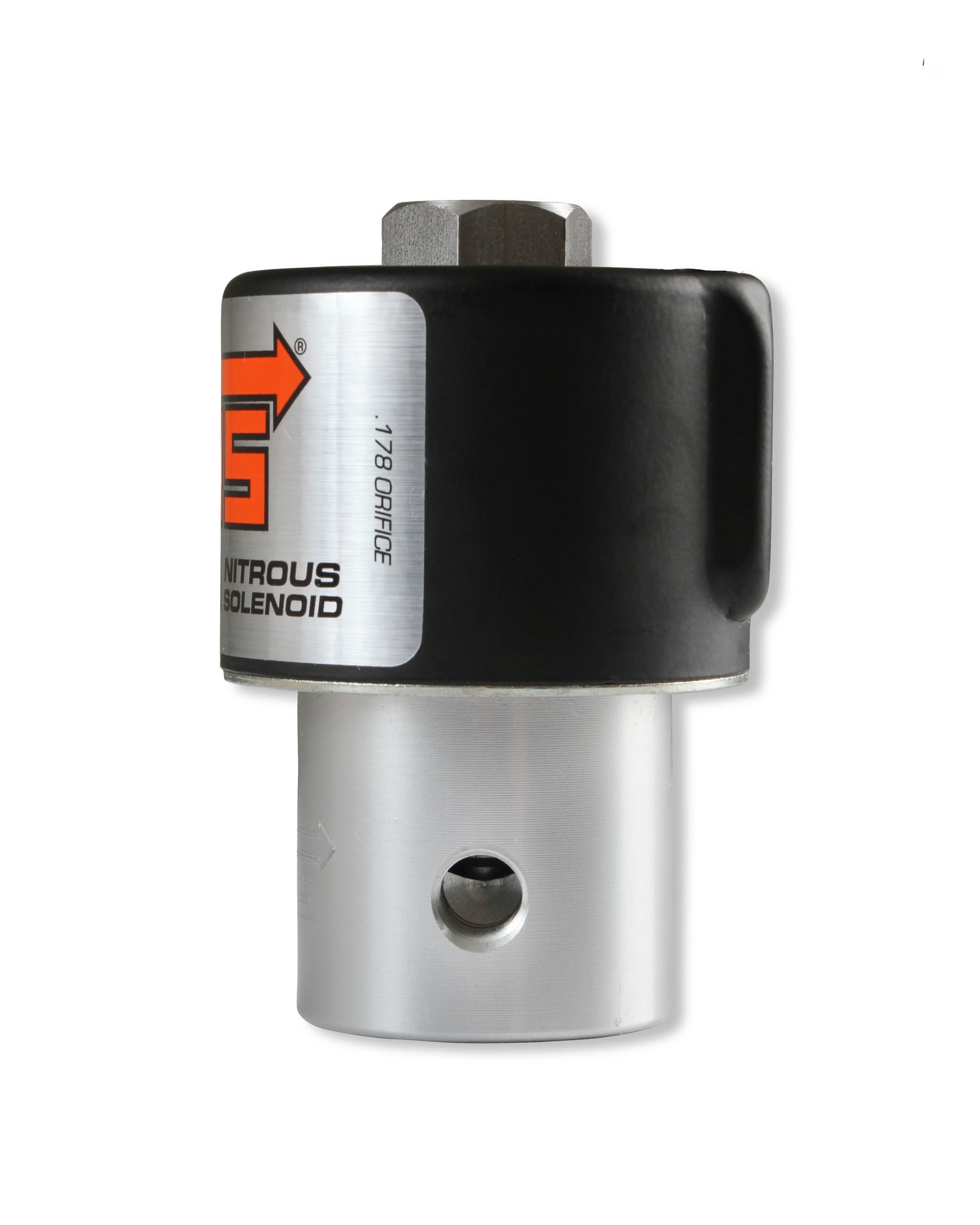

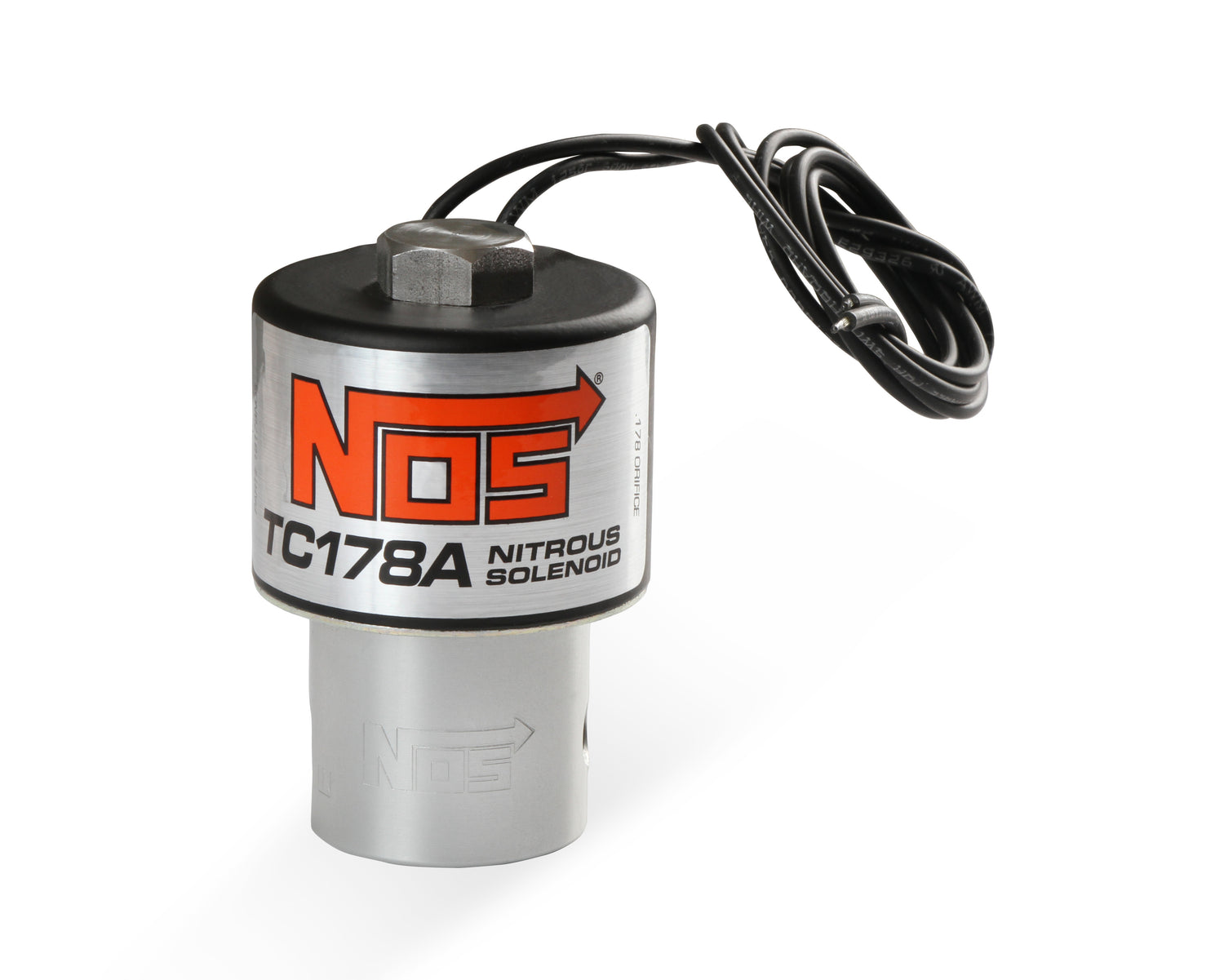

NOS Nitrous Solenoid - Black - 18178BNOS
TC178 High flow nitrous solenoid with a 0.178" outlet orifice and aluminum base.
Regular price
$517.70 NZD
+ GST
Unit price
/
Unavailable
Shipping calculated at checkout.
NOS Nitrous Solenoid - Black - 18178BNOS is not in stock at Fast Lane Spares and will ship direct from supplier
⚠ Special Order Item — ships direct from supplier. No returns, exchanges, or cancellations once processed. Please allow 7–20 days shipping.
Stock Status:
NOS Nitrous Solenoid - Black - 18178BNOS
Regular price
$517.70 NZD
+ GST
Unit price
/
Unavailable
Description
Description
TC178 High flow nitrous solenoid with a 0.178" outlet orifice and aluminum base.
Part Number: 18178BNOS
NOS TC178 Nitrous Solenoid was developed for one purpose; deliver the most nitrous volume possible for a single solenoid. With a 0.178" outlet orifice, the TC178 has the ability to flow in excess of 900 horsepower of nitrous from a single solenoid. The TC178 base is also constructed of 6061 Aluminum and then clear anodized. This reduces the weight by 1/4 of a pound over the NOS Super BigShot Trash Can Solenoid, and still retains the mounting location on the base. If maximum power from a single stage of nitrous is what you need, get the new NOS TC17 Current Draw is 20 Amps at 12 volts DC. This Solenoid can be used with a progressive controller
Features and Benefits
• Supports in excess of 900 horsepower

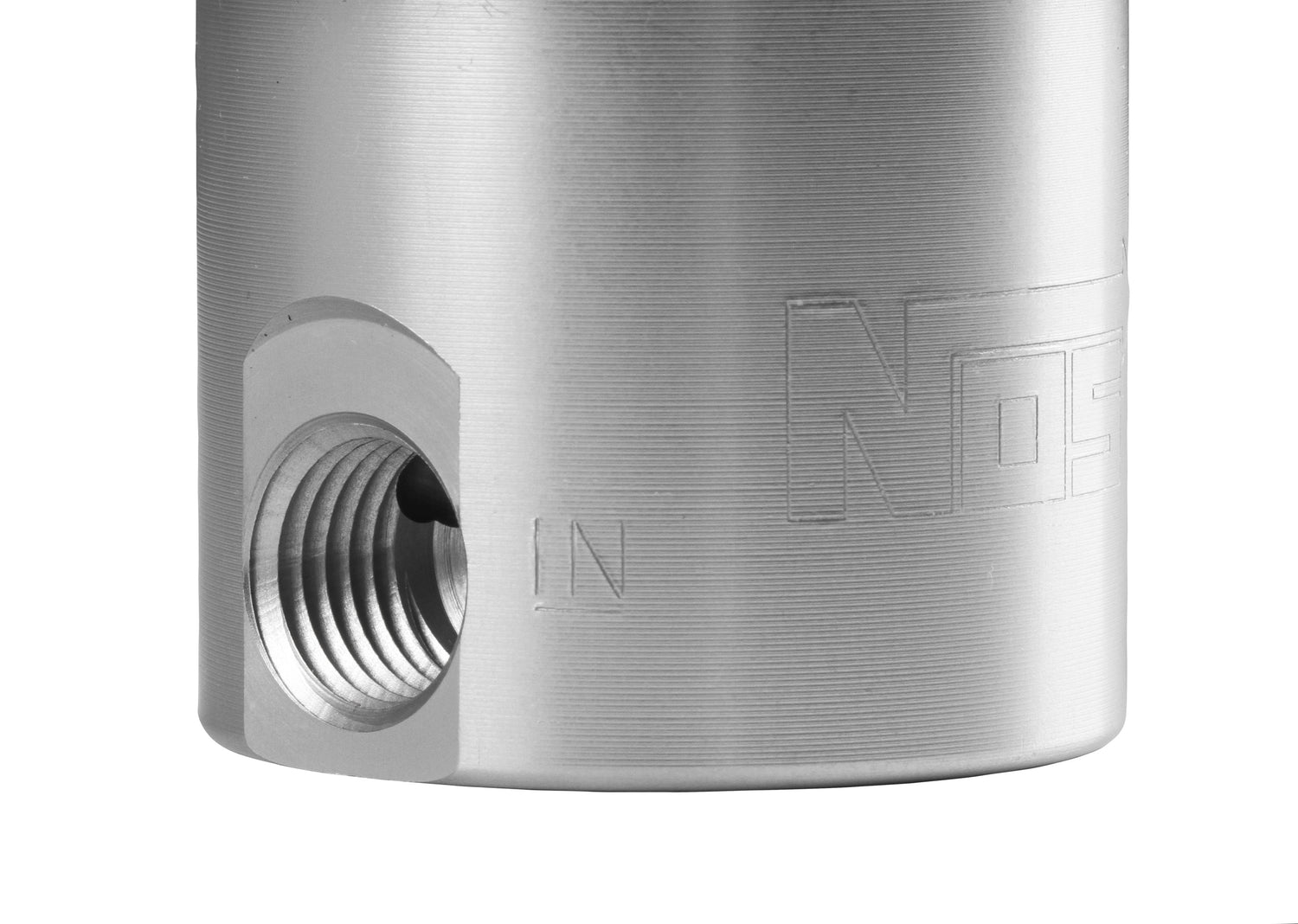

• Inlet Port Size - 1/4" NPT (Side)
• Outlet Port Size - 1/8" NPT (Bottom)

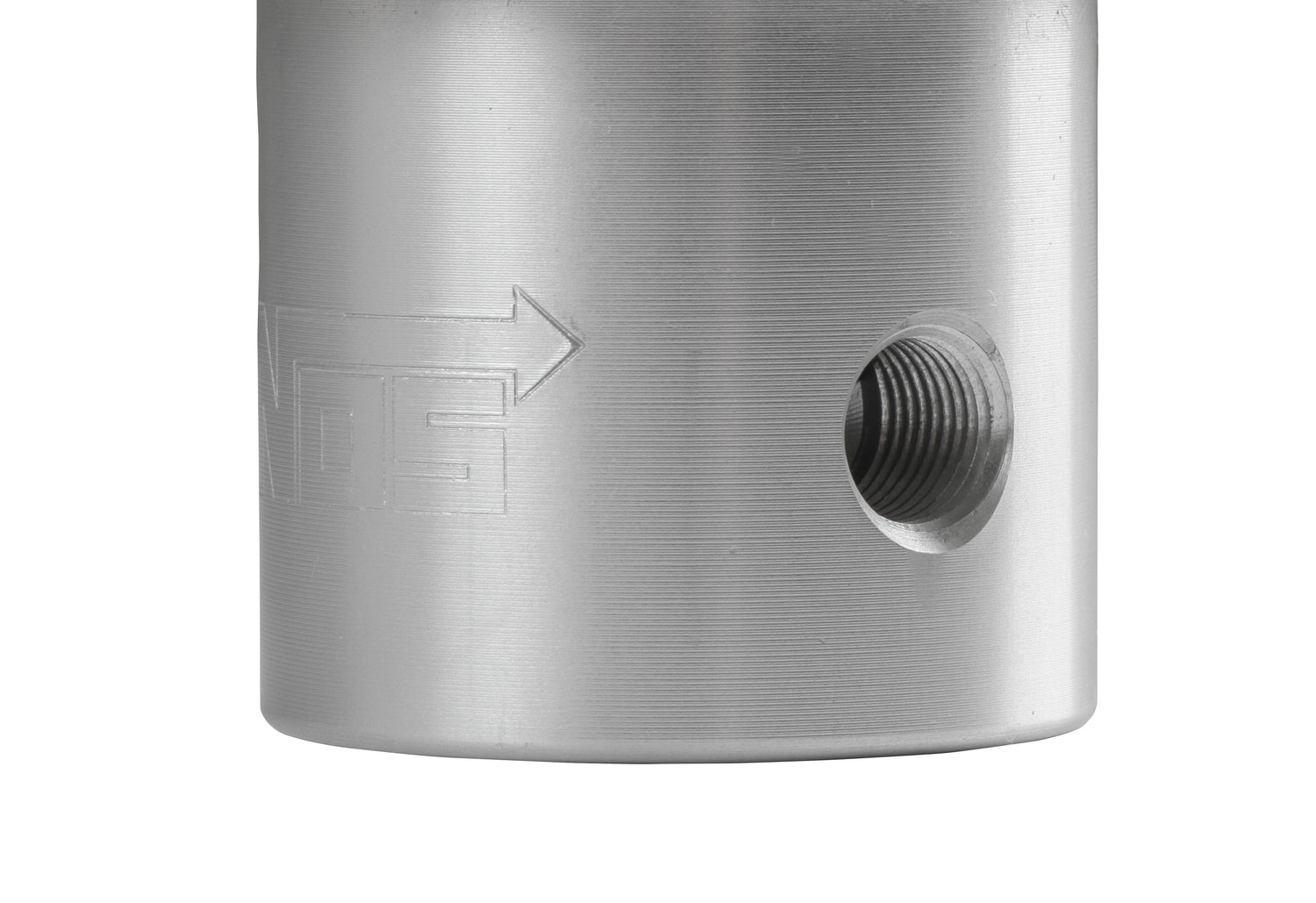

• Purge Port Size - 1/8" NPT (Side)
• Orifice - 0.178"
• Plunger - PTFE
• Light Weight Aluminum - 1.66 lbs.
• Material - 6061 Aluminum
• Saves 1/4 lb. over similar steel solenoids
The TC178 offers a 1/8" NPT bottom exit and a 1/8" NPT purge port. _x000D_ The side purge port must be plugged if not used.
Part Number: 18178BNOS
NOS TC178 Nitrous Solenoid was developed for one purpose; deliver the most nitrous volume possible for a single solenoid. With a 0.178" outlet orifice, the TC178 has the ability to flow in excess of 900 horsepower of nitrous from a single solenoid. The TC178 base is also constructed of 6061 Aluminum and then clear anodized. This reduces the weight by 1/4 of a pound over the NOS Super BigShot Trash Can Solenoid, and still retains the mounting location on the base. If maximum power from a single stage of nitrous is what you need, get the new NOS TC17 Current Draw is 20 Amps at 12 volts DC. This Solenoid can be used with a progressive controller
Features and Benefits
• Supports in excess of 900 horsepower
• Inlet Port Size - 1/4" NPT (Side)
• Outlet Port Size - 1/8" NPT (Bottom)
• Purge Port Size - 1/8" NPT (Side)
• Orifice - 0.178"
• Plunger - PTFE
• Light Weight Aluminum - 1.66 lbs.
• Material - 6061 Aluminum
• Saves 1/4 lb. over similar steel solenoids
The TC178 offers a 1/8" NPT bottom exit and a 1/8" NPT purge port. _x000D_ The side purge port must be plugged if not used.
Specifications
Specifications
-
Specifications
AMP DRAW 20A Bracket(s) Included No Brand NOS Category Air and Fuel Delivery Color Black Emission Code 4 Finish Natural Fittings Included No Inlet Side Inlet Attachment Female Threads Inlet Thread 1/4" NPT Material 6061-T6 Aluminum Max Horsepower 900 Orifice 0.178" Outlet Bottom Outlet Attachment Female Threads Outlet Thread 1/8" NPT part type Nitrous Oxide Solenoid Plunger Material PTFE Product Line TC178 Product Type Nitrous Solenoid Purge Port 1/8" NPT Solenoid Top Cover Color Black Sub Category Switches, Solenoids and Actuators Warranty Manufacturer's Limited 90 Day Warranty
