NOS/Nitrous Oxide System | SKU:
16340ABNOS

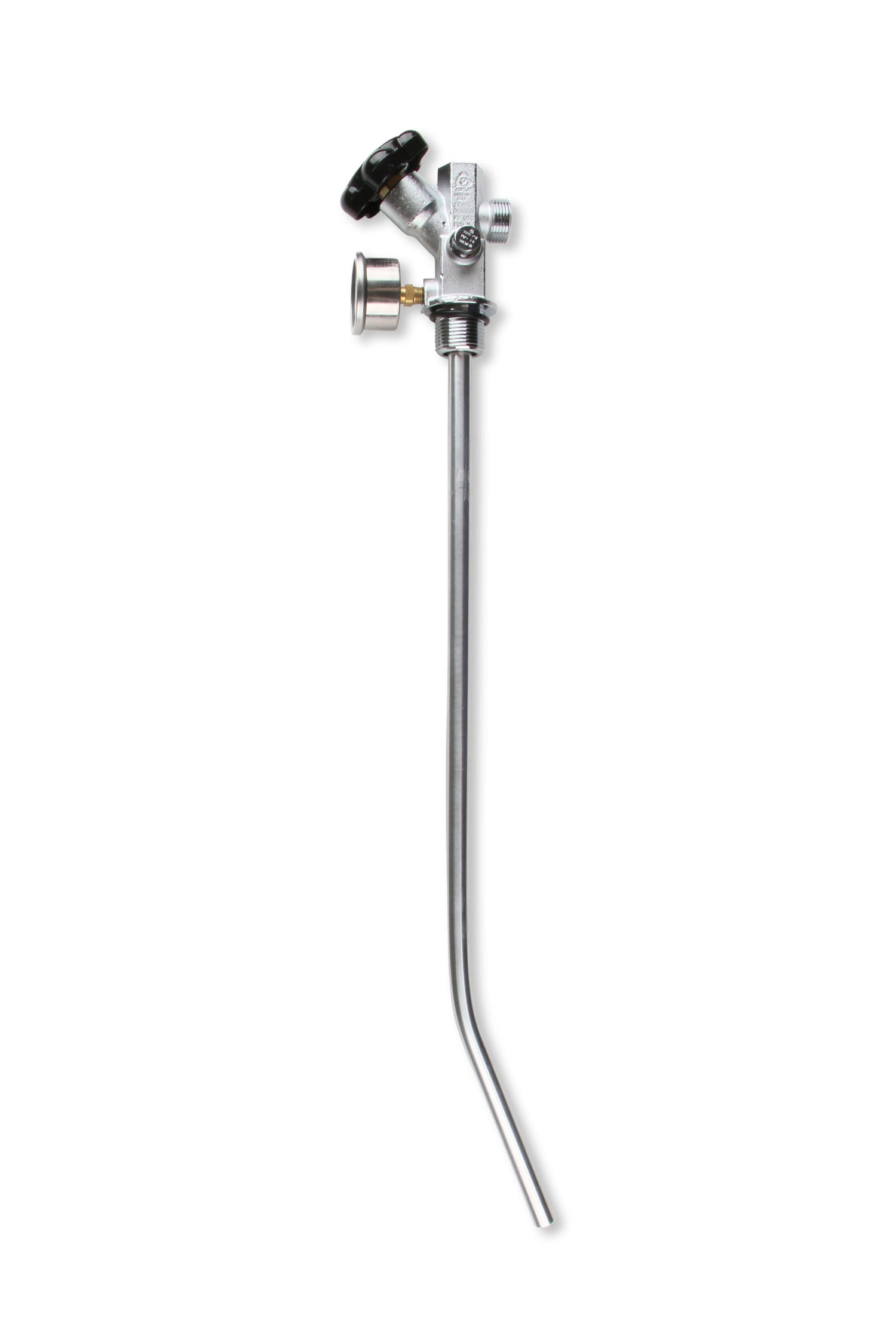

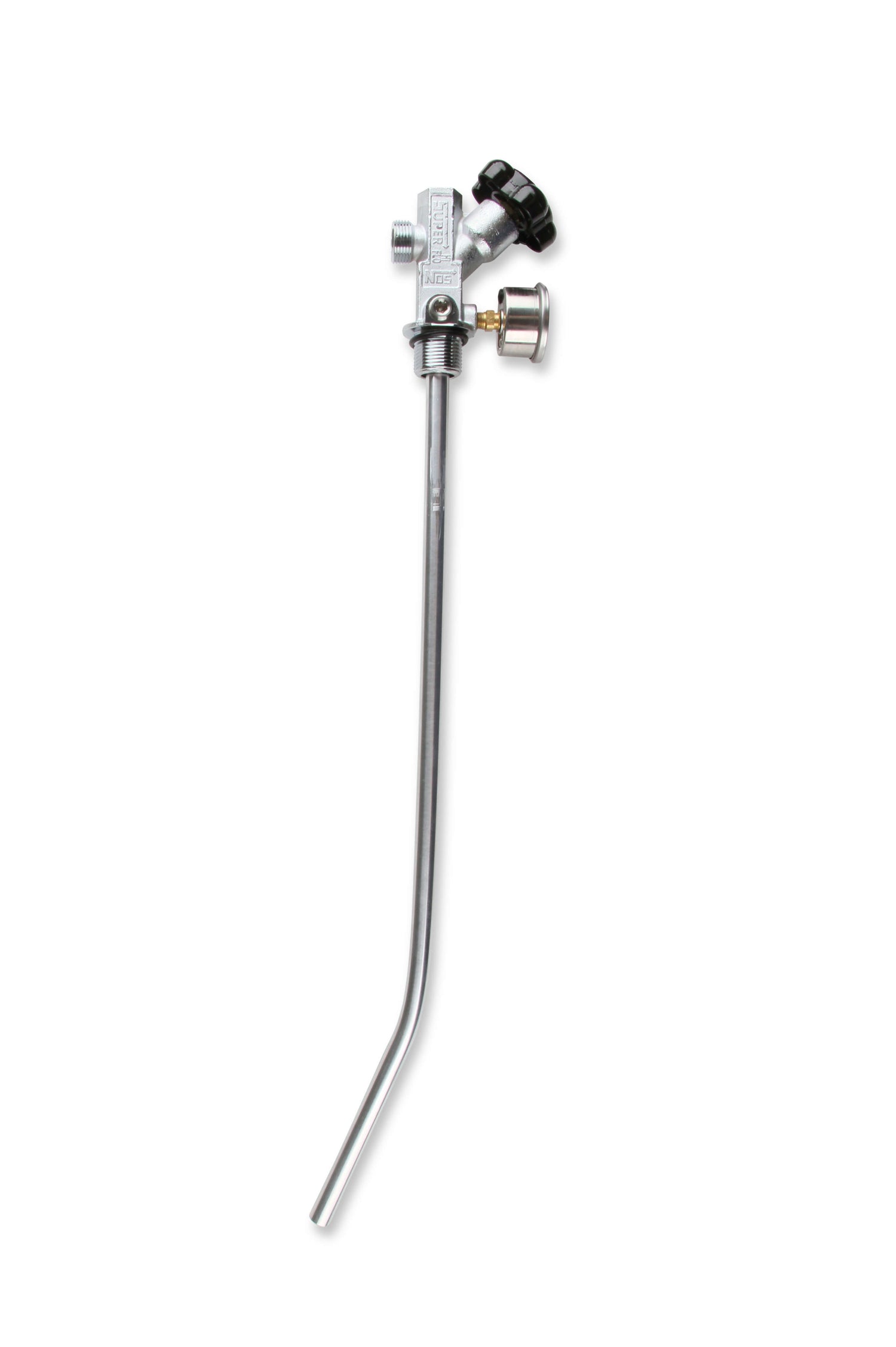

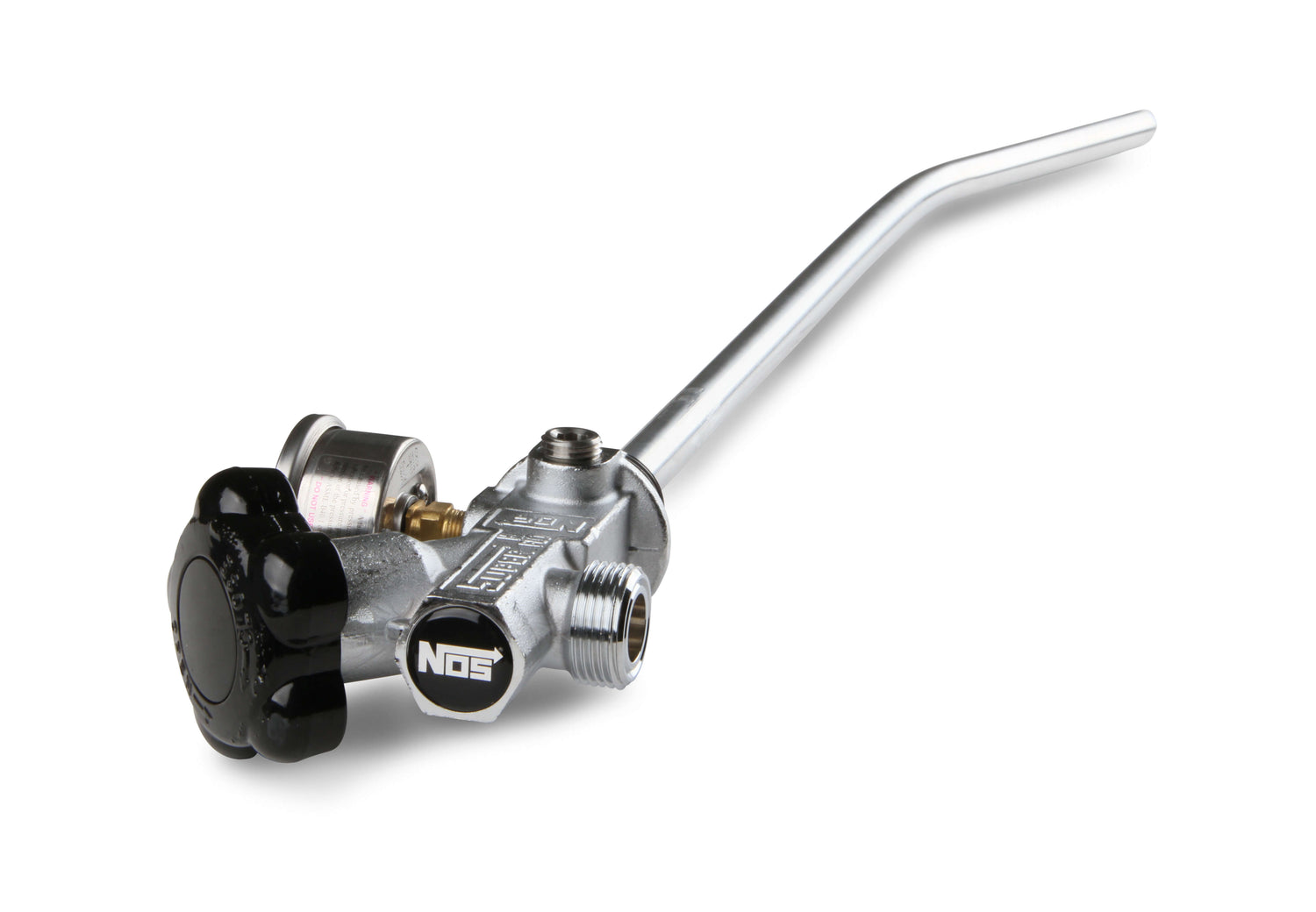

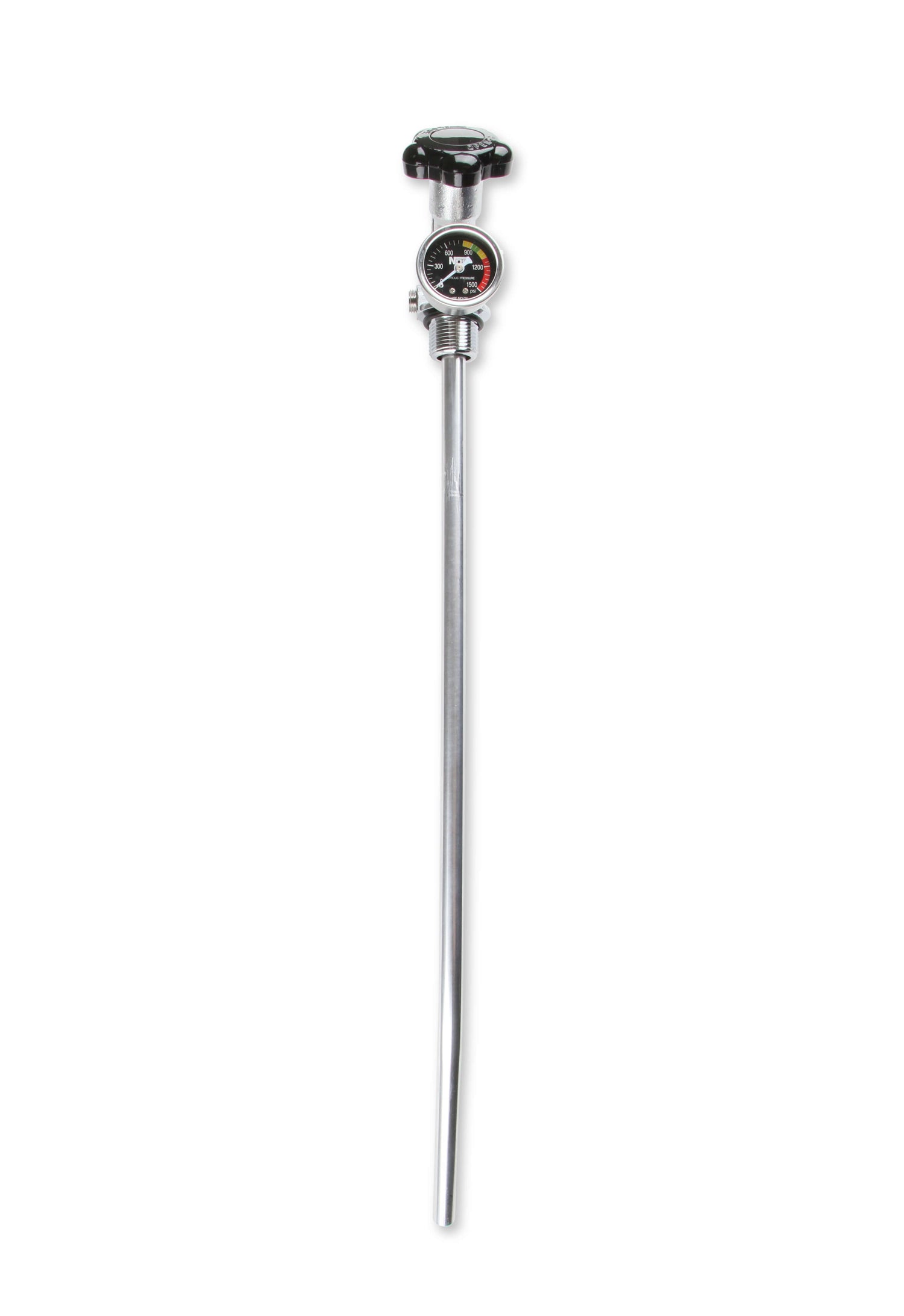

NOS 15lb & 20lb Bottle Super Hi-Flow Valve Assembly w/Siphon Tube & Black Gauge - 16340ABNOS
Sold out
Regular price
$362.40 NZD
+ GST
Unit price
/
Unavailable
Shipping calculated at checkout.
NOS 15lb & 20lb Bottle Super Hi-Flow Valve Assembly w/Siphon Tube & Black Gauge - 16340ABNOS is not in stock at Fast Lane Spares and will ship direct from supplier
Stock Status:
Description
Description
Part Number: 16340ABNOS

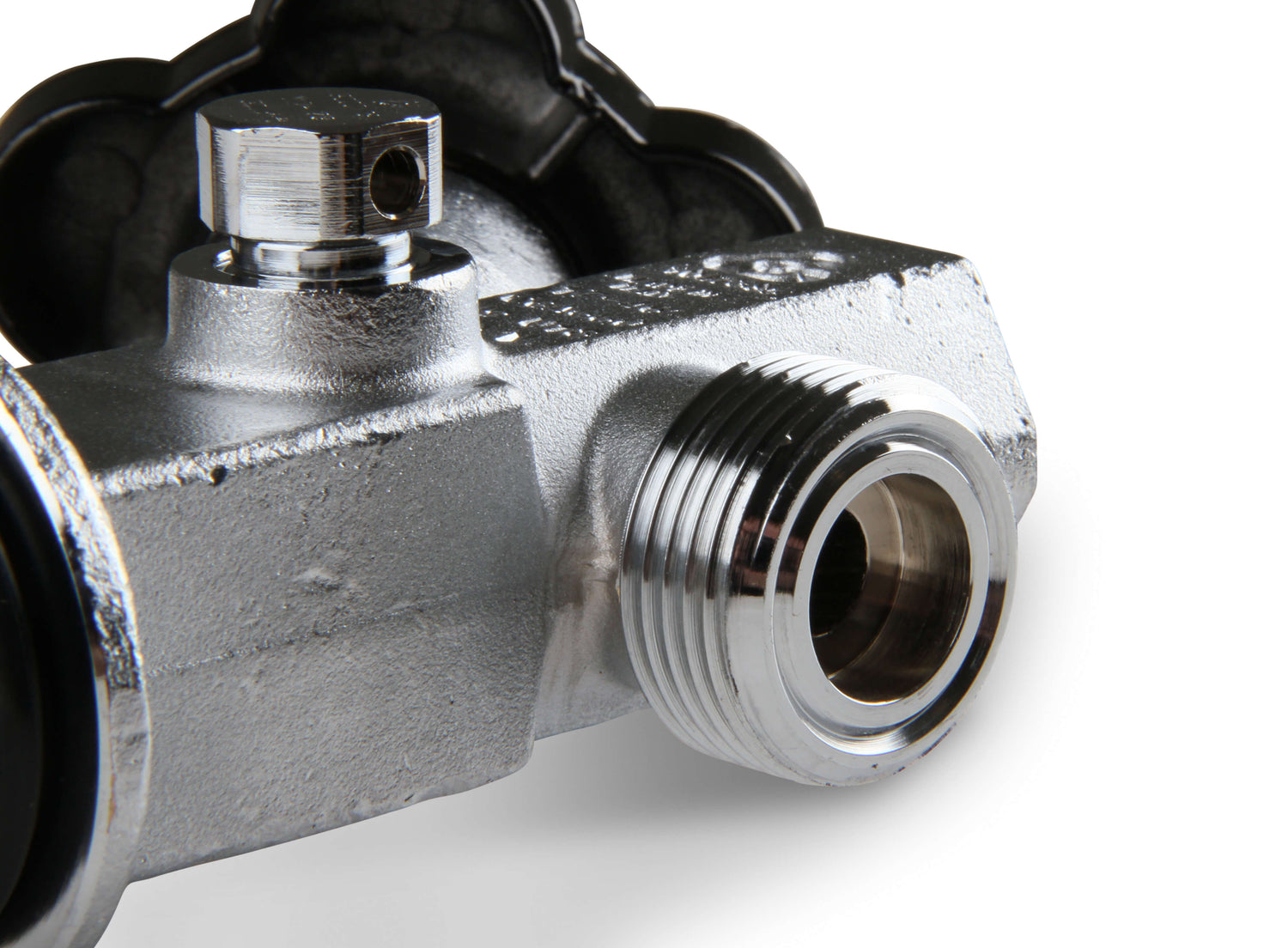

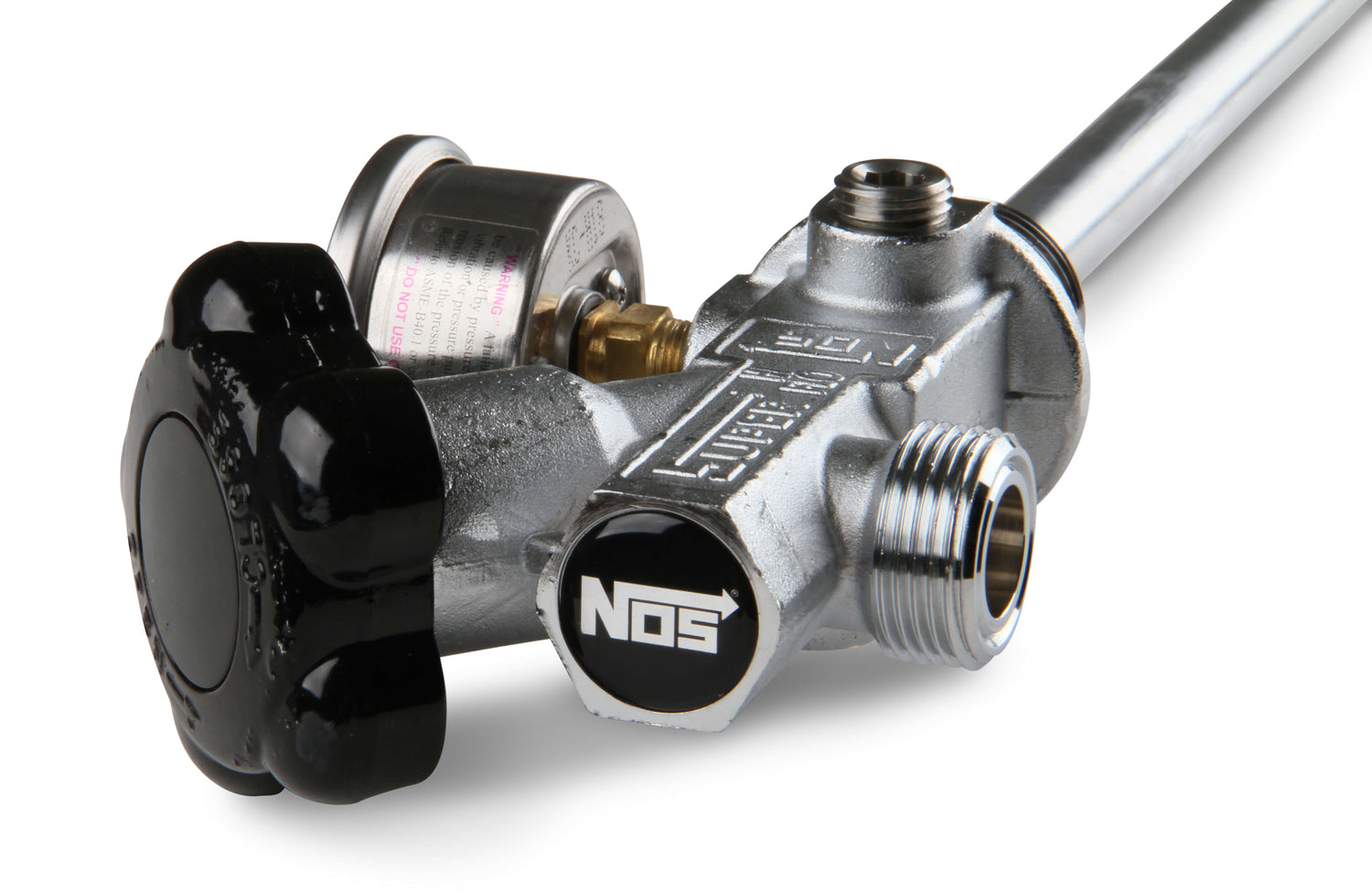

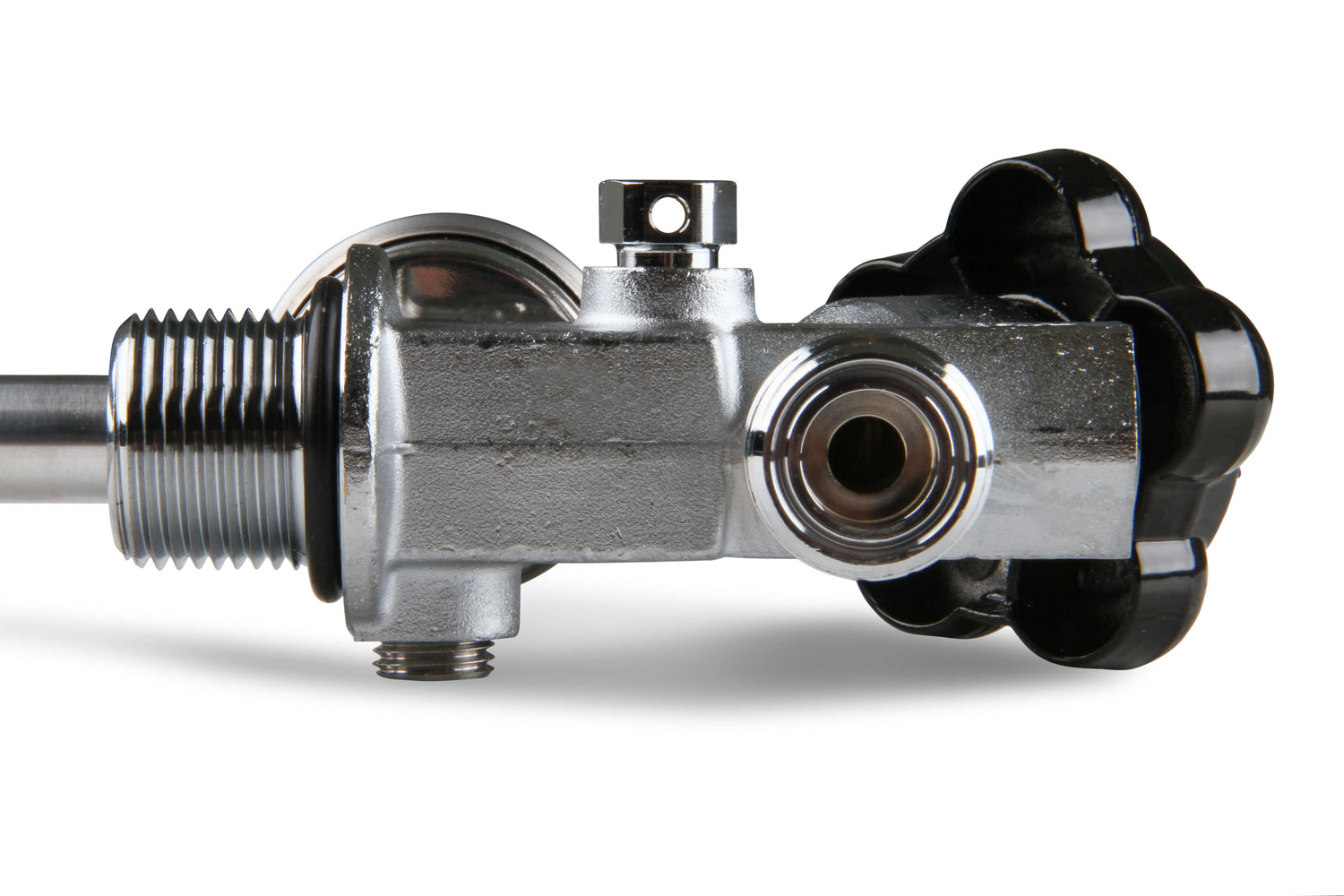

NOS now offers Super Hi-Flo bottle valve assemblies with siphon tube and nitrous pressure gauge already installed. This gives you a great way to upgrade to the highest flowing valve and tube NOS has to offer. Key bottle valve features include a 1/8"NPT gauge port, 1/4"NPT accessory port, large internal and outlet ports, along with an O-ring seal. Our 3/8" id screw-on siphon tube is made from 6061 aluminum can be used as an upgrade for an older style compression fitting tube. Lastly, included with our assemblies is either blue or black face 1-1/2" nitrous gauge with easy-to-see color graduations and a white pointer. These gauges have a stainless steel case with brass internals.
Features and Benefits
ā¢ Super Hi-Flow assembly features siphon tube and nitrous pressure gauge already installed
ā¢ Great way to update a bottle to the best flowing valve NOS offers
ā¢ Valve has large internal ports for superior flow and an O-ring bottle seal
ā¢ Siphon tube is made from 6061 aluminum and 3/8ā I.D. for maximum flow

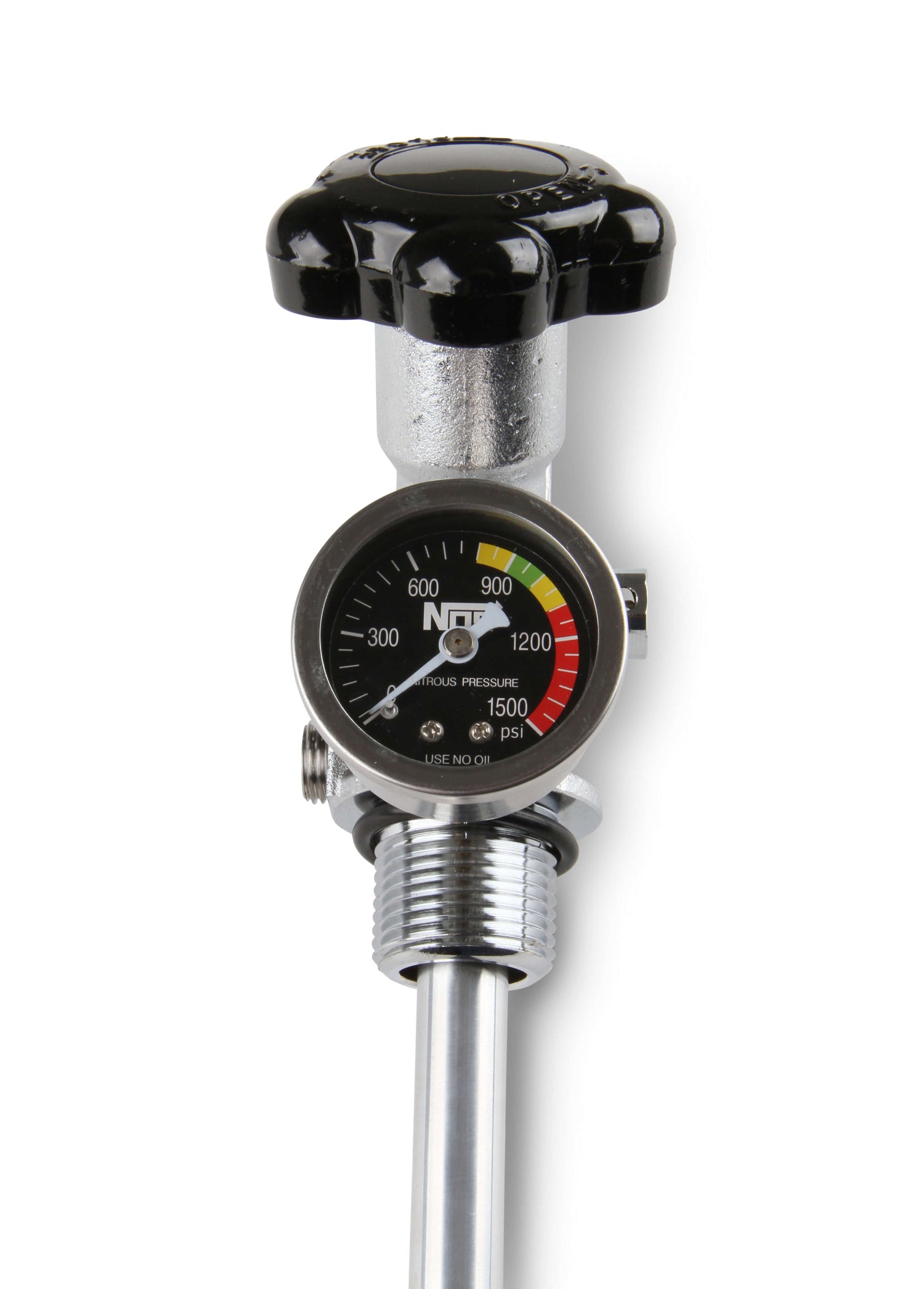

ā¢ 1-1/2ā diameter nitrous pressure gauge features stainless steel and brass construction providing accurate pressure measurement
ā¢ Assembly is designed to Support 500+ Horsepower
Valve to Bottle Torque = 100 ft-lb
NOS now offers Super Hi-Flo bottle valve assemblies with siphon tube and nitrous pressure gauge already installed. This gives you a great way to upgrade to the highest flowing valve and tube NOS has to offer. Key bottle valve features include a 1/8"NPT gauge port, 1/4"NPT accessory port, large internal and outlet ports, along with an O-ring seal. Our 3/8" id screw-on siphon tube is made from 6061 aluminum can be used as an upgrade for an older style compression fitting tube. Lastly, included with our assemblies is either blue or black face 1-1/2" nitrous gauge with easy-to-see color graduations and a white pointer. These gauges have a stainless steel case with brass internals.
Features and Benefits
ā¢ Super Hi-Flow assembly features siphon tube and nitrous pressure gauge already installed
ā¢ Great way to update a bottle to the best flowing valve NOS offers
ā¢ Valve has large internal ports for superior flow and an O-ring bottle seal
ā¢ Siphon tube is made from 6061 aluminum and 3/8ā I.D. for maximum flow
ā¢ 1-1/2ā diameter nitrous pressure gauge features stainless steel and brass construction providing accurate pressure measurement
ā¢ Assembly is designed to Support 500+ Horsepower
Valve to Bottle Torque = 100 ft-lb
Specifications
Specifications
-
Specifications
Bottle Size 15 lb & 20 lb Bottle Valve Super Hi-Flo Brand NOS Category Air and Fuel Delivery Diameter 3/8 inch Emission Code 4 Gauge Included Yes Gauge Type Nitrous Pressure Outlet Thread CGA #660 part type Nitrous Oxide Bottle Valve Opener Product Type Bottle Valve Assembly Siphon Tube Included Yes Sub Category Nitrous Oxide Injection System Supported Horsepower 500+ Torque Value 100 ft-lb Tube Length 22-7/8 inch Tube Material Aluminum Warning California Proposition 65 Warranty Manufacturer's Limited 90 Day Warranty
