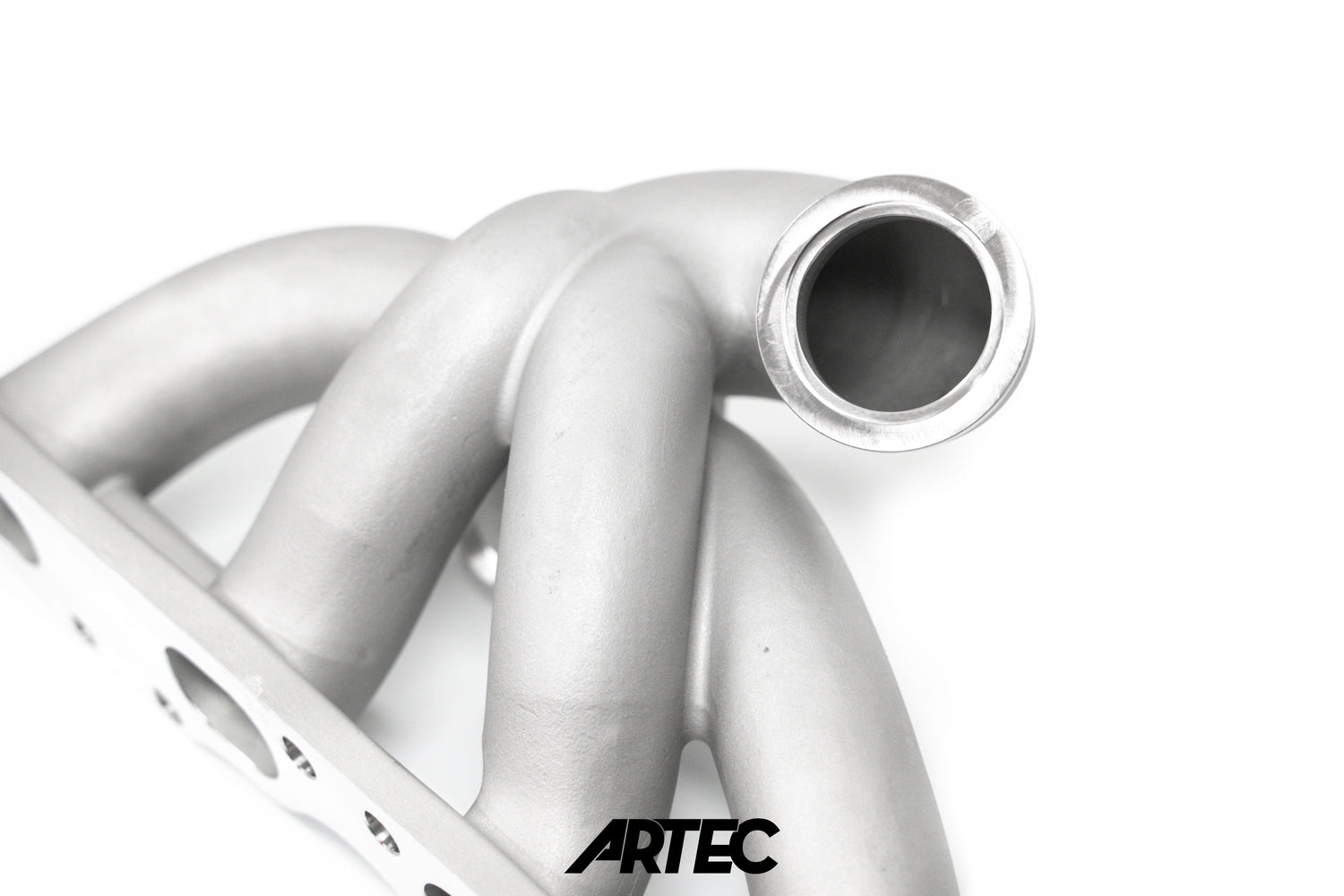

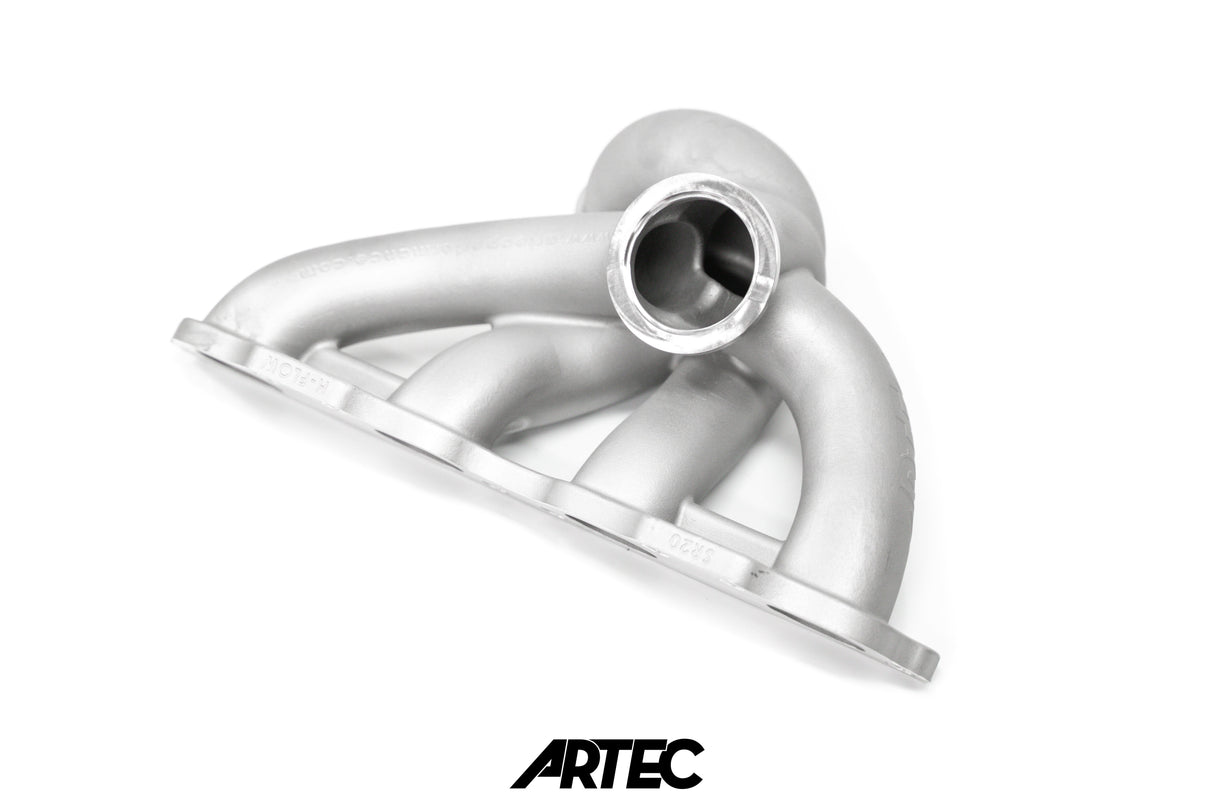

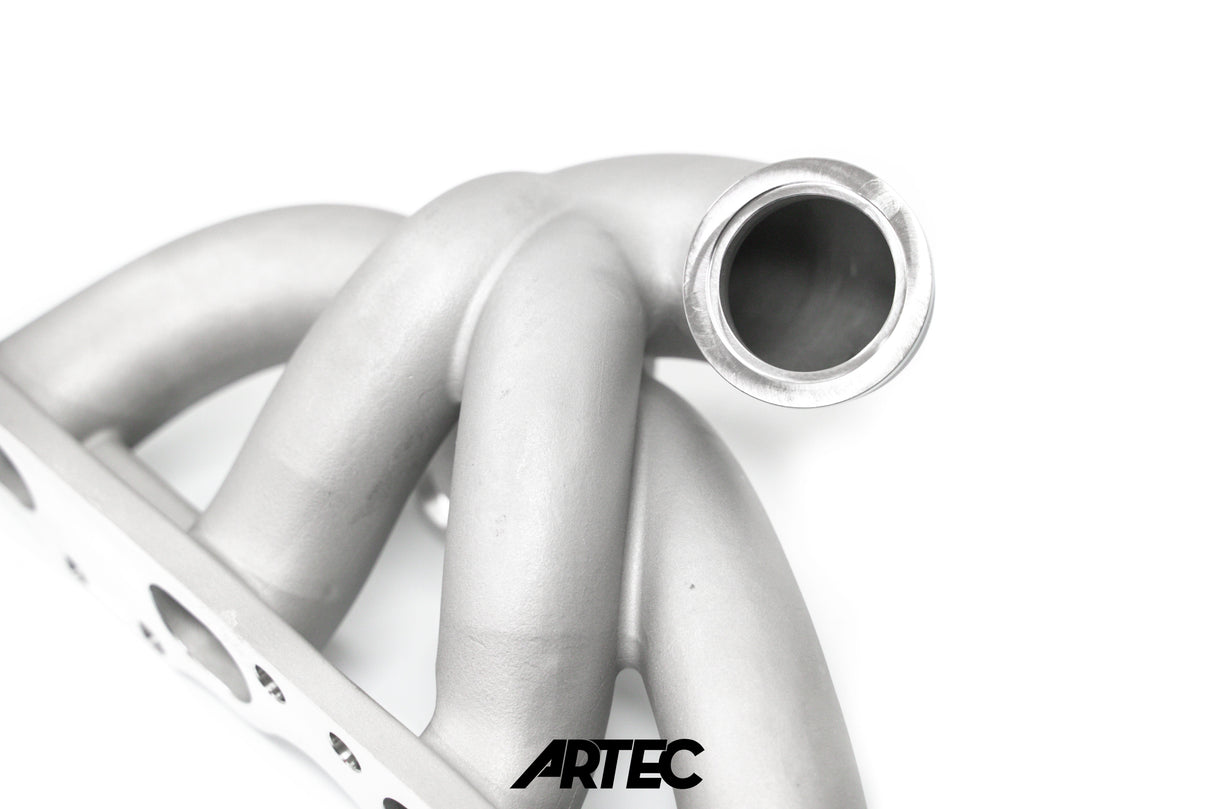

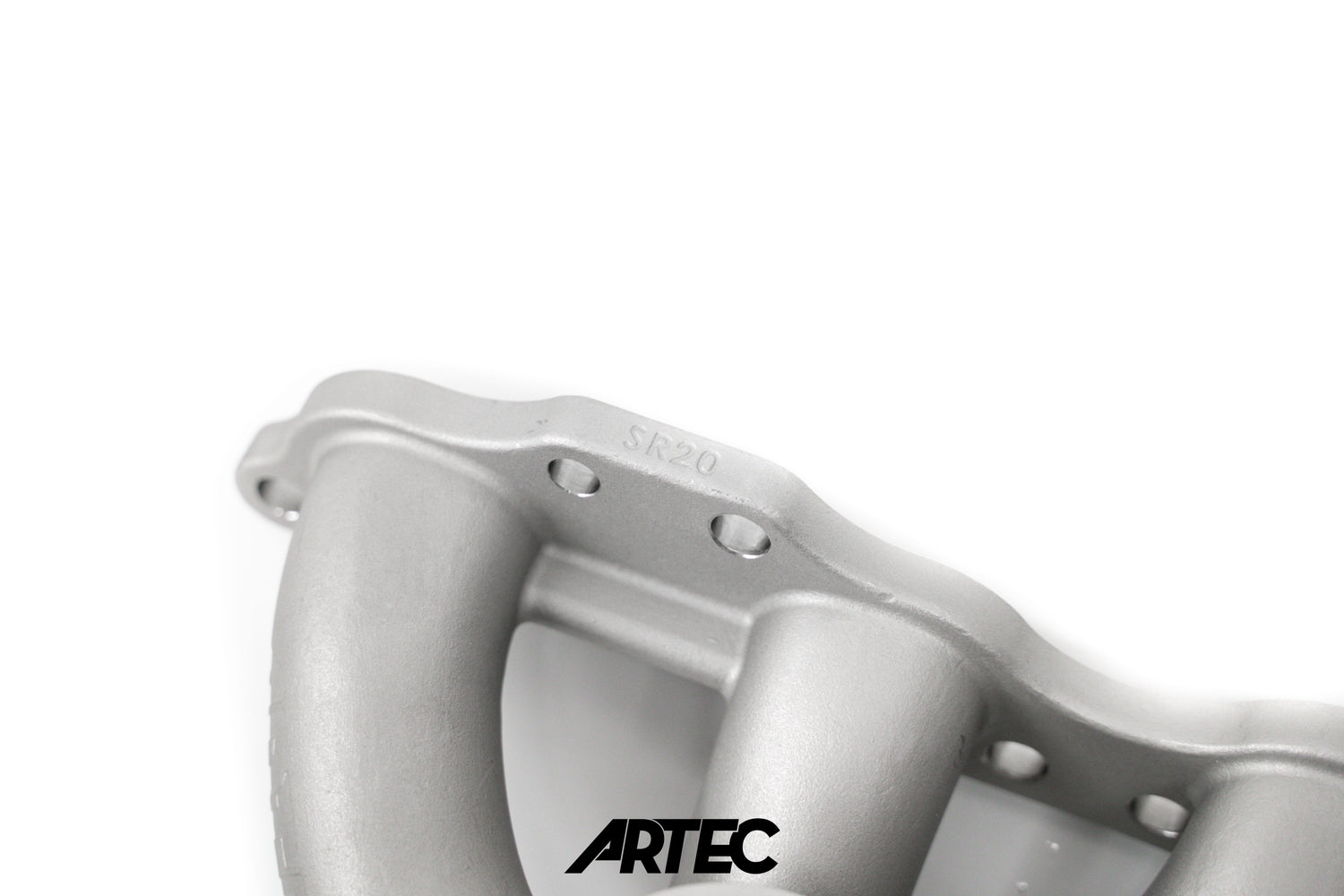

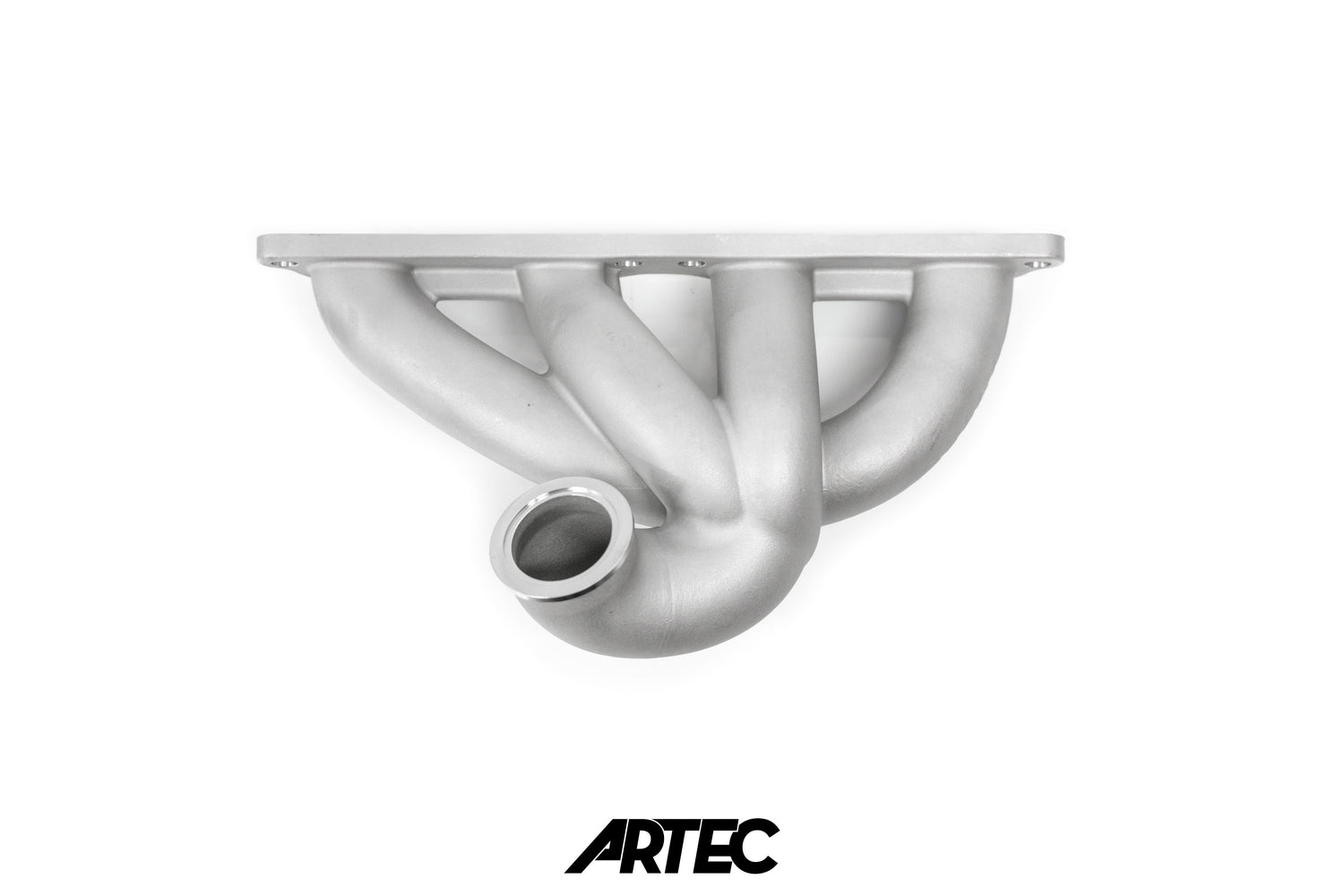

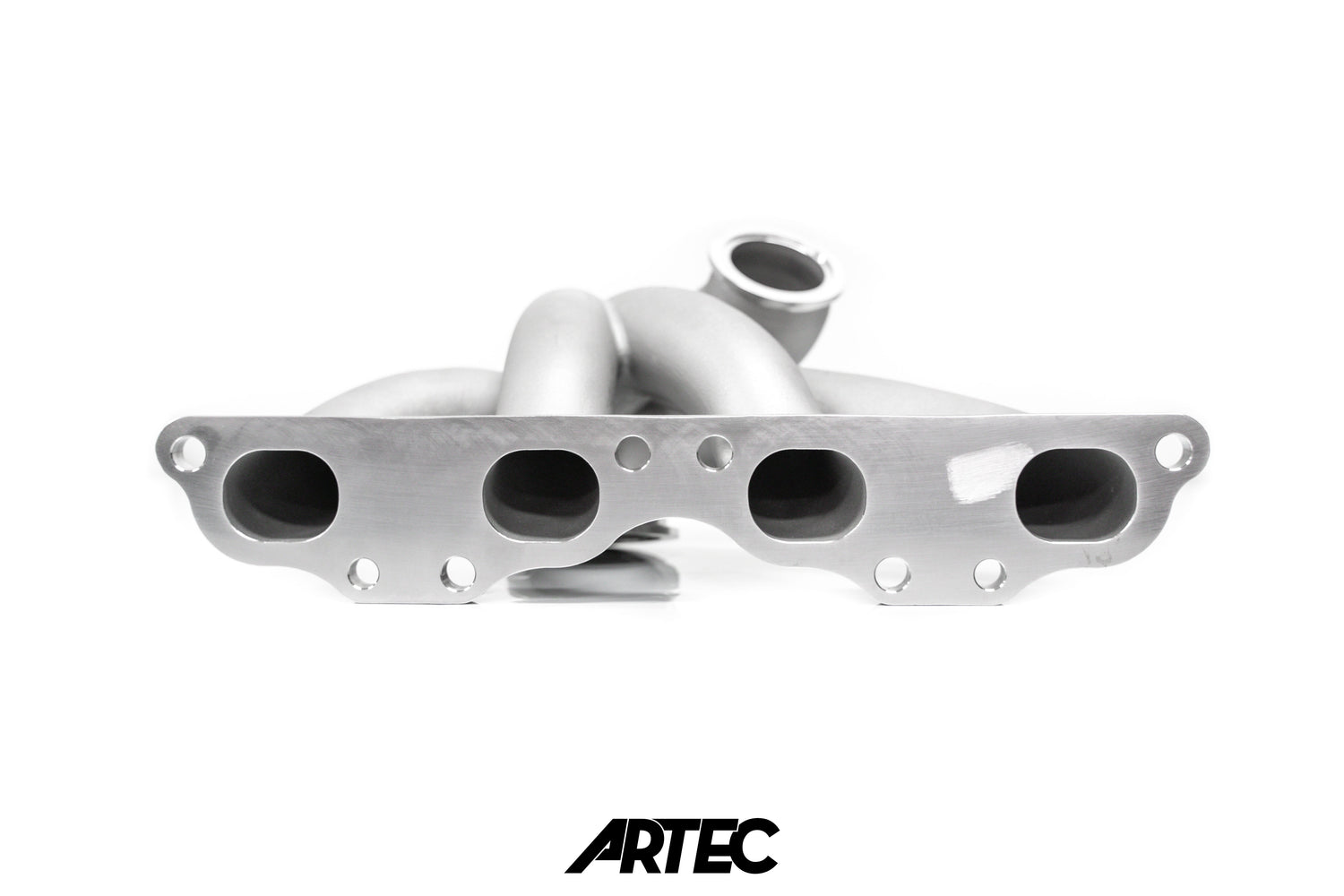

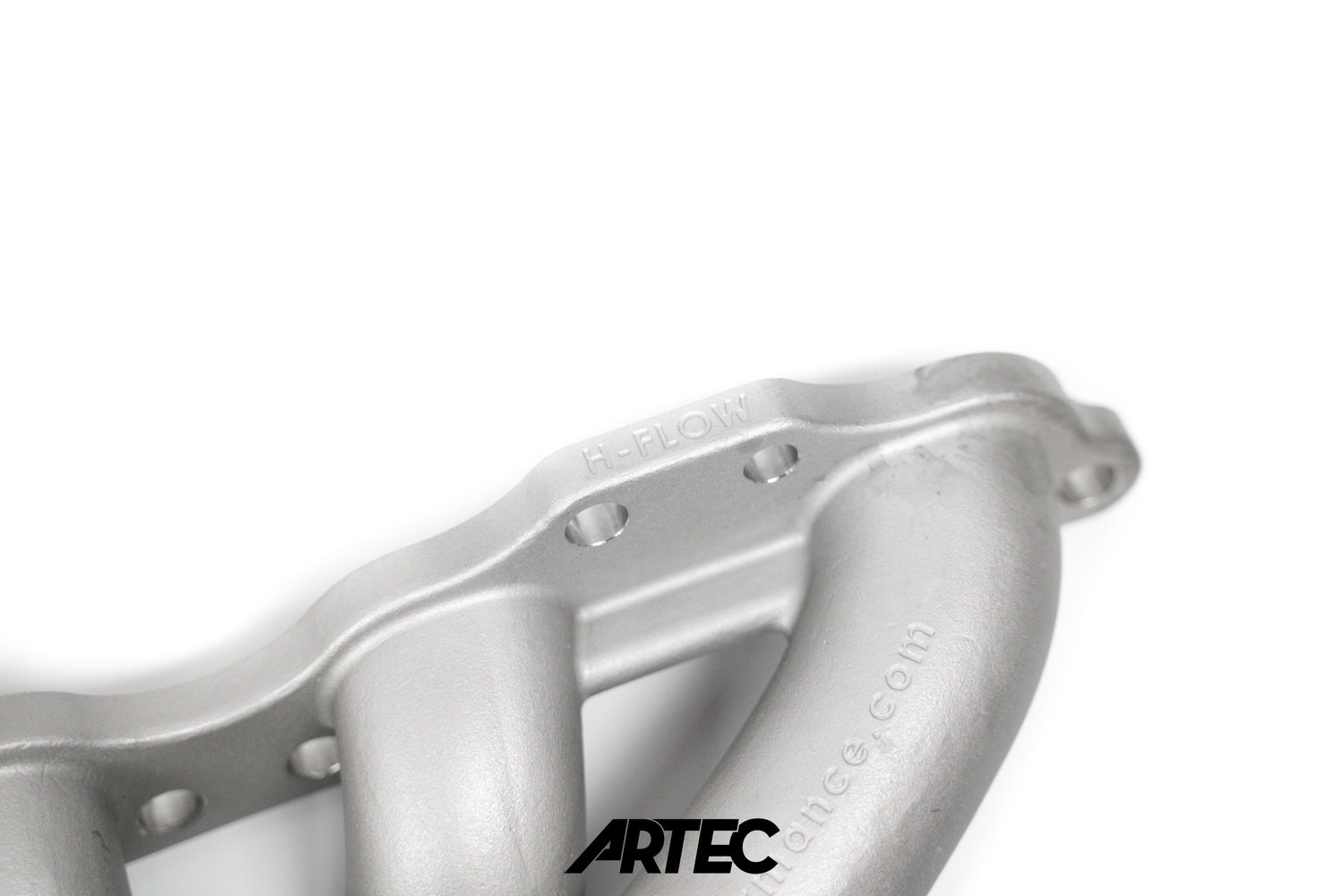

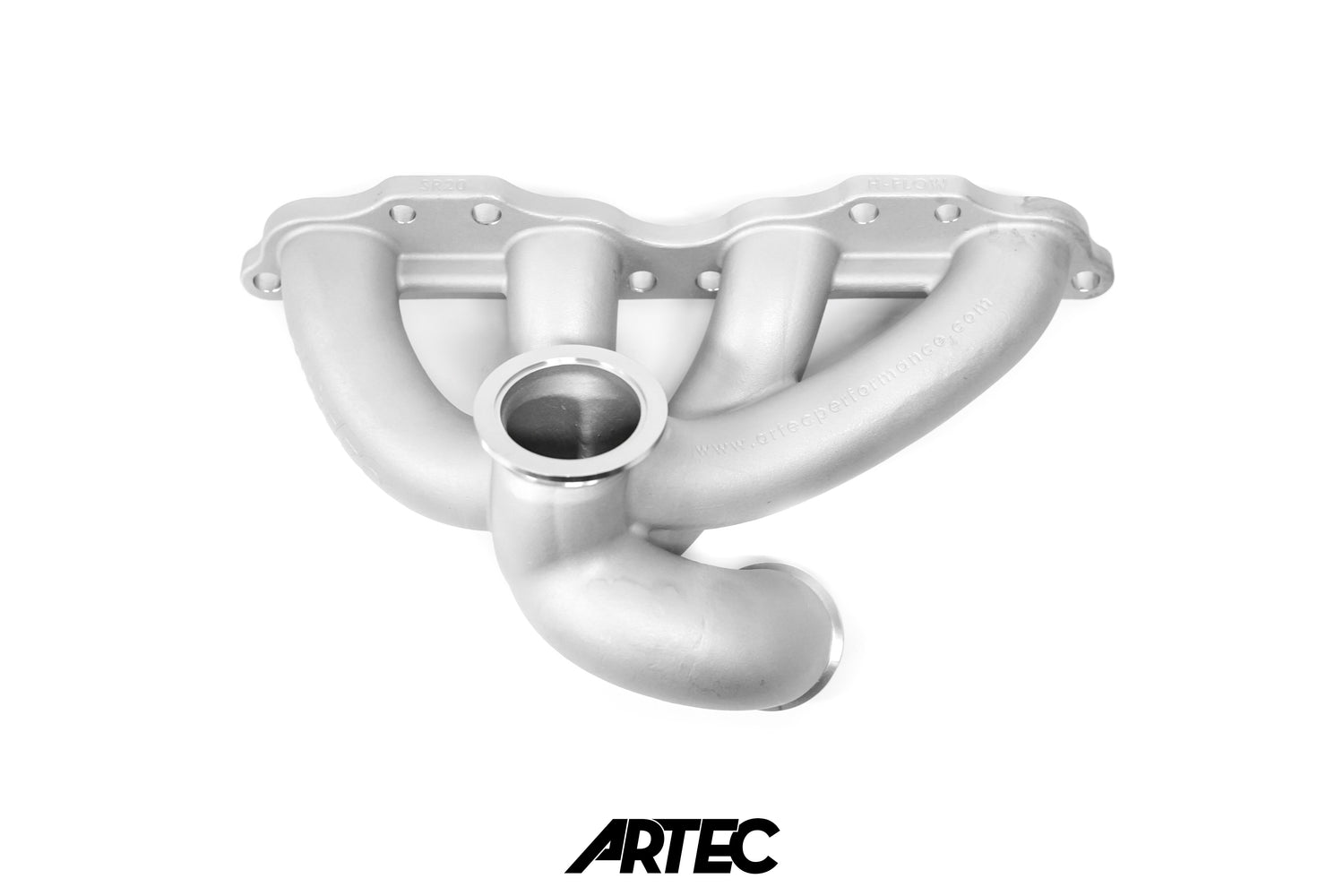

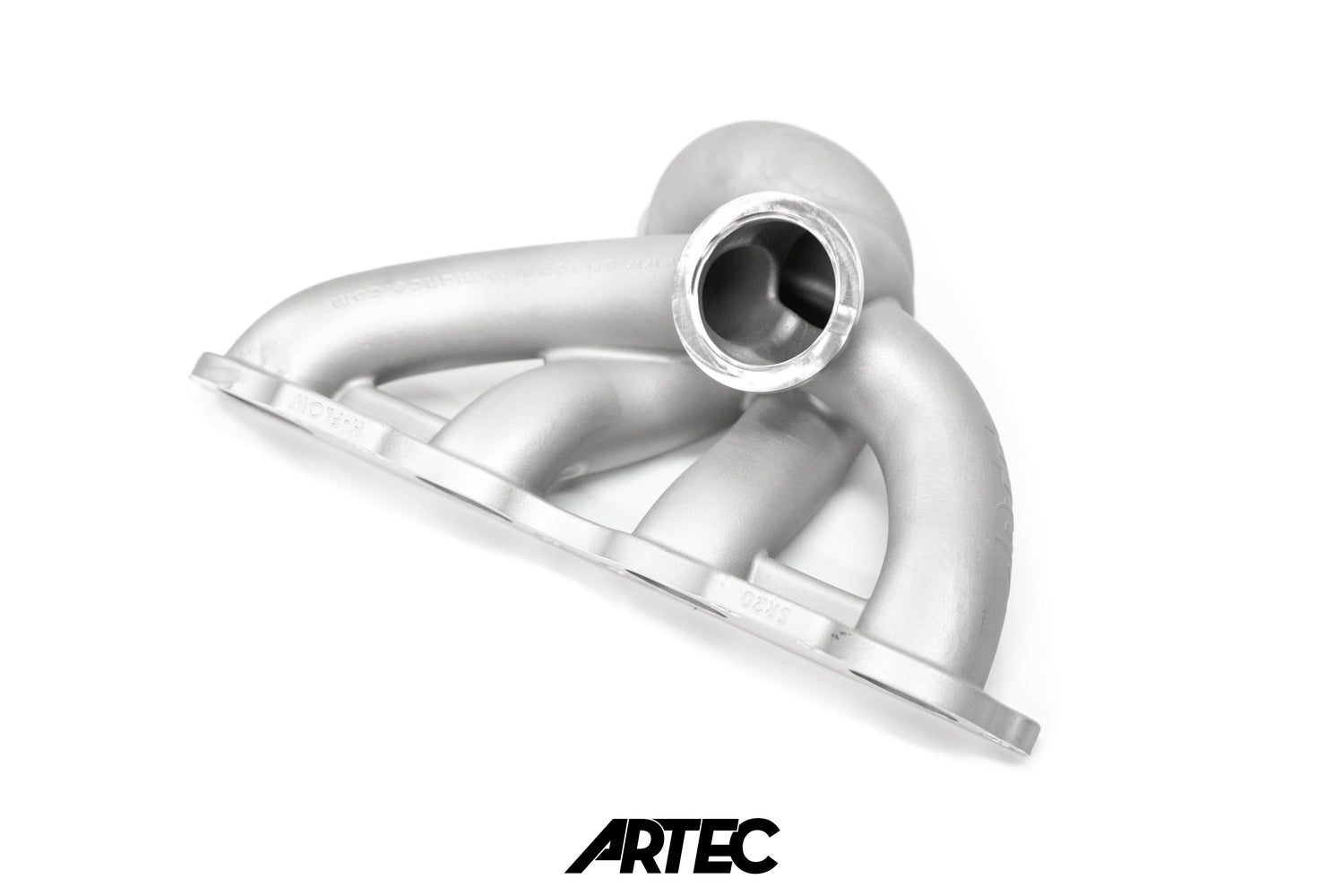

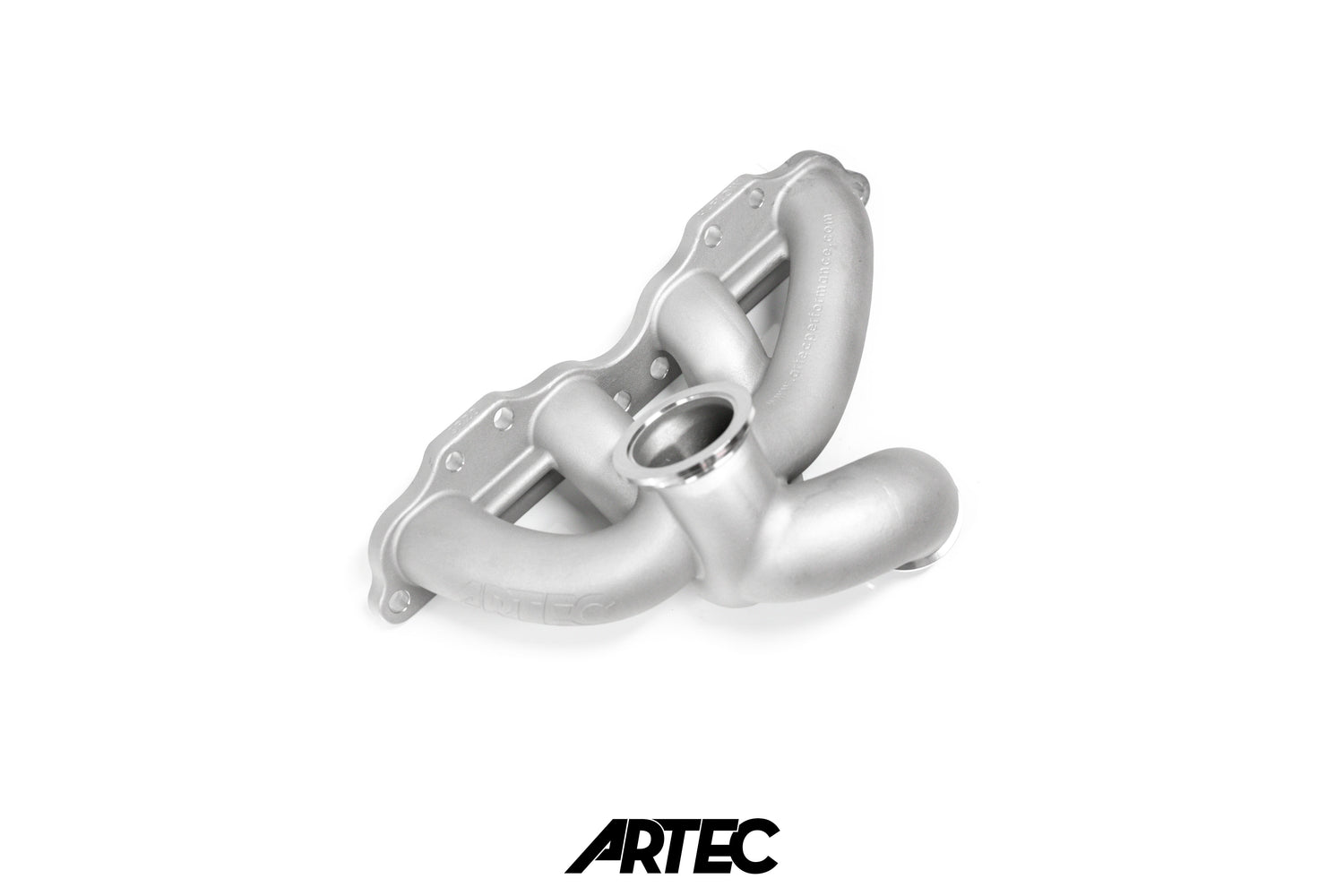

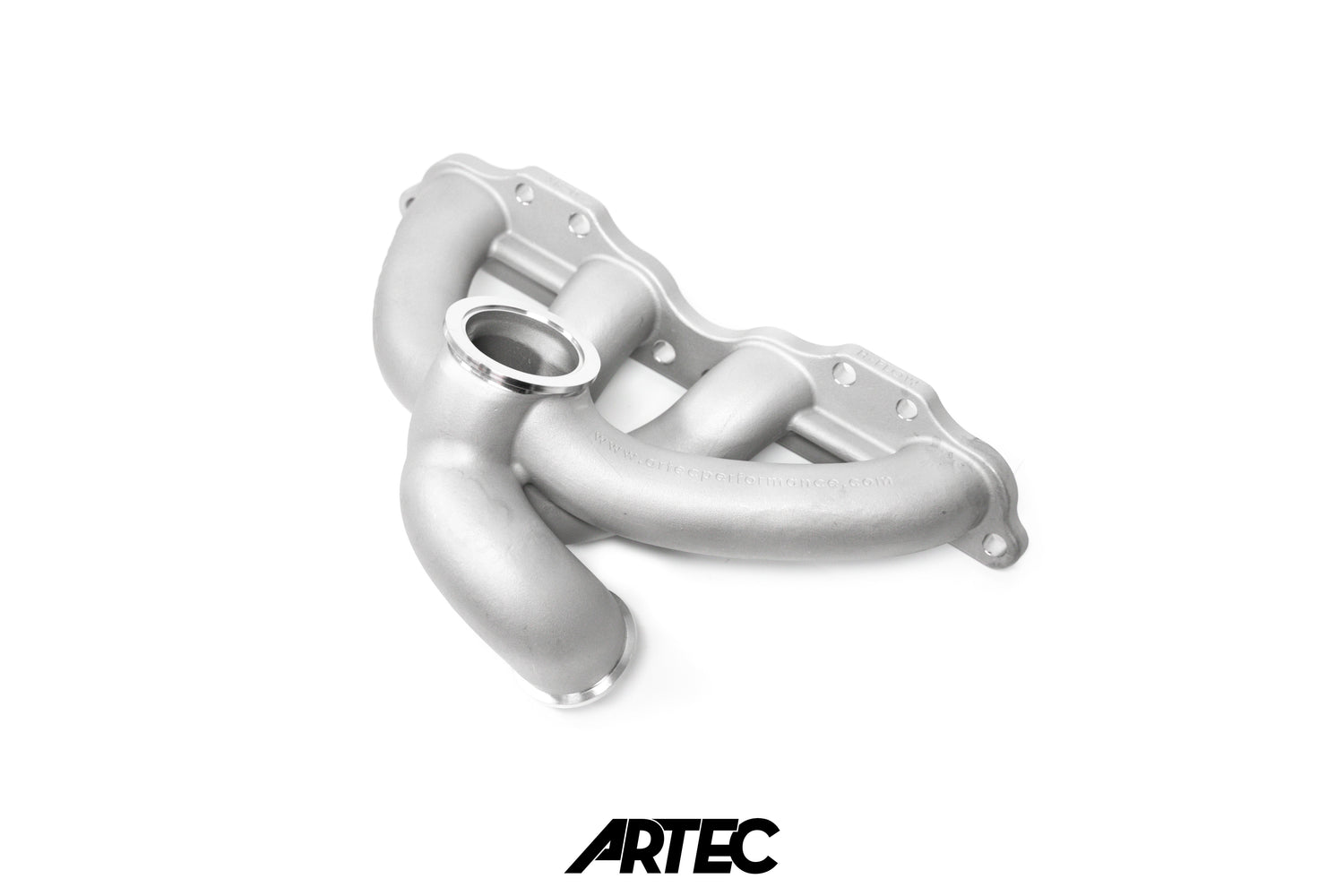

ARTEC Nissan SR20 High Flow V-Band Exhaust Manifold

Product Features:

• High Flow Manifold Series - designed with larger runners and a larger turbine flange compared to our High Response Series
• Developed specifically for:
  • Regions without access to ethanol-blended fuels (such as Japan), where optimised flow efficiency is critical
  • High-power ethanol applications targeting in excess of 600hp
• High Flow 55mm ID turbine flange to suit Garrett, Precision and Turbosmart
• Single 44/45/46mm Wastegate Flange Mount with up to 50mm possible  positioned to allow for easy routing for a plumb back or vent to air layout
• Suits both SR20 DET and VVL heads
• Easy routing for oil and water lines

Engine Compatibility

• Nissan SR20DET
• Nissan SR20DE
• Nissan SR20VET (VVL)
• Nissan SR20VE (VVL)

Turbocharger Compatibility

• The ARTEC High Flow V-Band Ring System allows you to install turbos from all of the big brands without having to chop and change flanges or manifolds!
• Features a High Flow 55mm turbo V-band flange and supports the following turbochargers by using the appropriate locating rings:
• Garrett G25 to G40 (using the ARTEC G40C Turbine Housing)
• Precision 6266 to 6466 & 6870 compact
• Turbosmart 6266 to 6870 compact
• NOTE: Designed to fit Garrett, Precision and Turbosmart turbochargers, however turbochargers from other manufacturers may fit provided they use the same flange diameters and profiles

Wastegate Compatibility

• Features a single 44mm / 45mm / 46mm wastegate flange. Tested and proven at 40+ psi with nitrous, maintaining stable and precise boost control
• NOTE: Designed around Turbosmart 45mm wastegate actuator, however wastegate actuators from other manufacturers may fit provided they use the same flange diameters and profiles

Chassis Compatibility

• Designed to fit standard Nissan Silvia S-Chassis
• Confirmed fitment with factory ABS and power steering:
  • Nissan S13
  • Nissan S14
  • Nissan S15
  • Nissan 180SX
• Please refer to the ARTEC Installation Gallery for possible fitment in other chassis

Package Contents:

• 1x Nissan SR20 High Flow V-Band Exhaust Manifold
• 1x ARTEC 55mm V-Band Locating Ring for Garrett / Turbosmart
• 1x ARTEC 55mm V-Band Locating Ring for Precision Turbo


Specifications:

• Material: SUS347 Stainless Steel
• Weight: 5kg

Notes:

• Designed in Australia with Lifetime Warranty*
