NGK | SKU: NGK-R7434-10

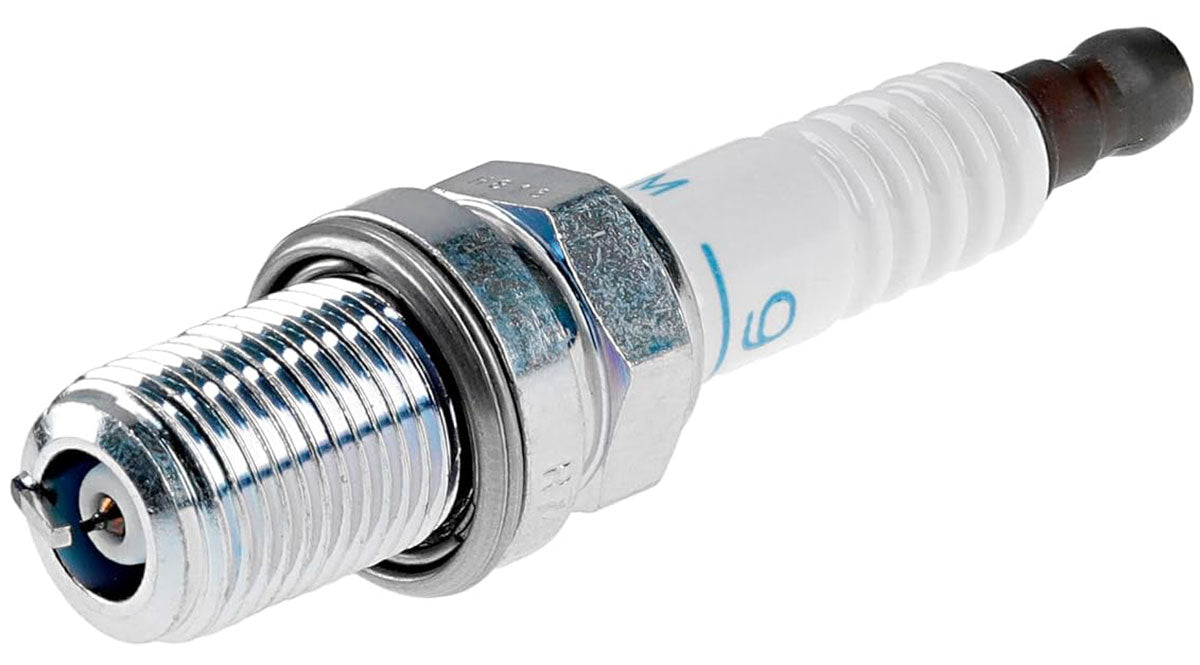

NGK Iridium Racing Spark Plug Heat Range 10 - NGK-R7434-10

Name: NGK Iridium Racing Spark Plug Heat Range 10 - NGK-R7434-10
Brand: NGK
SKU: NGK-R7434-10
Price: 82.0 NZD
Availability: InStock

14mm x 3/4" Reach, 5/8" Hex

$82.00 NZD + GST

Shipping calculated at checkout.

Description

NGK IRIDIUM SPARK PLUG 4894

14mm x 3/4" Reach, 5/8" Hex

Part Number: NGK-R7434-10

NGK Racing Series plugs are engineered to withstand the harshest engine conditions. Fine wire iridium tipped center electrode and platinum tipped ground electrode improve ignitability, increase durability and enhance anti fouling capabilities. Special insulator nose configurations improve throttle response. Corrugated ribs prevent flashover. Pure alumina silicate ceramic insulator, provides superior strength and better heat transfer. Copper core aids in heat removal. Triple seals prevent leakage.

Specifications:

Shell
-Thread Diameter: 14mm
-Thread Pitch: 1.25mm
-Seat Type: Gasket
-Reach: 19mm (3/4")
-Hex Size: 5/8" (16mm)
-Terminal Type: Solid
-Overall Height: ISO
-Gap: .028" (0.7mm)

Center Electrode
-Material: Iridium
-Type: Fine Wire
-Size: 0.6mm
-Projection: Non-Projected

Ground Electrode
-Material: Platinum
-Type: Slant
-Quantity: 1

Specifications
-Resistor: Yes
-Resistor Value: 5k Ohm
-Heat Range: 10
-Torque Specs: Cast Iron: 18-25.3 lb. ft. Aluminum: 18-21.6 lb. ft.
