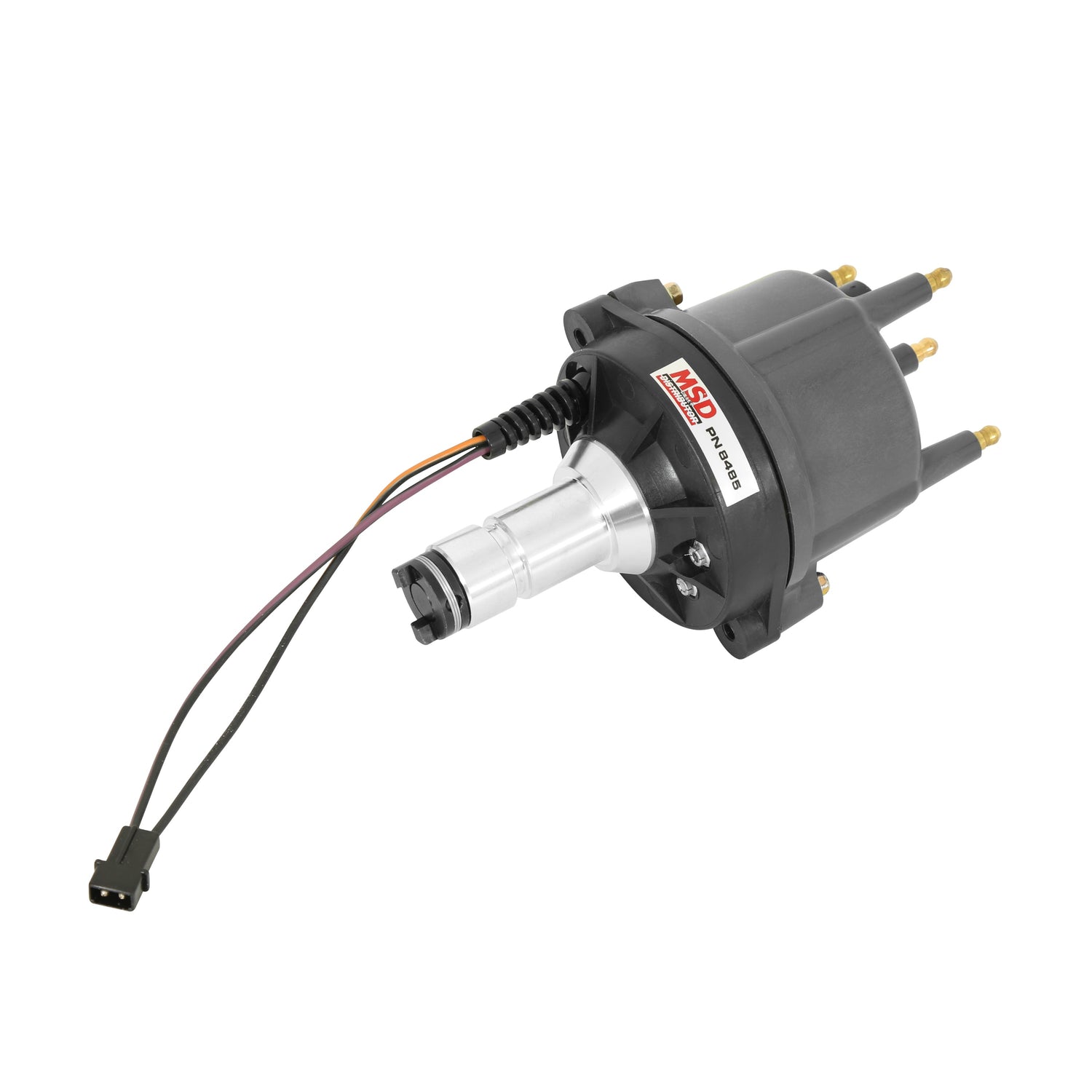

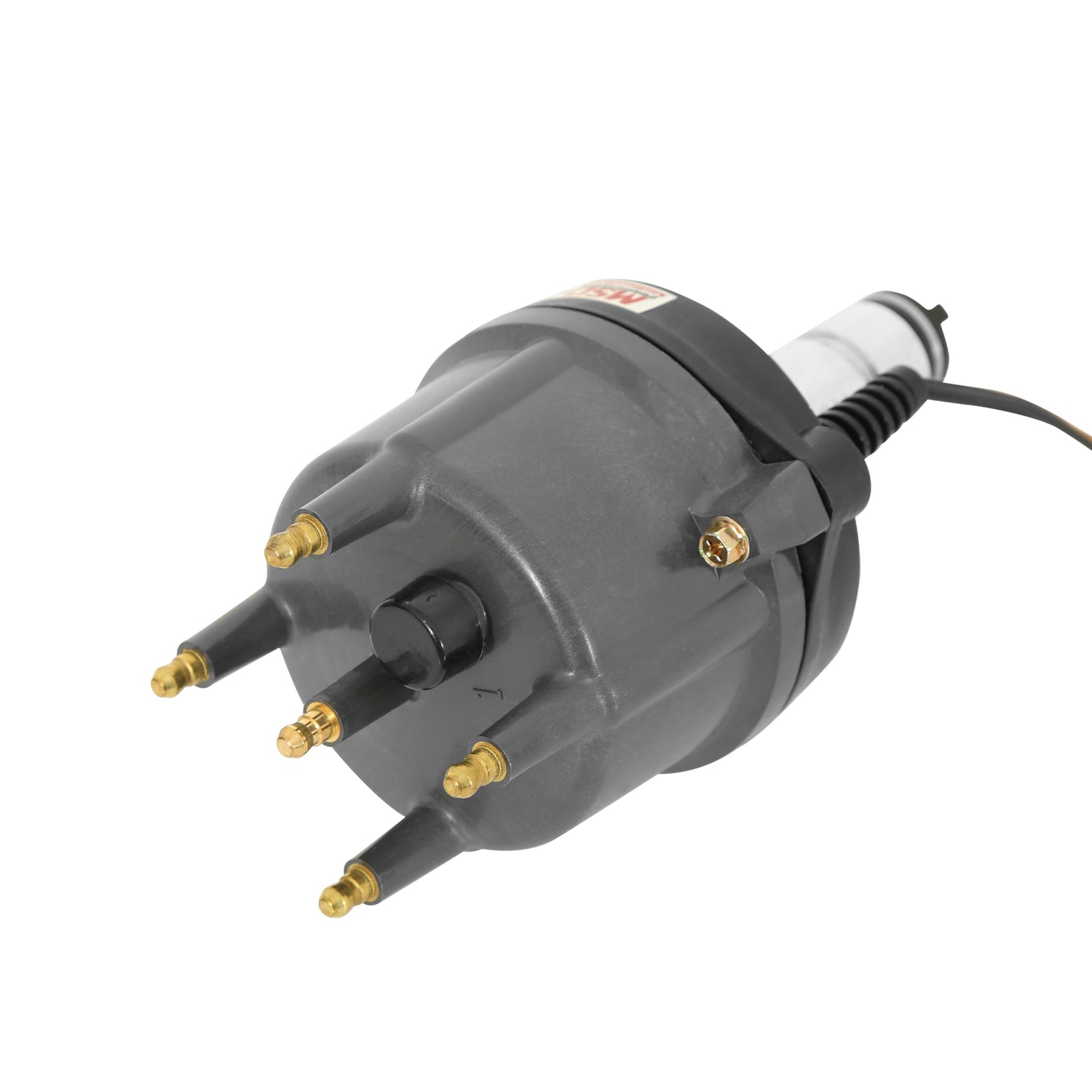

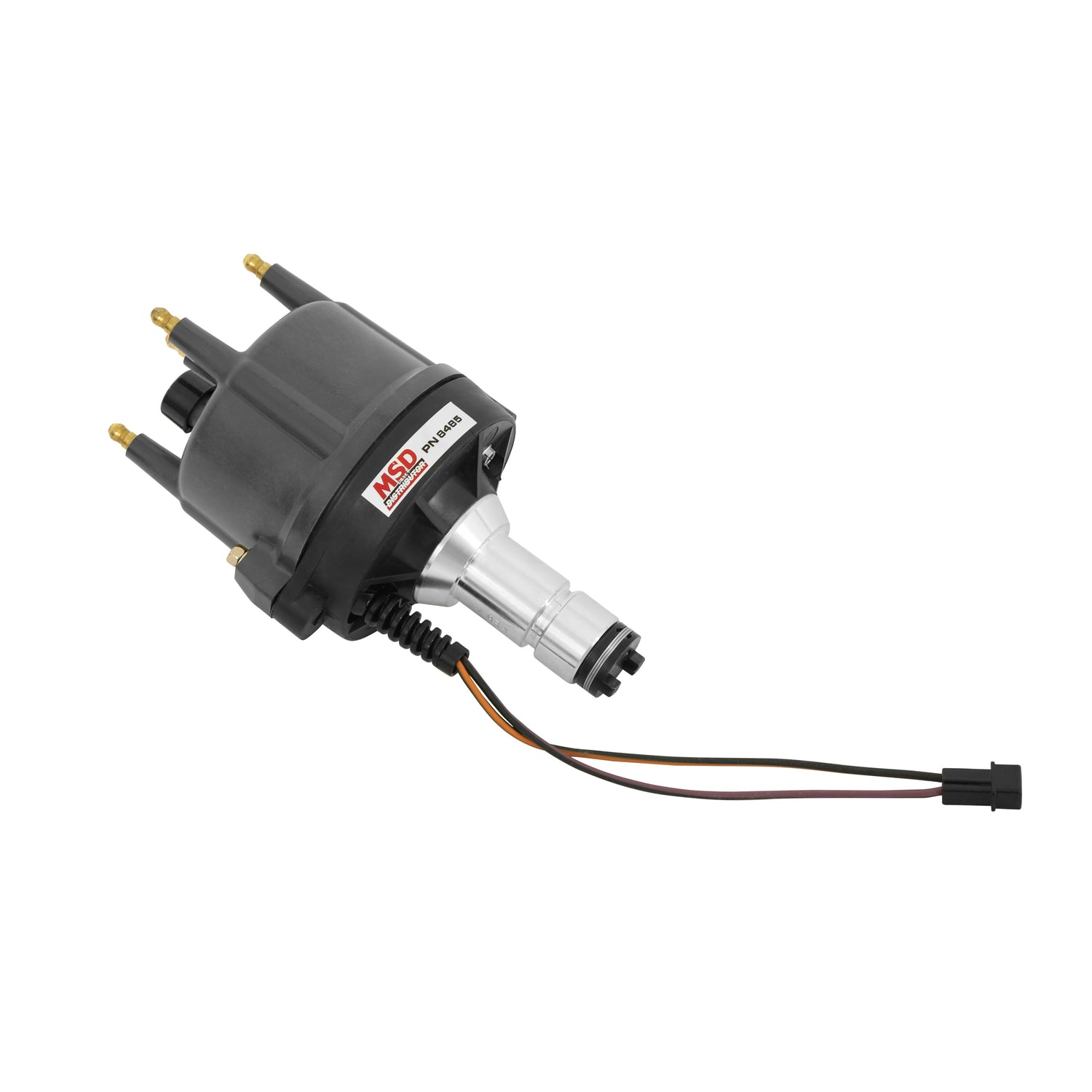

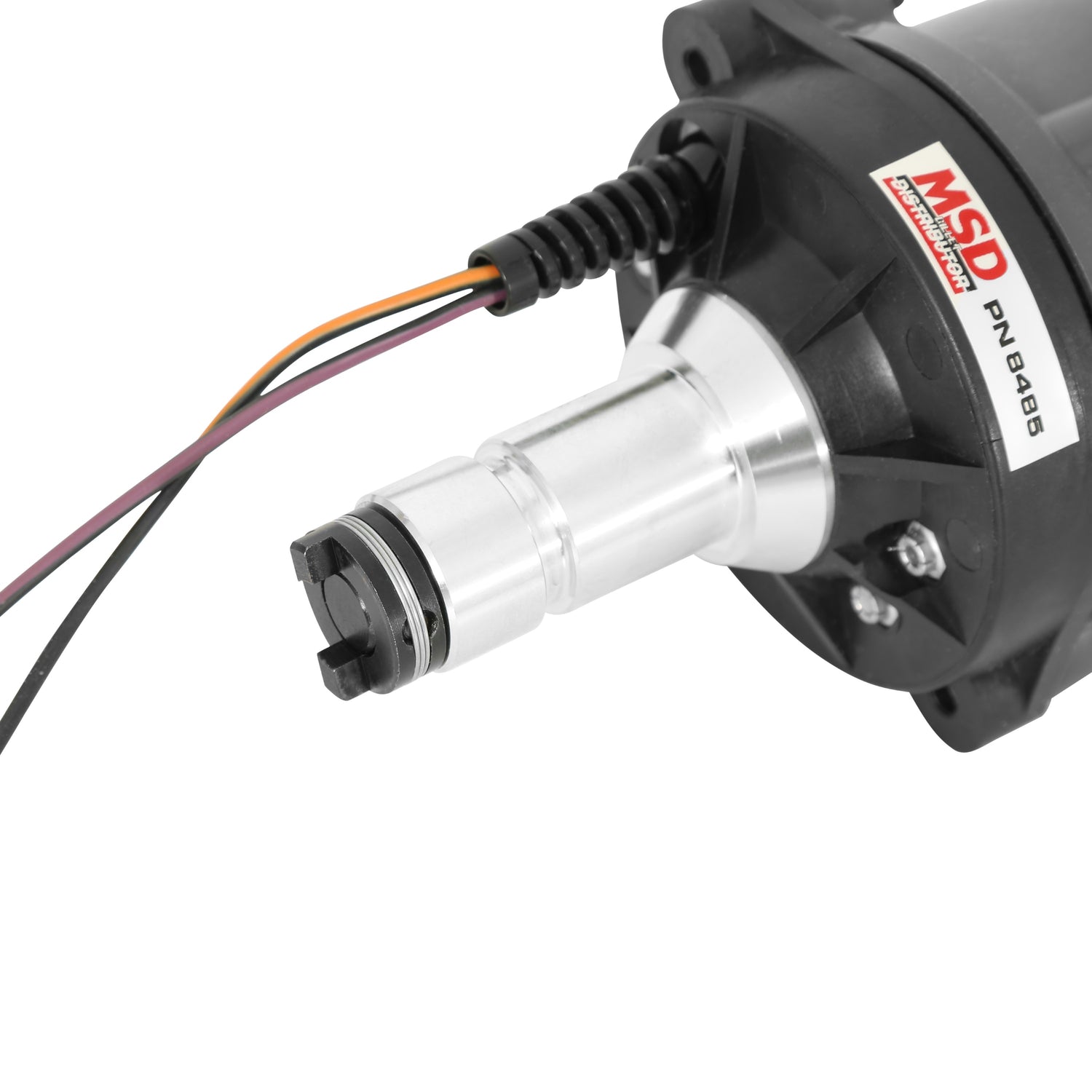

MSD VW Billet Distributor - 8485

VW Type I (air cooled) Billet distributor requires an MSD 6 or 7-series ignition.

Part Number: 8485

Using technology gained from building distributors for off-road and NASCAR racers, MSD offers this Billet Distributor for the popular Type 1 engine. A maintenance-free magnetic pickup is responsible for triggering the MSD Ignition. This pickup is accurate to within 1° at any rpm so you won't have to worry about points float or "burbles" at top end speeds. The pickup is triggered by a precision reluctor that is attached to a hardened steel shaft. For increased stability, a sealed ball bearing is used to guide the shaft. Since every engine application is different, the MSD Billet distributor features an easy-to-adjust mechanical advance assembly. By simply changing the advance springs and stop bushing you can tune in 24 different advance curves.

Features and Benefits

• Easy-to-adjust mechanical advance with supplied springs and stop bushings
• CNC machined billet aluminum housing and Dupont Rynite base
• Advance plate and weights are fine blanked from chrome moly steel and QPQ coated for friction reduction
• Maintenance-free magnetic pickup and precision reluctor create stable trigger signals throughout the rpm range
• No CARB Exemption Order Number
• Advance weight pins are staked and tig welded to the plate•  Nylon pads ensure smooth operation of the advance weights
• Must be used with an MSD Ignition Control
• Mechanical advance assembly can be locked out for crank trigger systems

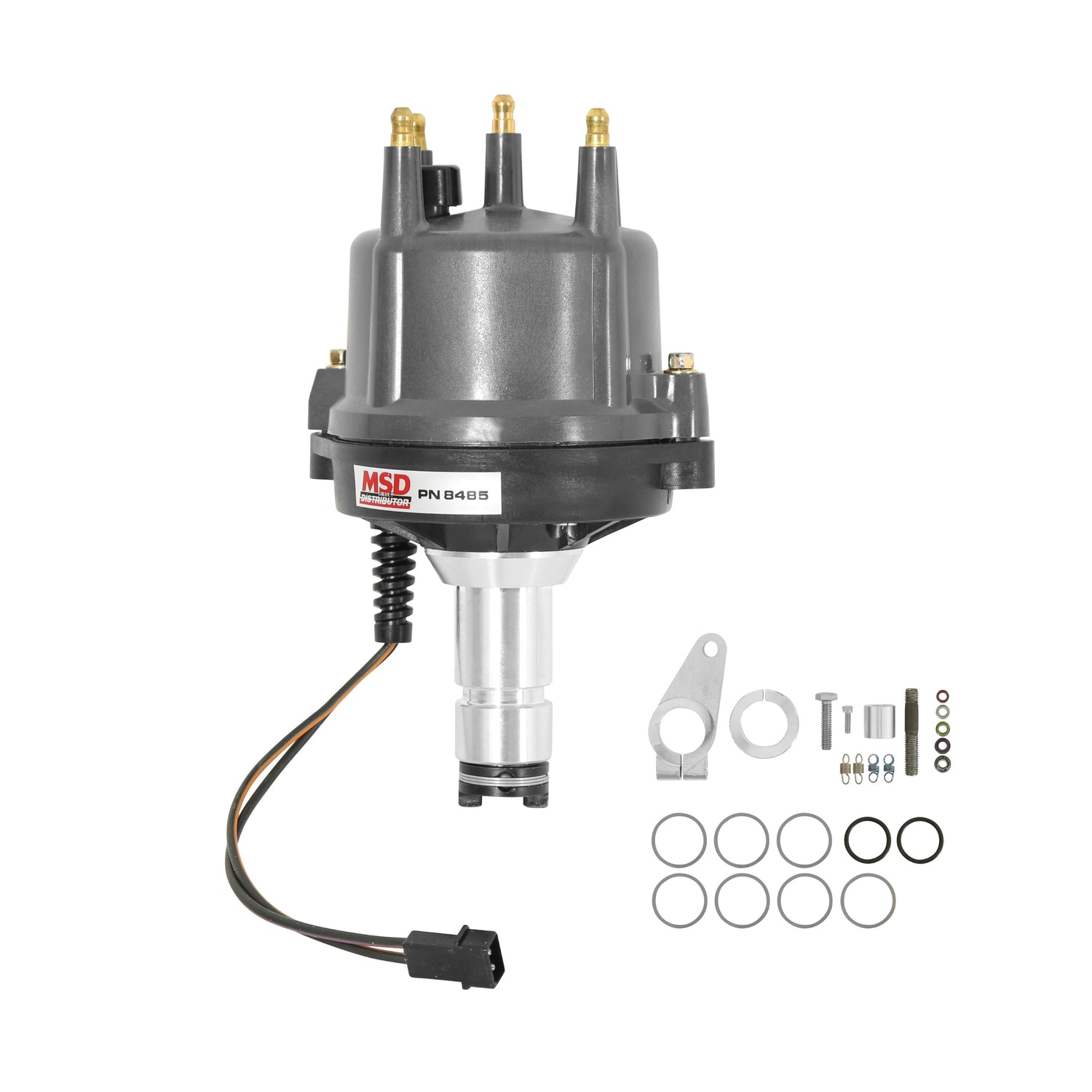

• Supplied with bolt down distributor cap and rotor
• Designed as a performance upgrade for VW Type I air cooled engines
• Polished steel shaft is QPQ coated and guided by a sealed ball bearing
