MSD | SKU:
5520

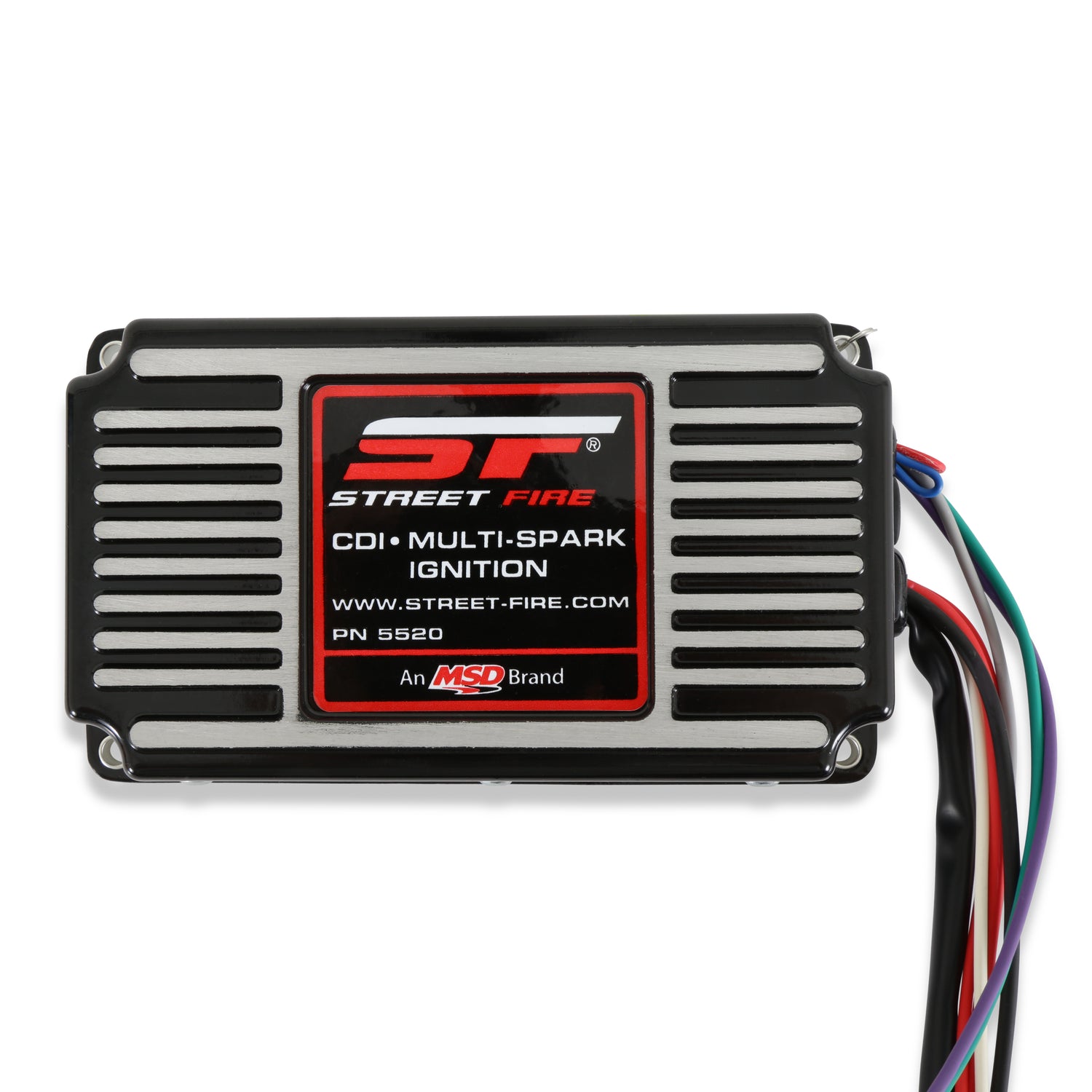

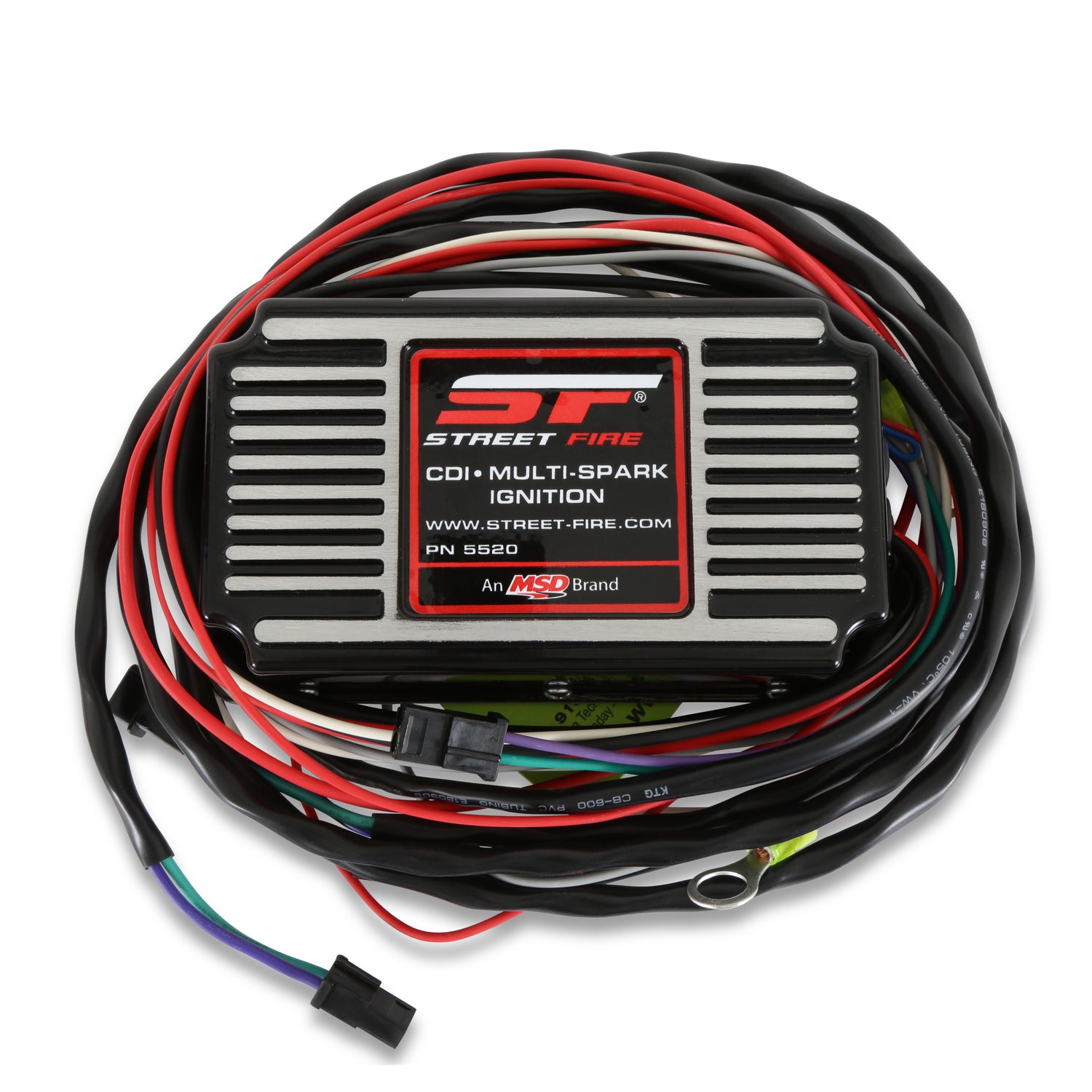

MSD Street Fire Ignition Control - 5520
Full featured ignition from MSD that delivers quality at a budget price.
Regular price
$466.40 NZD
+ GST
Unit price
/
Unavailable
Shipping calculated at checkout.
MSD Street Fire Ignition Control - 5520 is not in stock at Fast Lane Spares and will ship direct from supplier.
⚠ Special Order Item — ships direct from supplier. No returns, exchanges, or cancellations once processed. Please allow 7–20 days shipping.
Stock Status:
Description
Description
Full featured ignition from MSD that delivers quality at a budget price.
Part Number: 5520
The Street Fire Capacitve Discharge Ignition is perfect for performance enthusiasts with a tight budget. The ignition offers capacitive discharge technology and will fire a series of multiple sparks that last for 20° of crankshaft rotation when the engine is running at lower rpm. This ensures combustion of the air/fuel mixture and produces great throttle response and smooth idle. _x000D_ _x000D_ The CDI is built around a durable cast aluminum housing and easily connects to points, amplifiers and magnetic pickup distributors. An adjustable rev limiter will protect the engine in the event of driveline failure. This rpm is adjustable with rotary dials in 100 rpm increments. If you have a 4, 6 or 8-cylinder engine, the Street Fire CDI will connect and fire it up! _x000D_ Covered by CARB E.O. # D-40-43
Features and Benefits
• Adjustable rev limiter for overrev protection
• .7 Amp per 1,000 RPM
CARB E.O. # D-40-43
Part Number: 5520
The Street Fire Capacitve Discharge Ignition is perfect for performance enthusiasts with a tight budget. The ignition offers capacitive discharge technology and will fire a series of multiple sparks that last for 20° of crankshaft rotation when the engine is running at lower rpm. This ensures combustion of the air/fuel mixture and produces great throttle response and smooth idle. _x000D_ _x000D_ The CDI is built around a durable cast aluminum housing and easily connects to points, amplifiers and magnetic pickup distributors. An adjustable rev limiter will protect the engine in the event of driveline failure. This rpm is adjustable with rotary dials in 100 rpm increments. If you have a 4, 6 or 8-cylinder engine, the Street Fire CDI will connect and fire it up! _x000D_ Covered by CARB E.O. # D-40-43
Features and Benefits
• Adjustable rev limiter for overrev protection
• .7 Amp per 1,000 RPM
CARB E.O. # D-40-43
Specifications
Specifications
-
Specifications
Brand MSD Category Ignition Connector Gender Male Female Connector Quantity 3 Current Draw 1000 Emission Code 1 Grade Type Performance Height 2.1 Ignition Type Performance Length 7.5 Maximum RPM 9,900 Mount Type Surface Mount Primary Voltage 435 Product Type Ignition Box Secondary Voltage 43,000 Spark Energy (mJ per spark) 95 Sub Category Control Modules Terminal Gender Male Female Terminal Quantity 12 Voltage Required 9-18 Warning California Proposition 65 Width 5.6 -
