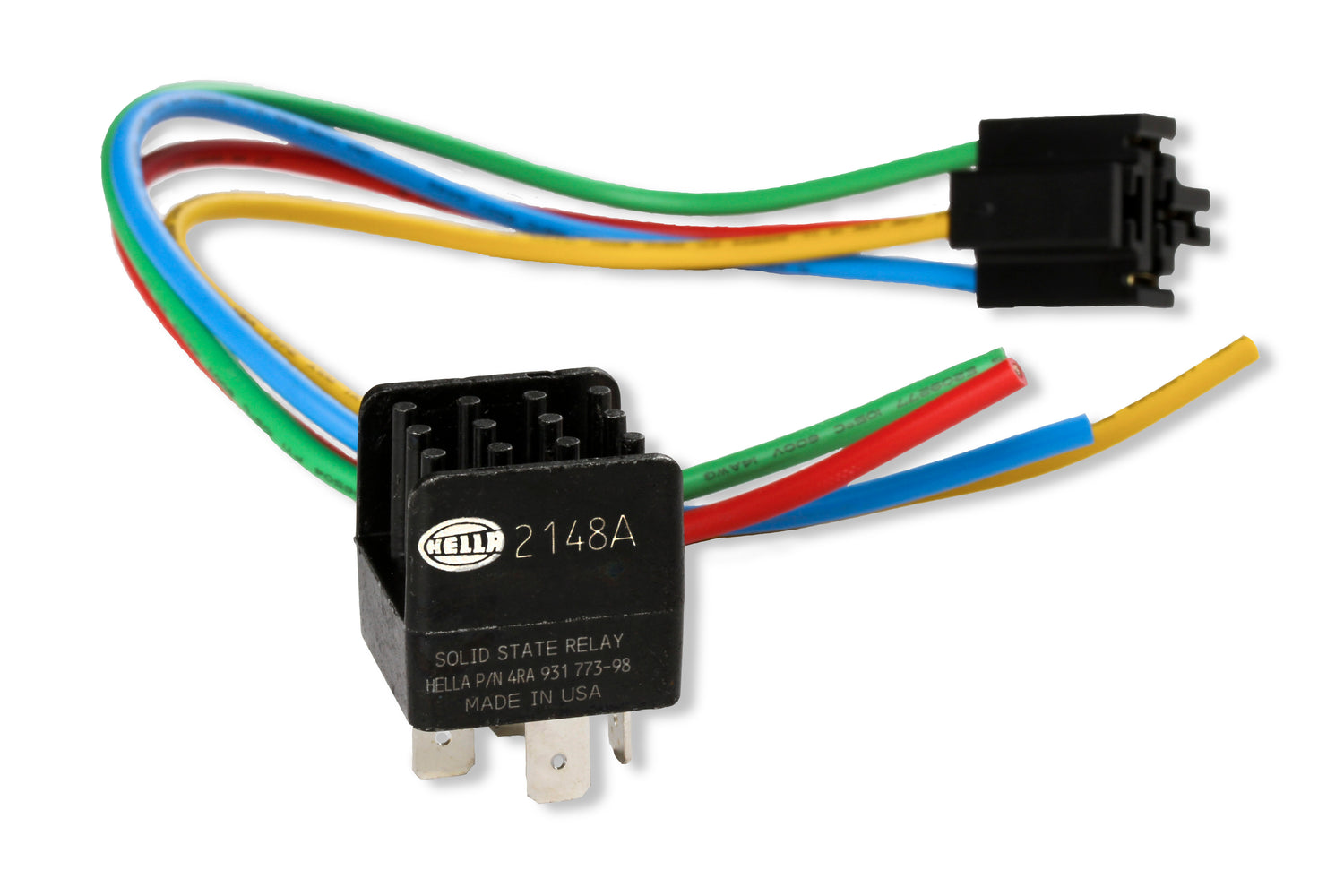

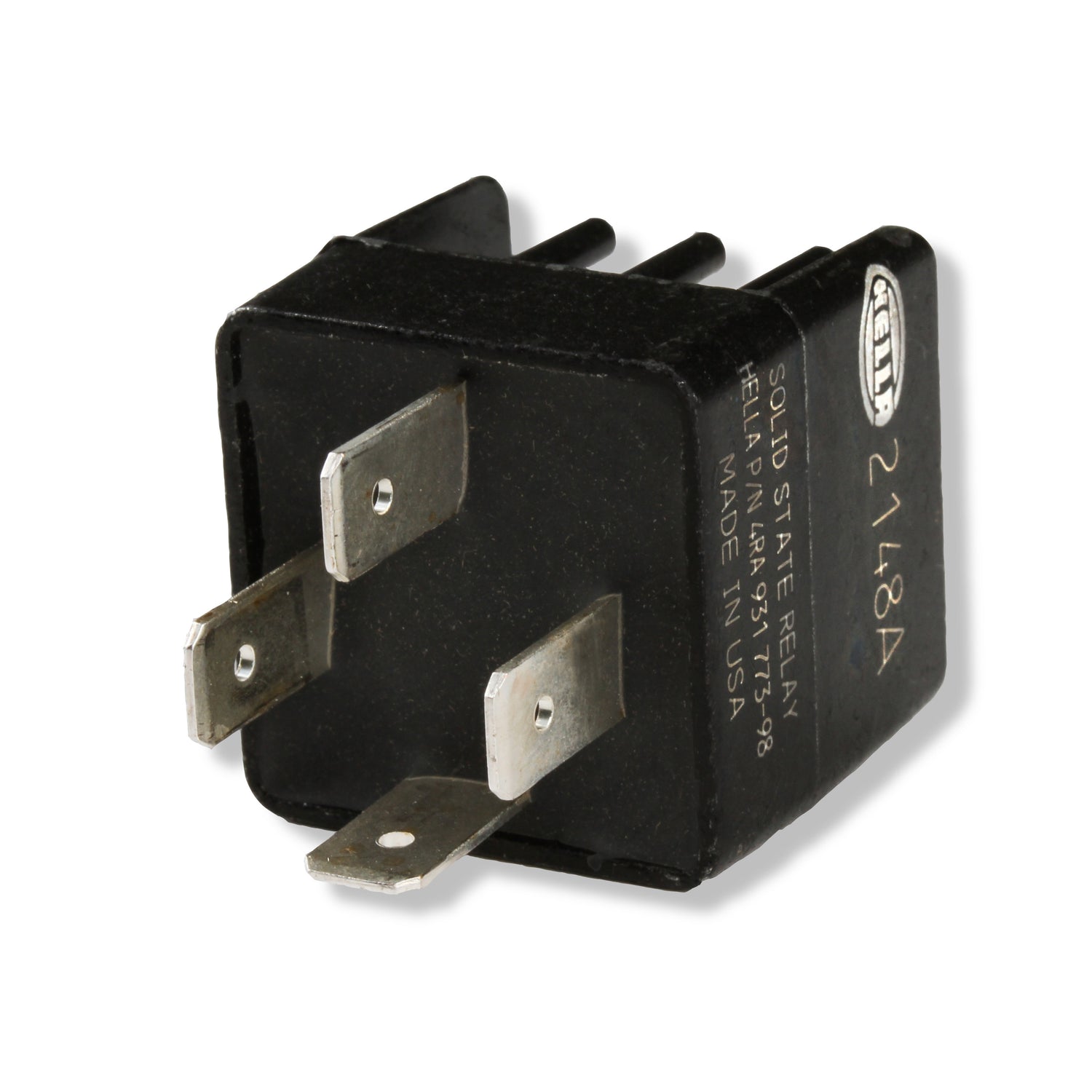

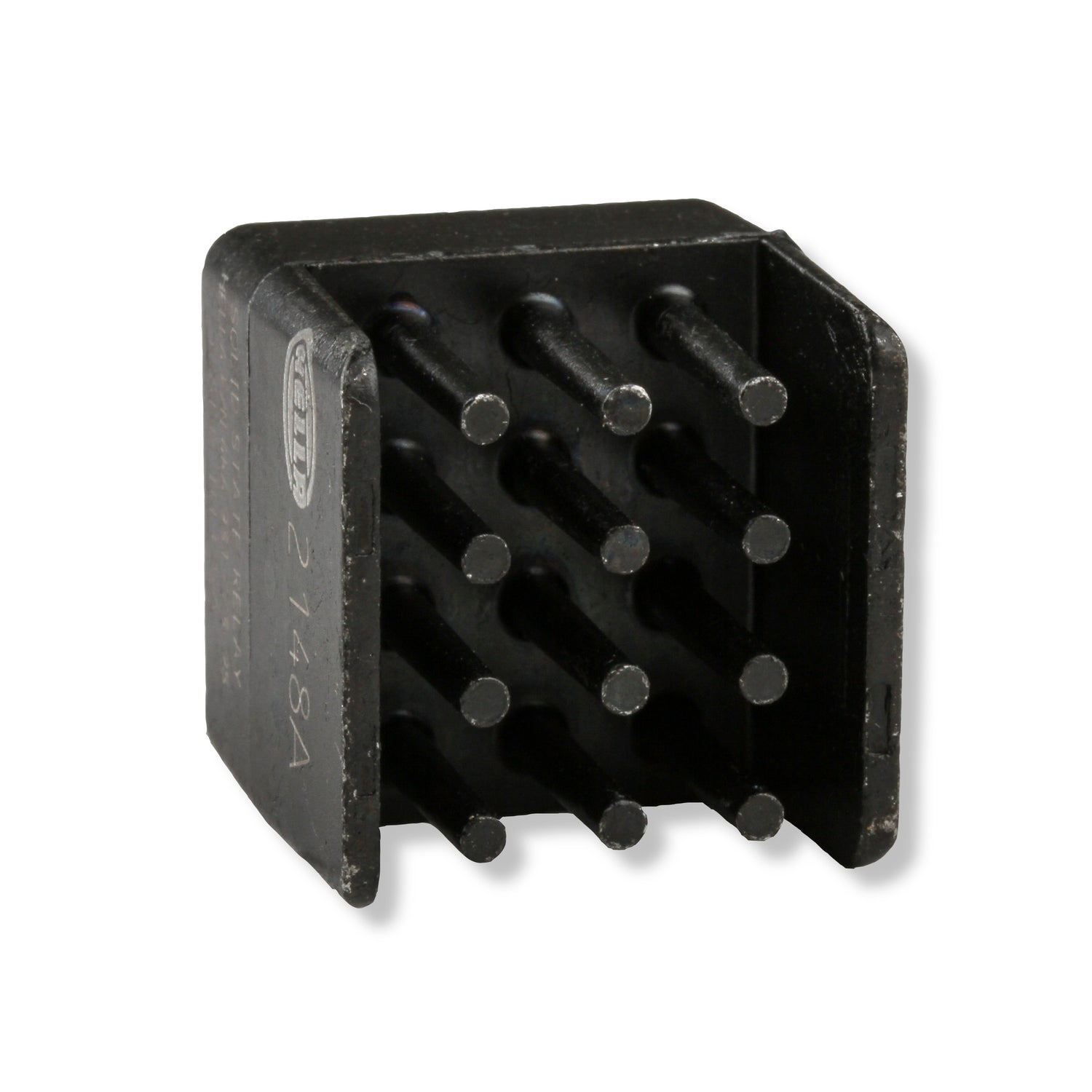

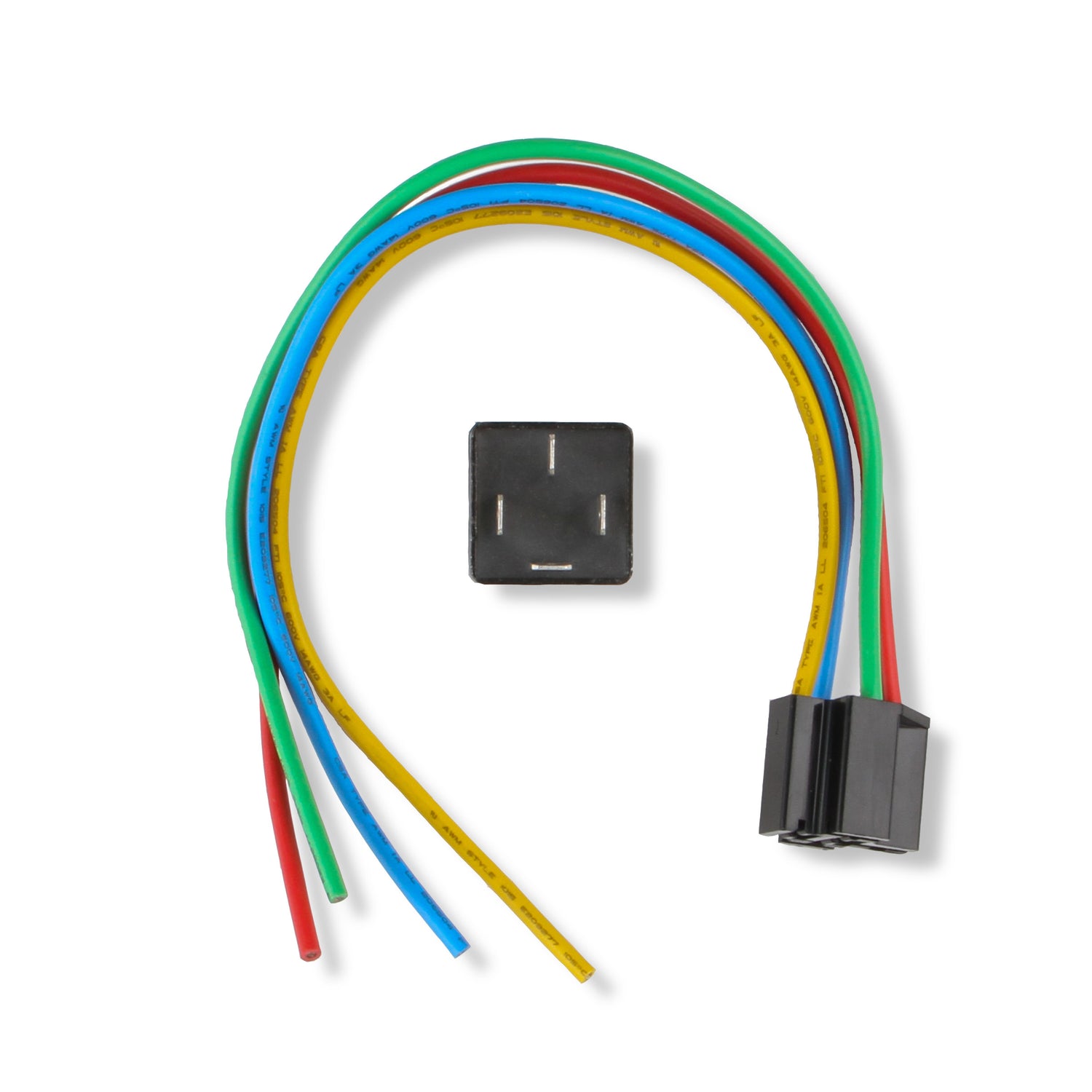

MSD Solid State N/O Relay w/Socket Harness - 89612
The SPST Normally Open Relay is rated at 20 amps continuous, supplied with Socket Harness.
Regular price
$136.00 NZD
+ GST
Unit price
/
Unavailable
Shipping calculated at checkout.
MSD Solid State N/O Relay w/Socket Harness - 89612
is not in stock at Fast Lane Spares and will ship direct from supplier.
Please contact us prior to purchasing if you would like an accurate ETA.
⚠ Special Order Item — ships direct from supplier. No returns, exchanges, or cancellations once processed. Please allow 7–20 days shipping.
Stock Status:
Description
Description
The SPST Normally Open Relay is rated at 20 amps continuous, supplied with Socket Harness.
Part Number: 89612
The benefit of a solid-state relay is that it has a faster activation circuit and no moving parts that wear, which increases the life of the relay. The absence of moving parts makes the solid-state relay less sensitive to mechanical shock, vibration and moisture. MSD's Solid-State Relay w/harness are ideal for use on electric fuel pumps, water pumps, and cooling fans. The high-power controlled circuit handles 30 amps momentary and 20 amps for continuous use @ 12VDC and is energized by the low-power activation circuit. The pigtail harness has 11" long leads w/ heavy-duty 14-gauge wire.
Features and Benefits
• Continuous Load - 20Amp
• Max Coil Voltage 16-Volts

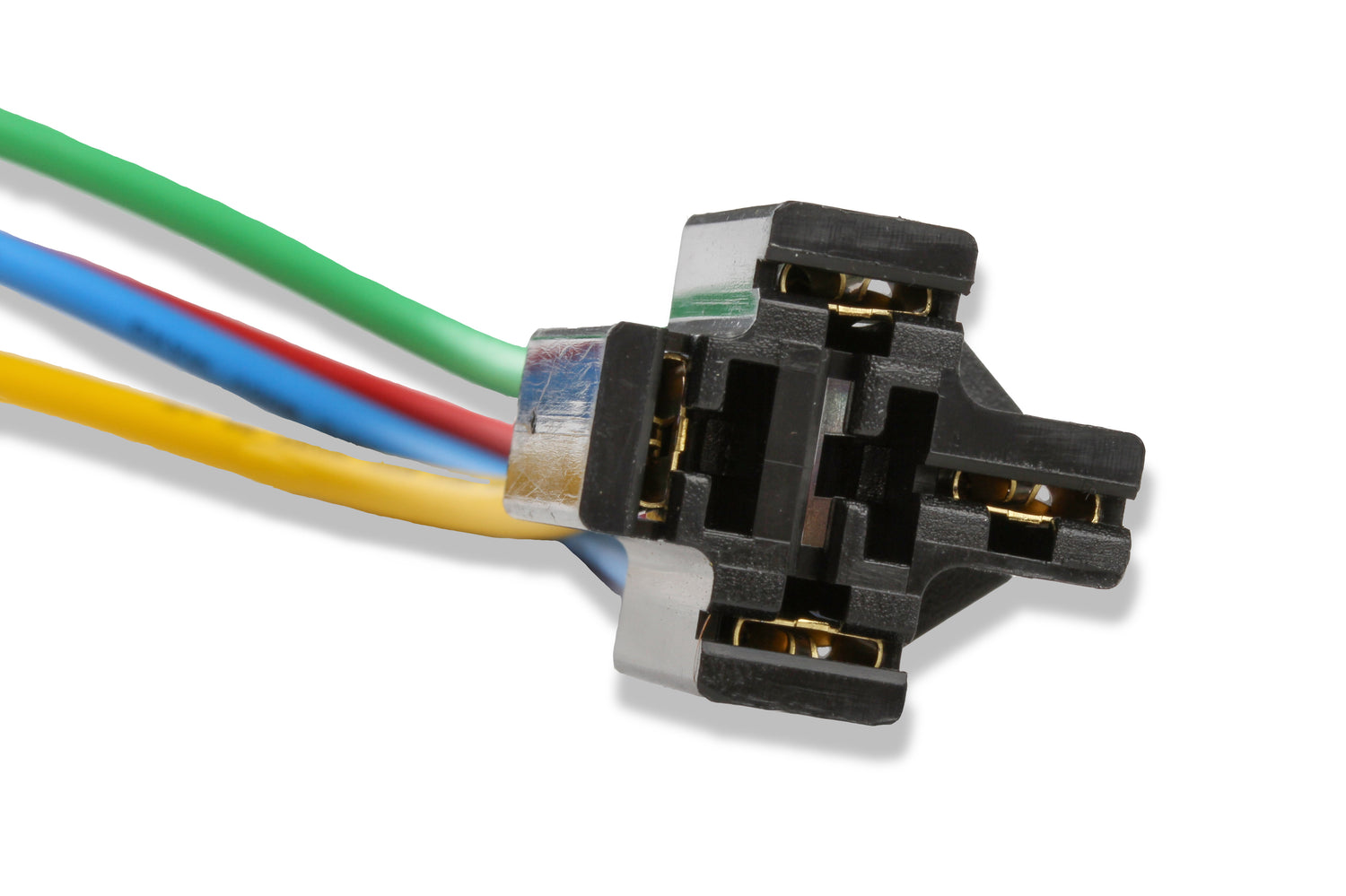

• Pigtail harness 14 AWG wires, 11” Long
• Max Inrush Load - Overload Protected at 80A
• Nominal Voltage 12-Volts
• SPST Normally Open
• Mini Solid State Relay
Part Number: 89612
The benefit of a solid-state relay is that it has a faster activation circuit and no moving parts that wear, which increases the life of the relay. The absence of moving parts makes the solid-state relay less sensitive to mechanical shock, vibration and moisture. MSD's Solid-State Relay w/harness are ideal for use on electric fuel pumps, water pumps, and cooling fans. The high-power controlled circuit handles 30 amps momentary and 20 amps for continuous use @ 12VDC and is energized by the low-power activation circuit. The pigtail harness has 11" long leads w/ heavy-duty 14-gauge wire.
Features and Benefits
• Continuous Load - 20Amp
• Max Coil Voltage 16-Volts
• Pigtail harness 14 AWG wires, 11” Long
• Max Inrush Load - Overload Protected at 80A
• Nominal Voltage 12-Volts
• SPST Normally Open
• Mini Solid State Relay
Specifications
Specifications
-
Specifications
Brand MSD Category Electrical, Lighting and Body Emission Code 5 part type Multi-Purpose Relay Product Type Relays Sub Category Relays Warning California Proposition 65 Warranty Manufacturer's Limited 1 Year Warranty -
