MSD Single Channel Digital Ignition Tester - 8998

Our MSD Ignition tester makes short order of testing your MSD unit including all rev limits and events.

Part Number: 8998

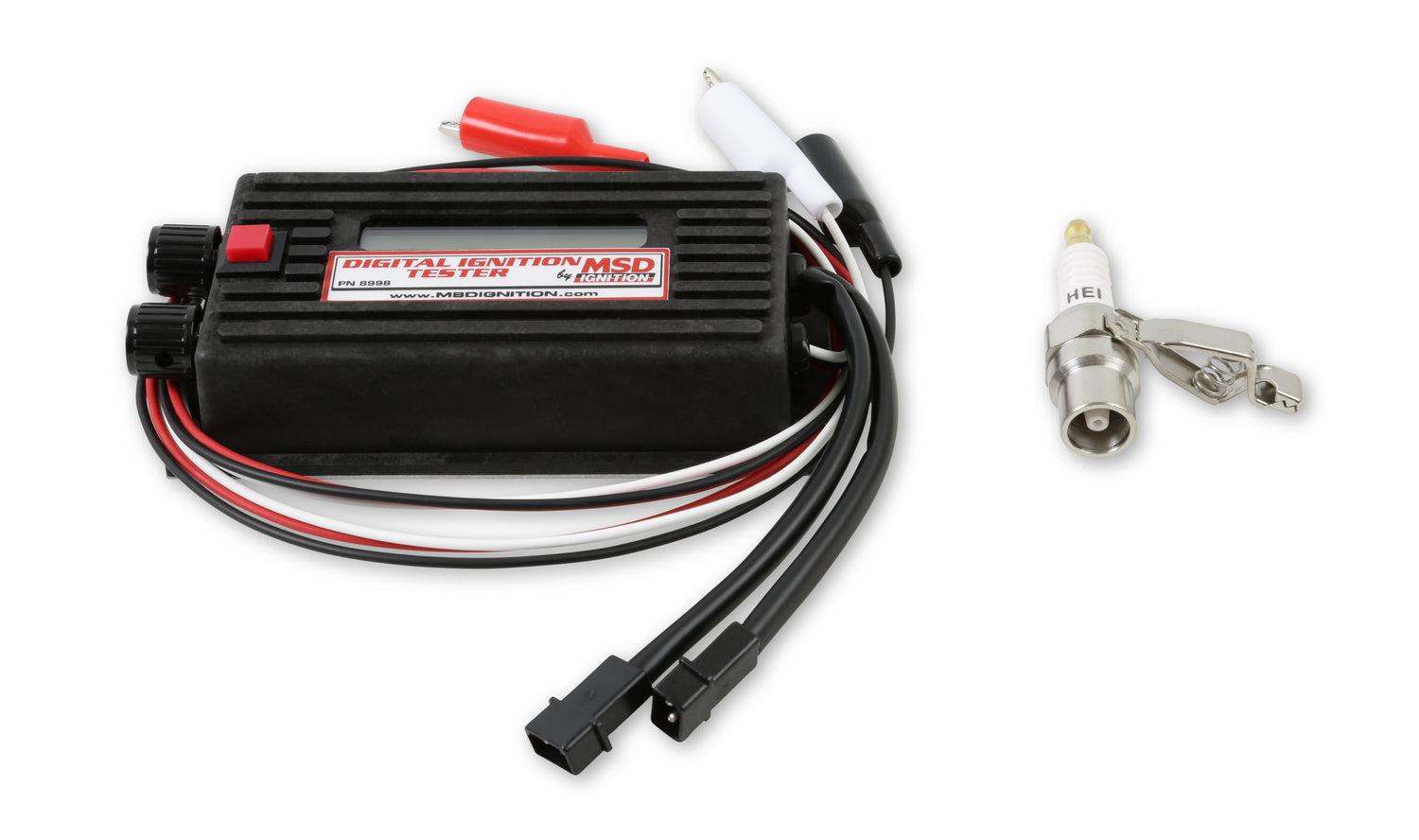

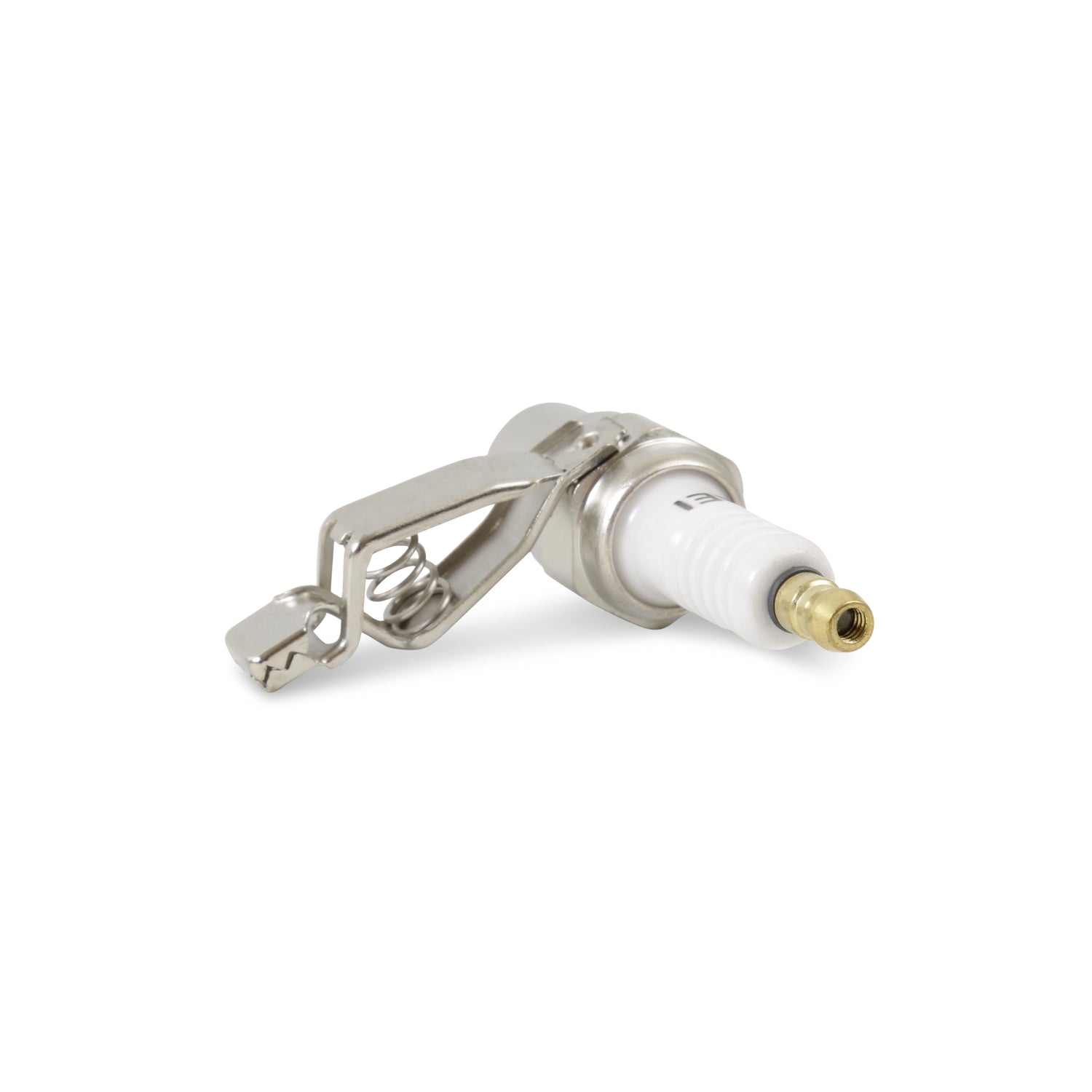

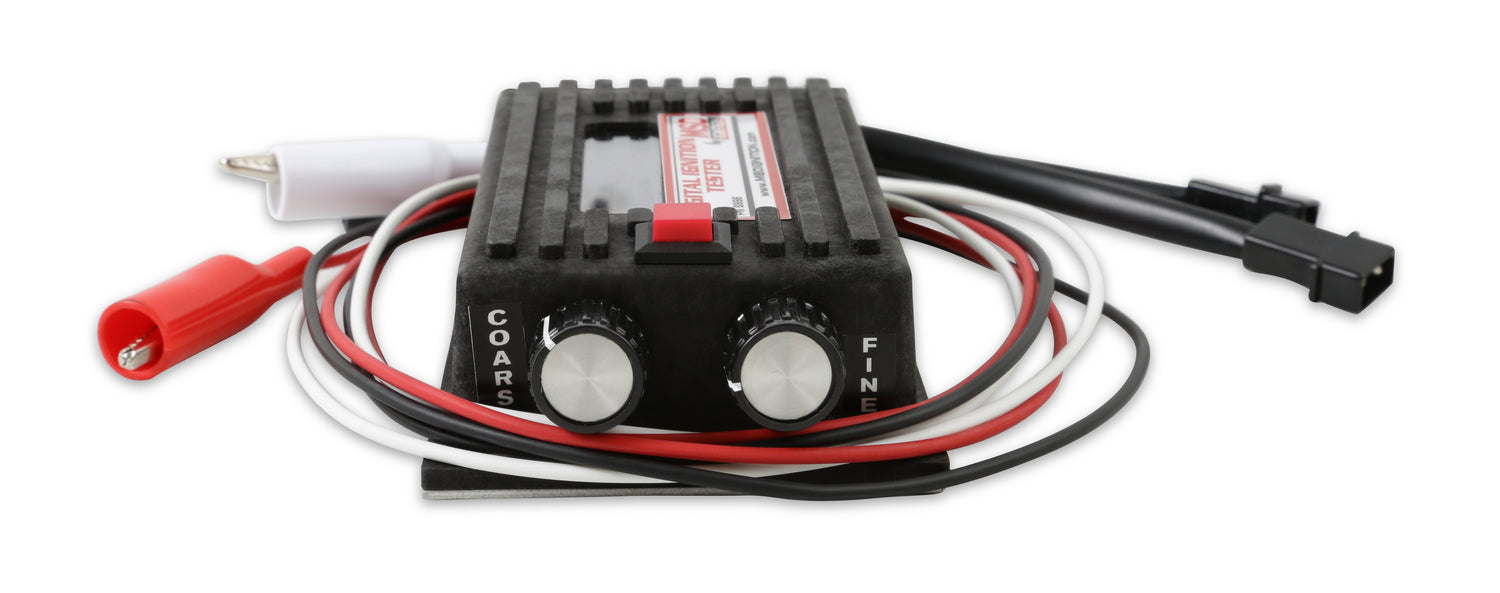

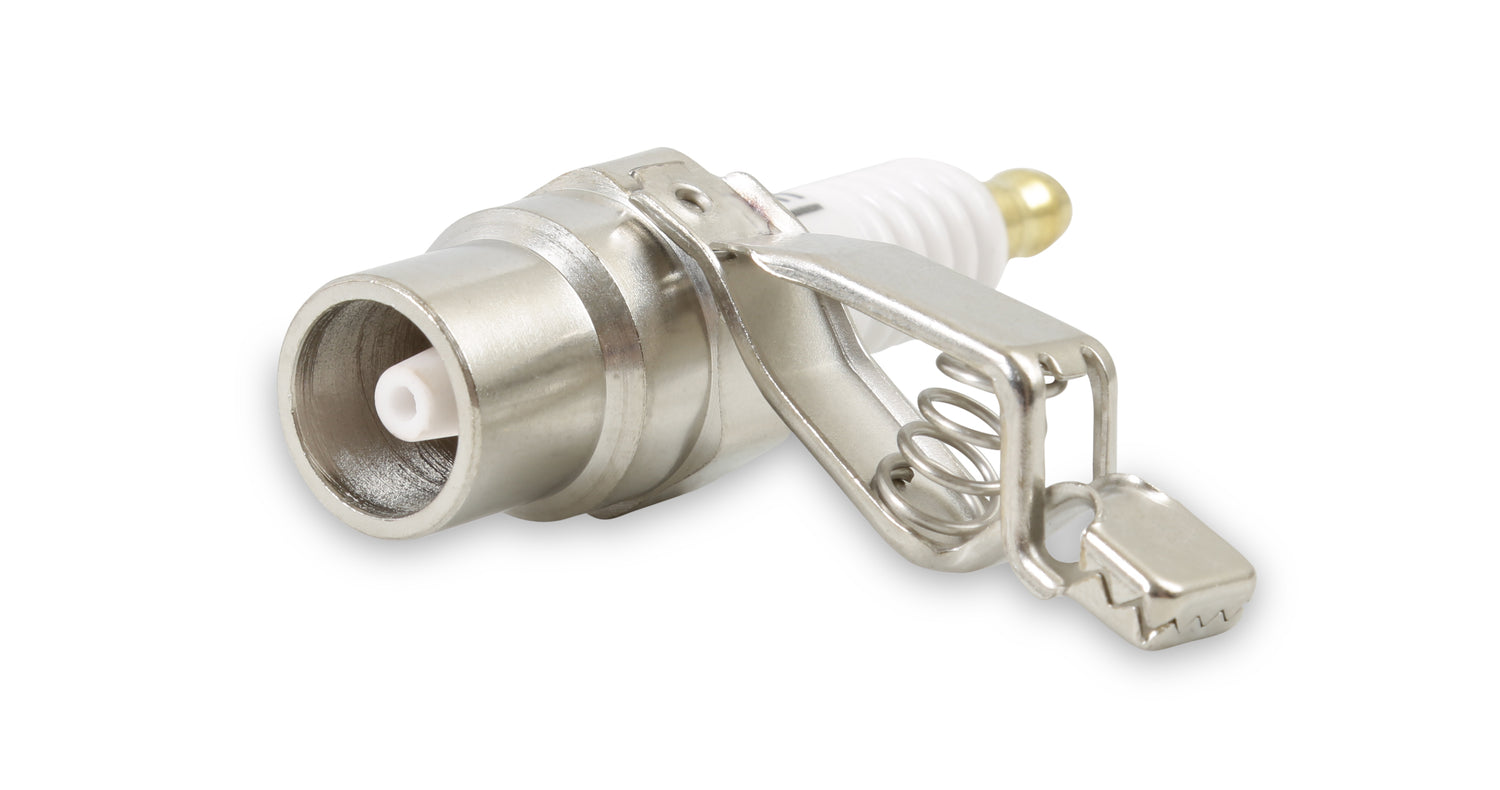

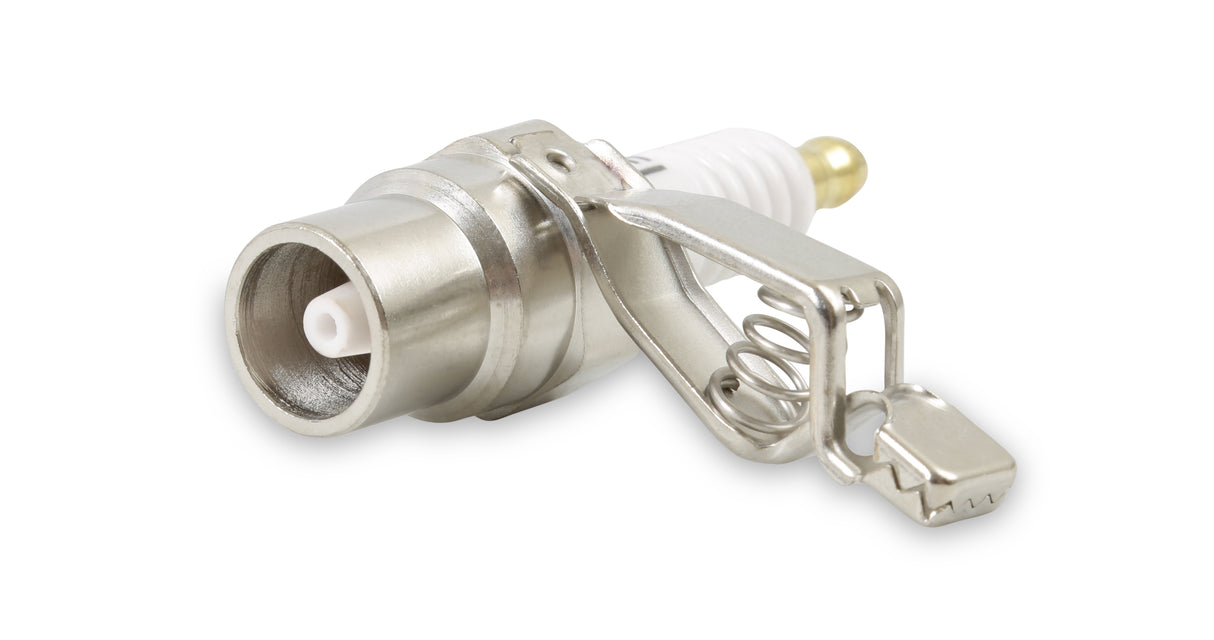

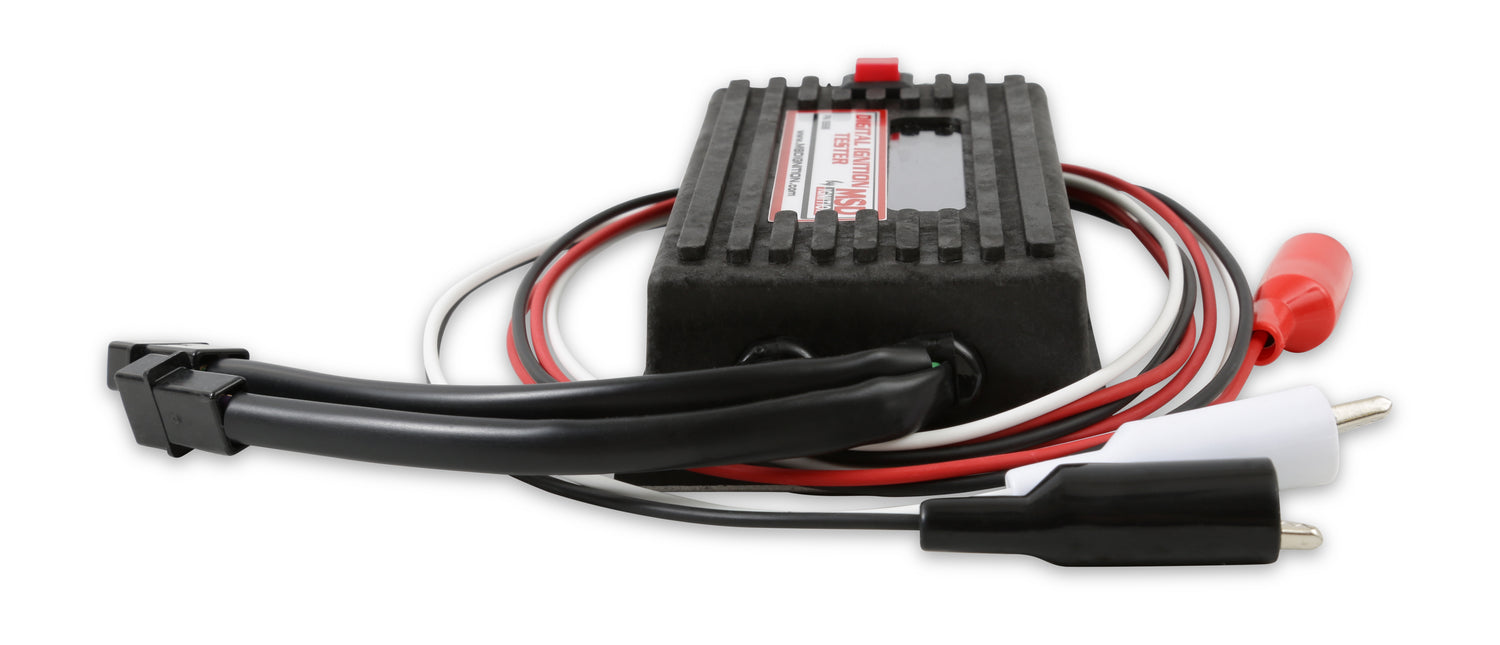

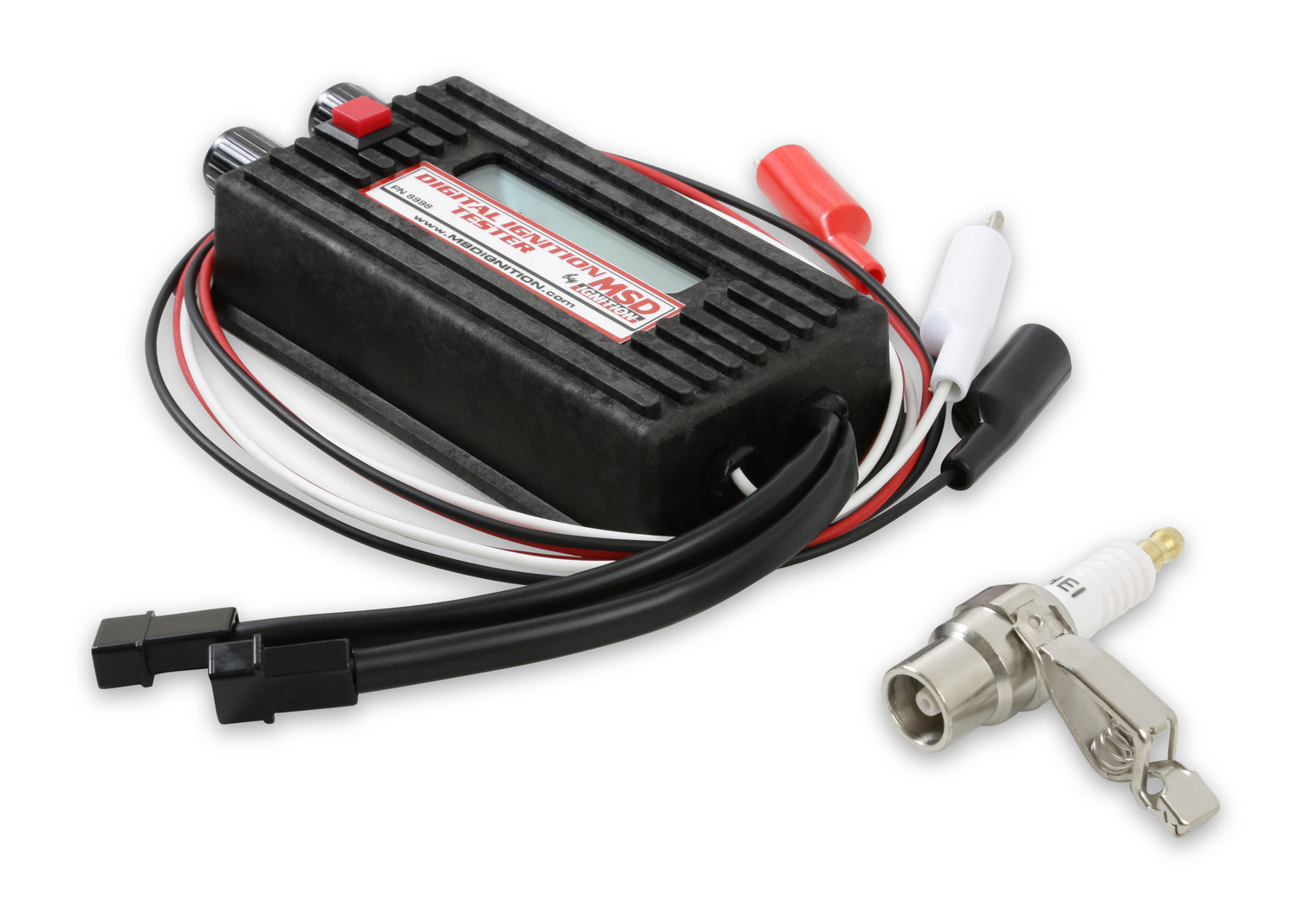

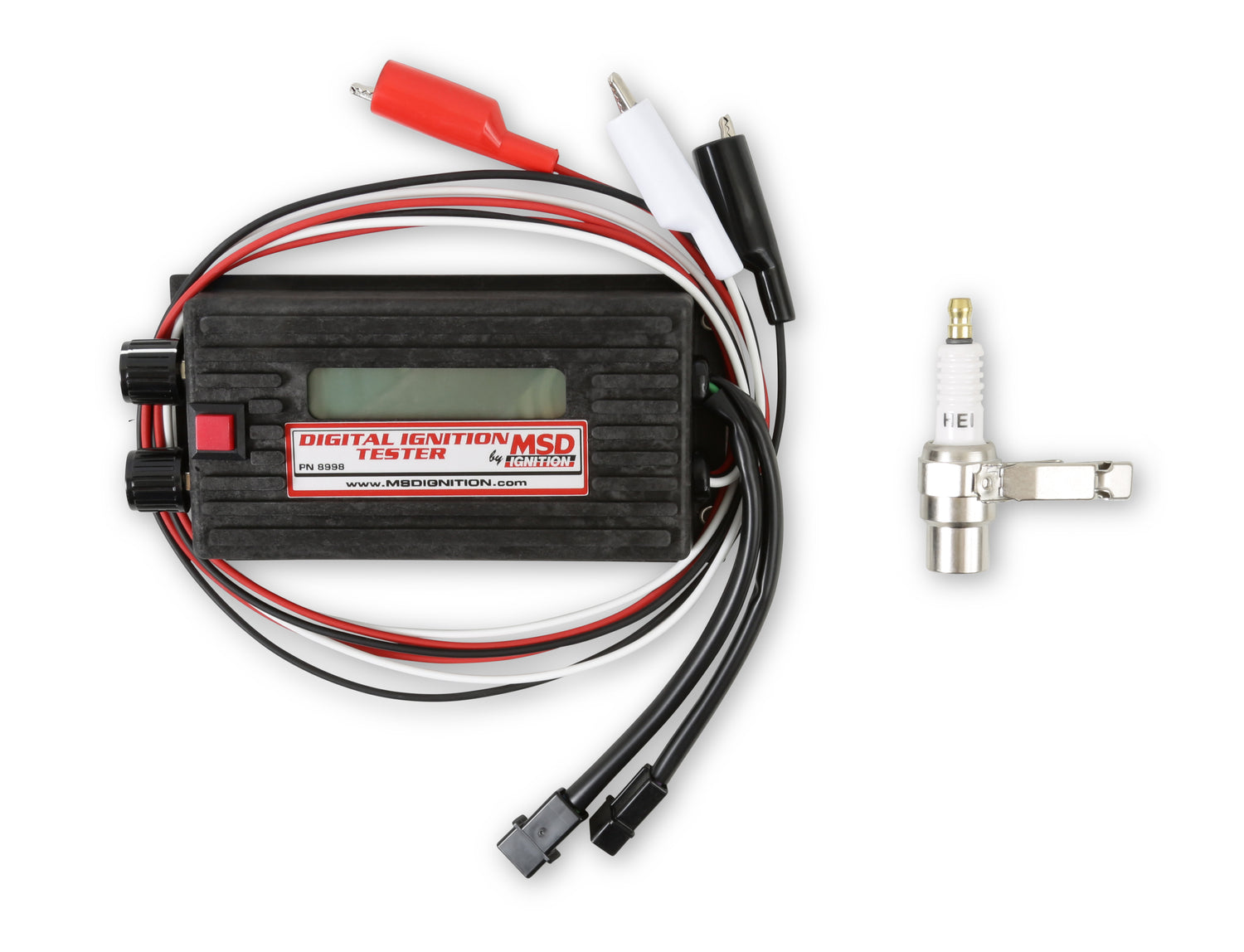

The Tester produces a simulated trigger signal that fires the ignition just as if the engine was running. A special, load-pro­ducing clip-on spark plug is included to connect to the coil wire. If the spark is unable to jump the gap of the tester, there is an ignition problem and you can track it down. The Tester has an LCD display that clearly shows the simulated rpm. This also allows you to test the accuracy of any rpm limits, rpm-activated switches, shift light operation and your tachometer. The Tester operates on 4, 6 or 8-cylinder engines and will simulate up to 16,000 rpm. For racers with our Digital Programmable 7 Ignition Controls that are using a non-magnetic pick-up as sync signal for Individual Cylinder Management, the Tester has a circuit to check its operation too. This Tester will check the operation of all of MSD's single-channel CD Ignition Controls. Once the ignition tests good, you can continue troubleshooting and find the culprit.

Features and Benefits

• Hand held tester generates a trigger signal to check the operation of MSD single channel Ignitions and the coil (6, 7, 8 and 10 Series Ignition Controls)
• Triggers through breaker points, amplifier and magnetic pickup trigger inputs from the MSD Ignition
• LCD display shows the simulated RPM and can be used to confirm the operation of rev limits, rpm activated switches, shift lights and tachometers
• Can be used on 4, 6 and 8-cylinder engines
• Additional circuit will check the operation of cam sync signals
