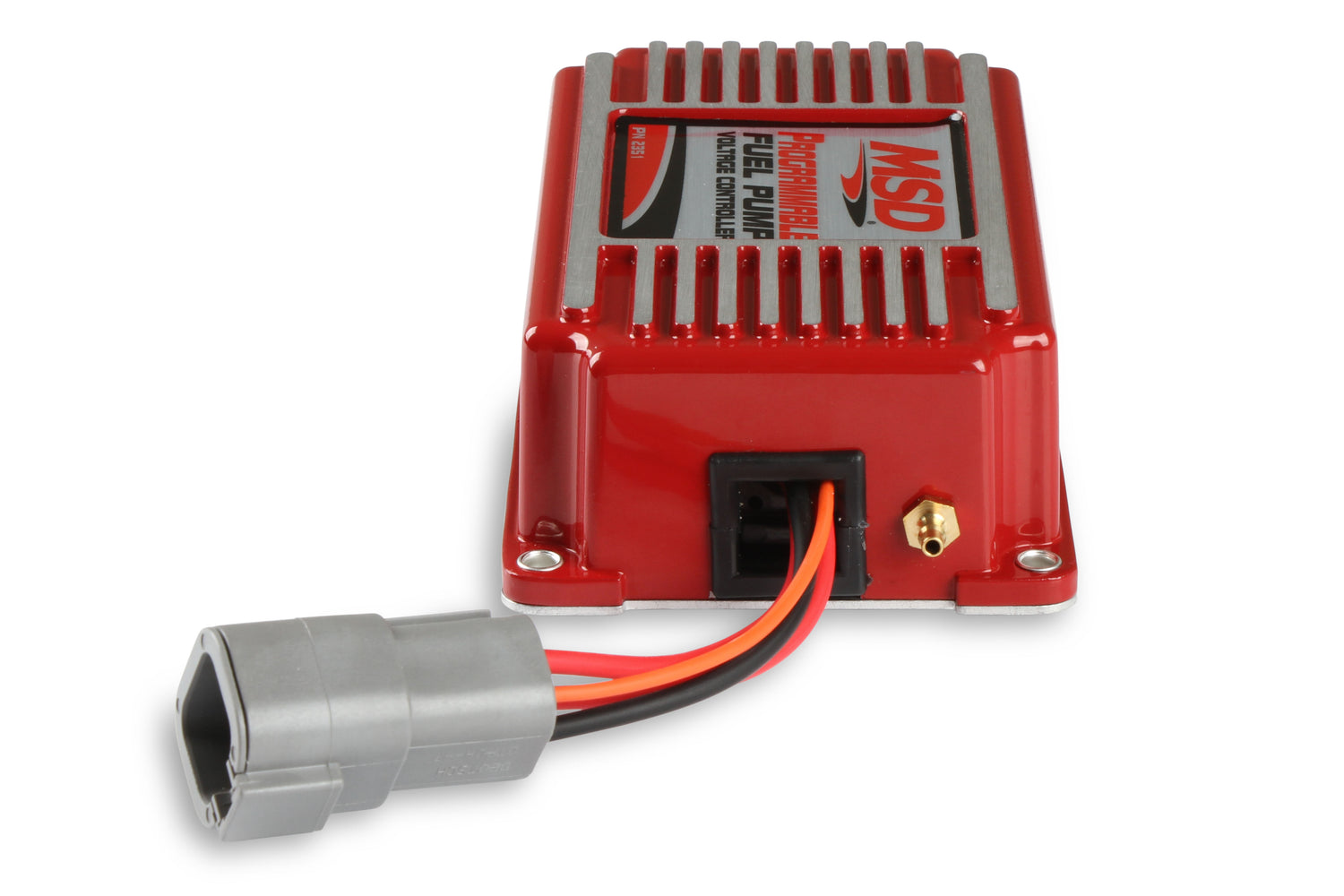

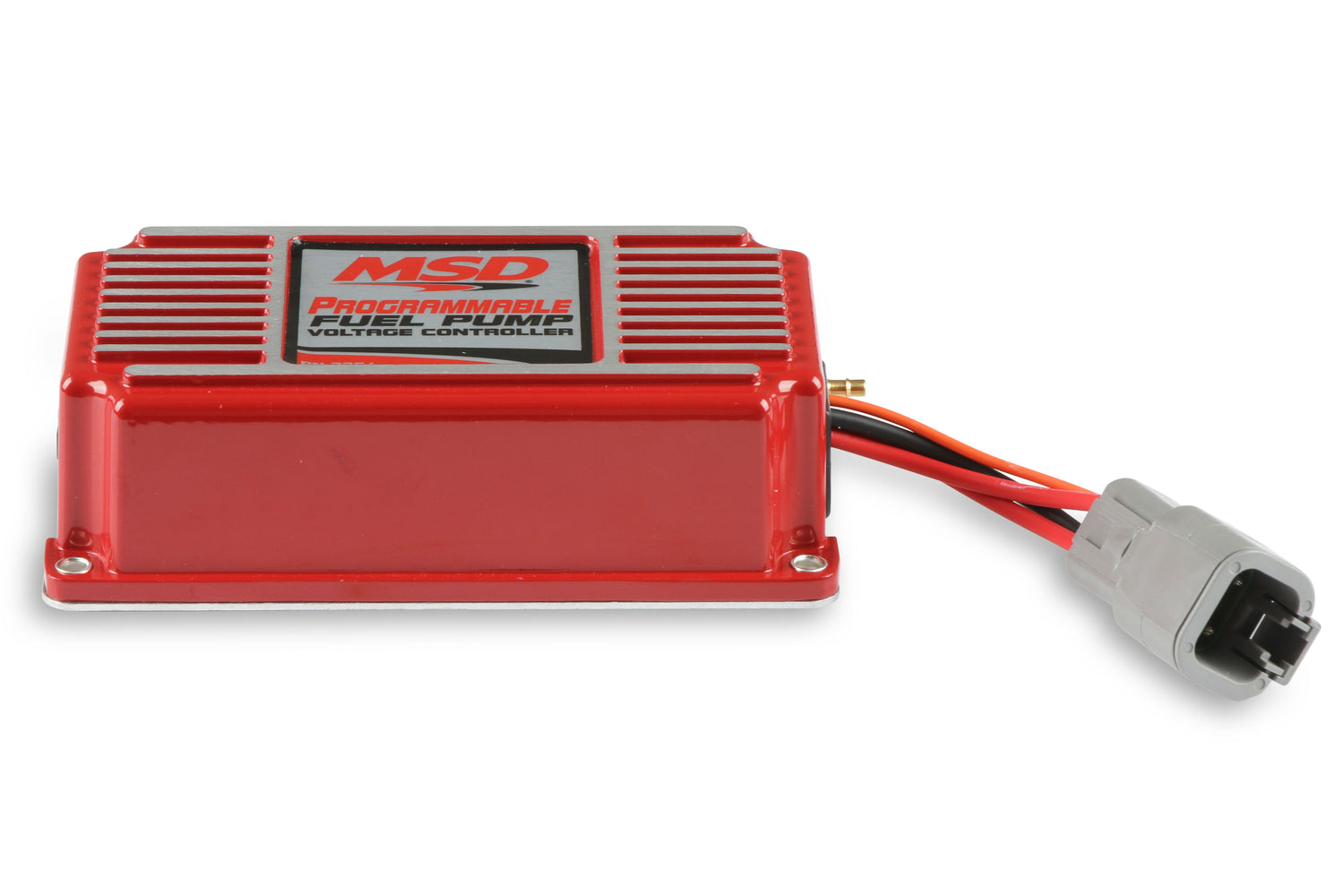

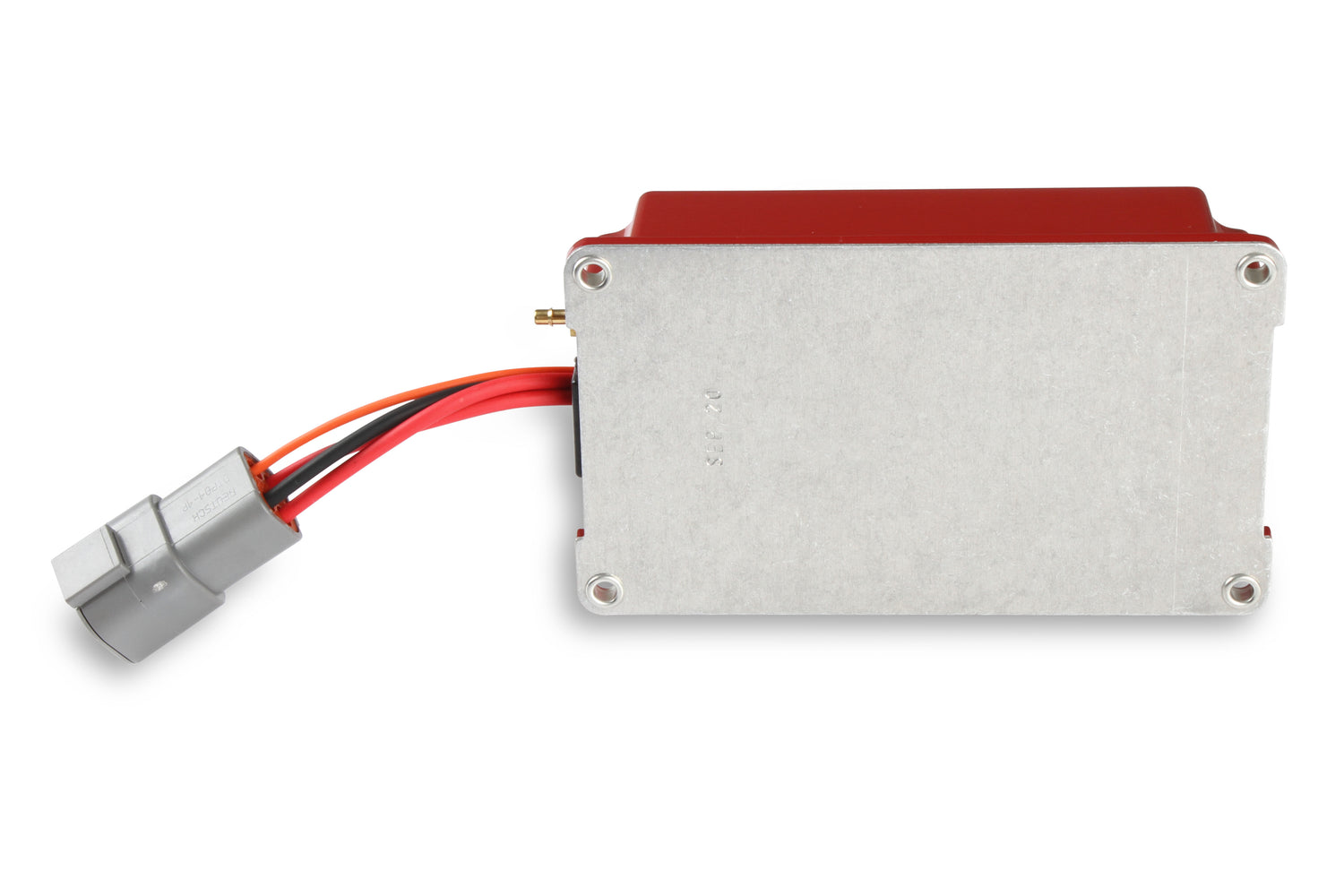

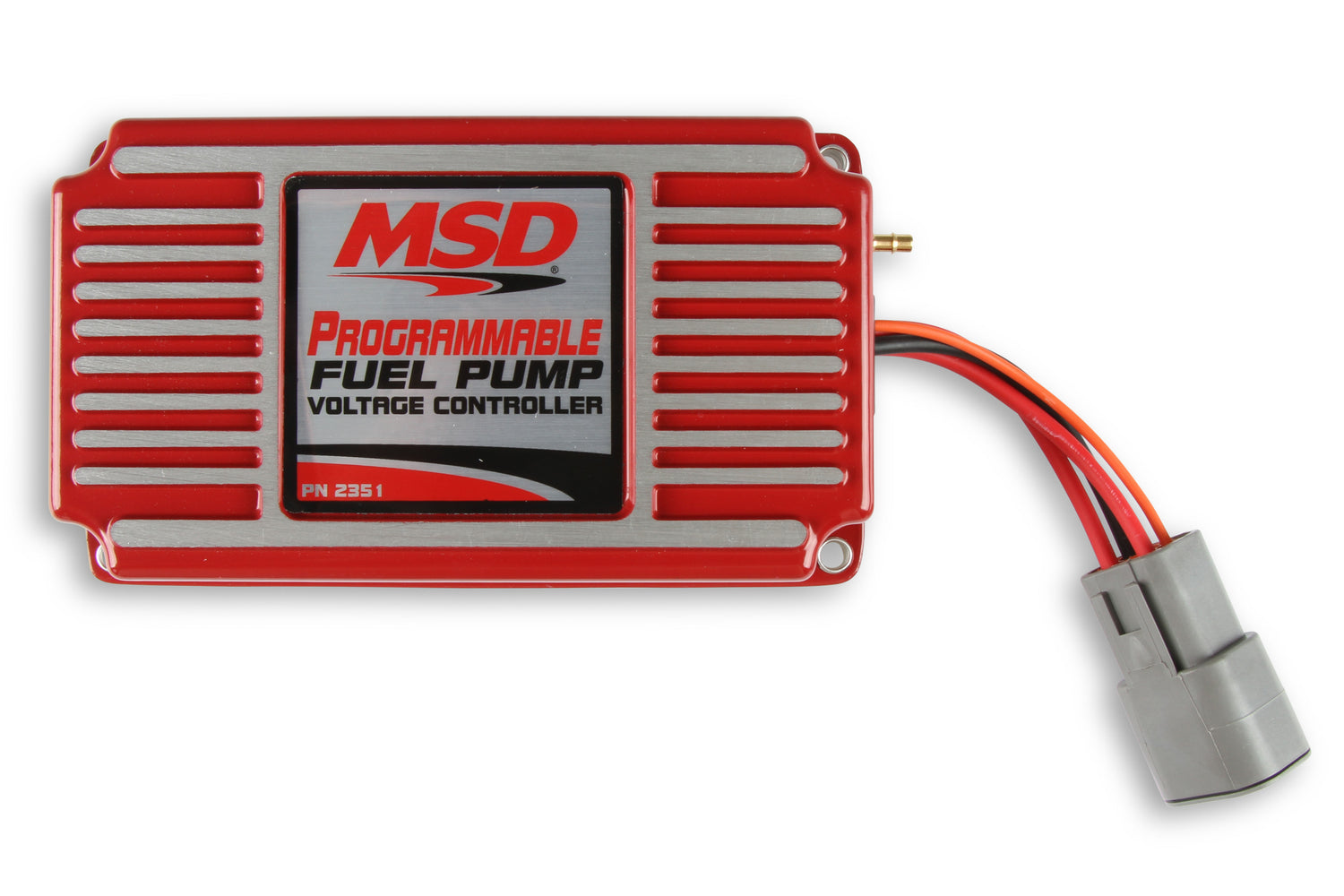

MSD Programmable Fuel Pump Voltage Booster - 2351

The controller allows you to increase voltage based on boost.

Part Number: 2351

It will increase the voltage to the factory fuel pump in proportion to manifold boost pressure in order to maintain the proper fuel delivery. The amount of increase is adjustable from a range of an additional 1.5 -22 volts and up to 30 psi which can all be set and adjusted from your PC with MSD's easy to use Windows based software. The MSD Booster will wire to the factory fuel pump relay or with a secondary booster pump. The updated Fuel Pump Booster is an easy way to maintain the proper fuel pressure on your car after adding a power adder such as a turbo or supercharger. The Booster ensures that the engine receives the fuel it needs to make up for the increase in air being pumped into the intake manifold.

Features and Benefits

• Voltage output is adjustable up to 22 volts at 15 psi of boost
• Fully programmable graph adjustable in absolute pressure vs. pump voltage
• Monitor tab allows you to view gauges in real time of voltage and amps

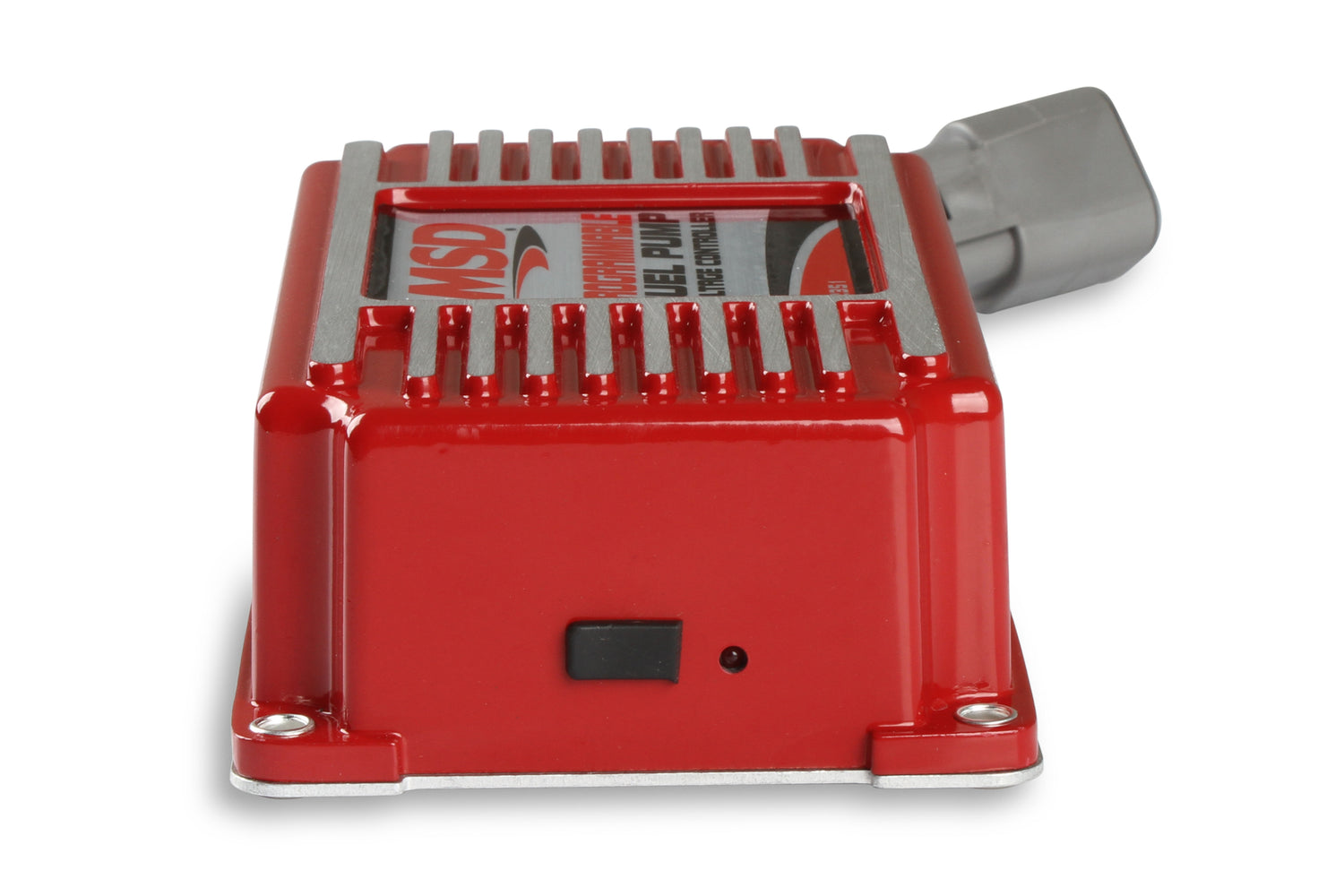

• Fuel Pump Booster can be mounted in any position and fully potted for vibration resistance

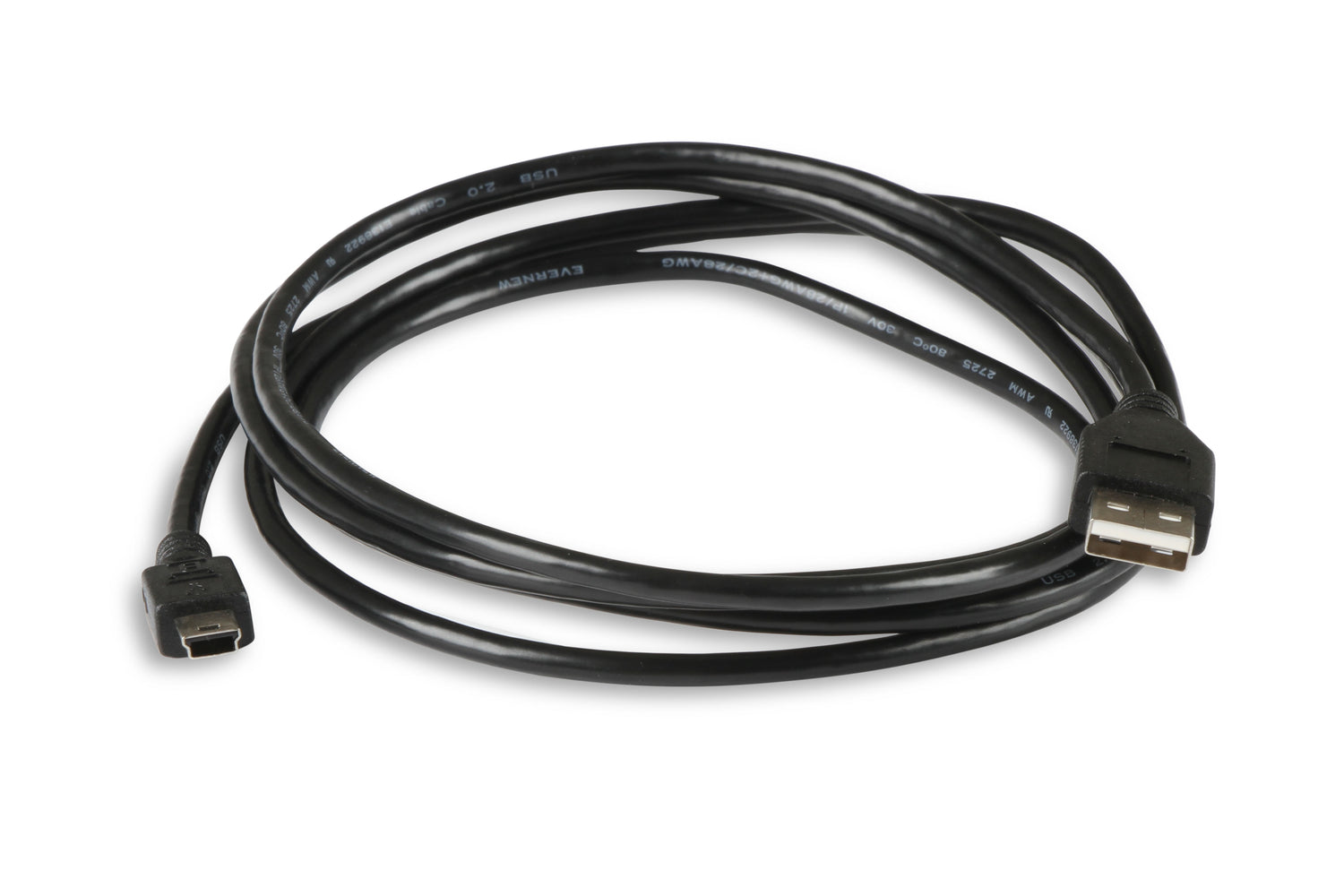

• The Booster allows you to make your boost adjustments through a PC for improved control and accuracy.
• For use with stock electric fuel pumps or secondary booster pumps

NOTE: The Fuel Pump Booster cannot be used on fuel systems without a return line (pulse-modulated pumps).
