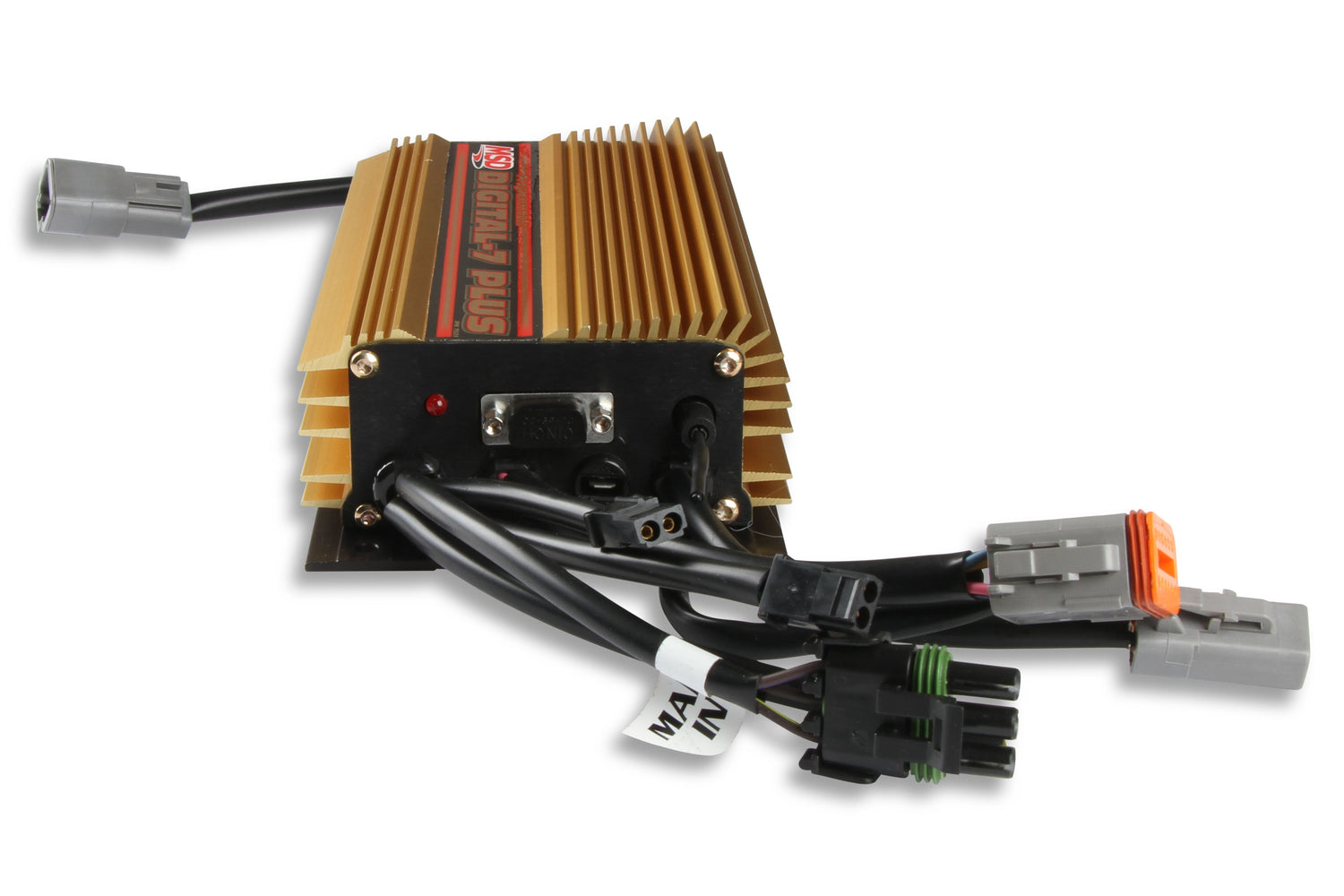

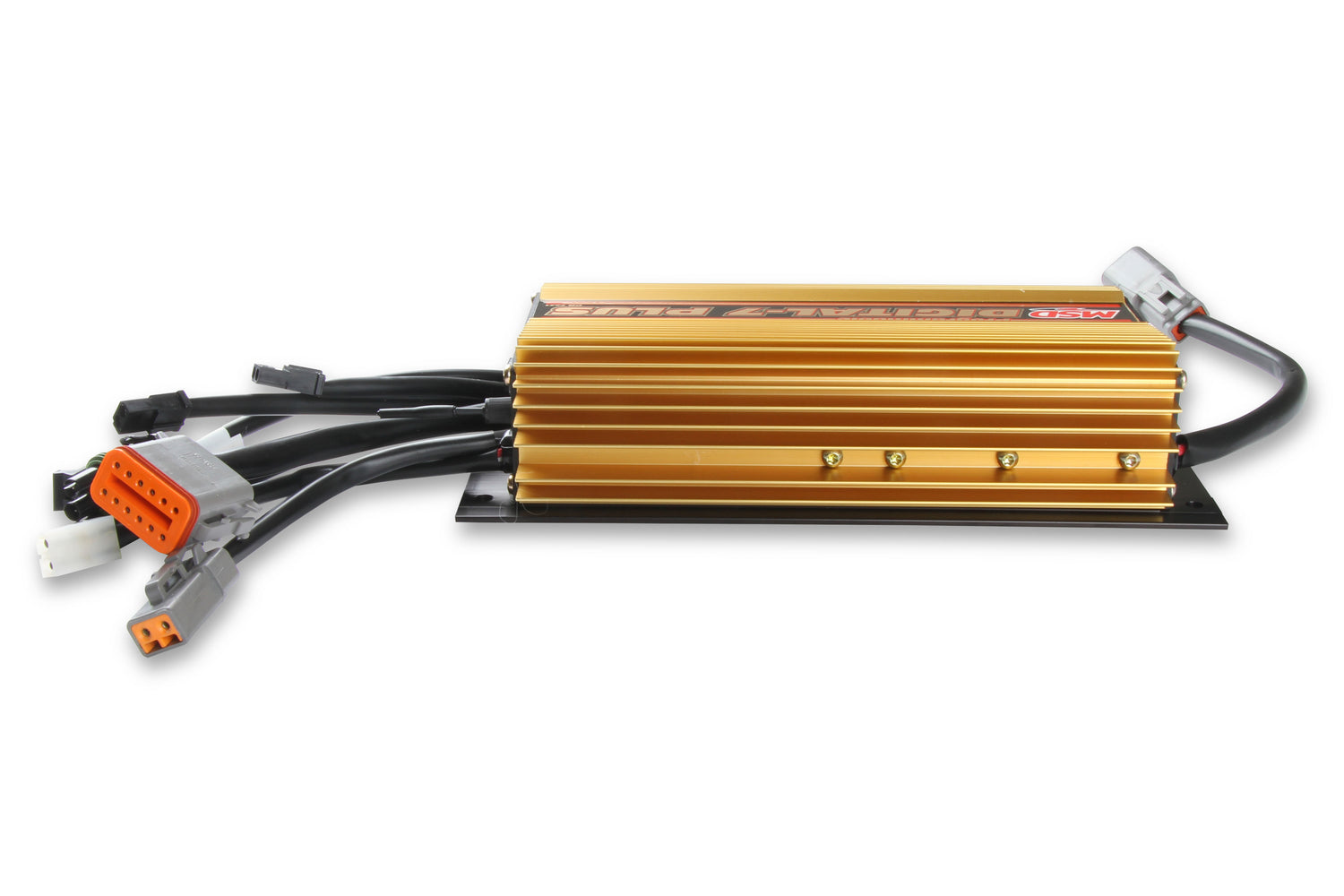

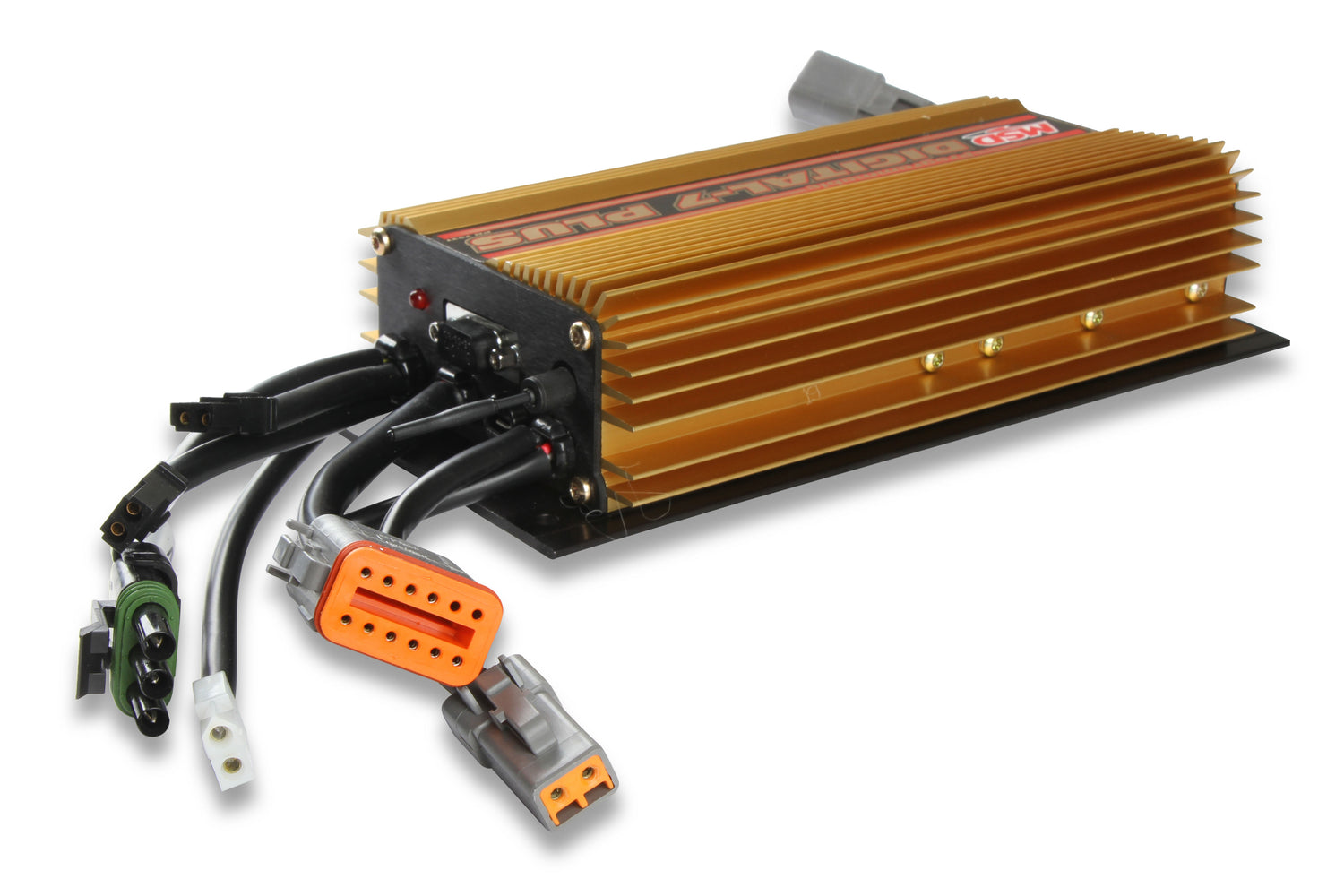

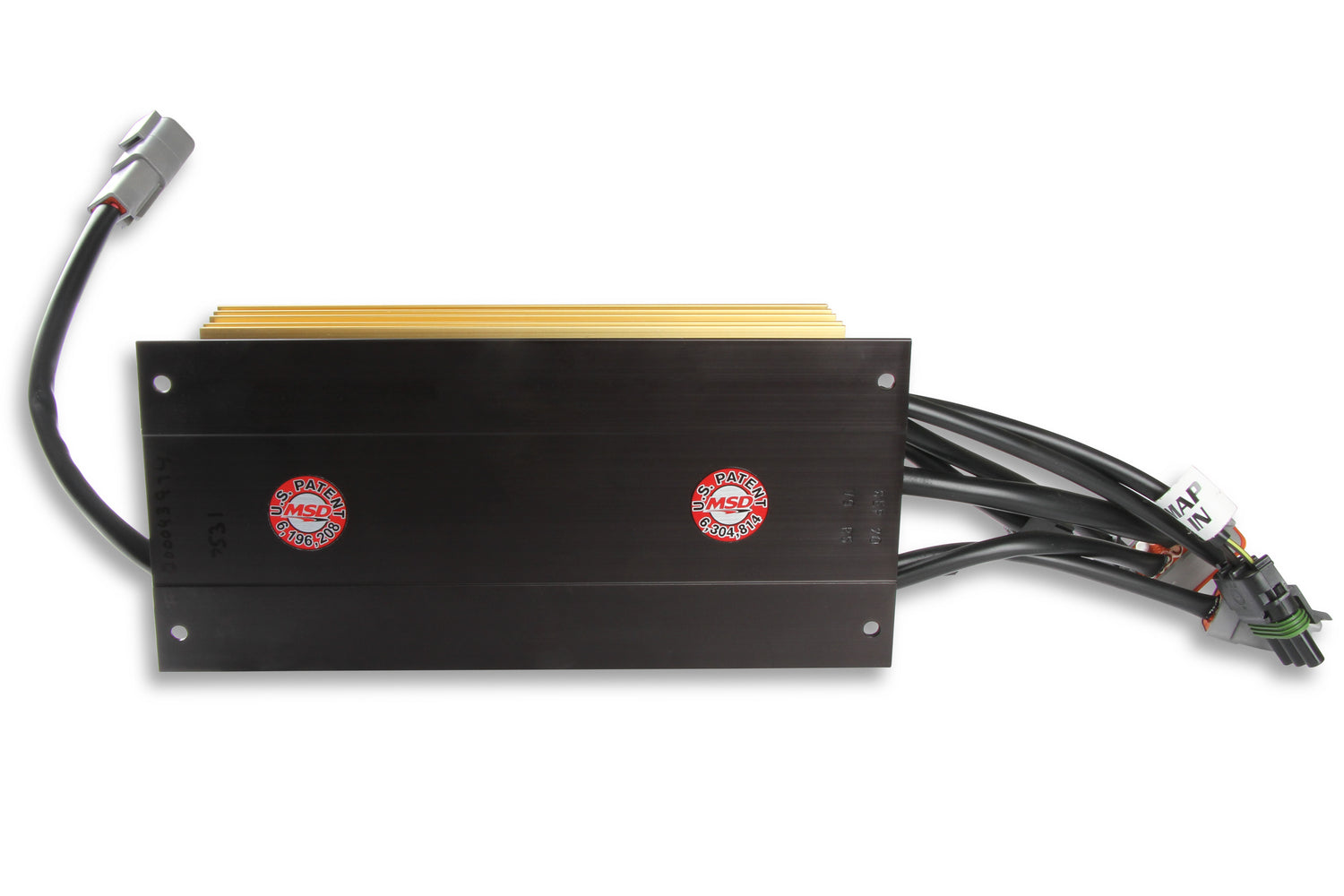

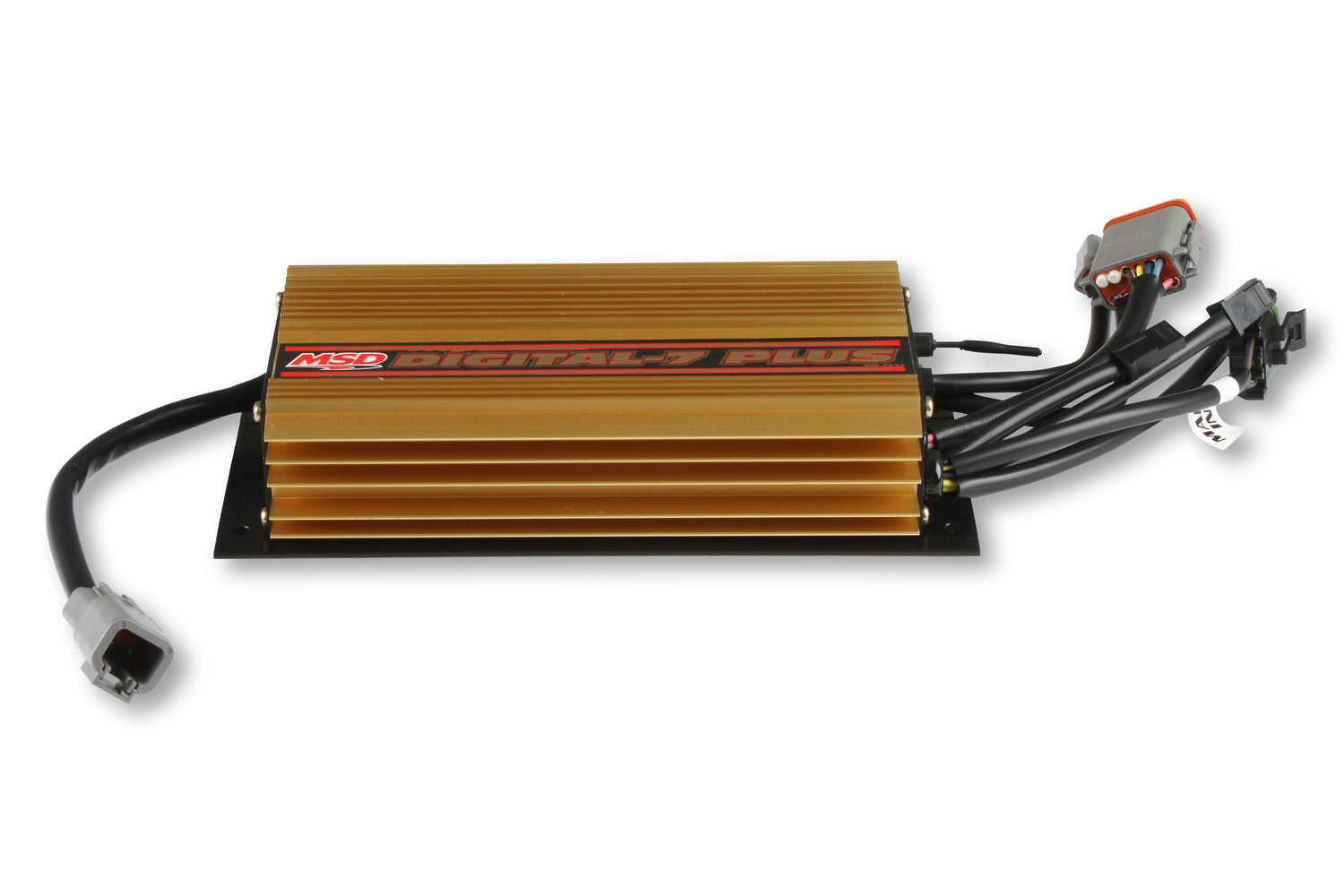

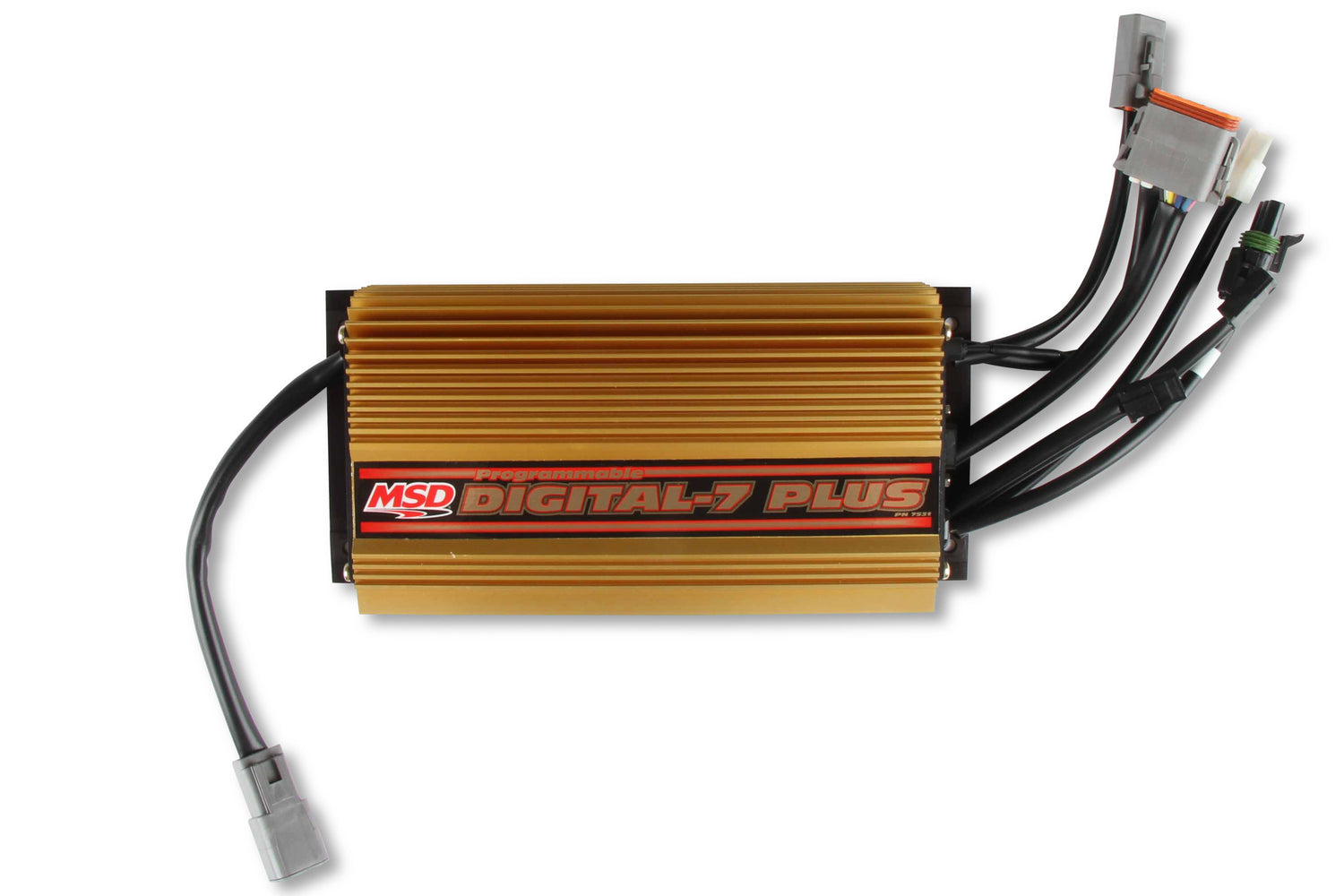

MSD Programmable Digital-7 Plus - 7531

Riding the dots! This one set the standard for programmable ignition control.

Part Number: 7531

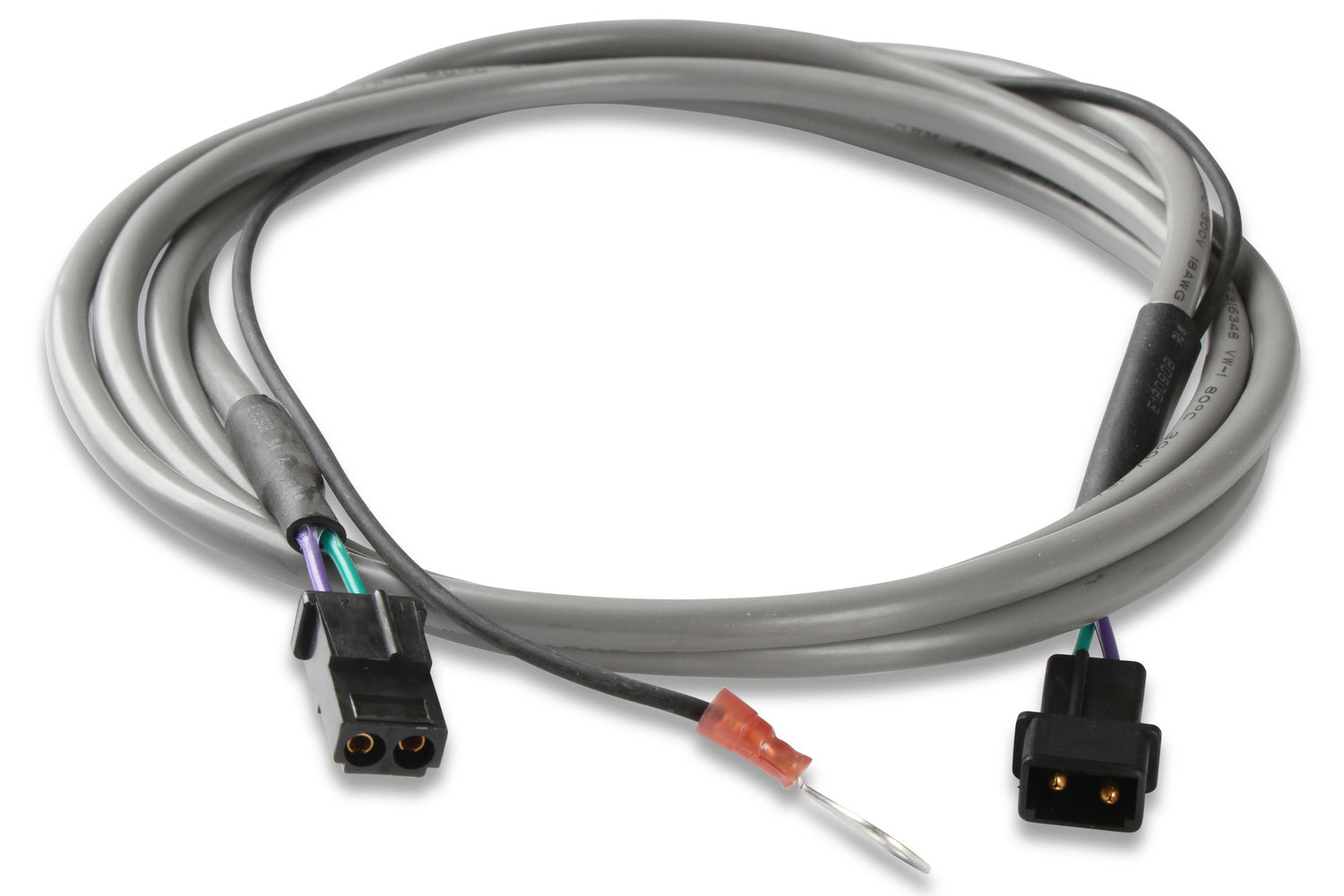

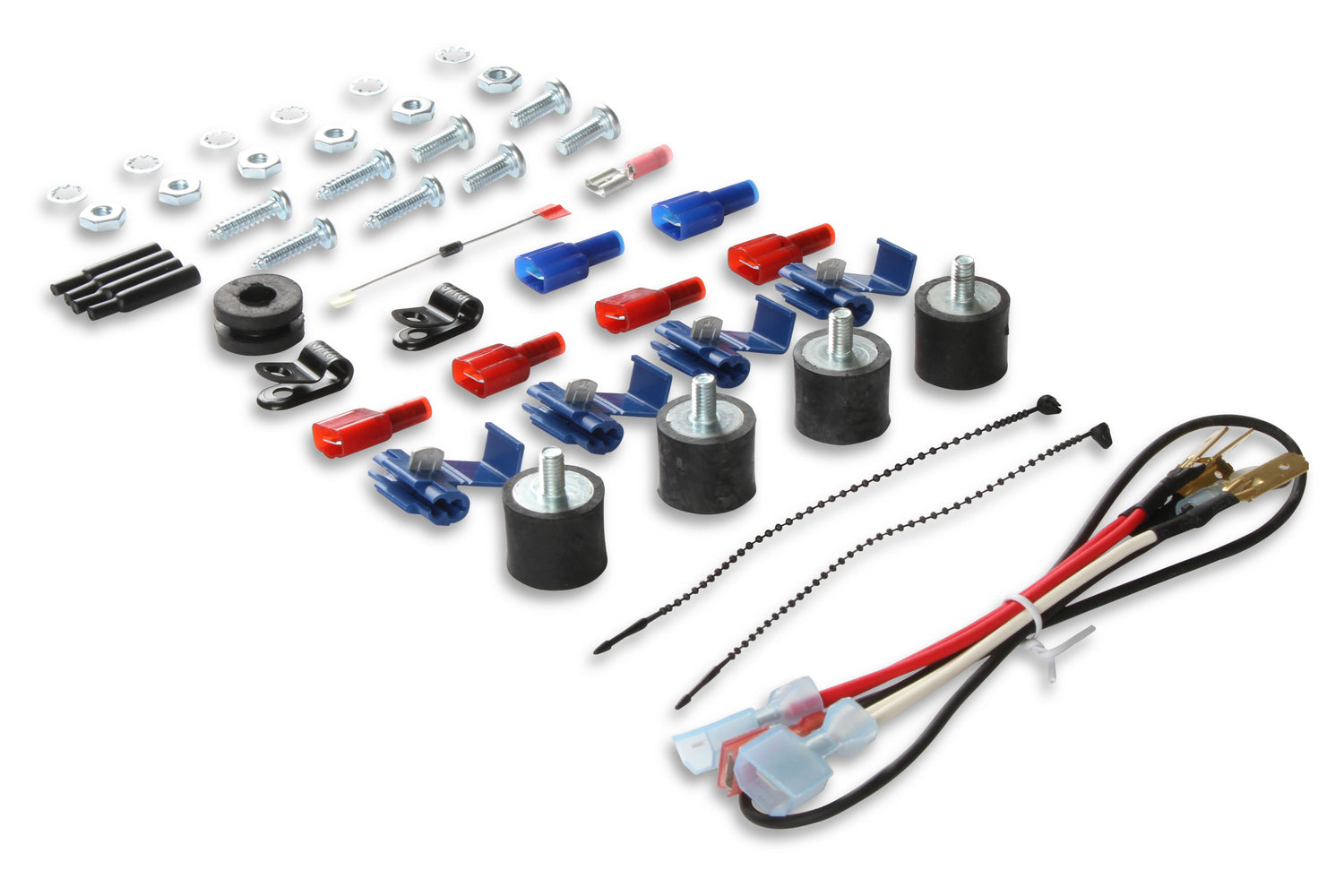

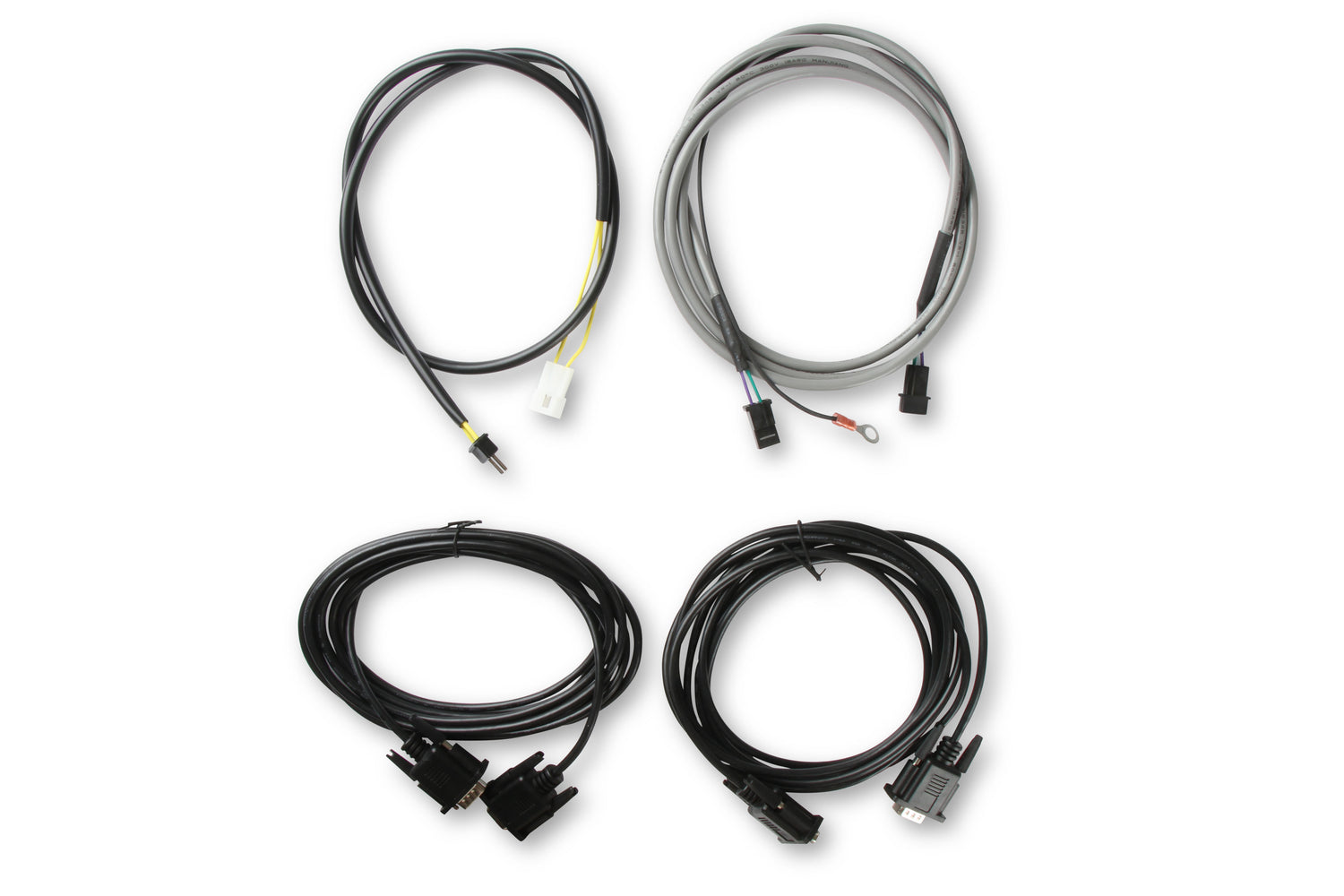

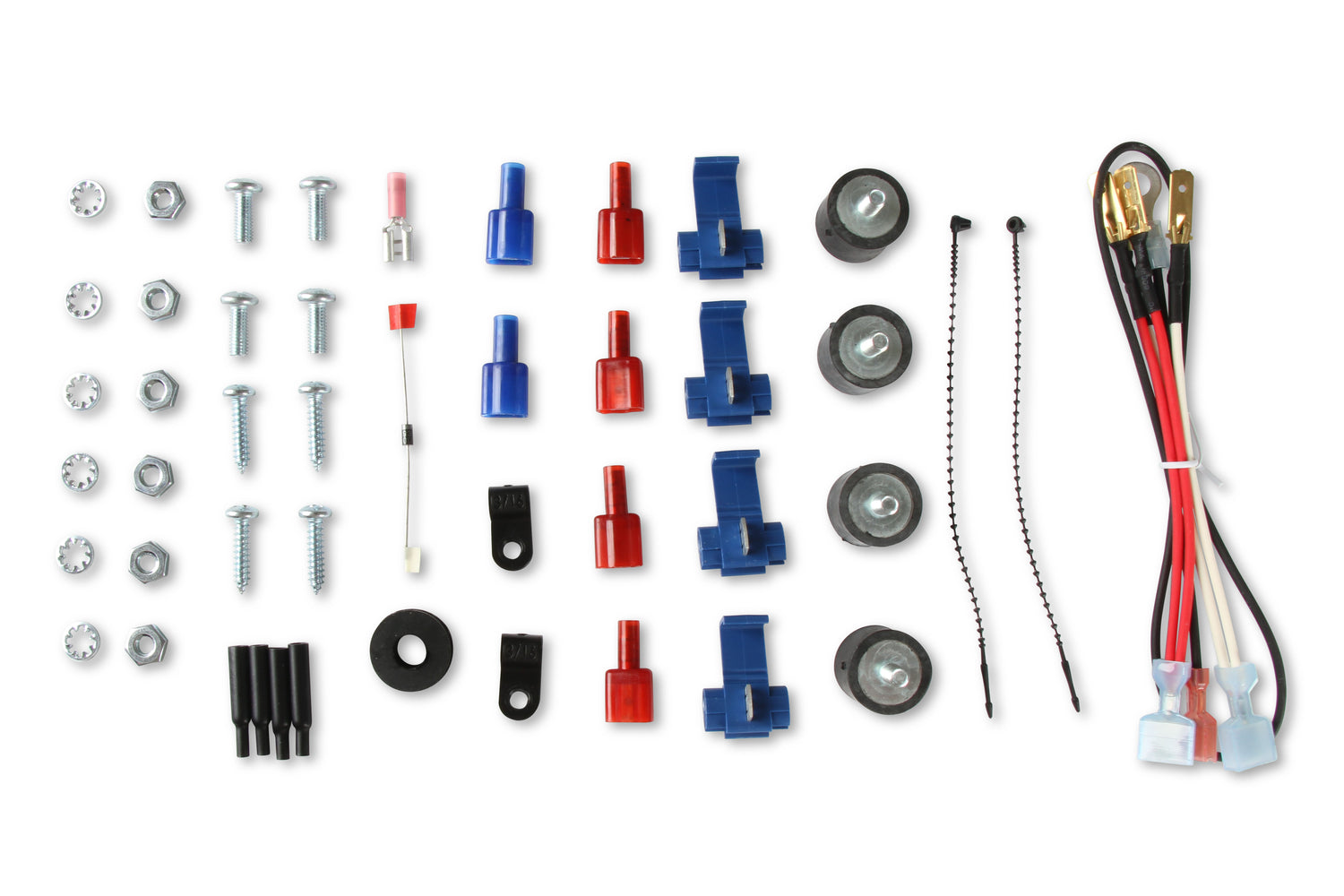

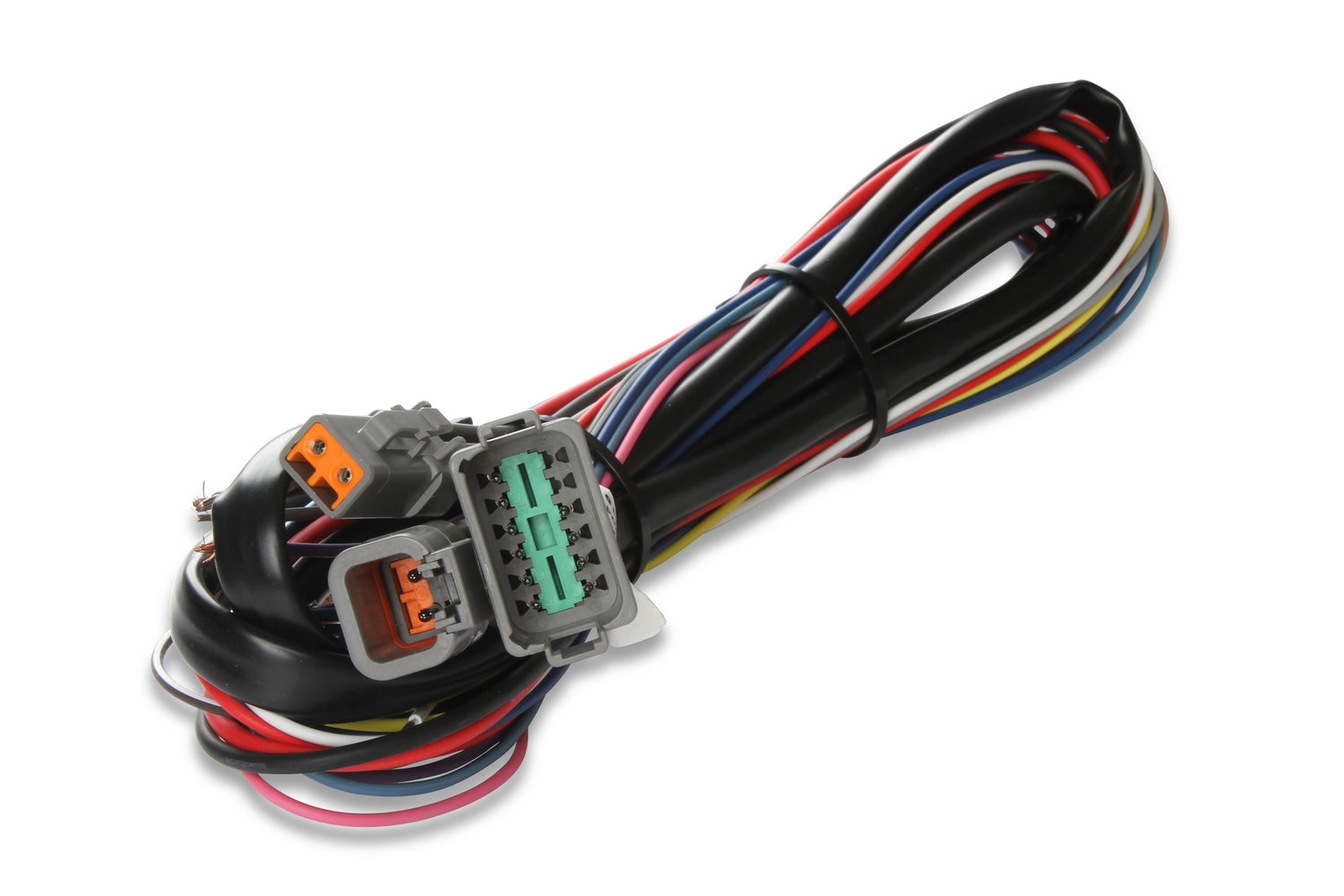

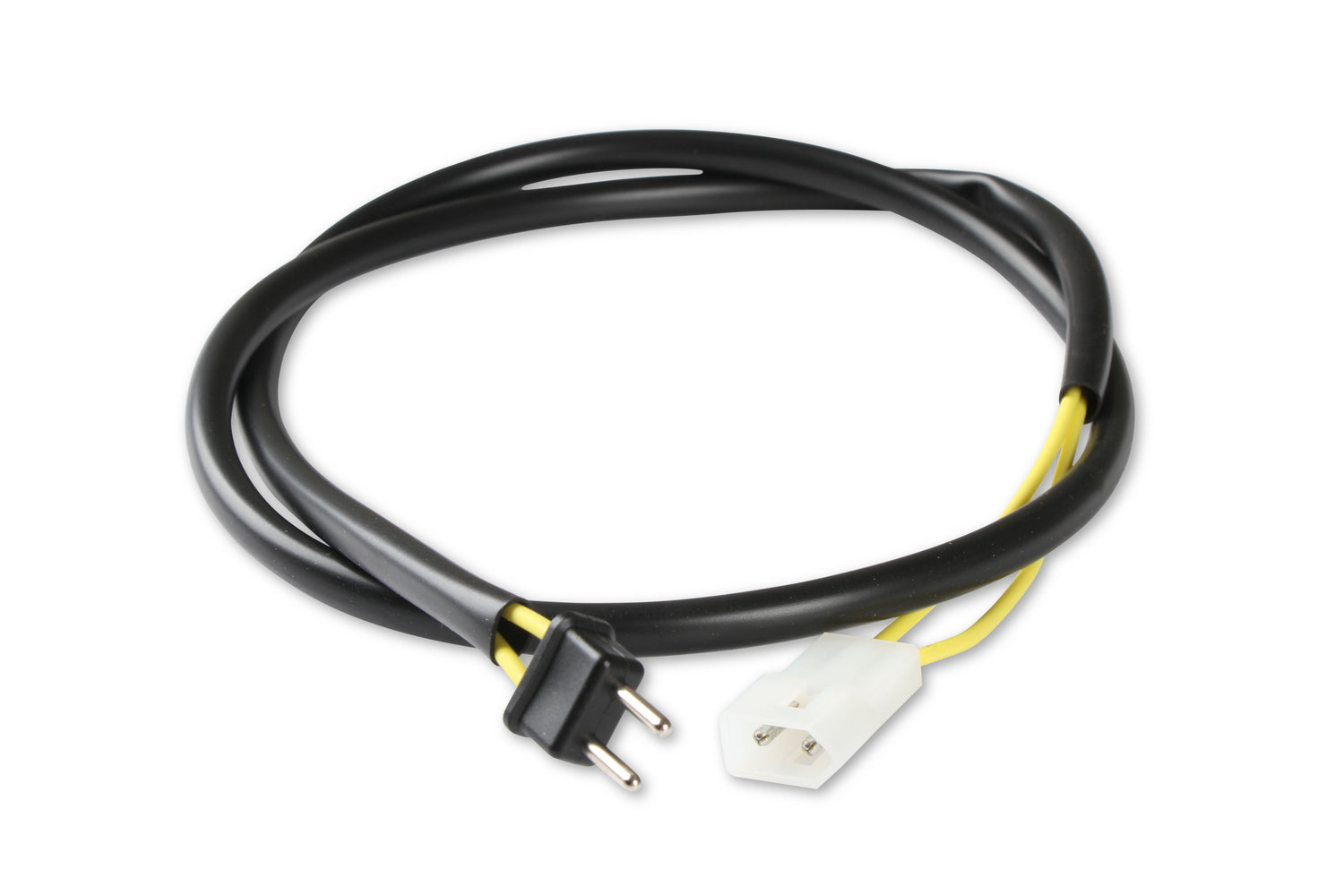

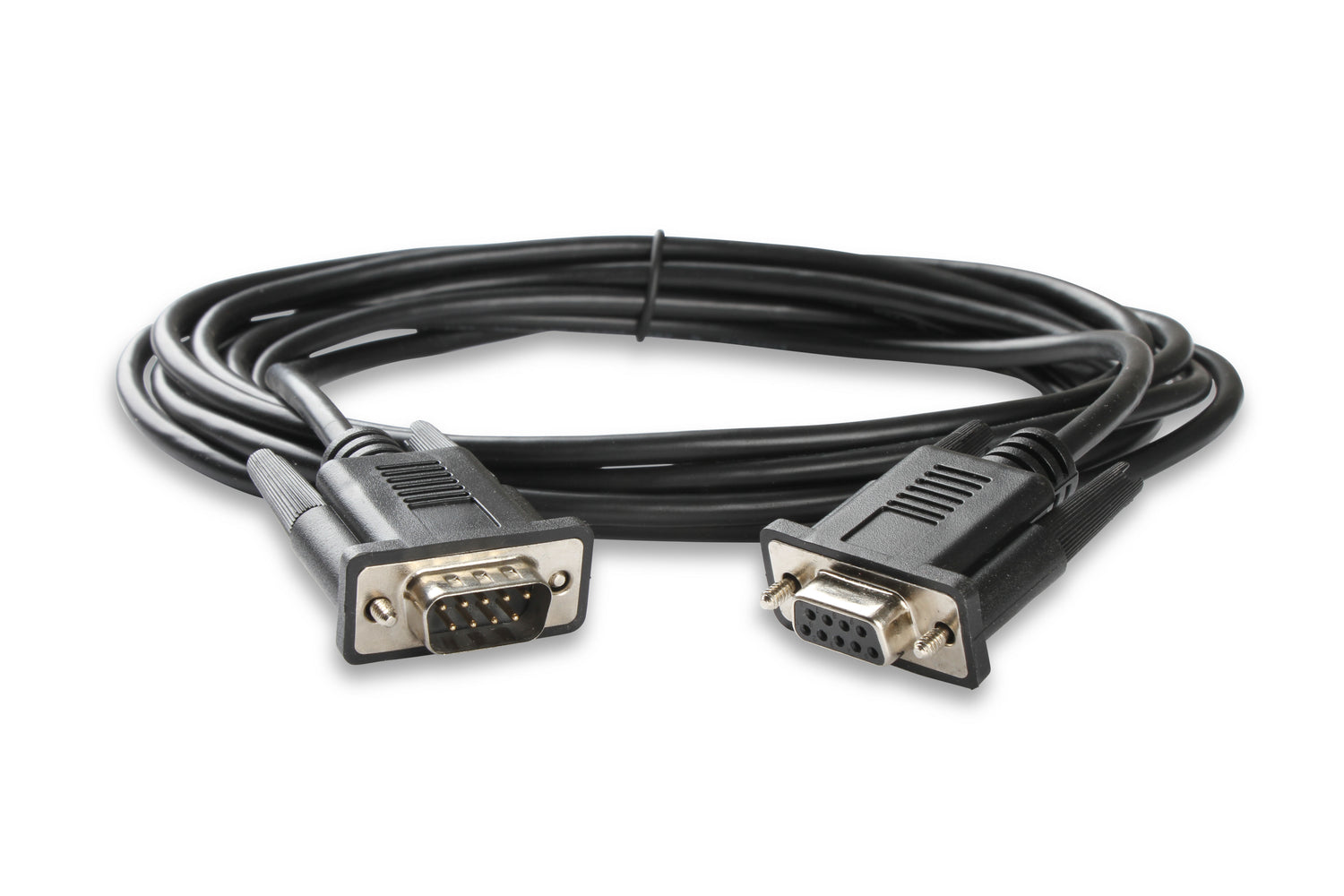

A MAP sensor is required for the boost circuit. The Ignition is supplied with wiring harnesses, mounting hardware, an RS232 computer harness, and the Pro-Data+ software on a mini-CD. Note: Illegal for use in NHRA classes except Pro Mod. The Programmable-7 Series of ignition controls has been updated with the Power Grid Ignition System If you're a consummate engine tuner and know how to take advantage of minute changes in timing during a quarter-mile pass, then the Programmable Digital-7 Plus is the ignition for you! All of the standard programmable features such as Individual Cylinder Management, Step Retards, Rev Limits, Shift Points, and more are included in the Plus version but you also get more. Much, much more.

Features and Benefits

• Stage retards can be set to ramp the timing.
• Vacuum advance and boost retard is selectable through a MAP sensor.
• Select the rpm limiter value in rpm/seconds.
• Automatic magnetic pickup compensation for crank triggers or distributor pick- ups.
• Program your engine's firing order for ease of setting the cylinder-to-cylinder timing.
• 12,500 RPM with 14.4 Volts
• Updated X-Y plots with interpolation for smooth changes.
• 12-18 Volts, Negative Ground
• Output to activate a device through rpm, time or pressure inputs.
• Program an rpm limit that is ramped in during the launch.
• 1.1 Amp per 1,000 RPM
• An upgraded micro- controller runs at 40MHz enabling timing accuracy within 0.1 degrees and +/-1 rpm at up to 10,000 rpm!
• View all ignition events in a new Launch History window including the retard sum, manifold pressure, rpm, shift points and more.
• There is a cam sync output for fuel controllers or data acquisition.
• Map a complete timing curve for every gear.
• Acquire 20 seconds of run data including two seconds prior to launch.
