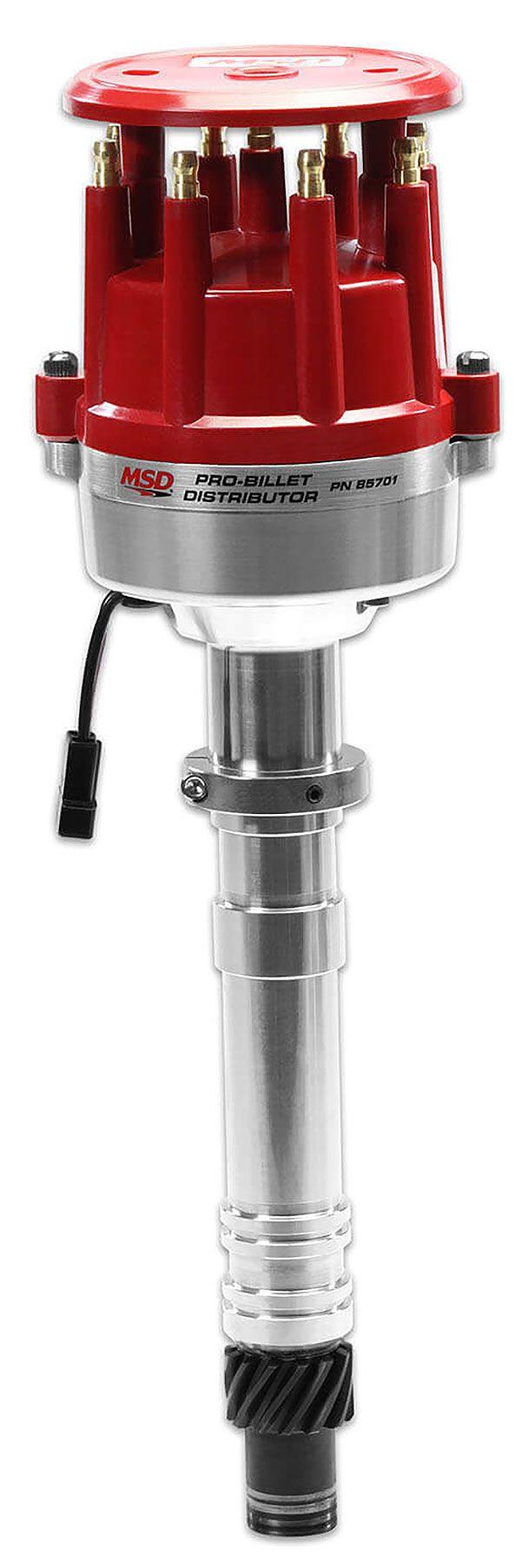

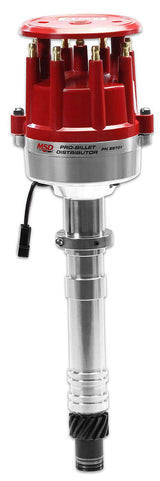

MSD Pro Billet Small Diameter Distributor (MSD85701)

MSD85701 - CHEV PROBILLET SMALL DIA DISSY

Suit SB/BB Chev, 1/2" Smaller O.D & 1" Shorter With Adjustable Slip Collar

Part Number: MSD85701

This Chevy distributor is the smallest ever built by MSD! It is specifically designed for racers and street rodders with space limitations due to firewall interference, blowers or oversized intake manifolds such as tunnel rams. It measures 1/2" narrower and over 1" shorter than a standard distributor.
Proven performance features include a high output magnetic pick-up and precision machined reluctor for accurate ignition triggering. A fully adjustable mechanical advance allows you to tailor the advance curve to your specific application.
Features:
CNC machined billet aluminium housing is 1/2" smaller in diameter and over 1" shorter than conventional Chevy V-8 distributors with the "points" type cap
Supplied with small diameter HEI style distributor cap and rotor
Will not accept a vacuum advance canister
O-ring seals can be added to modified blocks to improve oil pressure control
Must be used with an MSD 6, 7, 8, or 10 Series Ignition
Special oil tract improves lubrication to the distributor and cam gear
Maintenance-free magnetic pickup and precision reluctor create stable trigger signals throughout the rpm range
Easy-to-adjust mechanical advance with supplied springs and stop bushings (except locked out versions)
Adjustable slip collar mounting flange for engines with modified deck heights
Polished steel shaft is QPQ coated and guided by a sealed ball bearing and extra-long sintered bushing
Advance plate and weights are fine blanked from chrome moly steel and QPQ coated for friction reduction
Advance weight pins are staked and tig welded to the plate
Nylon pads ensure smooth operation of the advance weights
Mechanical advance assembly can be locked out for crank trigger systems
