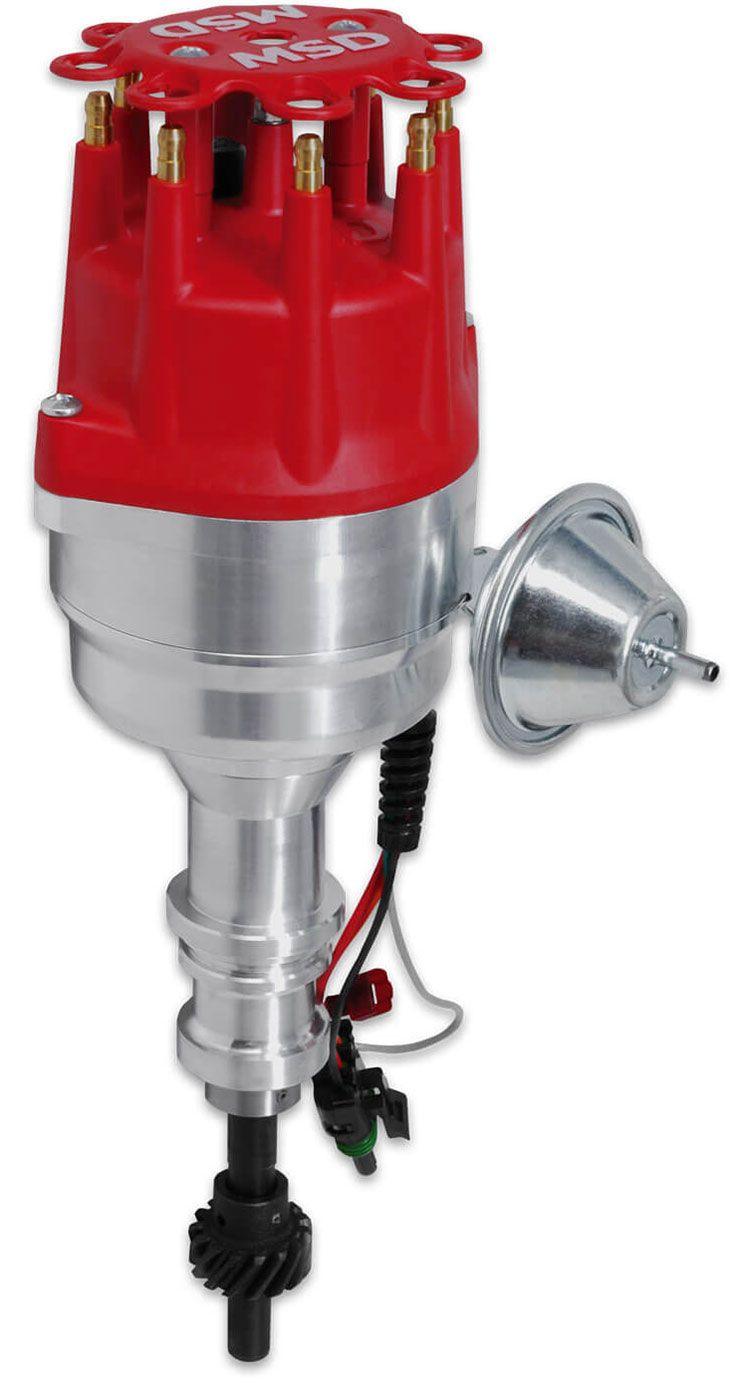

MSD Pro-Billet Ready-To-Run Distributor (MSD8354)

MSD8354 - SB FORD 351W READY TO RUN

Ford 351W, Magnetic Pickup, Vacuum Advance, High Output Module

Part Number: MSD8354

Simple and clean installation with only three wires to connect
Powerful built-in module produces a 7.5 amp single spark through high rpm

Easy-to-adjust mechanical advance with supplied springs and stop bushings
Vacuum advance canister for improved economy (can be locked out)
CNC machined billet aluminium housing and billet aluminium base

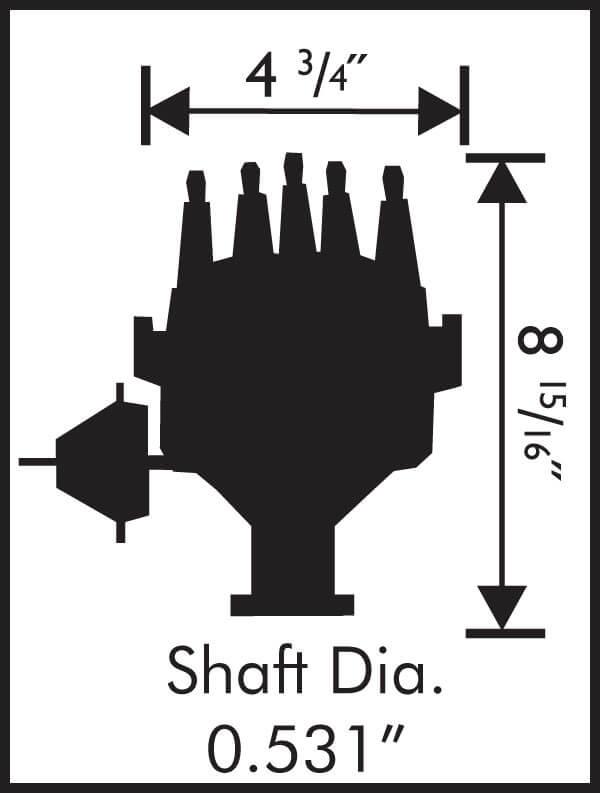

Housing is 5/8" smaller in diameter than stock Ford distributors

Maintenance-free magnetic pickup and precision reluctor create stable trigger signals throughout the rpm range

Polished steel shaft is QPQ coated and guided by a sealed ball bearing
Advance plate and weights are fine blanked from chrome moly steel and QPQ coated for friction reduction
Mechanical advance assembly can be locked out for crank trigger systems
Advance weight pins are staked and tig welded to the plate
Nylon pads ensure smooth operation of the advance weights
Supplied with small diameter cap with HEI style terminals and race rotor (will accept MSD8441 Cap-A-Dapt)
Does not require an MSD Ignition Control
Now includes built-in Rev Limiter
Note:
Recommended coil is
MSD8223

MSD Ready-to-Run Ford Distributors are the perfect upgrade for the bulky DuraSpark systems or ancient breaker point models. These distributors come complete and ready-to-run. All you need to do is drop it in the engine, connect three wires and fire the engine. Each distributor features an ignition module that produces a powerful inductive spark to improve combustion of the fuel mixture resulting in quick starts, smooth idle and increased performance. The billet aluminium housings of these distributors are 5/8" smaller in diameter to accommodate induction setups and tight engine compartments. A maintenance-free magnetic pick-up is responsible for triggering the high voltage sparks while a sealed ball bearing guides an oversized shaft. Beneath the bolt down cap and MSD race rotor you'll find MSD accurate mechanical advance assembly. Different advance springs and stop bushings are supplied so you can easily tune a curve to match your needs. Plus, there is a vacuum advance canister to increase economy on long drives.
