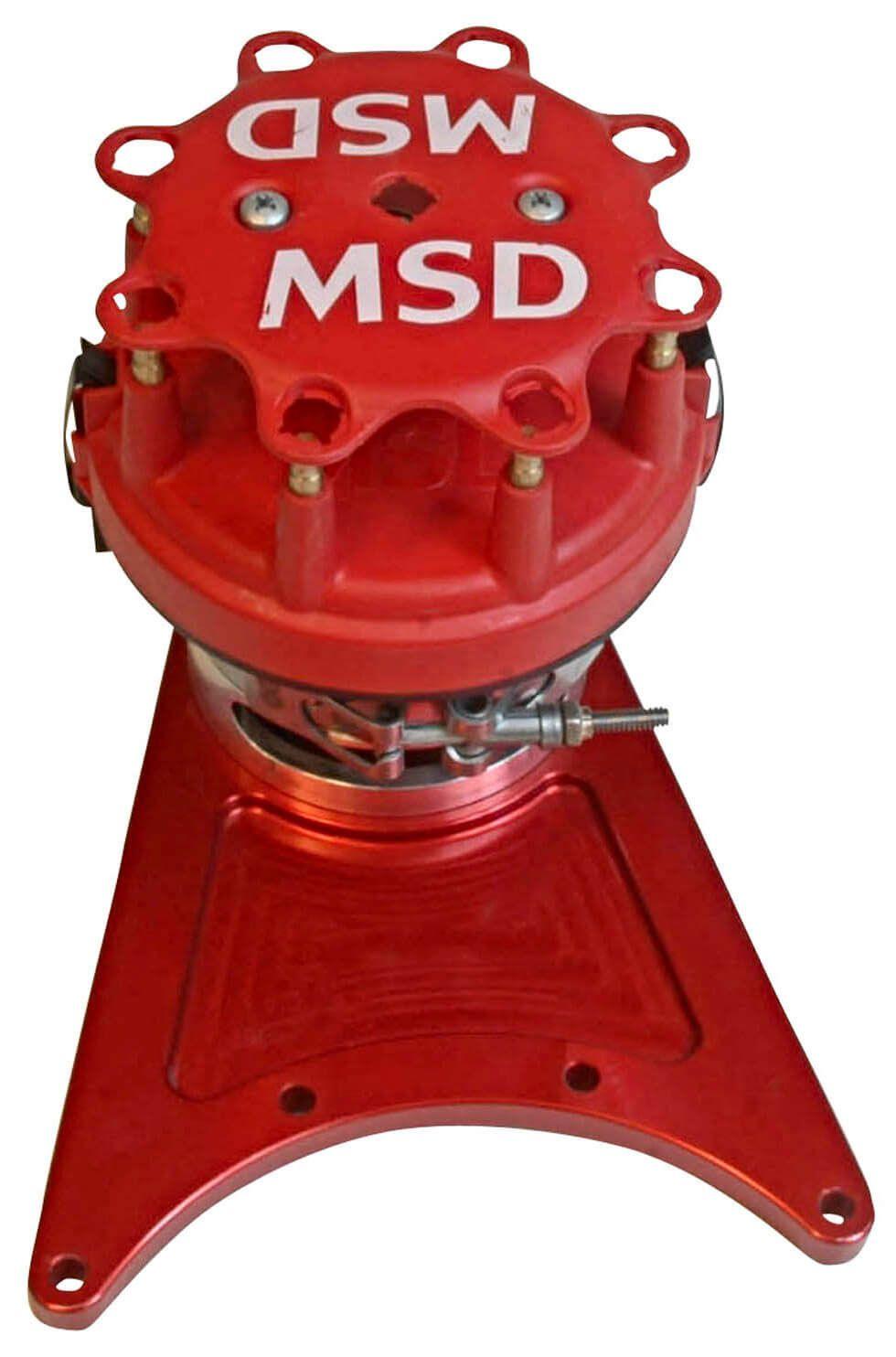

MSD Pro-Billet Front Drive Distributor (MSD8520)

MSD Pro-Billet Front Drive Distributor (MSD8520)

Big Block Chevy, Magnetic Pick-up, Adjustable Belt Drive,
SKU: MSD8520
$1,913.40 - $1,913.40
$1,913.40
$1,913.40 - $1,913.40
$1,913.40
+ GST
Availability:
Low stock, please contact before purchasing

MSD8520 - MSD PRO BILLET FRONT DRIVE DIS

Big Block Chevy, Magnetic Pick-up, Adjustable Belt Drive,

Part Number: MSD8520

Band clamp mount allows easy rotor phasing adjustment.
The only front drive distributor with adjustable belt tension.

The MSD Cap and Rotor are injection moulded from strong Dupont Rynite material.

Billet aluminium bracket and lower housing for strength.
Supplied with cam gear, hardware and extra wide 9mm belt.
Must be used with a Jesel Camshaft Belt Drive Kit and an MSD Flying Magnet Crank Trigger.
MSD Pro-Billet Front Drive Distributor is the solution for race engines that don't have room for a standard distributor due to firewall clearance or intake combinations. The MSD Front Drive Distributor is belt-driven from a pulley installed on the camshaft. For increased strength and durability a 9mm belt is used which is wider than any other drive assembly. The distributor head is CNC machined from a billet of aluminium and is secured to a is system is an extremely accurate way to distribute the spark energy from your MSD Ignition. We revised the front drive with our standard Ford-style cap and rotor. This creates a downsized package for an easier fit in tight engine compartments. The Front Drive Distributor is supplied with mounting bolts, cam pulley and drive belt.
