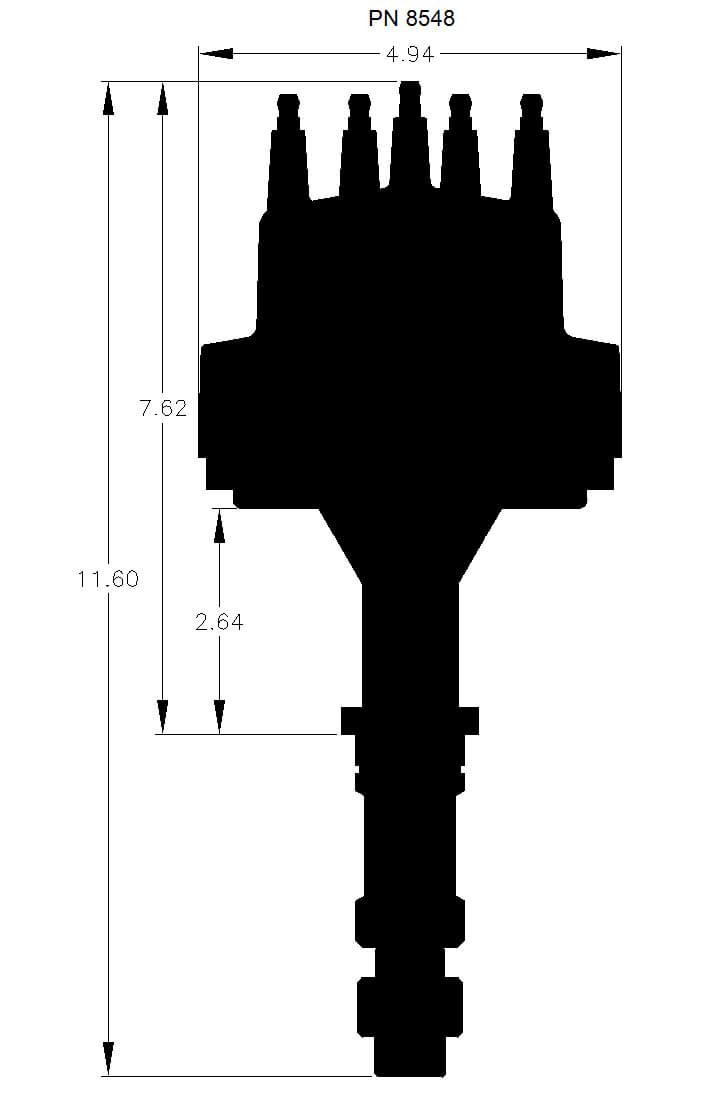

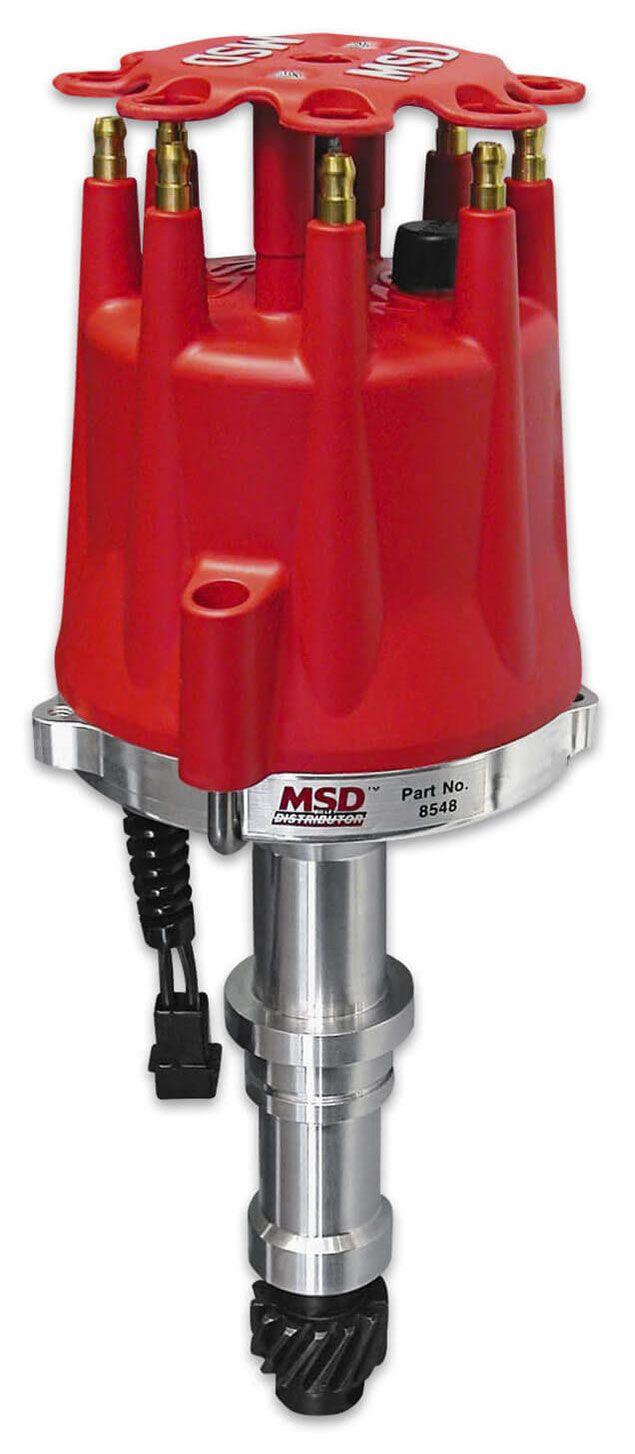

MSD Pro Billet Distributor (MSD8548)

• CNC machined billet aluminium housing and billet aluminium base
• Easy-to-adjust mechanical advance with supplied springs and stop bushings
• Maintenance-free magnetic pickup and precision reluctor create stable trigger signals throughout the rpm range
• Polished steel shaft is QPQ coated and guided by a sealed ball bearing
• Advance plate and weights are fine blanked from chrome moly steel and QPQ coated for friction reduction
• Mechanical advance assembly can be locked out for crank trigger systems
• Advance weight pins are staked and tig welded to the plate
• Nylon pads ensure smooth operation of the advance weights
• Supplied with an HEI style distributor cap and rotor (accepts Cap-A-Dapts)
• Must be used with an MSD Ignition Control
• No CARB Exemption Order Number
• Must be used with an MSD 6, 7 8or 10 Series Ignition

This distributor uses a high-output magnetic trigger to fire an MSD Ignition Control. Accurate trigger signals and spark delivery are the responsibility of the QPQ-coated steel shaft. A sealed ball bearing and long sintered bushing hold this shaft stable at any rpm. An adjustable mechanical advance mechanism is mounted on top of the shaft. A variety of advance stop bushings and springs are supplied so you can dial in a customer curve.
