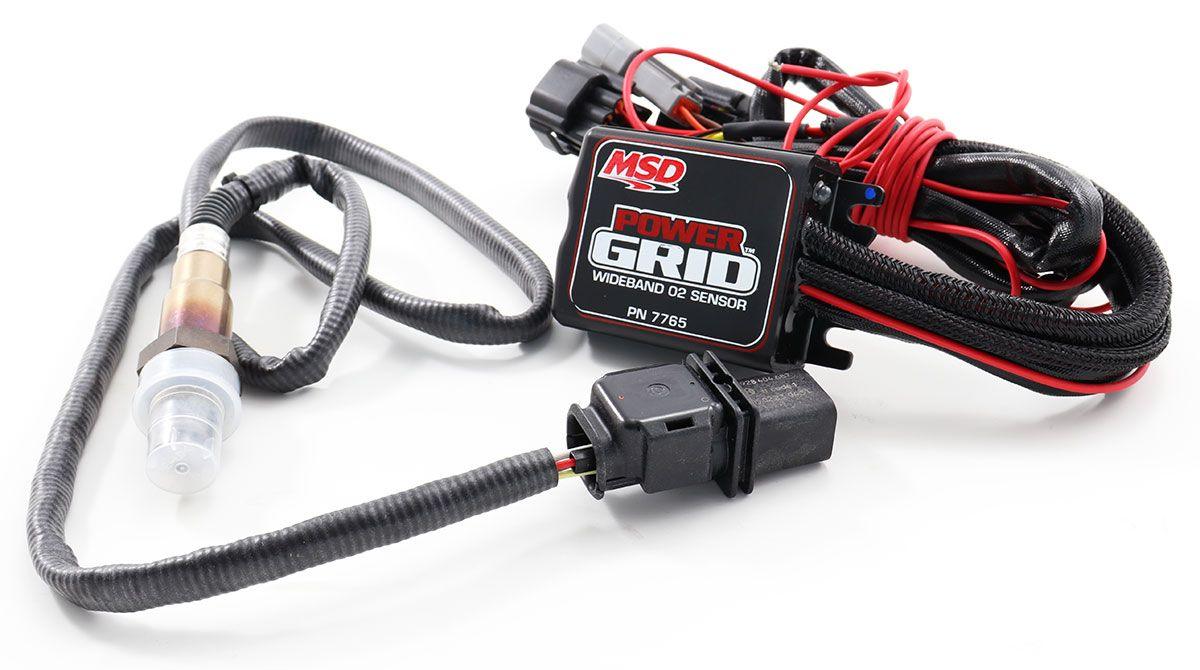

MSD Power Grid O2 Wide Band Sensor Kit (MSD7765)

MSD7765 - POWERGRID WIDEBAND O2 SENSOR

Suit Gasoline, Methanol, Ethanol, E85, Propane & Diesel

Part Number: MSD7765

Add valuable data logging capability to your Power Grid with the addition of the plug-n-play Wide Band O2 Module. Aside from providing O2 data to your Grid, the module also provides a 0-5v output to drive an air/fuel ratio gauge or provide a signal to other data loggers. Multiple modules and sensors can be connected to a single Power Grid setup if desired. The completely sealed unit uses a Bosch 4.9 oxygen sensor, and is easy to set up and no free air calibration is required.
Features:
Plug-n-play with MSD Power Grid
Easy set-up! No free air calibration required
Completely sealed unit for durability in race environments
Bosch 4.9 oxygen sensor
0-5v output to run an air/fuel gauge or data logger
Dual-color LED provides on board diagnostics
Multiple modules can be used on a single Power Grid
Data logs air-fuel ratio and heater voltage
Fuel Calibration Options for gasoline, methanol, ethanol, E85, propane and diesel
Custom Fuel Calibration option can be programmed by user
