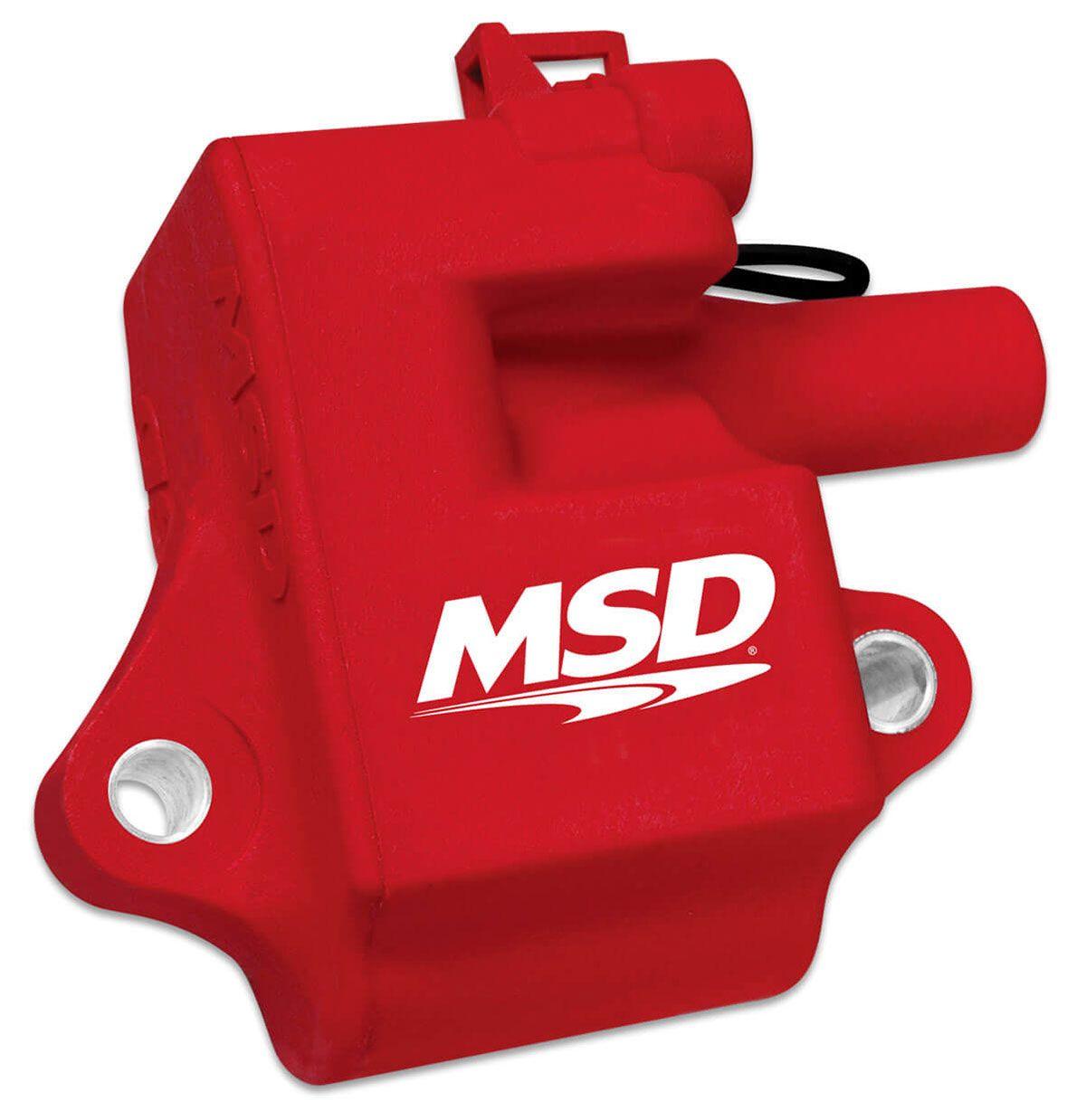

MSD Multiple Spark Coil (Single) (MSD8285)

MSDs engineering team have been working diligently the past year to improve our Multiple Spark Coils for the GM LS-engine platform. The newcoils fit in place of the OEM coils yet are capable of delivering higher spark energyto the plugs, topped with multiple sparks at idle rpm. Increased spark energy and voltage, along with multiple spark capabilities, help improve the combustion processof the fuel mixture to create an efficient burn. This results in improved throttle response, smooth idle and quick starts, plus increased high rpm performance!

Coil Specifications:

Turns Ratio: 52:1
Primary Resistance: .57 ohms
Secondary Resistance: 3.1K ohms
Inductance: 5.8 mH
Maximium Voltage: 44,000Volts
Peak Current: 150 mA
Spark Duration: 1200 uS
